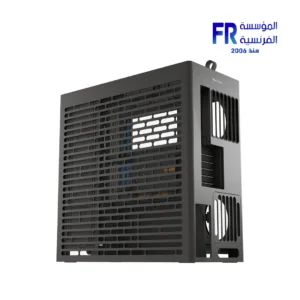

Havn HS420 Dual Chamber ATX Mid Tower Case

Havn HS420 Dual Chamber ATX Mid Tower Case

The Havn HS420 Dual Chamber ATX Mid Tower Case is a work of functional beauty. It offers user-centric innovation. This Hybrid Structure case delivers unrivaled central GPU airflow. It maintains traditional mid-tower dimensions within a dual-chamber design. Built for powerful fans and radiators, it provides optimal thermal performance for demanding tasks.

Key Features:

Optimized GPU Cooling & Panoramic View:

• Features a UniSheet heat-formed panoramic glass panel for the front and side. This minimizes visual distortion.
• Its GPU-centric design places the GPU centrally. This optimizes airflow and highlights your most important components.
• An additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card. This balances intake and exhaust. It also helps maintain a cleaner, dust-free system.

Extensive Cooling & Smart Cable Management:

• The HS420 fits a total of eleven 140mm fans. It supports up to 420mm radiators on its top, right, and bottom.
• An intuitive SimpliCable routing system and fan hub organize cables cleanly and discreetly. Top-to-bottom grooved guides ensure a pristine appearance.
• Clever silicon pass-throughs with stabilizing clips allow for precision cable management.
• All fan brackets have flexible rubber. This isolates them from the chassis, avoiding resonance buildup.

Versatile Support & Customization:

• A 3-way adjustable structural support bracket handles a wide range of graphics cards. It maintains a neat and smoothly integrated appearance.
• Customizable space accommodates various combinations of storage, fans, radiators, and portable displays. A VESA mounting bracket is included.

Explore compatible Cases or check HAVN Products for other options. Find full details on the official HAVN HS420 product page.

Specifications:

• Form Factor: Mid Tower
• Materials: SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
• PC Case Dimensions (L x W x H): 541 x 259.5 x 547 mm
• Net Weight: 17.84kg
• Front I/O: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio Jack, 1x Power Button, 1x Reset Button
• Motherboard Support: E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
• Expansion Slots: 6
• Fan Support (Max): 11 total (Top: 3×120/140mm, Right: 3×120/140mm, Bottom: 3×120/140mm, Rear: 2×120/140mm)
• Liquid Cooling Support:
  • Top: 280 / 360 / 420 mm (Max Thickness: 65 mm, not overlapping with RAM)
  • Right: 280 / 360 / 420 mm (Max Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
  • Bottom: 280 / 360 / 420 mm (Max Thickness: 120 mm)
• CPU Tower Cooler Clearance: Up to 185 mm height
• Graphics Card Clearance: Up to 480 mm length, Up to 195 mm width
• Power Supply Support: ATX (Up to 220mm length)
• Storage:
  • Right Fan Mount: 4 Storage Bays (4x 3.5” / 8x 2.5”)
  • Cable Management Tray: 1 Storage Bay (1x 3.5” / 2x 2.5”)
• Dust Filters: Bottom (Removable), Top (Built-in), Right (Built-in), Rear Bottom (Removable)
• Warranty: 1 year
• Part Number: HVN-CA-HS420-06
• UPC: 842946112153
