⚡ Engineering Highlights at a Glance:

• 32GB Dual-Channel Kit (2x16GB): Ample capacity for gaming, content creation, and multitasking workloads.
• DDR4-3600 MHz Speed: High-frequency memory for improved bandwidth and responsiveness.
• CL18 Latency: 18-22-22 timing at 1.35V for fast response times under load.
• Intel XMP 2.0 Support: Two pre-programmed profiles for one-click overclocking—3600MHz CL18 and 3000MHz CL16.
• RGB Lighting: Addressable RGB lighting for customizable visual effects.
• 1Rx8 Single-Rank Design: Eight 2G x 8-bit FBGA components per module for efficient performance.
• Gold Contact Fingers: Reliable electrical contact and corrosion resistance.
• 41.2mm Height: Low-profile heatsink clears most large CPU air coolers.

Platform Compatibility and XMP Profiles

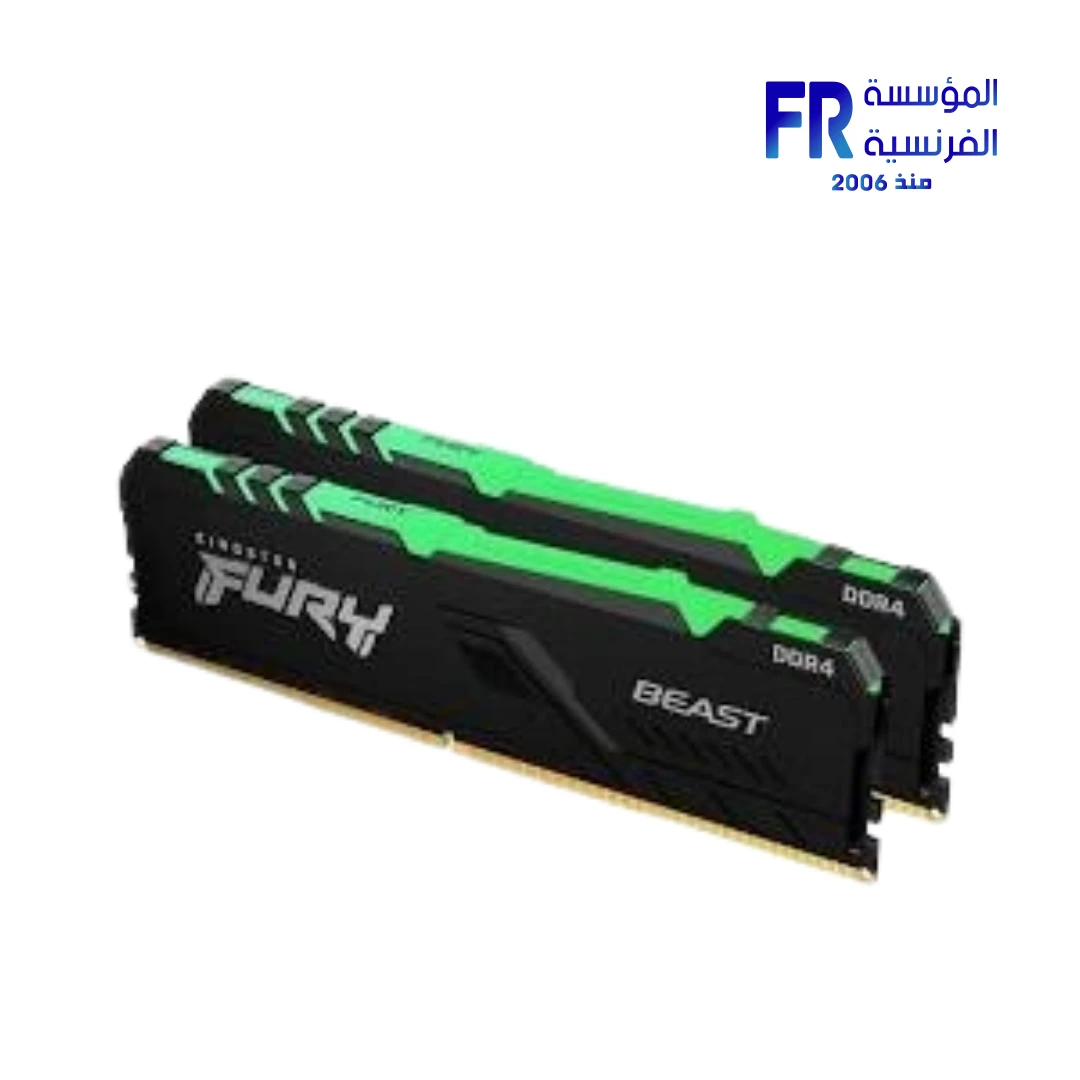

The Kingston FURY KF436C18BBAK2/32 is a DDR4 kit designed for Intel platforms with XMP 2.0 support. It ships with two XMP profiles: Profile #1 runs at DDR4-3600 CL18-22-22 at 1.35V, and Profile #2 runs at DDR4-3000 CL16-18-18 at 1.35V. Without XMP enabled, the modules run at JEDEC standard DDR4-2400 CL17-17-17 at 1.2V. Enable XMP in BIOS to reach the rated speeds. AMD platforms may run the kit at lower speeds depending on motherboard and CPU memory controller capability.

🔧 Installation and Configuration

This is a dual-channel kit (2x16GB) designed to be installed in matched pairs. Install both modules in the recommended slots (typically A2 and B2) per your motherboard manual to enable dual-channel operation. The 288-pin DDR4 DIMM form factor is not compatible with DDR5 or DDR3 slots. Ensure your motherboard supports DDR4 and has sufficient clearance for the 41.2mm heatsink height.

🌡️ Thermal and Electrical Specifications

The modules operate at 0°C to +70°C and can be stored from -40°C to +85°C. Power supply ratings include VDD = 1.2V typical, VDDQ = 1.2V typical, VPP = 2.5V typical, and VDDSPD = 2.2V to 3.6V. The DIMMs feature on-die termination (ODT), 16 internal banks (4 groups of 4 banks each), bi-directional differential data strobe, 8-bit pre-fetch, and burst length switch on-the-fly (BL8 or BC4). UL rating is 94 V-0.

Install both modules in the recommended dual-channel slots (typically A2 and B2) per your motherboard manual. Enable XMP Profile #1 in BIOS to run the kit at DDR4-3600 CL18-22-22 at 1.35V. If your system is unstable at 3600MHz, try XMP Profile #2 for DDR4-3000 CL16-18-18, or manually adjust voltage and timing. Verify your motherboard’s QVL to confirm compatibility at the rated speed. The 41.2mm heatsink height clears most large CPU air coolers, but check clearance if using a particularly wide cooler. Use Kingston FURY CTRL software or supported motherboard RGB software to customize lighting effects. The limited lifetime warranty provides long-term peace of mind. For AMD Ryzen systems, the memory may run at lower speeds depending on the CPU’s memory controller and motherboard support.
