⚡ Engineering Highlights at a Glance:

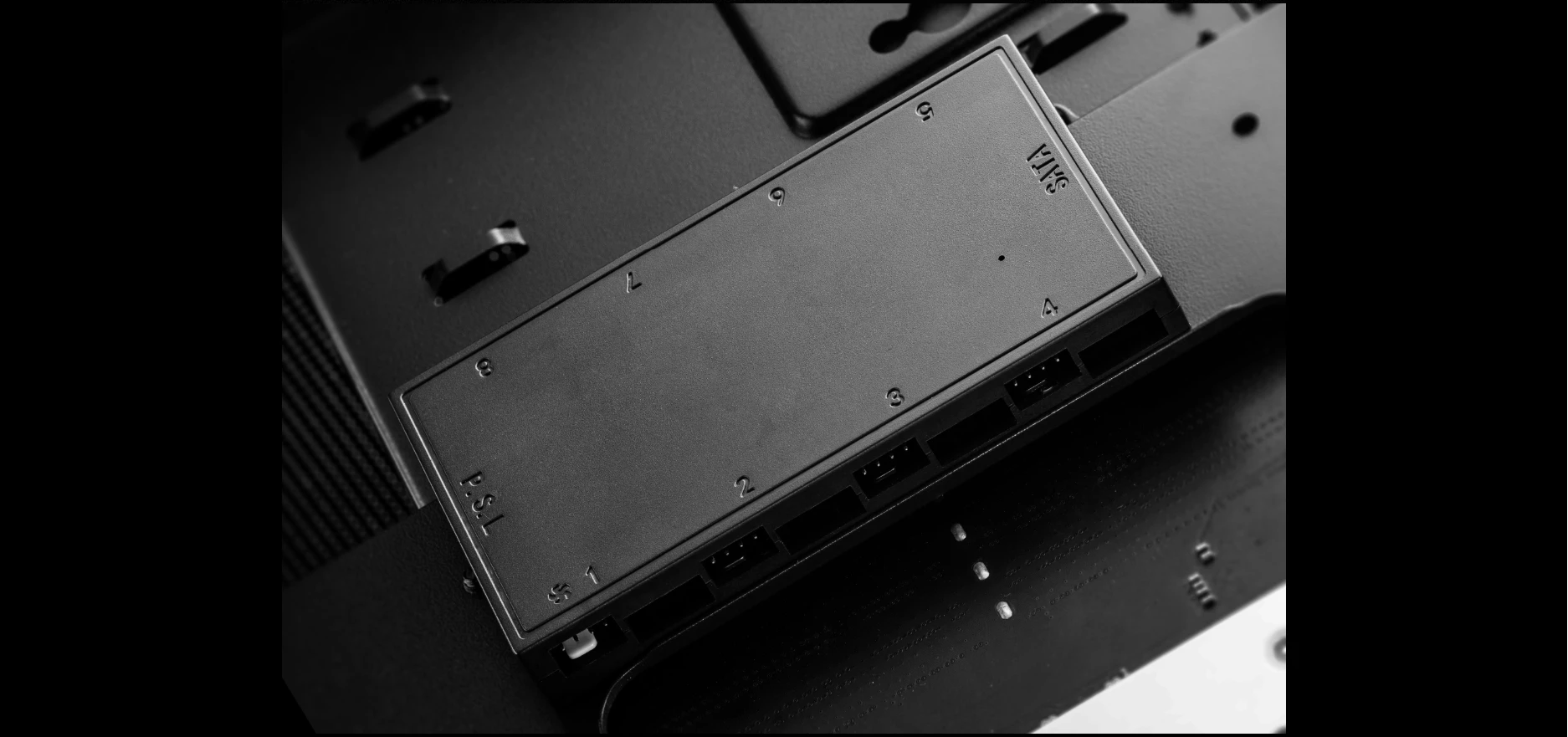

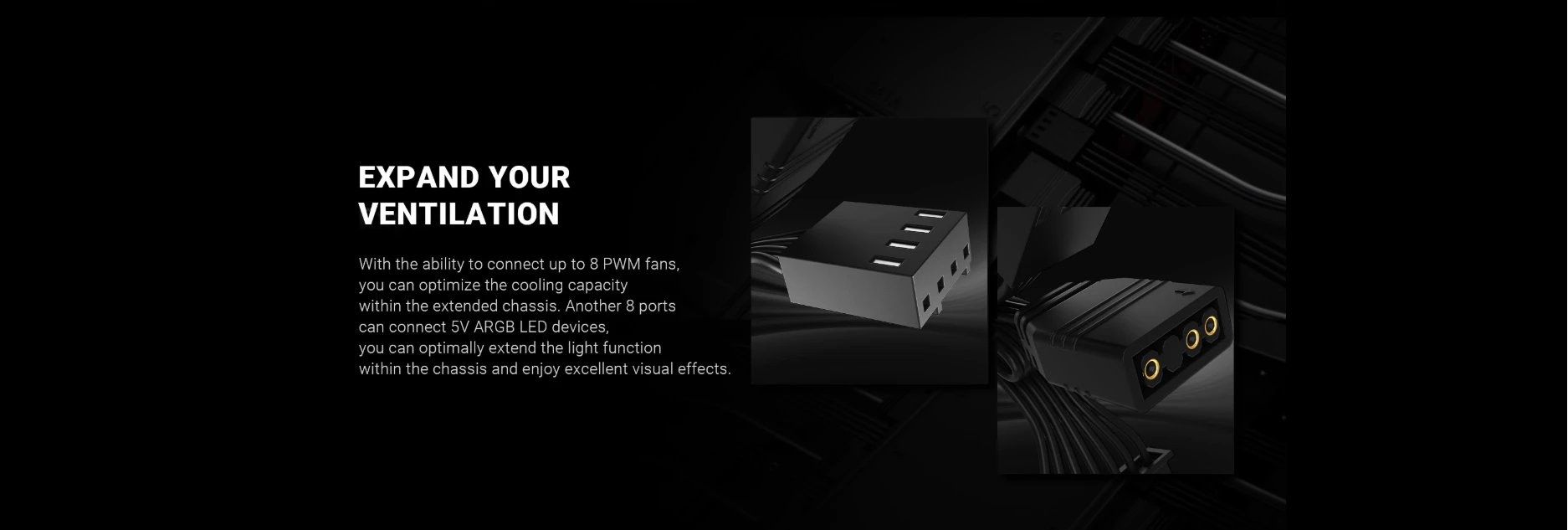

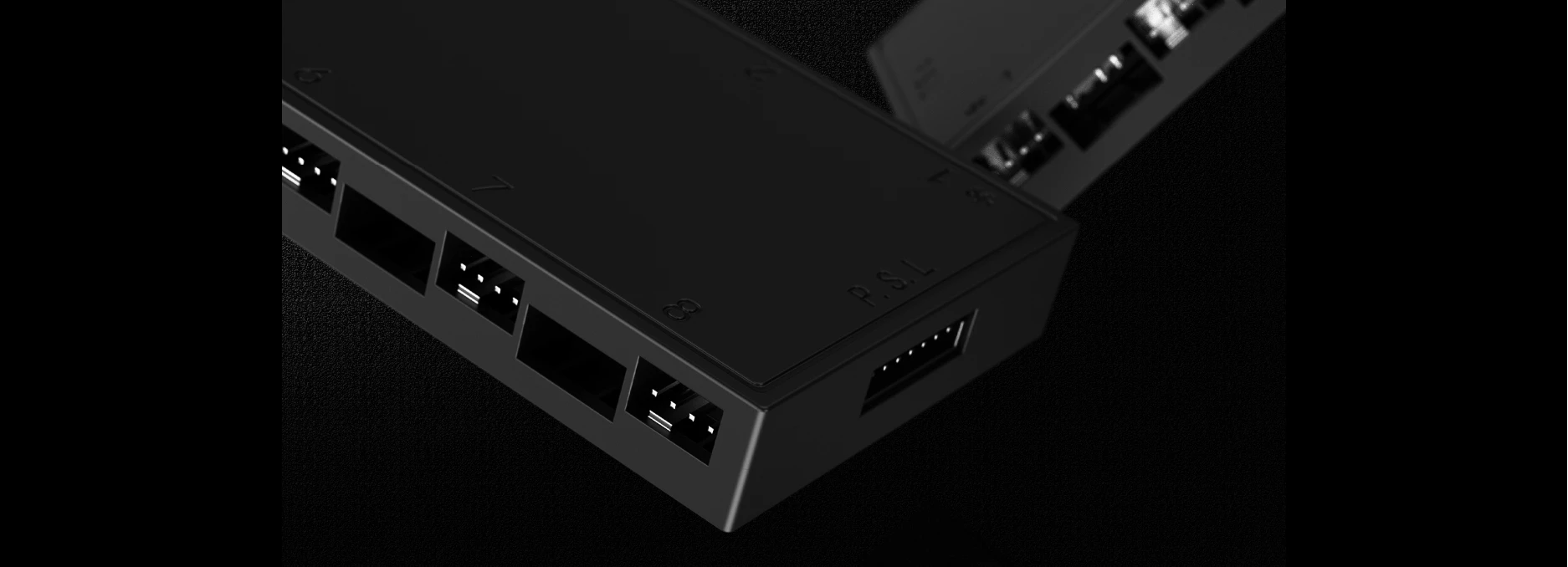

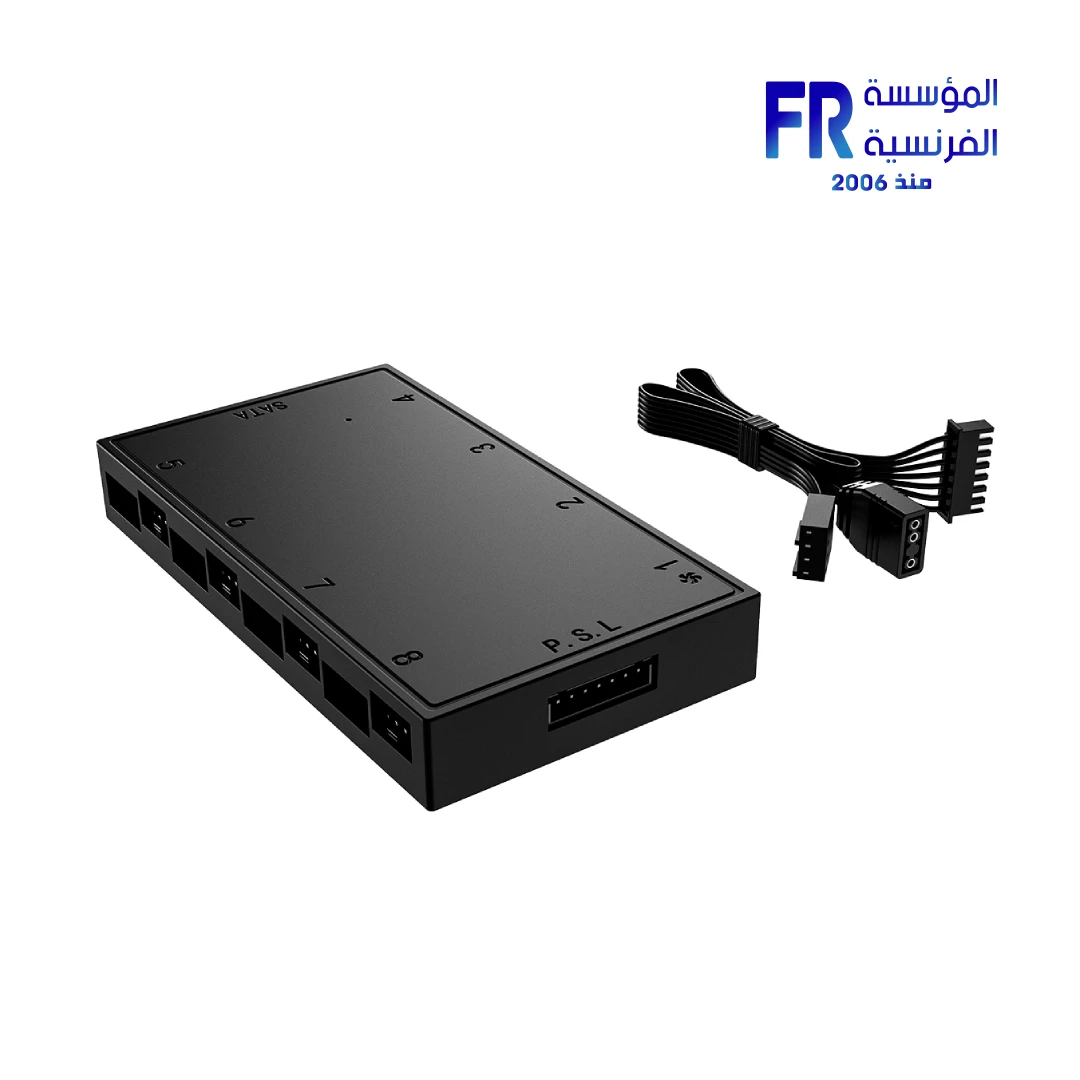

• 8 PWM Fan Ports: Connect and control up to eight PWM fans from a single hub.
• 8 ARGB LED Ports: Sync addressable RGB lighting across multiple fans or LED strips.
• SATA 12V Power Input: Provides stable power directly from your power supply.
• 5A Max ARGB Current: Ample current capacity for multiple ARGB devices.
• 500mm Cable Length: Flexible placement within most PC cases.
• Motherboard Sync or Controller: Supports 5V 3-pin ARGB motherboard synchronization or an optional standalone controller (not included).

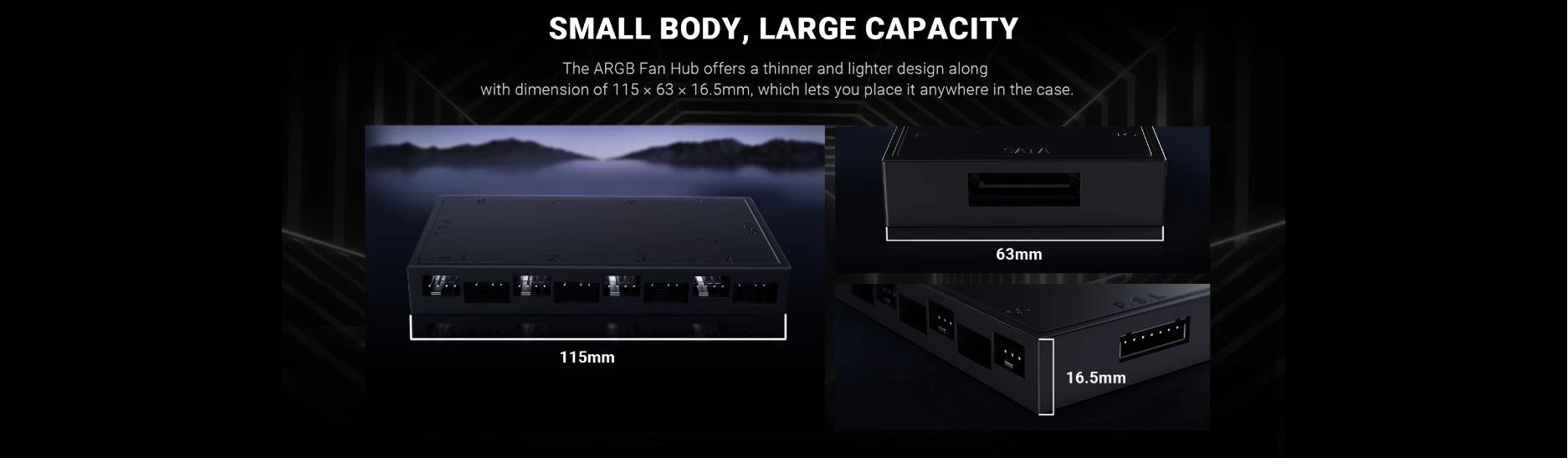

• Compact Design: Simplifies cable management and reduces clutter in the case.

Power and Connections

The HA-08 connects to your power supply via a SATA 12V connector for reliable power delivery. It provides 8 PWM fan ports and 8 ARGB LED ports for connecting multiple fans and lighting devices. The 500mm cable length allows flexible placement inside most PC cases. Ensure your power supply has an available SATA power connector before installation.

🔧 ARGB Control Options

The HA-08 supports two ARGB control methods: motherboard sync via a 5V 3-pin ARGB header, or an optional standalone controller (not included). For motherboard sync, connect the hub to your motherboard’s ARGB header and use your motherboard’s RGB software for control. If your motherboard lacks an ARGB header, you can use an optional controller to cycle through lighting effects.

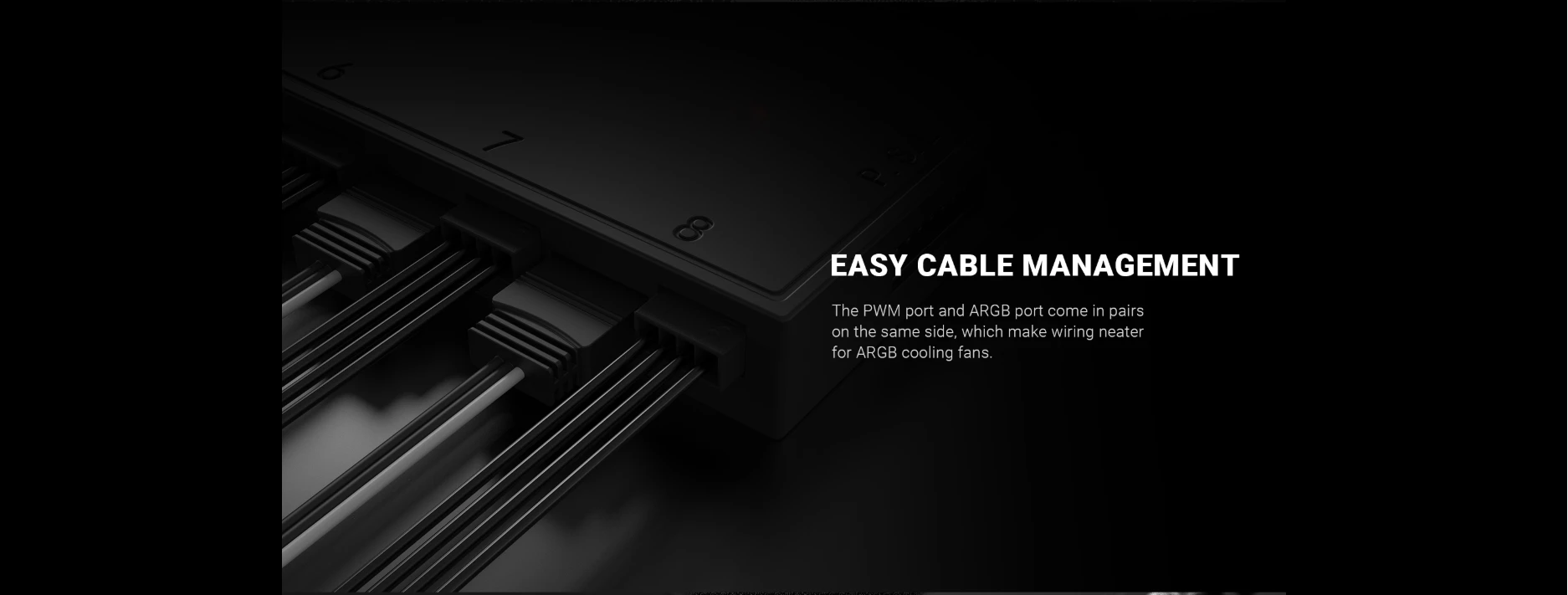

⚙️ Installation and Cable Management

The HA-08 hub reduces cable clutter by centralizing fan and ARGB connections into a single unit. Mount the hub using the adhesive backing or screws (depending on case layout), then connect your fans and ARGB devices to the corresponding ports. The 5A maximum ARGB current capacity supports multiple devices without overloading the hub. Verify the total current draw of your connected ARGB devices does not exceed this limit. The hub supports PWM fan speed control through the motherboard, allowing you to adjust fan curves based on system temperatures.

Before installation, check your power supply for an available SATA power connector. Mount the HA-08 hub in a convenient location inside your case using the adhesive backing or screws. Connect your PWM fans to the hub’s fan ports and your ARGB devices to the ARGB ports. For motherboard sync, connect the hub to a 5V 3-pin ARGB header and use your motherboard’s RGB software to control lighting effects. If your motherboard lacks an ARGB header, use an optional controller. Ensure the total current draw of connected ARGB devices does not exceed 5A. The HA-08 simplifies cable management by centralizing fan and ARGB connections, reducing clutter and improving airflow. Use your motherboard’s fan control software to set fan curves based on system temperatures. Periodically check connections to ensure they remain secure.
