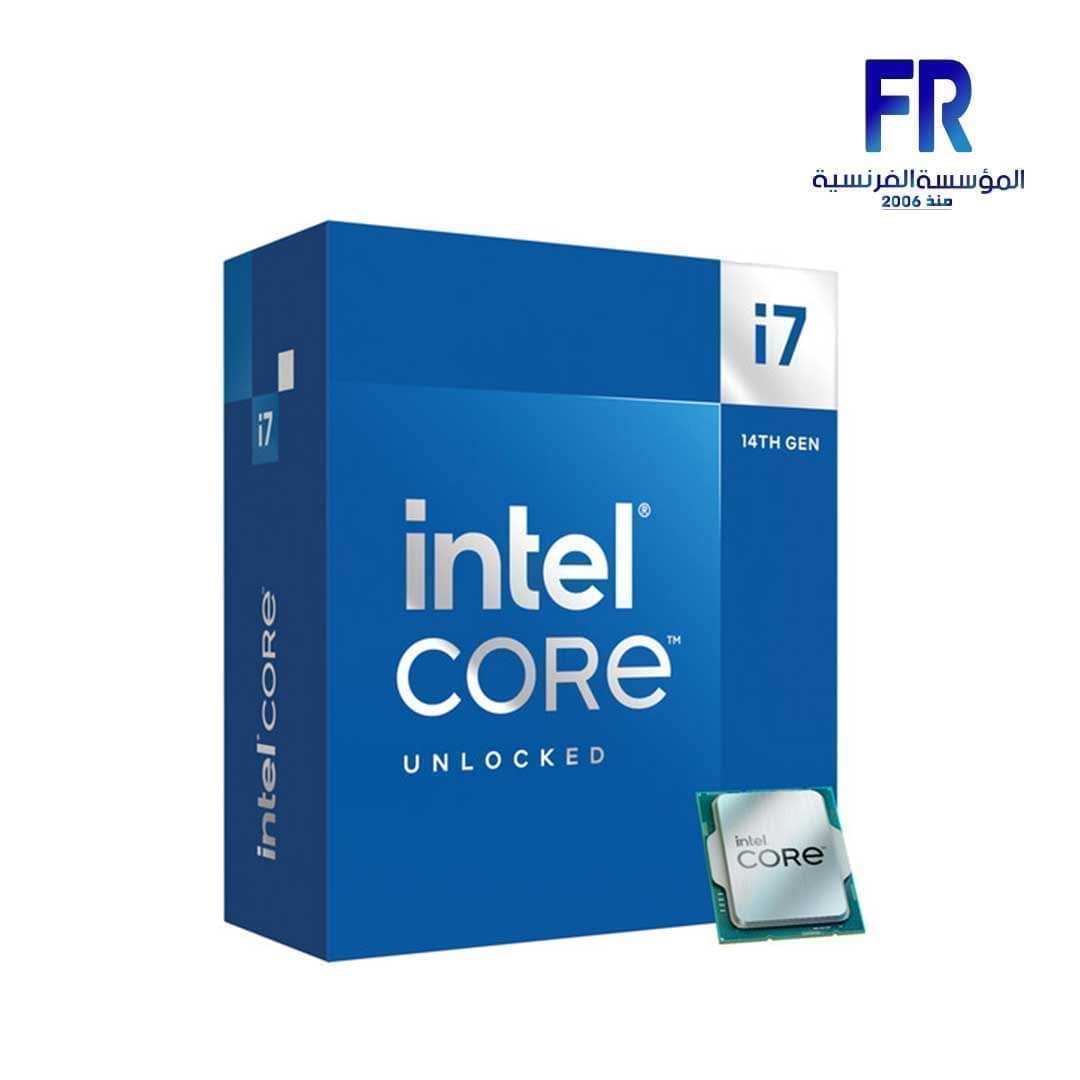

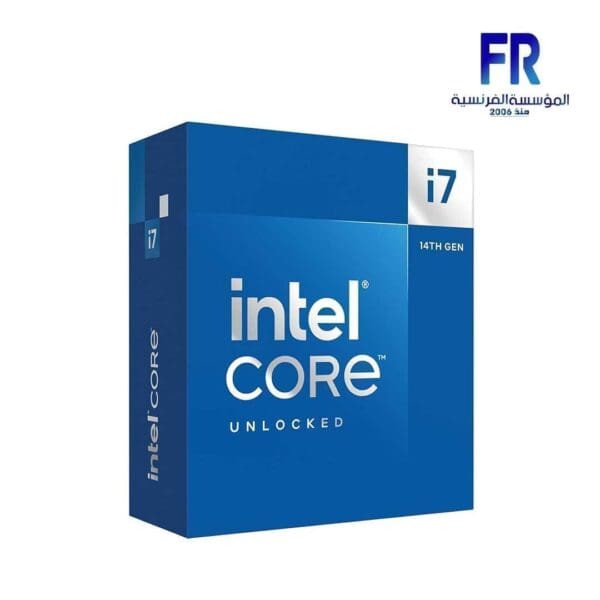

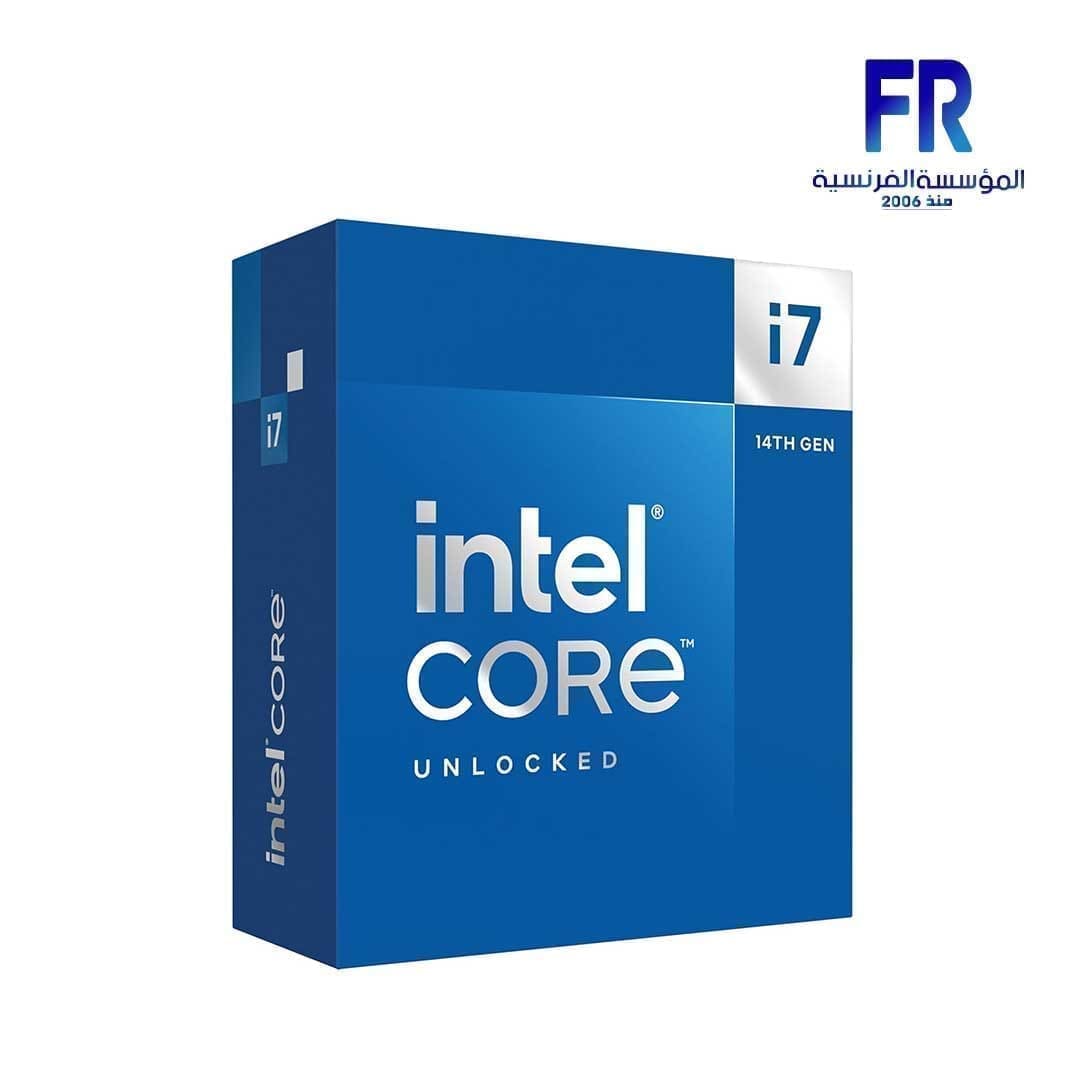

Intel Core I7 14700KF Processor

Essentials

• Product Collection: Intel® Core™ i7 Processors (14th gen)
• Code Name: Products formerly Raptor Lake
• Vertical Segment: Desktop
• Processor Number: i7-14700KF
• Lithography: Intel 7
• Recommended Customer Price: $384.00-$394.00

CPU Specifications

• Total Cores: 20
• # of Performance-cores: 8
• # of Efficient-cores: 12
• Total Threads: 28
• Max Turbo Frequency: 5.6 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: ‡ 5.6 GHz
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.3 GHz
• Performance-core Base Frequency: 3.4 GHz
• Efficient-core Base Frequency: 2.5 GHz
• Cache: 33 MB Intel® Smart Cache
• Total L2 Cache: 28 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 253 W

Marketing Status

• Marketing Status: Launched
• Launch Date: Q4’23
• Embedded Options Available: No
• Use Conditions: PC/Client/Tablet

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB
• Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: ‡ Up to 1×16+4, 2×8+4
• Max # of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020A
• TJUNCTION: 100°C
• Package Size: 45.0 mm x 37.5 mm
• Max Operating Temperature: 100°C

Advanced Technologies

• Intel® Volume Management Device (VMD): Yes
• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0: ‡ Yes
• Intel® Turbo Boost Technology: ‡ 2.0
• Intel® Hyper-Threading Technology: ‡ Yes
• Intel® 64: ‡ Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes

Security & Reliability

• • Intel® Standard Manageability (ISM): ‡ Yes
  • Intel® Control-Flow Enforcement Technology: Yes
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Execute Disable Bit: ‡ Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Virtualization Technology (VT-x): ‡ Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): ‡ Yes
  • Intel® VT-x with Extended Page Tables (EPT): ‡ Yes
