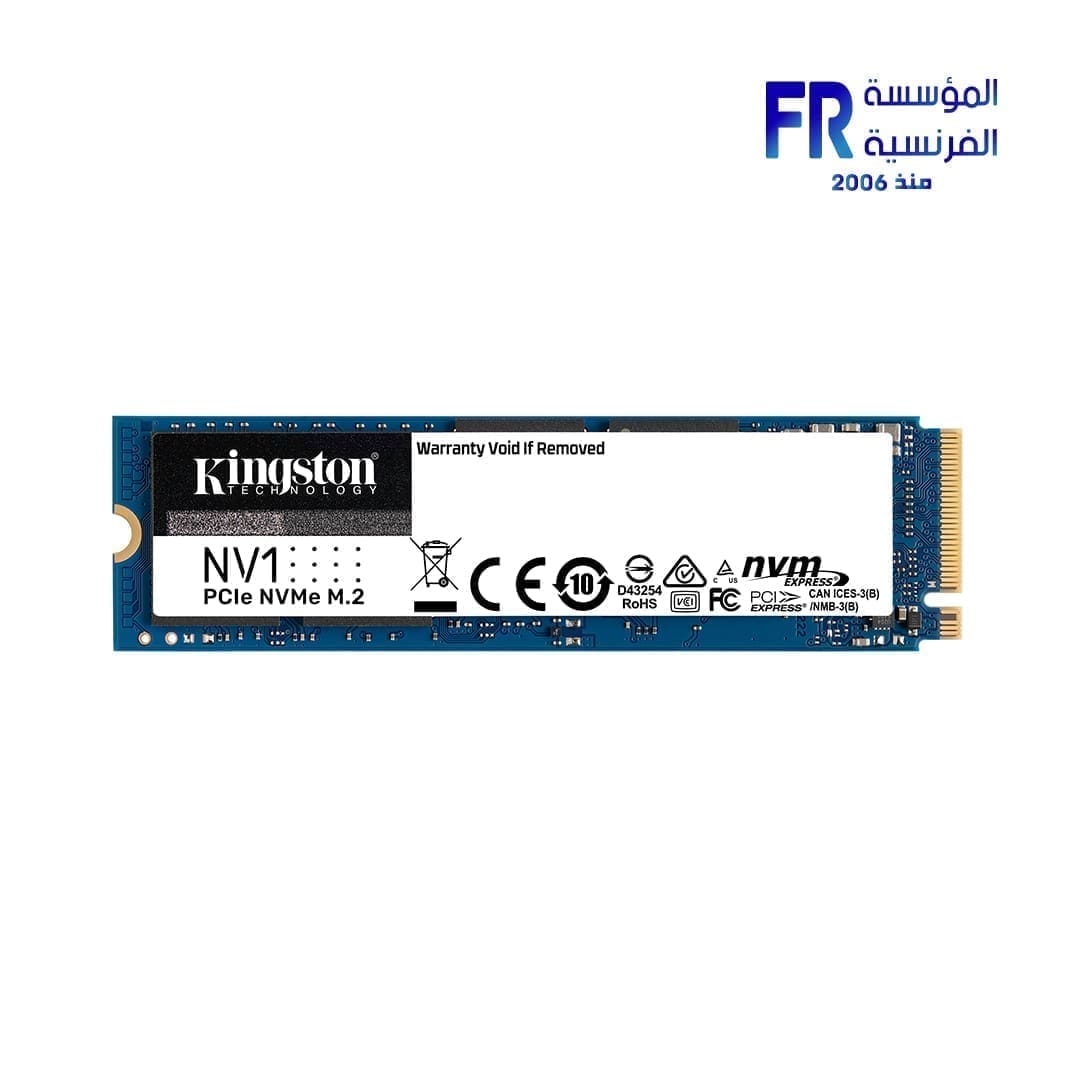

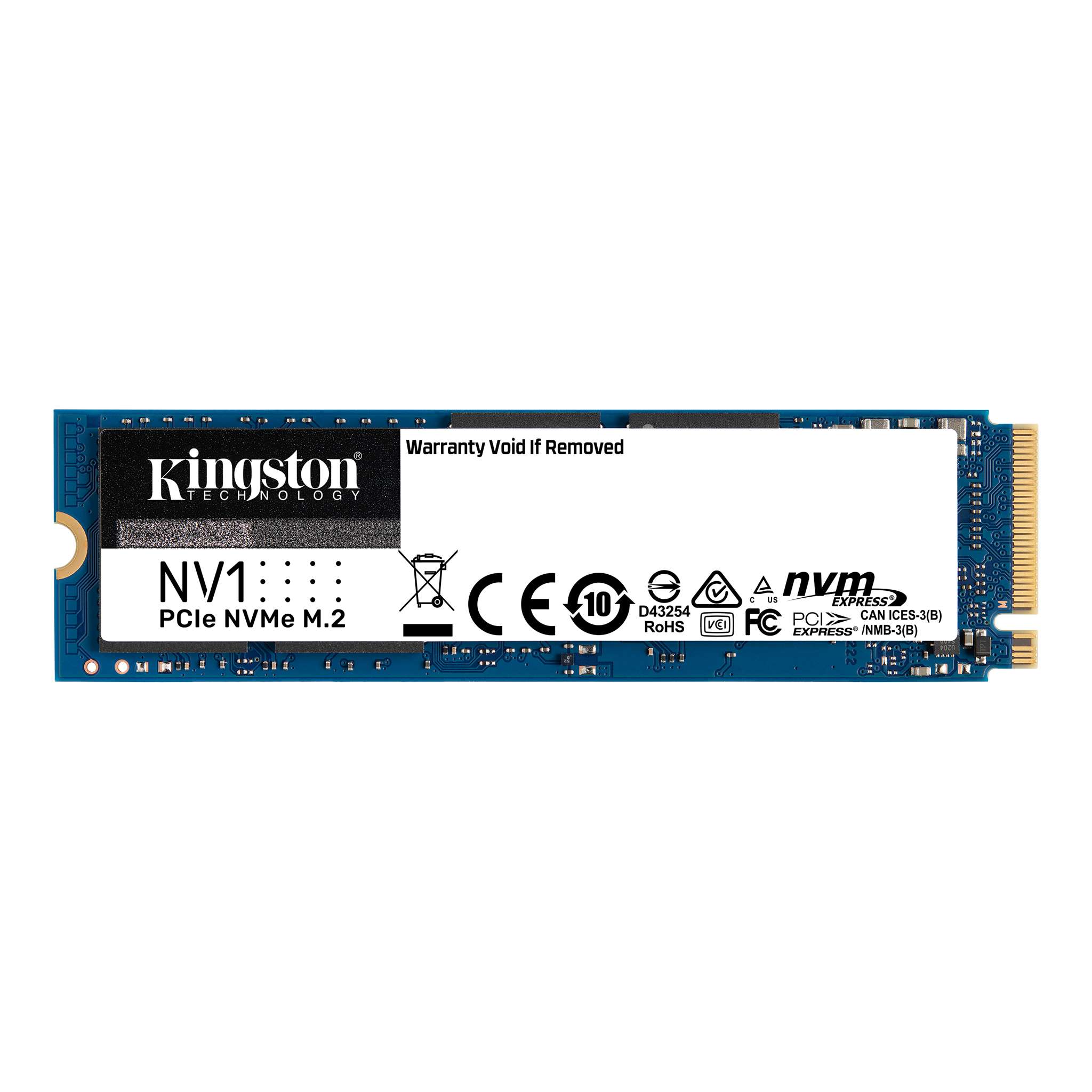

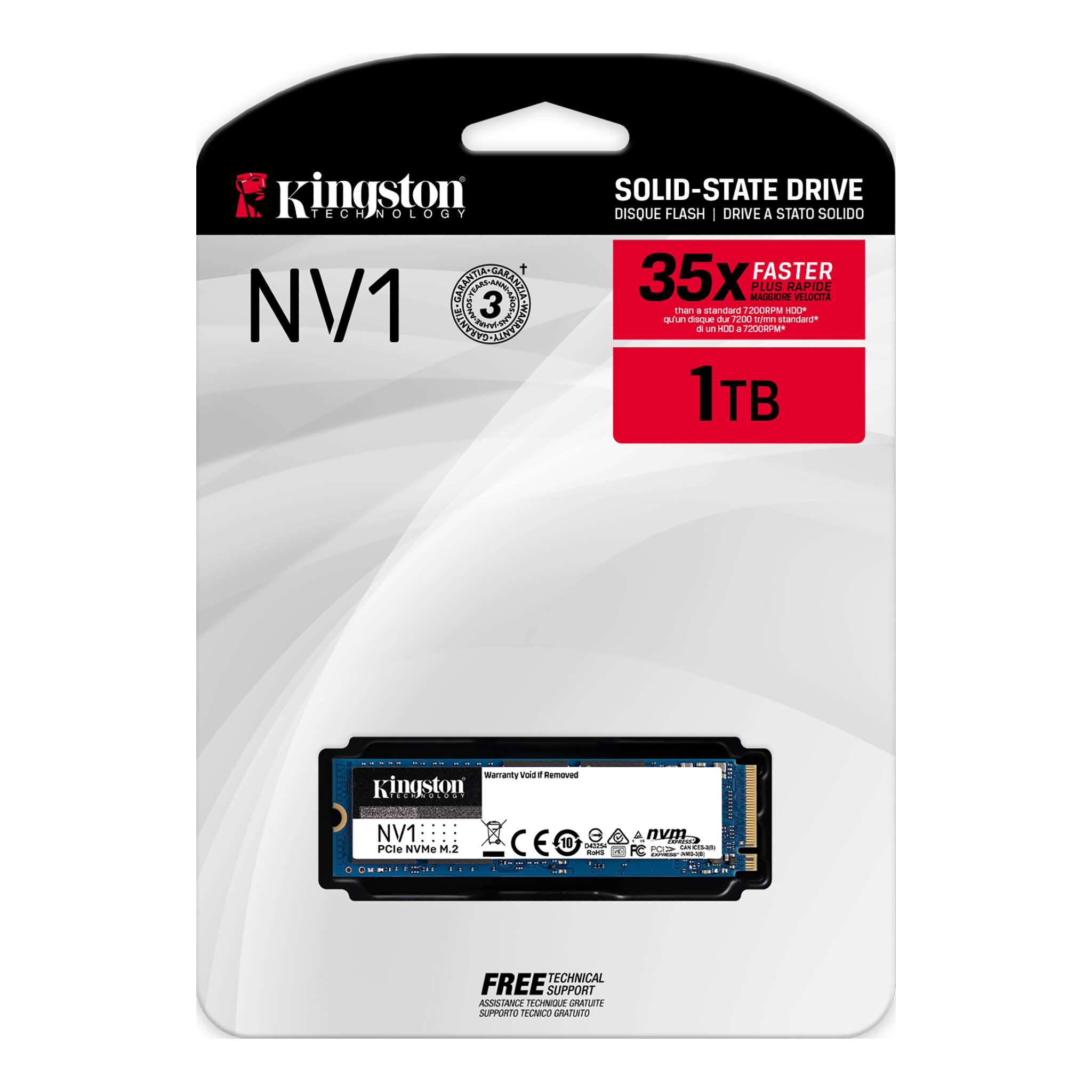

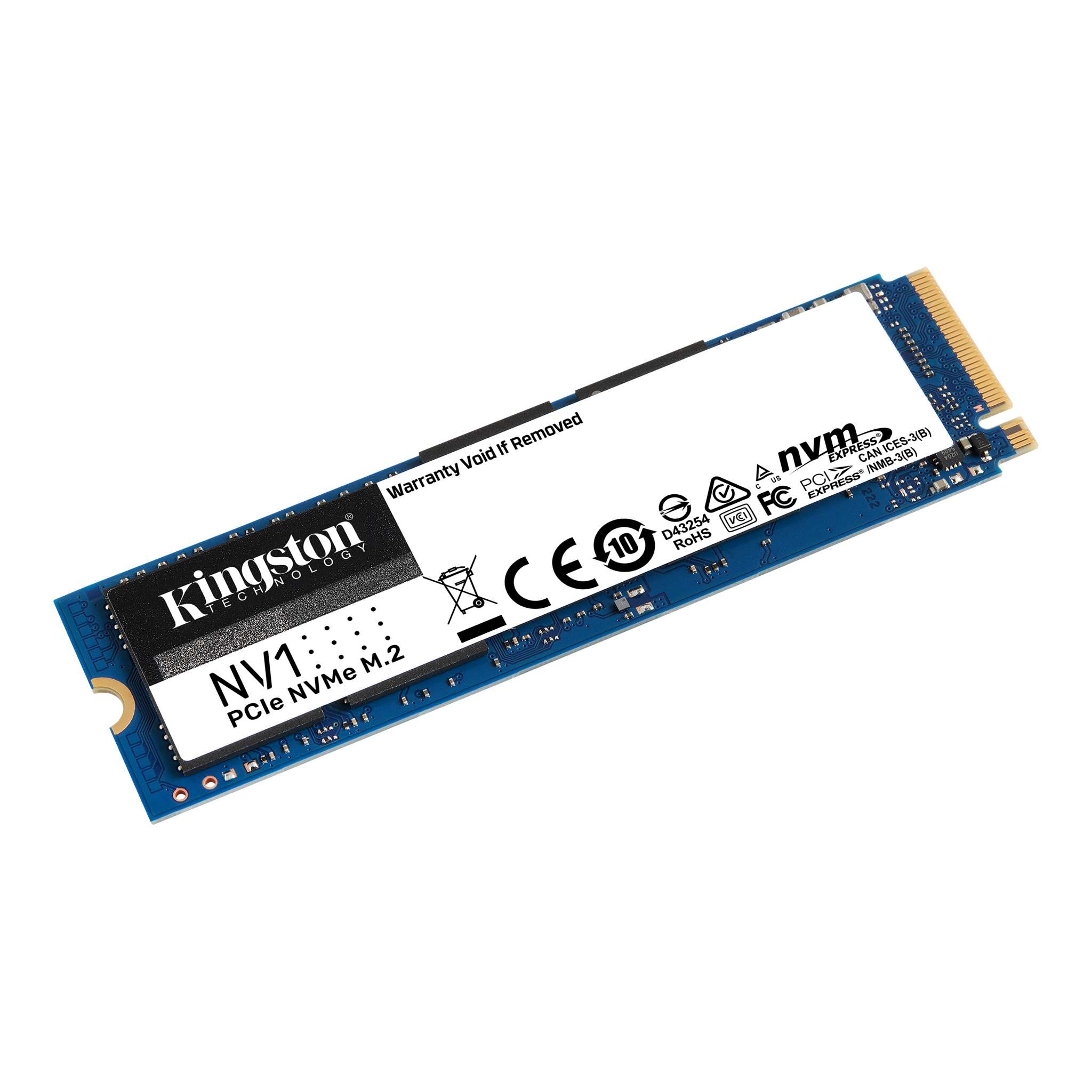

Kingston Nv1 1000Gb M.2 Nvme Internal Solid State Drive SSD

Form Factor M.2 2280
Interface NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacities2 250GB, 500GB, 1TB, 2TB
Sequential Read/Write1 250GB – 2100/1100MB/s
500GB, 1TB, 2TB – 2100/1700MB/s
Endurance3 250GB – 60TBW
500GB – 120TBW
1TB – 240TBW
2TB – 480TBW
Power Consumption 250GB: 5mW Idle / 85.5mW Avg / 0.99W (MAX) Read / 1.5W (MAX) Write
500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
1TB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
2TB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature -40°C~85°C
Operating Temperature 0°C~70°C
Dimensions 22mm x 80mm x 2.1mm
Weight 7g (All capacities)
Vibration Operating 2.17G (7-800 Hz)
Vibration Non-operating 20G (20-1000Hz)
MTBF 1,500,000 hours
