Lian Li Edge Gold EG1000G 1000W 80 Plus Gold ATX 3.1 Full Modular Power Supply

Lian Li Edge Gold EG1000G 1000W 80 Plus Gold ATX 3.1 Full Modular مزود الطاقة

The Lian Li Edge Gold EG1000G 1000W 80 Plus Gold Power Supply series features a unique L-shape design tailored for dual-chamber cases, a detachable USB and fan PWM hub (on 1000W/1200W models), and longer modular cables. Furthermore, it offers efficient cable management and a conveniently removable dust filter, blending aesthetics with convenience for your PC build.

Innovative Design & Gold Efficiency

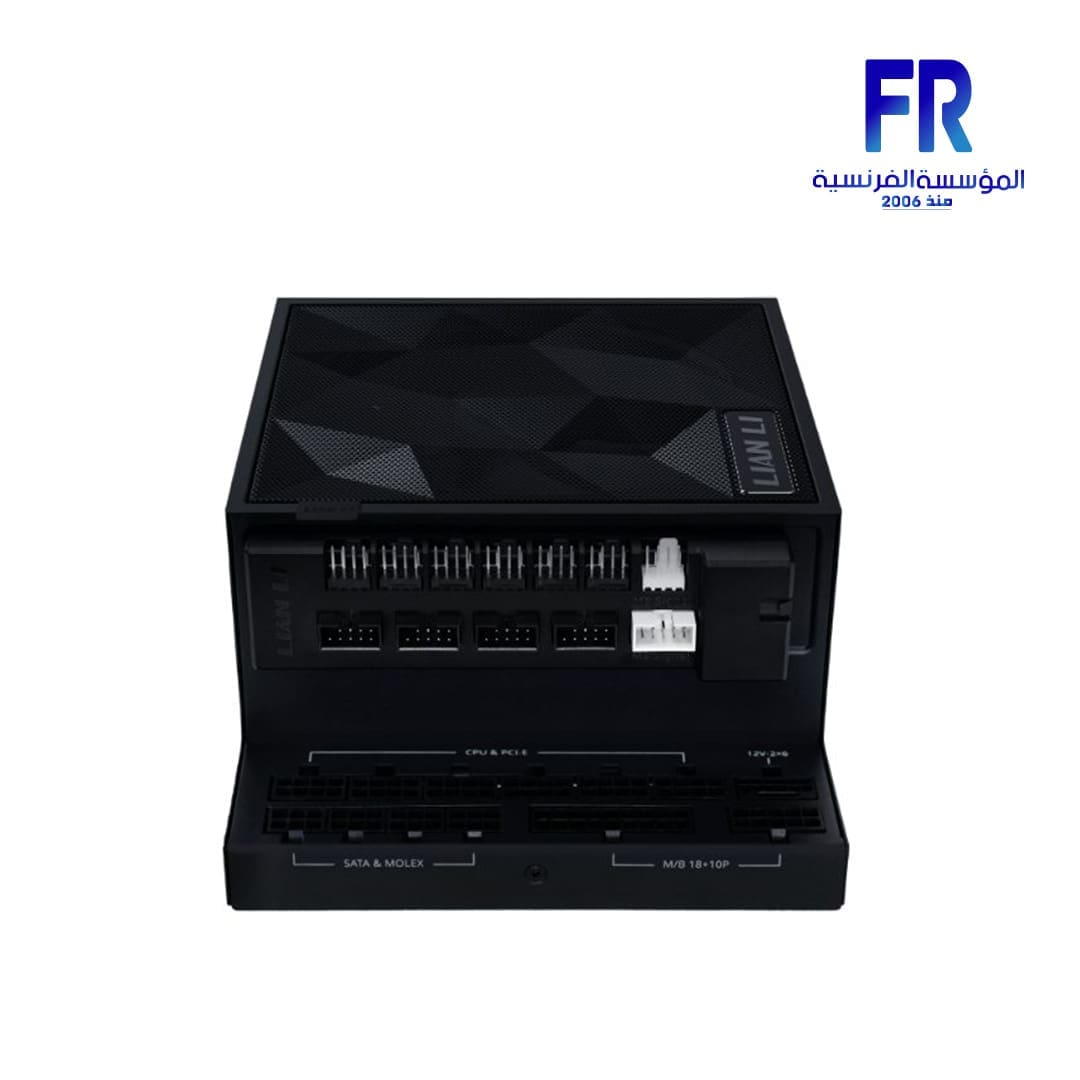

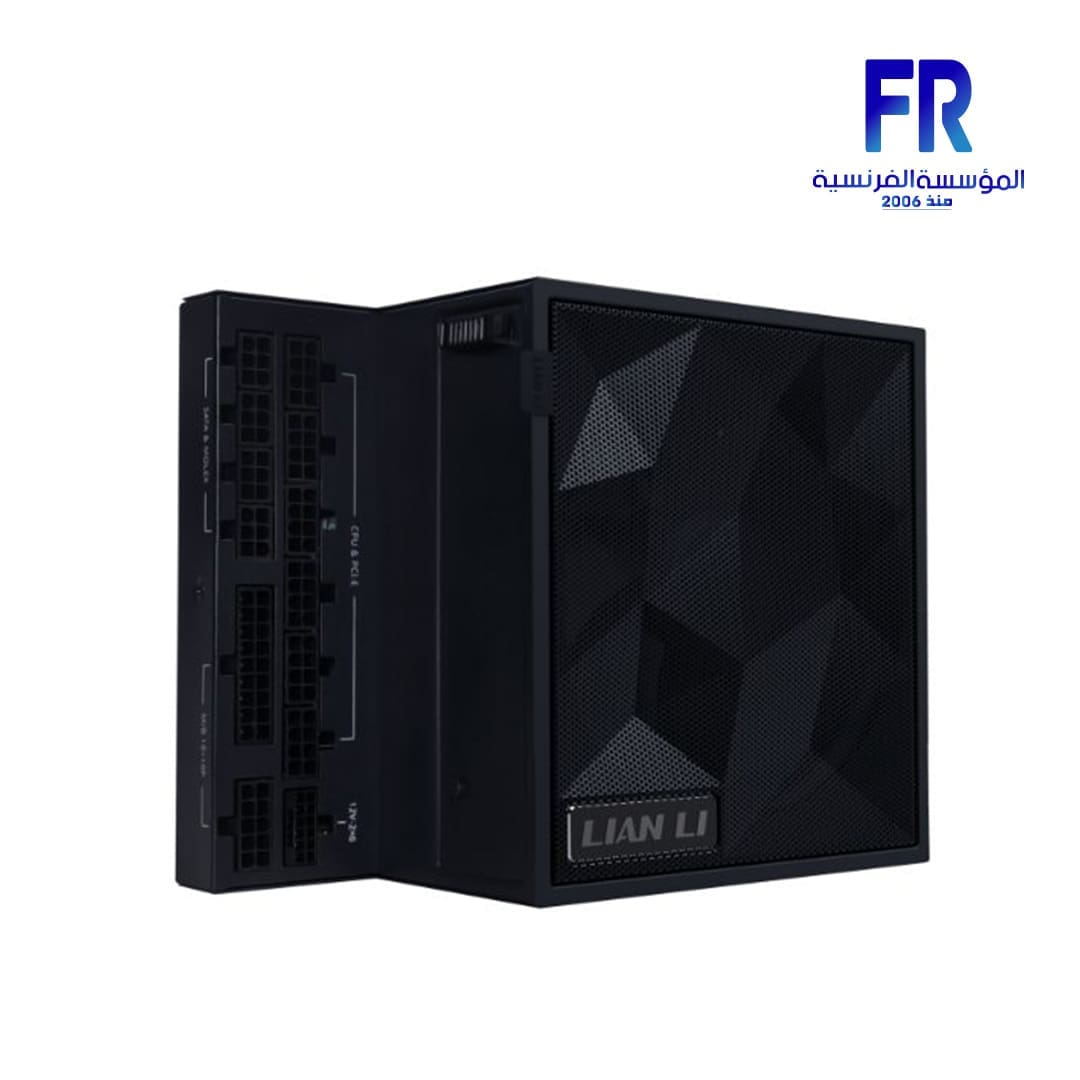

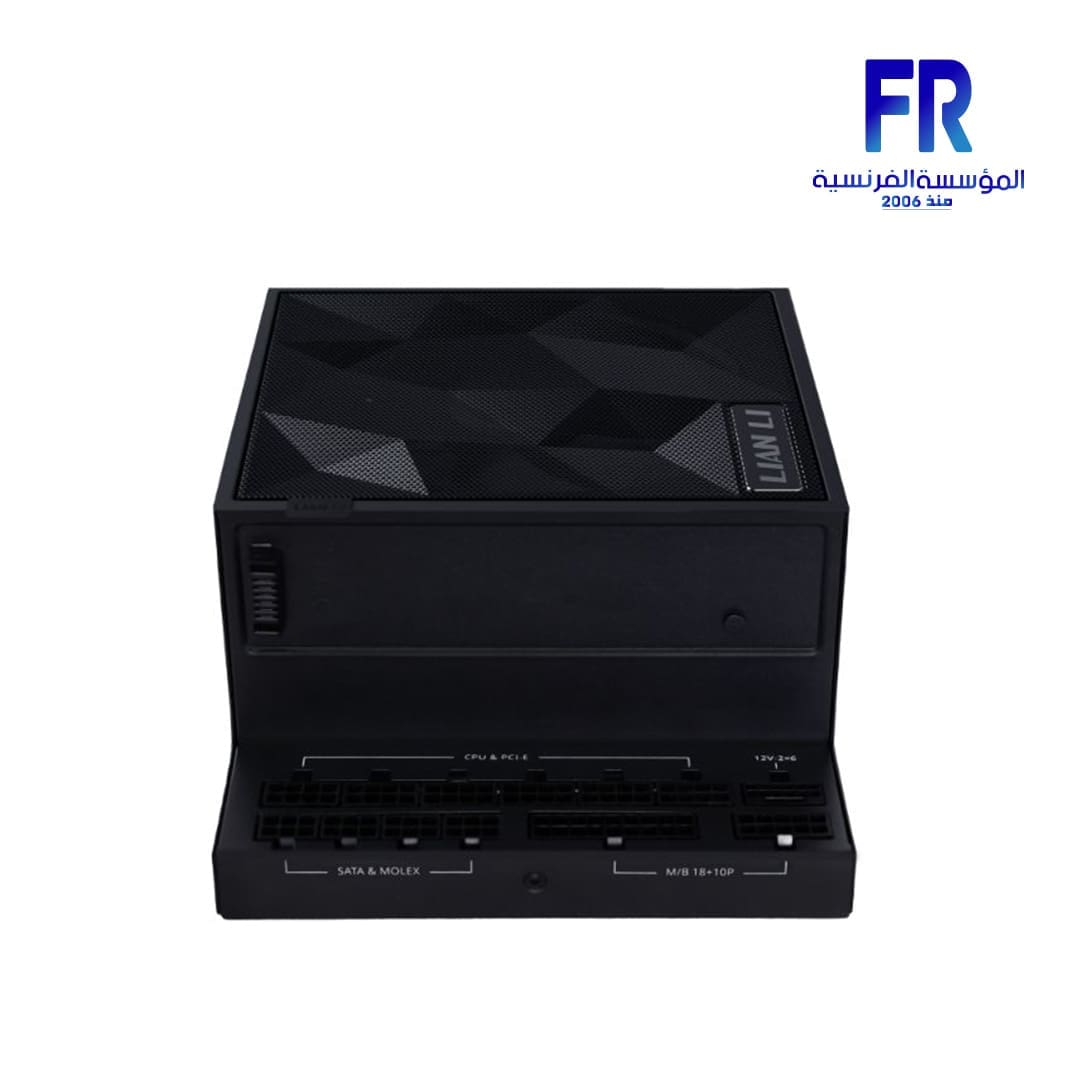

This ATX 3.1 compliant PSU delivers 1000W of 80 PLUS Gold certified power and features the unique L-shape form factor, reorienting connectors outward for simplified cable management in vertical installations. Specifically, the 1000W model includes a detachable “Edge Hub” module with 4 internal USB 2.0 headers (supporting up to 8 downstream connections) and 6 PWM fan headers. Additionally, it utilizes high-quality German EPCOS or equivalent Japanese capacitors and in-house R&D 12V-2×6 alloy copper soldered terminals for stable and efficient power delivery. The removable magnetic dust filter on top of the fan ensures dust-free operation.

The Edge Gold EG1000G ensures excellent energy efficiency, reducing power consumption and heat output, backed by 80 PLUS Gold and Cybenetics Platinum (for 1000W/1200W models) certifications. Moreover, it comes with fully modular, braided-texture sleeved cables with pre-installed, easy-to-adjust cable combs for a clean build; these cables are longer than the Edge Platinum series, making them ideal for various chassis types. The 120mm PWM FDB fan operates efficiently with minimal noise (up to 39.3dBA at max speed for the 1000W model), featuring a fanless mode for silent operation during low loads.

Explore compatible [Power Supplies] or check [Lian Li] Products for other options. Find full details on the official [Lian Li Edge Gold Series] product page.

Specifications (EDGE GOLD 1000 Black)

• Model Name: EDGE GOLD 1000
• Model Number: EG1000G (SKU for user’s EAN is EG1000G, regional variant might be EG1000G.BE00.UK)
• Color: Black (Also available in White)
• Dimensions (DxWxH): 182mm x 86mm x 150mm
• Power Supply Design: Fully Modular
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics PLATINUM (for 1000W/1200W) / PPLP GOLD
• Max. DC Output: 1000W
• Combined +3.3V & +5V: 120W
• Combined +12V: 996W
• Input Voltage: 100-240Vac
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: Up to 91.24% MAX
• Protective Circuits: OCP/OVP/OTP/OPP/SCP/UVP, NLO (No Load Operation), Inrush Current Limiter
• Connectors (1000W – EG1000G):
  • 1x 24/20-Pin Motherboard (620mm)
  • 1x 8/4+4 Pin CPU/ATX 12V (750mm)
  • 1x 4+4 Pin CPU/ATX 12V (750mm)
  • 1x PCIe 6+2 Pin (with additional 6+2 Pin on same cable, 650mm + 100mm)
  • 2x PCIe 6+2 Pin (single connector, 650mm)
  • 1x 12V-2×6 600W connector (650mm)
  • 1x 4×4-Pin Peripheral (500mm+150mm+150mm+150mm)
  • 1x 4xSATA (Close-Type: 300mm-15mm-15mm-15mm)
  • 1x 4xSATA (Straight: 400mm-150mm-150mm-150mm)
  • 1x 4xY-Type SATA (This was listed as “4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs” – interpreting as a third 4-connector SATA cable, perhaps with slightly different initial length)
  • 1x USB 9pin – USB 9pin (470mm) for Edge Hub to MB
  • 1x USB 9pin -Type A (550mm) for Edge Hub to MB
• Fan Type: 120mm FDB Fan (PWM, Fanless Mode)
• Fan Speed: Up to 2400 RPM
• Fan Noise Level: Up to 39.3 dBA
• Detachable Hub (Edge Hub – for 1000W/1200W): 4x internal USB 2.0 headers, 6x PWM fan headers, Magnetic Design, Independent Power Option (PCIe 8-pin)
• Dust Filter: Removable Magnetic (Top of Fan)
• Warranty: 10 Years (PSU), 2 Years (Edge Hub)
• EAN/UPC: 840353046818
