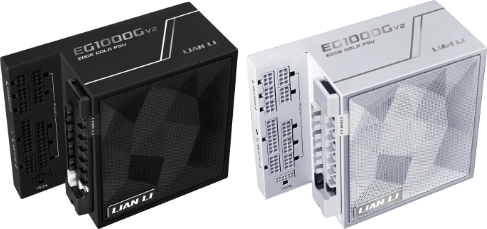

LIAN LI EDGE GOLD V2 1000W (EG1000C) 1000W 80 PLUS Gold ATX 3.1 Fully Modular with EDGE HUB V2 Black Power Supply
0 جنيه
- Model Name: LIAN LI EDGE GOLD V2 1000W (EG1000C), Black
- Maximum Output: 1000W
- Efficiency: 80 PLUS Gold, Cybenetics Gold and PPLP Gold
- Standard / Cabling: ATX 3.1, fully modular
- Cooling: 120mm PWM fan, up to 2000 RPM
- Included Hub: EDGE HUB V2
- الضمان: 10 Years (PSU); 2 Years (included hub)
هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟
LIAN LI EDGE GOLD V2 1000W (EG1000C) is a 1000W fully modular ATX power supply for compatible desktop systems. This black version provides 80 plus gold, cybenetics gold and pplp gold and a feature set suited to builds that need its specific wattage and physical layout.
Key Features
- Output: 1000W maximum DC output.
- Efficiency: 80 PLUS Gold, Cybenetics Gold and PPLP Gold.
- Modular cabling: Fully modular cables allow only the connections needed for the build.
- Form factor: L-shaped ATX design for compatible dual-chamber cases.
- Cooling: 120mm PWM fan, up to 2000 RPM; fan-stop mode is supported.
- Included hub: The included EDGE HUB V2 provides additional internal connectivity.
- Maintenance: Removable magnetic dust filter and a 360-hour fan-runtime cleaning reminder.
Who Should Consider It?
This PSU is a candidate for builds whose calculated power demand, connector requirements and case layout match its output and form factor. The EDGE layout is intended for compatible dual-chamber cases where cable access and routing are important.
For a lower-power system, compare actual component requirements and the available case space before selecting a higher-capacity PSU.
المواصفات الفنية
| Product family / model | LIAN LI EDGE GOLD V2 1000W (EG1000C) |
|---|---|
| Color | Black |
| Maximum DC output | 1000W |
| Power supply design | Fully modular |
| Standard | ATX 3.1 |
| Efficiency certification | 80 PLUS Gold, Cybenetics Gold and PPLP Gold |
| Form factor / dimensions | ATX; 182 × 86 × 150 mm (D × W × H) |
| Cooling | 120mm PWM fan, up to 2000 RPM |
| Fan-stop mode | Supported |
| Input voltage | 110–240V AC |
| Power factor correction | Active PFC |
| الضمان | 10 Years (PSU); 2 Years (included hub) |
Buying Recommendation
Choose this model when its output, certification, physical dimensions and connector layout suit the complete system. Confirm the case fit and GPU power-cable requirements before installation.
Frequently Asked Questions
Is the PSU fully modular?
Yes. The manufacturer lists this model as fully modular.
What form factor does it use?
It uses an ATX form factor. Check case dimensions and the installation layout before purchase.
What is the warranty?
10 Years (PSU); 2 Years (included hub). Confirm the applicable local terms with the seller.
Which hub is included?
This model includes the EDGE HUB V2. Check its internal header and power requirements before installation.
Specifications are based on LIAN LI’s published documentation for the relevant PSU series and wattage.
| MODEL | |
|---|---|
| قدرة مزود الطاقة | |
| Psu-Cable-Type | |
| ENERGY EFFICIENT | |
| الضمان |
| Color | Black |
|---|---|
| Power Standard | ATX 3.1 |
| Dimensions | 182 x 86 x 150 mm |
| Fan Type | 120mm FDB |
| Fan Speed | 2000 RPM |
| Included Hub | EDGE HUB V2 |
| Protections | OCP, OVP, OTP, OPP, SCP, UVP, SIP, NLP |
