Name: LIAN LI EDGE GOLD V2 1000W (EG1000C) 1000W 80 PLUS Gold ATX 3.1 Fully Modular with EDGE HUB V2 White Power Supply
Brand: LIAN LI
SKU: 136253
Availability: OutOfStock

LIAN LI EDGE GOLD V2 1000W (EG1000C) 1000W 80 PLUS Gold ATX 3.1 Fully Modular with EDGE HUB V2 White Power Supply

0 جنيه

Model Name: LIAN LI EDGE GOLD V2 1000W (EG1000C), White
Maximum Output: 1000W
Efficiency: 80 PLUS Gold, Cybenetics Gold and PPLP Gold
Standard / Cabling: ATX 3.1, fully modular
Cooling: 120mm PWM fan, up to 2000 RPM
Included Hub: EDGE HUB V2
الضمان: 10 Years (PSU); 2 Years (included hub)

Out Of Stock.

هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟

التصنيف: مزود الطاقة العلامة التجارية: LIAN LI

LIAN LI EDGE GOLD V2 1000W (EG1000C) is a 1000W fully modular ATX 3.1 power supply. This white version is certified 80 plus gold, cybenetics gold and pplp gold and combines flexible cabling with a cooling design intended for modern desktop builds. It is supplied with the EDGE HUB V2, adding internal connectivity beyond the PSU itself.

Key Features

Output: 1000W maximum DC output.
Efficiency: 80 PLUS Gold, Cybenetics Gold and PPLP Gold.
Modular cabling: Fully modular cables simplify cable selection and routing.
Layout: L-shaped ATX 3.1 design for compatible dual-chamber cases.
Cooling: 120mm PWM fan, up to 2000 RPM; a fan-stop mode is supported.

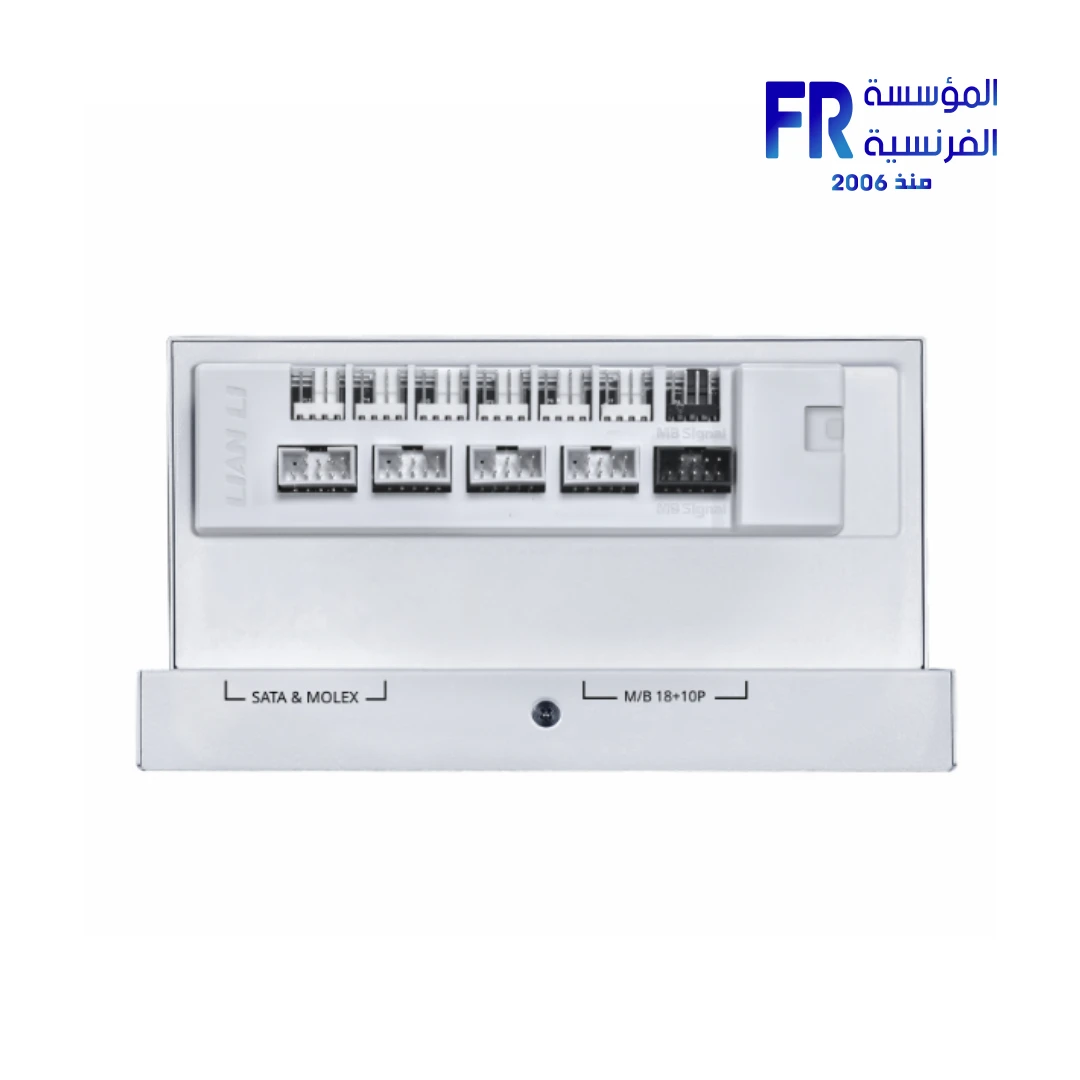

الاتصال: The included EDGE HUB V2 provides eight downstream USB signals, six PWM fan ports and L-Connect 3 monitoring.
Maintenance: The Edge V2 design includes a removable magnetic dust filter and a 360-hour fan-runtime cleaning reminder.

Who Should Consider It?

This model suits builders whose calculated system power needs, required connectors and case layout match its output and form factor. The L-shaped EDGE design is intended for compatible dual-chamber cases where connector access and cable routing matter.

For a lower-power or compact build, compare the required wattage, PSU dimensions and connector layout before choosing a model. The correct PSU depends on the complete component configuration, not just the graphics card.

المواصفات الفنية

Product family / model	LIAN LI EDGE GOLD V2 1000W (EG1000C)
Color	White
Maximum DC output	1000W
Power supply design	Fully modular
Standard	ATX 3.1
Efficiency certifications	80 PLUS Gold, Cybenetics Gold and PPLP Gold
Form factor / dimensions	ATX; 182 × 86 × 150 mm (D × W × H)
Cooling	120mm PWM fan, up to 2000 RPM
Fan-stop mode	Supported
Input voltage	110–240V AC
Power factor correction	Active PFC
Included hub	EDGE HUB V2
الضمان	10 Years (PSU); 2 Years (included hub)

Buying Recommendation

Choose this model when its output, efficiency certification, physical dimensions and connector layout suit the complete system. Confirm the exact case fit and cable requirements before installation.

Frequently Asked Questions

Is this PSU fully modular?

Yes. The manufacturer lists this model as fully modular.

Which hub is included?

This listing includes the EDGE HUB V2. Verify the hub’s header and power requirements before connecting devices.

What is the warranty?

10 Years (PSU); 2 Years (included hub). Confirm the applicable local terms with the seller.

Will it fit any case?

No. Confirm the case’s PSU form factor, available dimensions and cable clearance before purchase.

Specifications are based on LIAN LI’s published documentation for the relevant PSU series and wattage.

POWER SUPPLY

MODEL	EDGE GOLD V2 EG1000C
قدرة مزود الطاقة	1000W
Psu-Cable-Type	Fully modular
ENERGY EFFICIENT	80 PLUS GOLD
الضمان	10 Years
