Name: Lian Li Edge Hub ADV Power Supply Hub
Brand: LIAN LI
SKU: 136263
Availability: OutOfStock

Lian Li Edge Hub ADV Power Supply Hub

0 جنيه

Model Name: LIAN LI EDGE HUB ADV Black
Model Code: EG-HUB03B
USB Expansion: 7 downstream USB signals; one signal reserved for GPU connector temperature monitoring
Fan Control: 6 × 4-pin PWM ports, up to 2A per port
Monitoring: Supported 12V-2×6 GPU power-cable temperature monitoring and alerts through L-Connect 3
Mounting: Magnetic
الضمان: 2 Years

Out Of Stock.

هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟

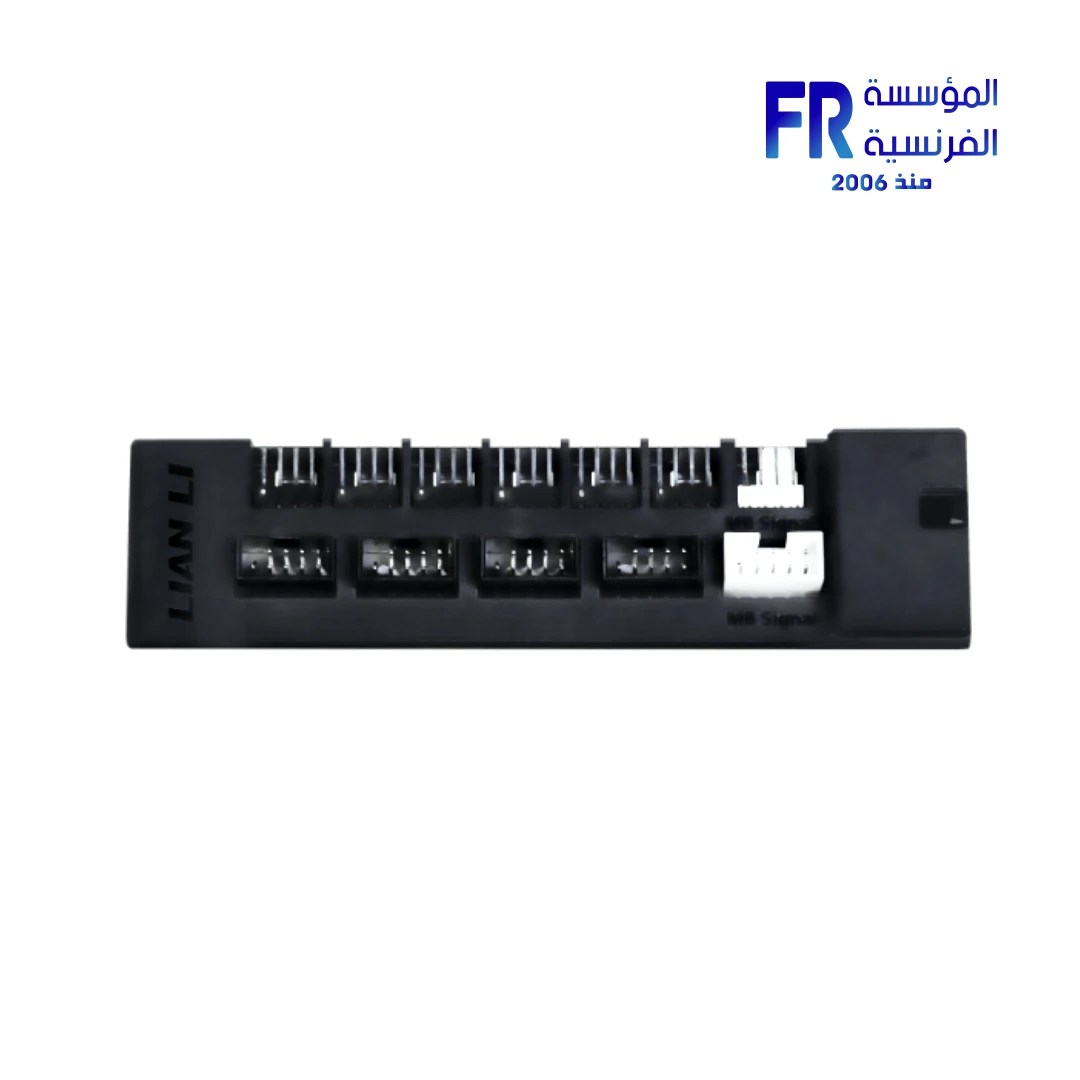

The LIAN LI EDGE HUB ADV is an internal USB and PWM fan hub designed to expand connectivity inside a PC. This black version combines four physical USB ports with six 4-pin PWM fan connections, dual-chip USB architecture and magnetic mounting. It also monitors supported 12V-2×6 GPU power-cable temperatures and can provide configurable alerts and automatic shutdown protection through L-Connect 3.

Key Features

USB expansion: 7 downstream USB signals across four physical USB ports; one channel is reserved for GPU connector temperature monitoring.

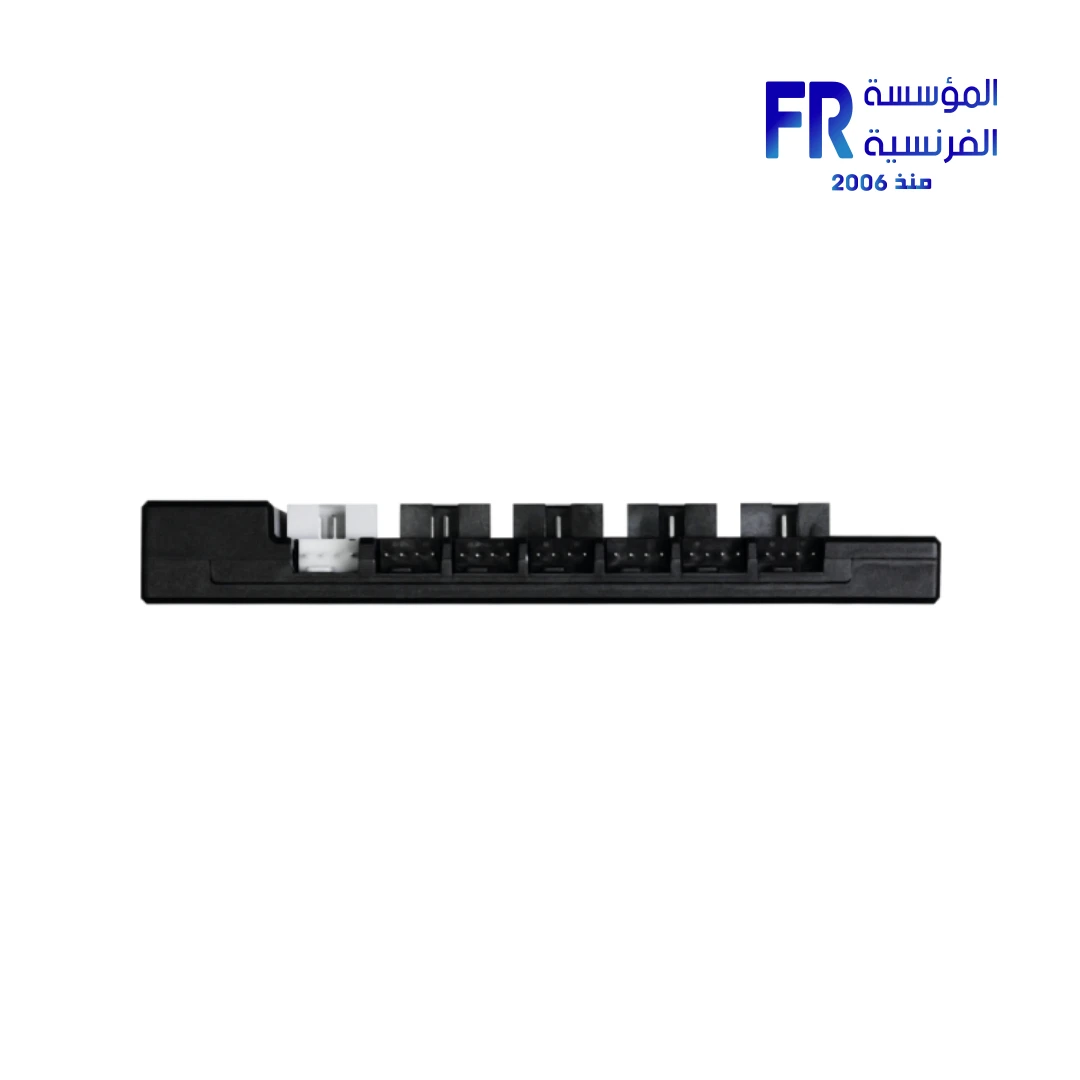

Fan control: Six 4-pin PWM ports, each rated for up to 2A.
Dual-chip design: Two hub chips distribute connected USB devices across separate paths.
Software monitoring: L-Connect 3 provides USB activity monitoring and hub information. It also provides thermal readings and alerts for supported GPU power connections.
Flexible power: Power it through a compatible EDGE PSU connection or a PCIe 8-pin cable.

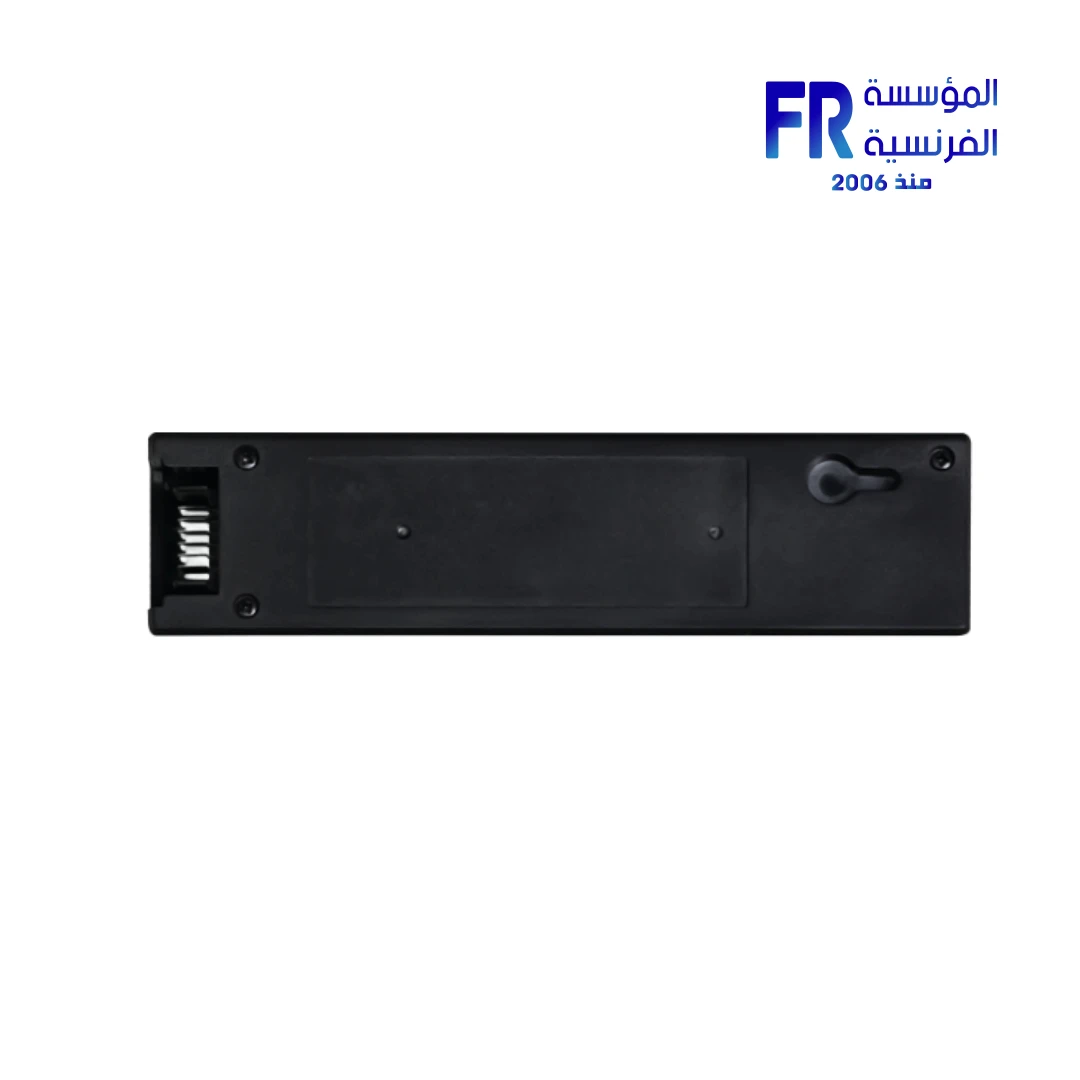

Magnetic mounting: Attach the hub in a suitable position inside the PC case.

Who Is It For?

This hub is useful in builds with several internal USB-controlled devices, LCD-equipped components or multiple PWM fans. The ADV version is the one to consider when GPU 12V-2×6 connector temperature monitoring is required; the standard V2 focuses on USB expansion and monitoring without the ADV thermal-monitoring feature.

المواصفات الفنية

الموديل	EDGE HUB ADV
Model code	EG-HUB03B
Color	Black
Dimensions	35 × 132 × 17 mm
USB architecture	Dual 1-to-4 hub chips
Downstream USB signals	7; one signal reserved for GPU connector thermal monitoring
PWM fan connections	6 × 4-pin PWM, up to 2A per port
USB input	Motherboard USB 3.0 header; USB 2.0 9-pin fallback supported
Power source	Compatible EDGE Series PSU connection or PCIe 8-pin power
Software	L-Connect 3
Mounting	Magnetic
Manufacturer warranty	2 Years

Buying Recommendation

Choose EDGE HUB ADV when its GPU connector temperature monitoring is part of your build plan. Confirm the cable routing, available headers and power connection before purchase.

Frequently Asked Questions

How many USB connections does it provide?

The four physical USB ports provide seven downstream USB signals because one signal is reserved for GPU connector thermal monitoring.

How many fans can connect?

The hub has six 4-pin PWM fan ports, each rated up to 2A. Check the electrical requirements of the connected fans.

Can it be powered without an EDGE PSU?

LIAN LI specifies independent power through a PCIe 8-pin cable as an alternative to a compatible EDGE Series PSU connection.

What is the difference between HUB V2 and HUB ADV?

HUB V2 supports eight downstream USB signals and USB monitoring. HUB ADV supports seven downstream signals because it reserves one for GPU connector thermal monitoring, and adds temperature alerts and protection features.

Specifications and feature descriptions are based on LIAN LI’s published product documentation for the specified model.

MODEL	EDGE HUB ADV
الضمان	2 Years
Color	Black
