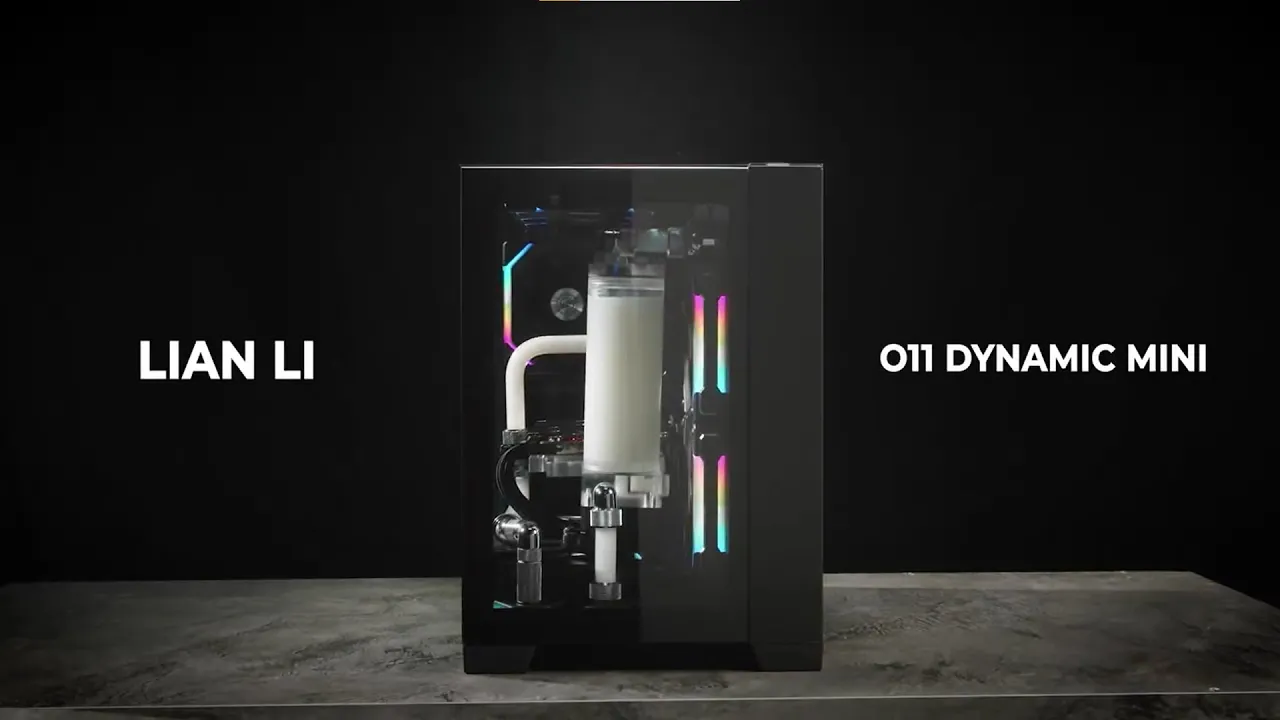

Lian Li O11 Dynamic Mini Black Mini Tower Gaming Case

The Lian Li O11 Dynamic Mini Black Mini Tower Gaming Case adds to the O11 Dynamic series, featuring a classic and modern look. This case accommodates the maximum number of water-cooling configurations without being oversized. Furthermore, with a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. It supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes.
Modular Design & Cooling Configuration
Decide how many expansion slots you need, calculate the size of your fans & accessories, and pick your motherboard type with 3 kinds of back panels to meet your demand! Specifically, the 30mm space behind the side fan/radiator bracket allows users to mount fans, efficiently intaking fresh air to directly cool the radiator. Additionally, this leaves enough space to install long GPUs in this compact case.

Friendly to custom water cooling users, the three different modular pump stands included (Flat, Elevated, Floating) can accommodate different scenarios. Moreover, the dual-chamber design allows cables to quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables, while the SSD mounting bar helps keep loose cables snuggled up.

With a blend of brushed aluminum and tempered glass, the O11D Mini looks classic and modern. Explore compatible Mini Tower Cases or check Lian Li Cases for other options. Find full details on the official O11 Dynamic Mini product page.
Specifications
- Model Name: O11 DYNAMIC MINI
- Model No.: O11DMINI-X BLACK
- Color: اسود
- Dimensions: (D)420mm X (W)269.5mm X (H)380mm
- Motherboard Support: E-ATX (Max 280 mm wide)/ATX/ Micro-ATX/ Mini-ITX
- PSU Support: SFX/ SFX-L
- Material: Steel, 4 mm Tempered Glass, 2mm Aluminum (top and left panel)
- Fan Support: Top: 3x120mm or 2x140mm; Side: 2x120mm or 2x140mm; Bottom: 3x120mm or 2x140mm; Rear: 1x120mm
- Radiator Support: Top: 360/280/240mm; Side: 240/280mm; Bottom: 360/280/240mm
- GPU Length Clearance: 395mm
- CPU Cooler Height Clearance: 170mm
- VGA Length: 370mm (Max)
- Drives: Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)
- Expansion Slots: 3 or 5 or 7 slots (depends on back panel)
- IO Ports: 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button
- Dust Filters: 1 x Top, 1 x Bottom, 2 x Side
