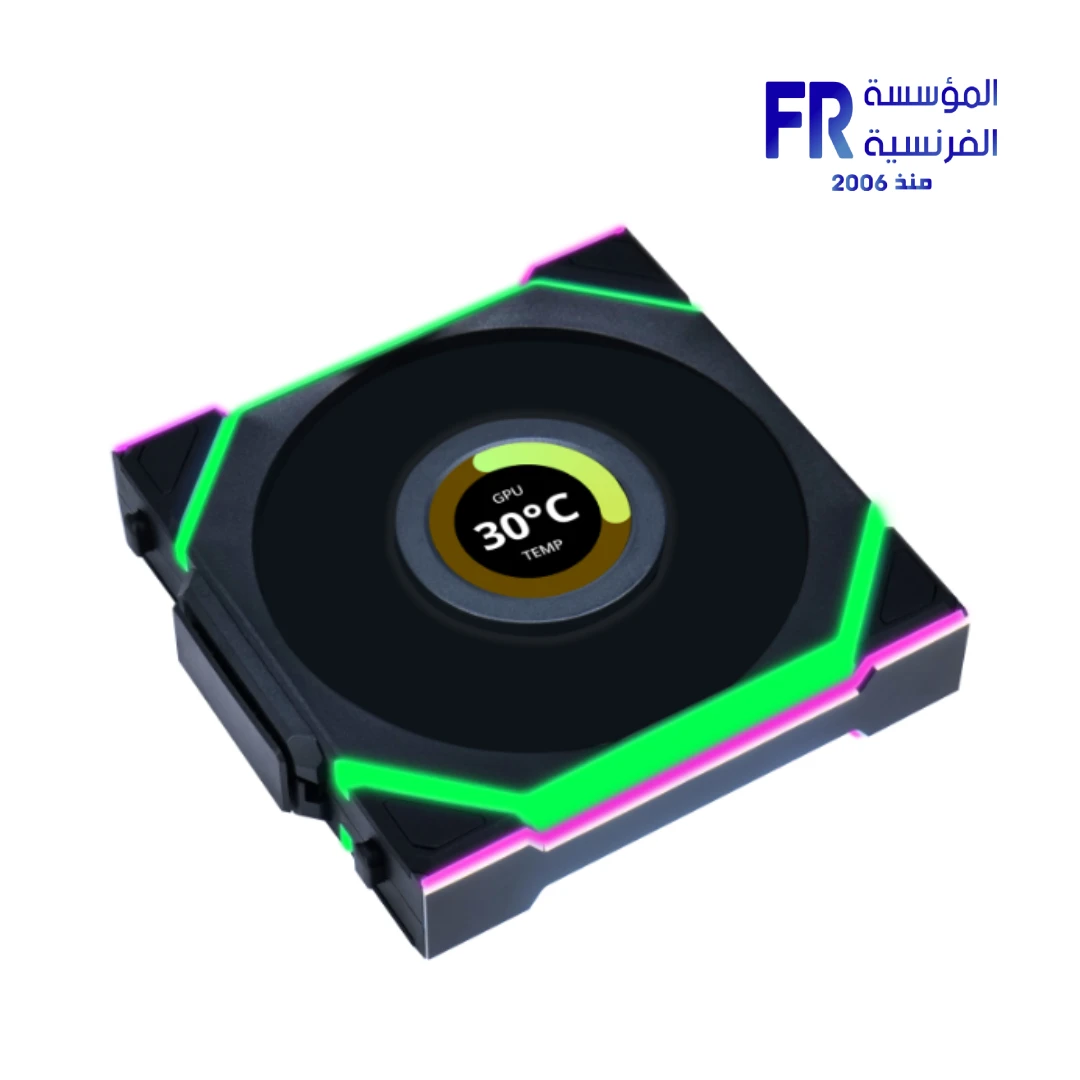

Lian Li UNI Fan SL Wireless LCD 120 ARGB Black Fan

Lian Li UNI Fan SL Wireless LCD 120 ARGB Black Fan

2099 EGP

Part Number: 12SLLCD1W1B BLACK
Type: 120mm Wireless ARGB Fan with LCD Display
Lighting: Dual-zone ARGB (40 LEDs), 1.6″ IPS LCD screen (400×400, 500 nits)
Connectivity: 4-pin PWM + 9-pin USB (for LCD), L-Wireless 2.4GHz control
Performance: Up to 1900 RPM, 58.08 CFM airflow, 29.5 dBA max noise
Bearing: Fluid Dynamic Bearing (FDB)
Warranty: 3 Years

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 840353047518 التصنيف: Case Fans الوسوم: Lian Li, 840353047518, FAN, FDB, RGB, WIRELESS, 1900RPM, L-Connect 3, cooling, Wireless Sync, SL, Lian, Li, BLACK, Lcd, UNI, ARGB, Case Fan, Pwm, 120MM, UNI Fan, 12SLLCD1W1B BLACK العلامة التجارية: LIAN LI

Lian Li UNI Fan SL Wireless LCD 120 ARGB Black Fan

The Lian Li UNI Fan SL Wireless LCD 120 ARGB Black Fan facilitates revolutionary cable-free cooling with integrated display capabilities for professional-grade system monitoring. Specifically engineered for professionals who demand clutter-free builds with real-time hardware telemetry, it bridges the gap between complexity and reliable performance.

1.6″

LCD Screen

1900

RPM

LEDs

Local Warranty

Why the Lian Li UNI Fan SL Wireless LCD is the Elite Choice for Professionals

True Wireless Control Architecture

The 2.4GHz L-Wireless controller eliminates traditional daisy-chain cables for fan speed and RGB control, requiring only a single PWM connection to the motherboard while maintaining full software control through L-Connect 3—revolutionizing cable management in professional builds.

Professional Hardware Monitoring Display

The integrated 1.6″ IPS LCD screen with 400×400 resolution and 500 nits brightness displays real-time CPU/GPU temperatures, fan speeds, and system loads, enabling instant performance monitoring without external software—critical for workstation stability and thermal management.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	Lian Li UNI Fan SL Wireless LCD 120 ARGB Black Fan
Model Number	12SLLCD1W1B BLACK
Fan Dimensions	120 × 124.5 × 28 mm (slightly larger than standard 120mm fans)
Display	1.6″ IPS LCD, 400×400 resolution, 500 nits brightness, 24-bit color
Lighting	40 ARGB LEDs in dual zones (20 per side), customizable via L-Connect 3
Fan Speed	0-1900 RPM (PWM controlled)
Airflow	58.08 CFM maximum
Air Pressure	2.4 mmH₂O maximum
Noise Level	29.5 dBA maximum
Bearing Type	Fluid Dynamic Bearing (FDB)
Power Input	DC 12V & 5V, 2.64W maximum power consumption
Connectivity	4-pin PWM + 9-pin USB (for LCD), compatible with L-Wireless controller
Wireless Technology	2.4GHz L-Wireless protocol for fan speed and RGB control
Software Support	L-Connect 3 for fan curves, lighting effects, and LCD content customization
Compatibility	Mixable with LED versions in same cluster, supports up to 4 fans per wireless group
Material	PBT plastic construction
Warranty	3 Year Limited Warranty

FAQ

Does this fan require both wired and wireless connections?

Yes. The fan requires a 4-pin PWM connection to the motherboard for power and basic speed control, plus a 9-pin USB connection specifically for the LCD screen functionality. However, the RGB lighting and advanced fan speed control are handled wirelessly via the 2.4GHz L-Wireless controller, significantly reducing cable clutter compared to traditional setups.

Can I mix this LCD fan with regular LED UNI FAN SL Wireless fans?

Yes. You can mix LCD and LED versions in the same wireless group (up to 4 fans total). Valid combinations include: 2 LCD + 2 LED, 3 LCD + 1 LED, or 4 LED fans. When mixing, you must use the LCD version receiver which supports both fan types simultaneously.

Help us improve our product data accuracy. If you notice any error in this draft, please report it via our official feedback form:
Alfrensia.com – Website Feedback & Report Form.

FAN

MODEL	UNI Fan SL
Fan Size (mm)	120mm
Fan Quantity	1
Material	PBT
Fan Speed	0,300~1900 RPM
Fan Profiles	ARGB
Fan Noise Level	29.5 dBA
Fan Airflow	58.08 CFM
Fan Voltage	DC12V & 5V
Bearing Type	Fluid Dynamic Bearing
Software	L-Connect 3
Color	Black
Part Number	12SLLCD1W1B BLACK
Warranty	3 Years
