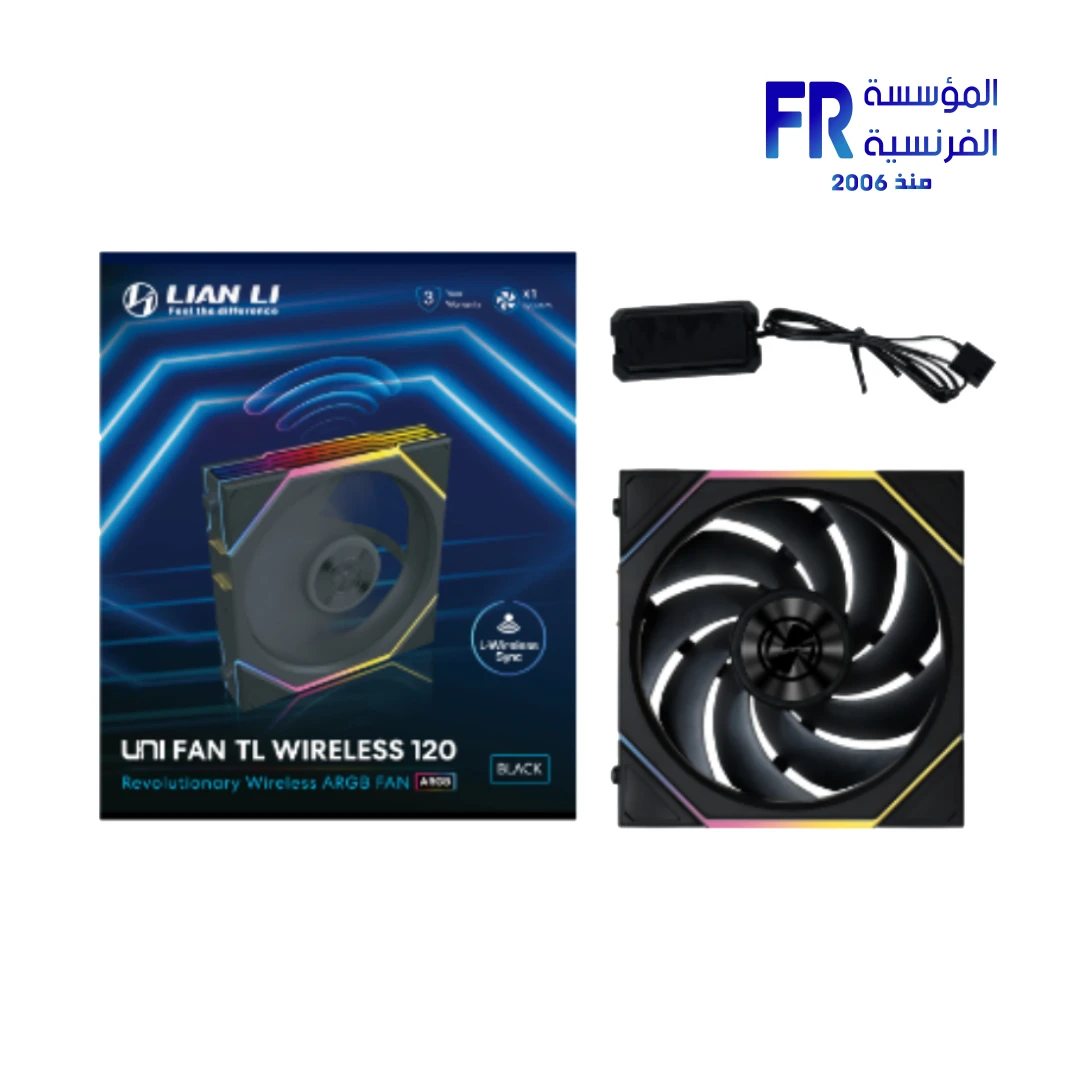

Lian Li UNI Fan TL 120 Wireless 120mm Black Fan

Lian Li UNI Fan TL 120 Wireless 120mm Black Fan

1450 EGP

Part Number: 12TL1W1B
Type: 120mm Wireless ARGB Fan (Non-LCD)
Lighting: Dual-zone ARGB with 26 LEDs, infinity mirror effect
Connectivity: 4-pin PWM (powered via motherboard header or SATA adapter); controlled via L-Wireless 2.4GHz system (controller sold separately for single packs)
Performance: Up to 2600 RPM, 90.1 CFM airflow, 33 dBA max noise
Construction: LCP (Liquid Crystal Polymer) blades, FDB bearing, PBT/PA66 frame
Dimensions: 120 × 124 × 28 mm
Warranty: 3 Years

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 840353047990 التصنيف: Case Fans الوسوم: ARGB, 12TL1W1B, Pwm, Case Fan, UNI Fan, 840353047990, 120MM, WIRELESS, Lian Li, 2600RPM, FDB, RGB, FAN, L-Connect 3, Wireless Sync, cooling, BLACK, Lian, Li, UNI, TL العلامة التجارية: LIAN LI

Lian Li UNI Fan TL 120 Wireless 120mm Black Fan

The Lian Li UNI Fan TL 120 Wireless Fan facilitates revolutionary cable-free cooling with advanced LCP blade technology for professional-grade thermal management. Specifically engineered for professionals who demand clutter-free builds with precise wireless control and superior airflow performance, it bridges the gap between complexity and reliable performance.

2600

RPM

90.1

CFM

LEDs

Local Warranty

Why the Lian Li UNI Fan TL 120 Wireless is the Elite Choice for Professionals

True Wireless Control Architecture

The innovative 2.4GHz L-Wireless technology eliminates traditional daisy-chain cables for both fan speed and RGB control, requiring only a single PWM power connection to the motherboard. This revolutionary approach dramatically reduces cable clutter while maintaining full software control through L-Connect 3—ideal for professional showcase builds.

Professional-Grade Performance Engineering

Liquid Crystal Polymer (LCP) fan blades with tight 0.65mm tolerances deliver exceptional airflow (90.1 CFM) and static pressure (3.97 mmH₂O) while maintaining whisper-quiet operation at just 33 dBA maximum noise. The FDB bearing ensures long-term reliability for 24/7 operation in professional workstations and gaming rigs alike.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	Lian Li UNI Fan TL 120 Wireless 120mm Black Fan
Model Number	12TL1W1B
Fan Dimensions	120 × 124 × 28 mm (slightly larger than standard 120mm fans)
Fan Speed	0-2600 RPM (PWM controlled)
Airflow	90.1 CFM maximum
Air Pressure	3.97 mmH₂O maximum
Noise Level	33 dBA maximum
Bearing Type	Fluid Dynamic Bearing (FDB)
Blade Material	Liquid Crystal Polymer (LCP) with 9 tightly aligned blades
Lighting System	26 ARGB LEDs with dual-zone infinity mirror effect on fan frame edges
Power Input	DC 12V (fan motor), 5V (LEDs), 5.8W maximum power consumption
Connectivity	4-pin PWM power connector only (no RGB cable required)
Wireless Technology	2.4GHz L-Wireless protocol for fan speed and RGB control (requires separate L-Wireless Controller)
Software Support	L-Connect 3 for individual fan cluster control, lighting effects, and fan curve customization
Compatibility	Mixable with TL LCD versions in same cluster (up to 4 fans per group), compatible with SL Wireless series receivers
Material	PBT & PA66 construction with aluminum center logo
Warranty	3 Year Limited Warranty

FAQ

Do I need to purchase a controller separately for this fan?

Yes. The single-pack UNI Fan TL 120 Wireless (12TL1W1B) does not include the L-Wireless Controller, which must be purchased separately to enable wireless RGB and fan speed control. Without the controller, the fan will still operate at full speed when connected to a PWM header, but you won’t have lighting effects or speed control capabilities.

Can I mix this non-LCD fan with TL LCD versions in the same cluster?

Absolutely. You can mix up to 4 fans in a single wireless group with configurations like 2 LCD + 2 LED or 3 LCD + 1 LED. When mixing, you must use the LCD version receiver which supports both fan types simultaneously, allowing seamless integration of different visual elements in your build.

Help us improve our product data accuracy. If you notice any error in this draft, please report it via our official feedback form:
Alfrensia.com – Website Feedback & Report Form.

FAN

MODEL	UNI FAN TL 120 WIRELESS
Fan Size (mm)	120mm
Fan Quantity	1
Material	PBT & PA66
Fan Speed	0, 200–2600 RPM
Fan Profiles	ARGB
Fan Noise Level	33 dBA
Fan Airflow	90.1 cfm
Fan Voltage	DC12V & 5V
Bearing Type	Fluid Dynamic Bearing
Software	L-Connect 3
Color	Black
Part Number	12TL1W1B
Warranty	3 Years
