Lian Li UNI FAN TL FLEX 120 Reverse Blade Black ARGB PWM Fan
0 جنيه
- Model Name: LIAN LI UNI FAN TL Flex 120 Reverse Black
- رقم القطعة: 12RTL1F1B
- Fan Size: 120 × 124 × 28 mm
- Blade / Lighting: Reverse blade, ARGB, PWM
- Fan Speed: 200–2300 RPM
- Airflow / Noise: 83.4 CFM / 34 dBA
- الضمان: 1 Year
هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟
The LIAN LI UNI FAN TL Flex 120 Reverse is a 120mm reverse-blade case fan in black. It combines PWM speed control, ARGB lighting and a daisy-chainable FLEX design. This LED version focuses on airflow and lighting without an LCD screen.
Key Features
- Reverse-blade airflow: The reverse-blade configuration helps maintain the intended visible fan side while directing airflow for the selected case layout.
- Cooling performance: Rated for up to 83.4 CFM airflow with a maximum noise rating of 34 dBA.
- PWM control: Fan speed can be managed through a compatible PWM control connection.
- ARGB lighting: Supports motherboard ARGB synchronization and LIAN LI control options.
- FLEX receiver: The modular design uses a matching LED FLEX receiver for fan control and lighting connectivity.
- FDB bearing: Uses a Fluid Dynamic Bearing design.
Who Should Consider It?
This fan is suited to PC builders who want a reverse-blade 120mm fan with coordinated lighting. Choose the LCD version only if the display is useful for your build; the standard TL FLEX version does not include the LCD panel.
المواصفات الفنية
| الموديل | UNI FAN TL Flex 120 Reverse |
|---|---|
| Part number | 12RTL1F1B |
| Blade type | Reverse blade |
| Color | Black |
| Fan dimensions | 120 × 124 × 28 mm |
| Material | LCP & PA66 |
| Fan speed | 200–2300 RPM |
| Maximum airflow | 83.4 CFM |
| Static pressure | 2.66 mmH₂O |
| Acoustic noise | 34 dBA |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Operating voltage | DC 6–13.2V |
| Input power | 3.72W |
| Lighting | ARGB |
| Control | PWM; L-Connect 3 and motherboard ARGB synchronization |

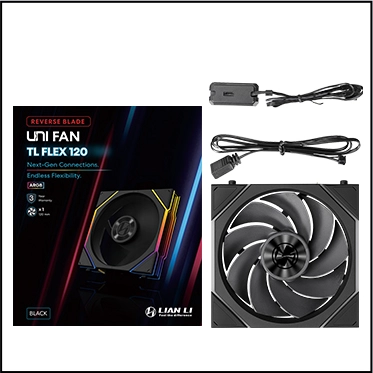

| Included accessories | LED FLEX Receiver and 5V 3-pin ARGB cable |
Buying Recommendation
Match the reverse-blade design to the airflow direction required by your case, then confirm receiver, PWM and ARGB connections before installation. For the LCD model, plan for the required internal USB connection as well.
Frequently Asked Questions
Does this model include an LCD screen?
No. This is the TL FLEX LED version; it does not include an LCD screen.
What is the fan size?
The frame measures 120 × 124 × 28 mm. Check the case’s fan bracket and clearance before installation.
Can I synchronize lighting with the motherboard?
The series supports motherboard ARGB synchronization. Confirm the correct cable and receiver for this exact variant.
Specifications are based on LIAN LI’s published UNI FAN TL FLEX series documentation and the model code shown for this variant.
| MODEL | |
|---|---|
| Fan Size (mm) | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Profiles | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Color | |
| Part Number | |
| الضمان |
