Lian Li UNI FAN TL LCD FLEX 120 Reverse Blade Black ARGB PWM Fan
0 جنيه
- Model Name: LIAN LI UNI FAN TL LCD Flex 120 Reverse Black
- رقم القطعة: 12RTLLCD1F1B
- Fan Size: 120 × 124 × 28 mm
- Blade / Lighting: Reverse blade, ARGB, PWM
- Fan Speed: 350–1900 RPM
- Airflow / Noise: 63 CFM / 29 dBA
- الشاشة: 1.8-inch LCD, 400 × 400, 60Hz
- الضمان: 1 Year
هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟
The LIAN LI UNI FAN TL LCD Flex 120 Reverse is a 120mm reverse-blade case fan in black. It combines PWM speed control, ARGB lighting and a daisy-chainable FLEX design. This LCD version adds a 1.8-inch display for supported image and video files.
Key Features
- Reverse-blade airflow: The reverse-blade configuration helps maintain the intended visible fan side while directing airflow for the selected case layout.
- Cooling performance: Rated for up to 63 CFM airflow with a maximum noise rating of 29 dBA.
- PWM control: Fan speed can be managed through a compatible PWM control connection.
- ARGB lighting: Supports motherboard ARGB synchronization and LIAN LI control options.
- Integrated LCD: 1.8-inch display with 400 × 400 resolution and a 60Hz refresh rate; supports MP4, GIF, JPG and PNG media.
- FDB bearing: Uses a Fluid Dynamic Bearing design.
Who Should Consider It?
This fan is suited to PC builders who want a reverse-blade 120mm fan with coordinated lighting. Choose the LCD version only if the display is useful for your build; the standard TL FLEX version does not include the LCD panel.
المواصفات الفنية
| الموديل | UNI FAN TL LCD Flex 120 Reverse |
|---|---|
| Part number | 12RTLLCD1F1B |
| Blade type | Reverse blade |
| Color | Black |
| Fan dimensions | 120 × 124 × 28 mm |
| Material | PBT & PA66 |
| Fan speed | 350–1900 RPM |
| Maximum airflow | 63 CFM |
| Static pressure | 2.83 mmH₂O |
| Acoustic noise | 29 dBA |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Operating voltage | 12V DC |
| Input power | 4.56W |
| Lighting | ARGB |
| Control | PWM; L-Connect 3 and motherboard ARGB synchronization |
| LCD | 1.8-inch LCD; 400 × 400 resolution; 60Hz refresh rate |
| LCD media support | MP4, GIF, JPG and PNG |

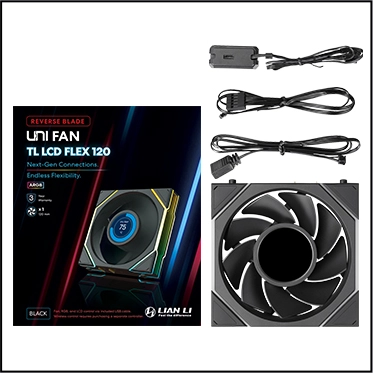

| Included accessories | LCD FLEX Receiver, 9-pin USB cable and 5V 3-pin ARGB cable |
Buying Recommendation
Match the reverse-blade design to the airflow direction required by your case, then confirm receiver, PWM and ARGB connections before installation. For the LCD model, plan for the required internal USB connection as well.
Frequently Asked Questions
Does this model include an LCD screen?
Yes. This is the LCD version with a 1.8-inch, 400 × 400, 60Hz display.
What is the fan size?
The frame measures 120 × 124 × 28 mm. Check the case’s fan bracket and clearance before installation.
Can I synchronize lighting with the motherboard?
The series supports motherboard ARGB synchronization. Confirm the correct cable and receiver for this exact variant.
Specifications are based on LIAN LI’s published UNI FAN TL FLEX series documentation and the model code shown for this variant.
| MODEL | |
|---|---|
| Fan Size (mm) | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Profiles | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Color | |
| Part Number | |
| الضمان |
