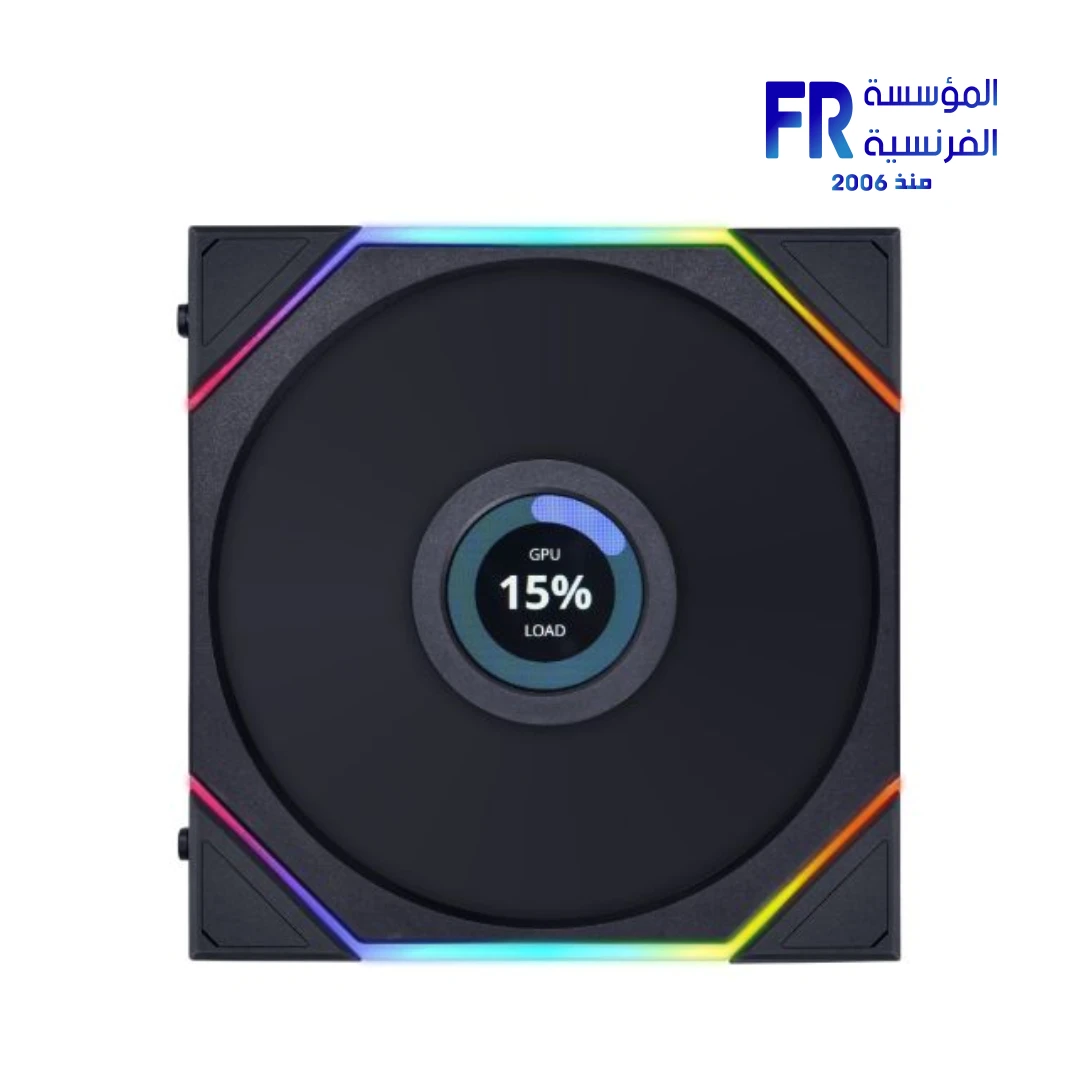

Lian Li UNI Fan TL Wireless LCD 120MM Black Fan

Lian Li UNI Fan TL Wireless LCD 120MM Black Fan

2199 EGP

Part Number: 12TLLCD1WIB BLACK
Type: 120mm Wireless ARGB Fan with LCD Display
Display: 1.6″ IPS LCD, 400×400 resolution, 500 nits brightness, supports MP4/GIF/JPG/PNG
Lighting: Dual-zone ARGB with 26 LEDs, enlarged infinity mirror effect
Connectivity: Requires L-Wireless Controller (not included with single pack); powered via 4-pin PWM + 9-pin USB to motherboard
Performance: Up to 1900 RPM, 62 CFM airflow, 27 dBA max noise
Bearing: Fluid Dynamic Bearing (FDB)
Dimensions: 124 × 120 × 28 mm
Warranty: 3 Years

المتوفر في المخزون 1 فقط

Price Match Guarantee

رمز المنتج: 840353048010 التصنيف: Case Fans الوسوم: WIRELESS, L-Connect 3, 1.6inch LCD, 120MM, 1900RPM, Pwm, TL, Lcd, Lian, ARGB, Li, cooling, Lian Li, FAN, UNI Fan, FDB, 12TLLCD1W1B, BLACK, Case Fan, UNI, 840353048010 العلامة التجارية: LIAN LI

Lian Li UNI Fan TL Wireless LCD 120MM Black Fan

The Lian Li UNI Fan TL Wireless LCD 120MM Fan facilitates revolutionary cable-free cooling with integrated real-time hardware monitoring via a high-brightness IPS display. Specifically engineered for professionals who demand clutter-free builds with advanced thermal telemetry and wireless RGB control, it bridges the gap between complexity and reliable performance.

1.6″

LCD Screen

400×400

Resolution

500

Nits

Local Warranty

Why the Lian Li UNI Fan TL Wireless LCD is the Elite Choice for Professionals

Real-Time Hardware Monitoring Display

The integrated 1.6″ IPS LCD screen with 400×400 resolution and 500 nits brightness displays live CPU/GPU temperatures, fan speeds, and system loads directly on the fan—eliminating the need for external monitoring software and providing instant thermal feedback for workstation stability and overclocking validation.

True Wireless Ecosystem Integration

Utilizing 2.4GHz L-Wireless technology, this fan requires only a single PWM power connection while enabling full control of both RGB lighting and LCD content through L-Connect 3 software. The system supports up to 12 LCD fans per controller, creating a unified, cable-free aesthetic perfect for professional showcase builds.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	Lian Li UNI Fan TL Wireless LCD 120MM Black Fan
Model Number	12TLLCD1W1B BLACK
Fan Dimensions	120 × 124 × 28 mm
LCD Display	1.6″ IPS panel, 400×400 resolution, 500 nits brightness, 24-bit sRGB color
Fan Speed	0-1900 RPM (PWM controlled)
Airflow	62 CFM maximum
Air Pressure	2.9 mmH₂O maximum
Noise Level	27 dBA maximum
Bearing Type	Fluid Dynamic Bearing (FDB) with magnetic rubber ring and brass nut
Lighting System	26 ARGB LEDs with dual-zone infinity mirror effect (30% larger than SL-INF series)
Power Input	DC 12V (fan motor), 5V (LEDs and LCD), 7.08W maximum power consumption
Connectivity	4-pin PWM power + 9-pin USB 2.0 (for LCD signal), L-Wireless controller required
Wireless Technology	2.4GHz L-Wireless protocol for RGB and fan speed control (separate controller required)
Software Support	L-Connect 3 for LCD customization (MP4/GIF/JPG/PNG), hardware monitoring dashboards, fan curves, and lighting effects
Compatibility	Mixable with non-LCD TL versions (up to 4 fans per group), supports up to 12 LCD fans per system (motherboard dependent)
Material	PA66/PBT construction with removable interlocking key and anti-vibration rubber pads
Warranty	3 Year Limited Warranty

FAQ

Is a controller included with this single-pack fan?

No. The single-pack UNI Fan TL LCD Wireless (12TLLCD1W1B) does not include the L-Wireless Controller, which must be purchased separately or as part of a triple-pack bundle. Without the controller, the fan will not function as both power and data transmission require the proprietary controller connection.

How many of these LCD fans can I connect to my motherboard?

Most motherboards support up to 7 TL LCD fans due to USB 2.0 port limitations. When used alongside other USB devices like AIO coolers or RGB controllers, this number may decrease to 5-6 fans. For optimal performance, connect the controller directly to a motherboard USB 2.0 header without splitters, except when using LIAN LI’s EDGE PSU hub which provides additional power.

Help us improve our product data accuracy. If you notice any error in this draft, please report it via our official feedback form:
Alfrensia.com – Website Feedback & Report Form.

FAN

MODEL	UNI FAN TL WIRELESS LCD 120
Fan Size (mm)	120mm
Fan Quantity	1
Material	PBT & PA66
Fan Speed	0, 350–1900 RPM
Fan Profiles	ARGB
Fan Noise Level	27 dBA
Fan Airflow	62 CFM
Fan Voltage	DC12V & 5V
Bearing Type	Fluid Dynamic Bearing
Software	L-Connect 3
Color	Black
Part Number	12TLLCD1WIB BLACK
Warranty	3 Years
