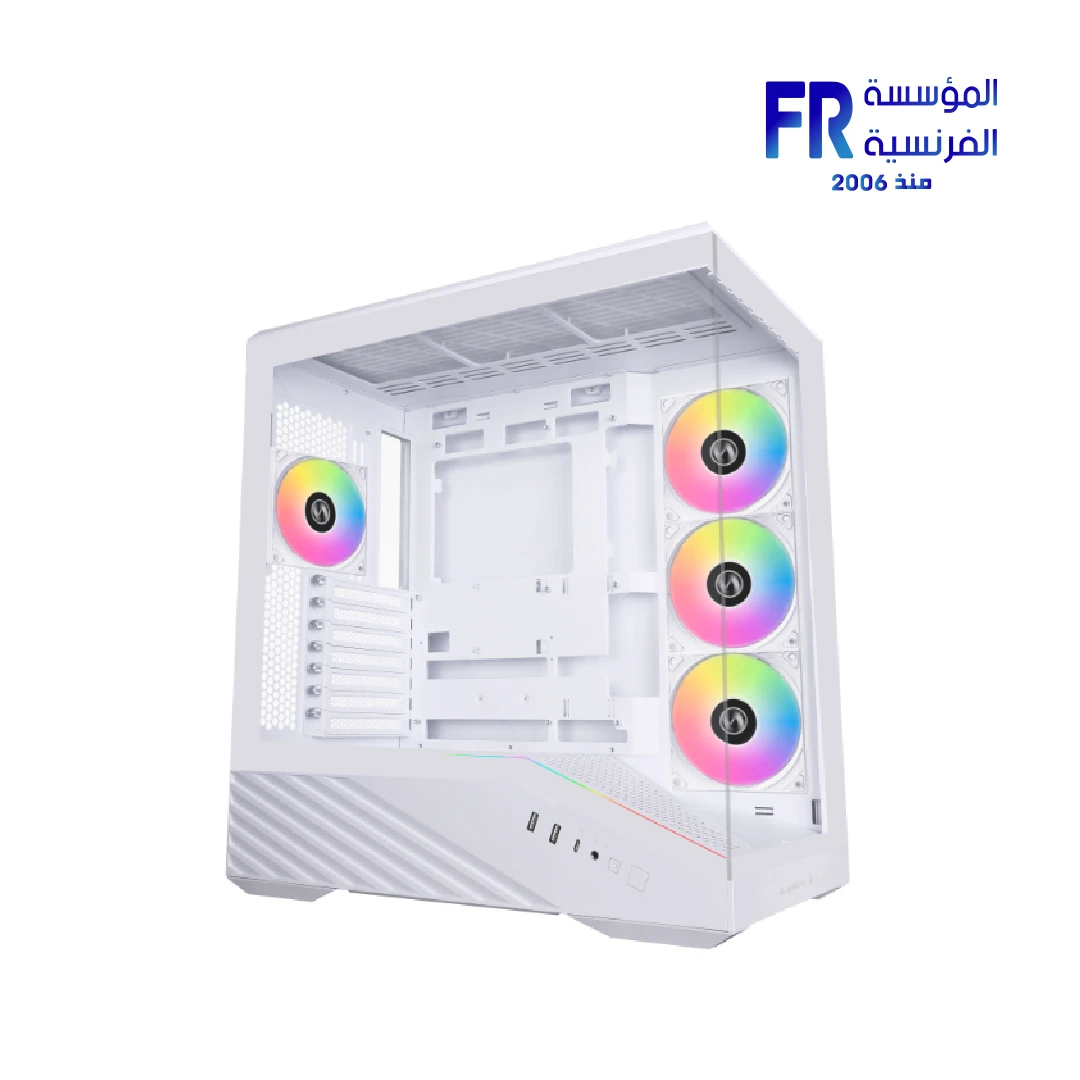

Lian Li Vector V100R BTF 4 Fan ARGB Type-C White Mid Tower Gaming Case
3699 جنيه
- Model Name: Lian Li Vector V100R BTF White
- رقم القطعة: V100RW WHITE
- Form Factor: Mid-Tower Case, Supports E-ATX (Width < 246mm) / ATX / M-ATX / Mini-ITX, Back-Connect Motherboards
- Design: Dual 4mm Tempered Glass Panels (270° Visibility), Steel Construction, White Finish
- Cooling: 4 Pre-installed ARGB Fans (3 Side + 1 Rear), Supports up to 9 Fans, 360mm Radiator Support (Top)
- Compatibility: GPU up to 420mm, CPU Cooler up to 178mm, PSU up to 220mm
- Features: Built-in ARGB Light Strip (26 LEDs), GPU Support Bracket Included, Tool-free Cable Management, Side I/O Panel with USB Type-C
- الضمان: 1 Year (Case), 2 Years (Fans)
المتوفر في المخزون 2 فقط
ضمان مطابقة السعر✅ Authorized Lian Li Partner in Egypt | Official Local Warranty | Expert Build Consultation Available | Business Invoices Available
Lian Li Vector V100R BTF 4 Fan ARGB Type-C White Mid Tower Gaming Case
The Lian Li Vector V100R is a mid-tower chassis engineered for performance visualization and next-generation cable management. Designed to natively support the latest Back-Connect (BTF) motherboards, it eliminates front-side cable clutter by routing all power and data connections directly behind the motherboard tray, delivering a completely clean internal aesthetic.

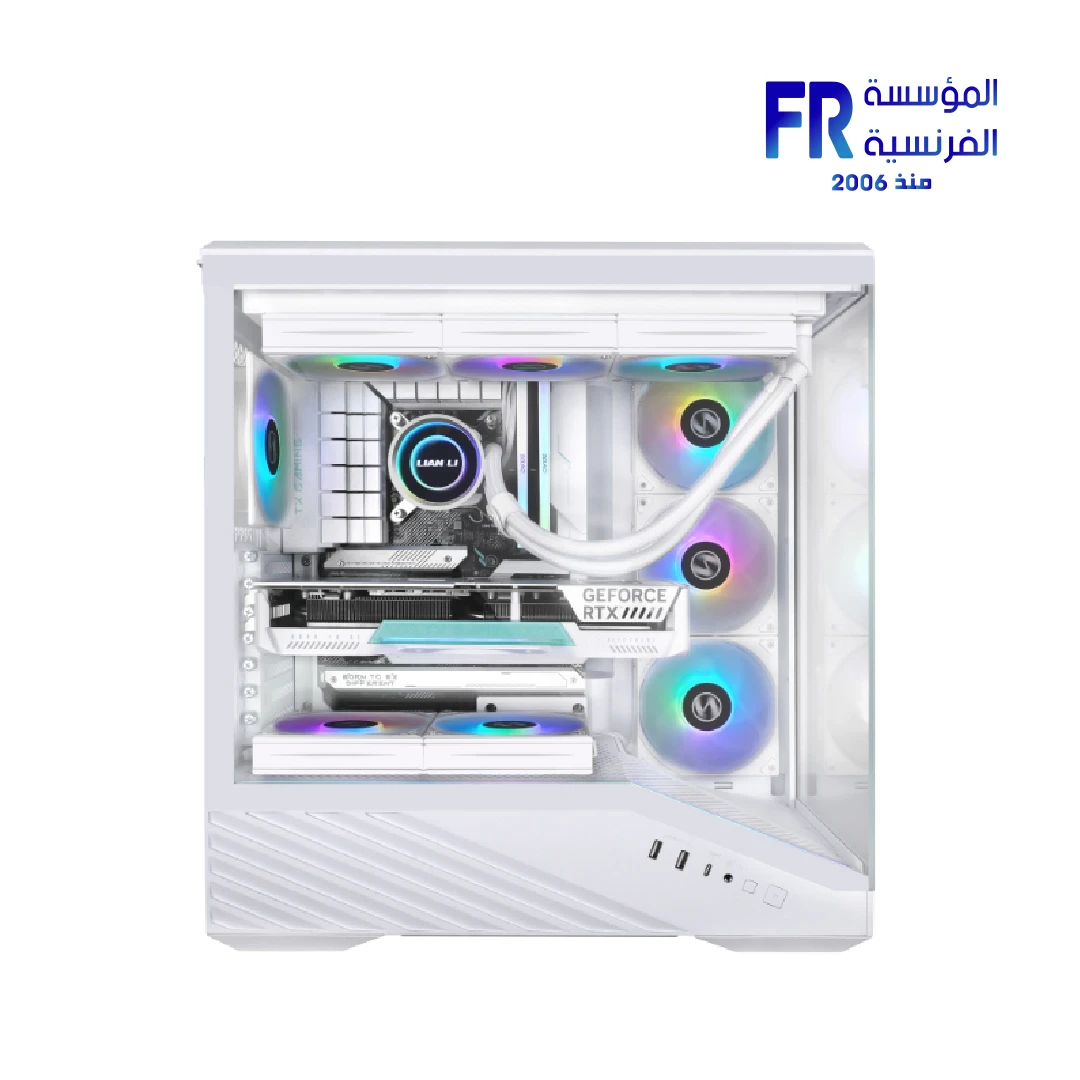

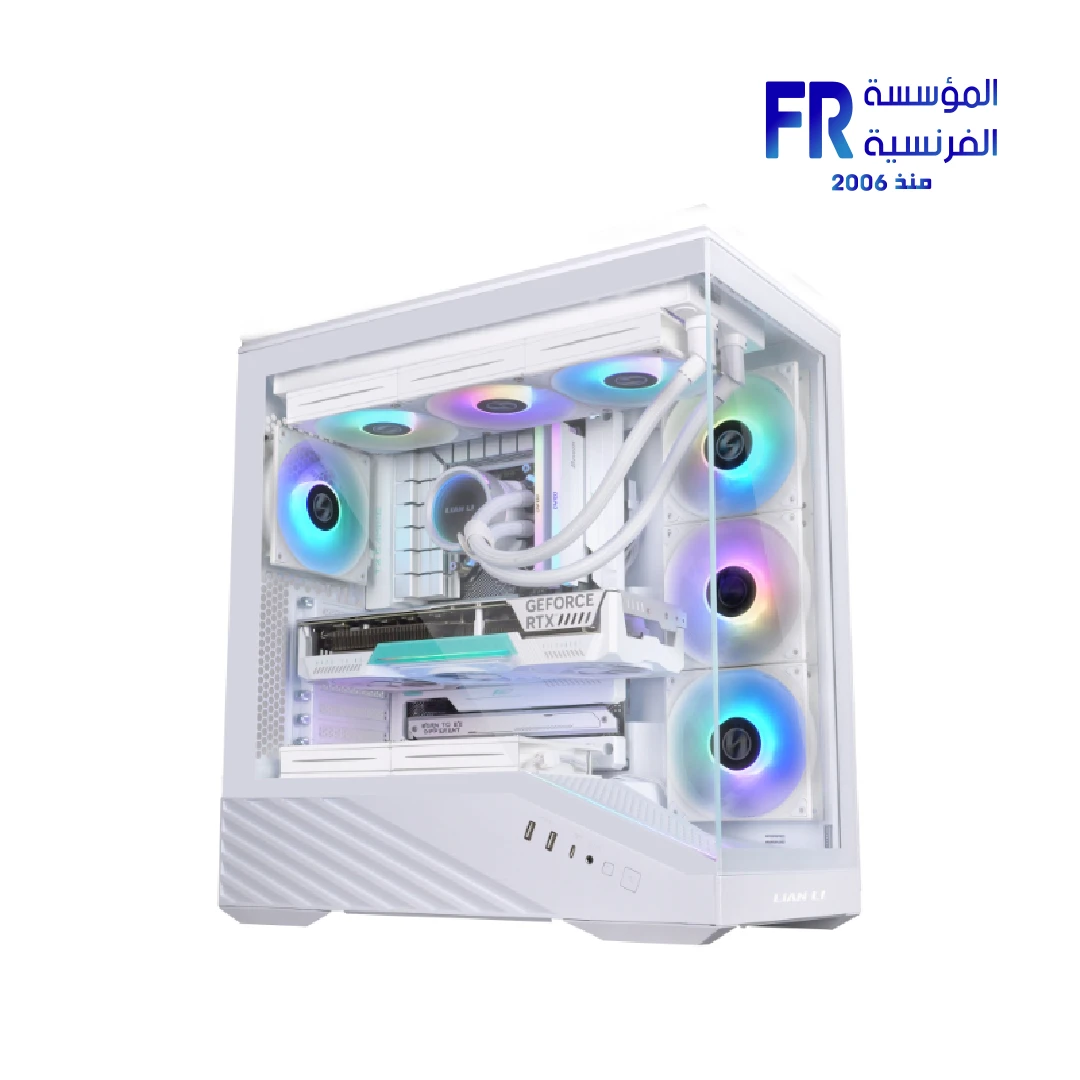

Featuring dual 4mm tempered glass panels for a 270° unobstructed view, this white chassis comes pre-equipped with four 120mm ARGB fans, a dedicated GPU support bracket, and an integrated 26-LED ARGB light strip. Whether you are building a high-end showcase rig or a custom liquid-cooled workstation, the Vector V100R provides the perfect balance of DIY flexibility, thermal efficiency, and immersive lighting.
Why Choose the Lian Li Vector V100R?
Optimizes internal space and delivers a completely cable-free front view by routing all power and data connections behind the motherboard tray.

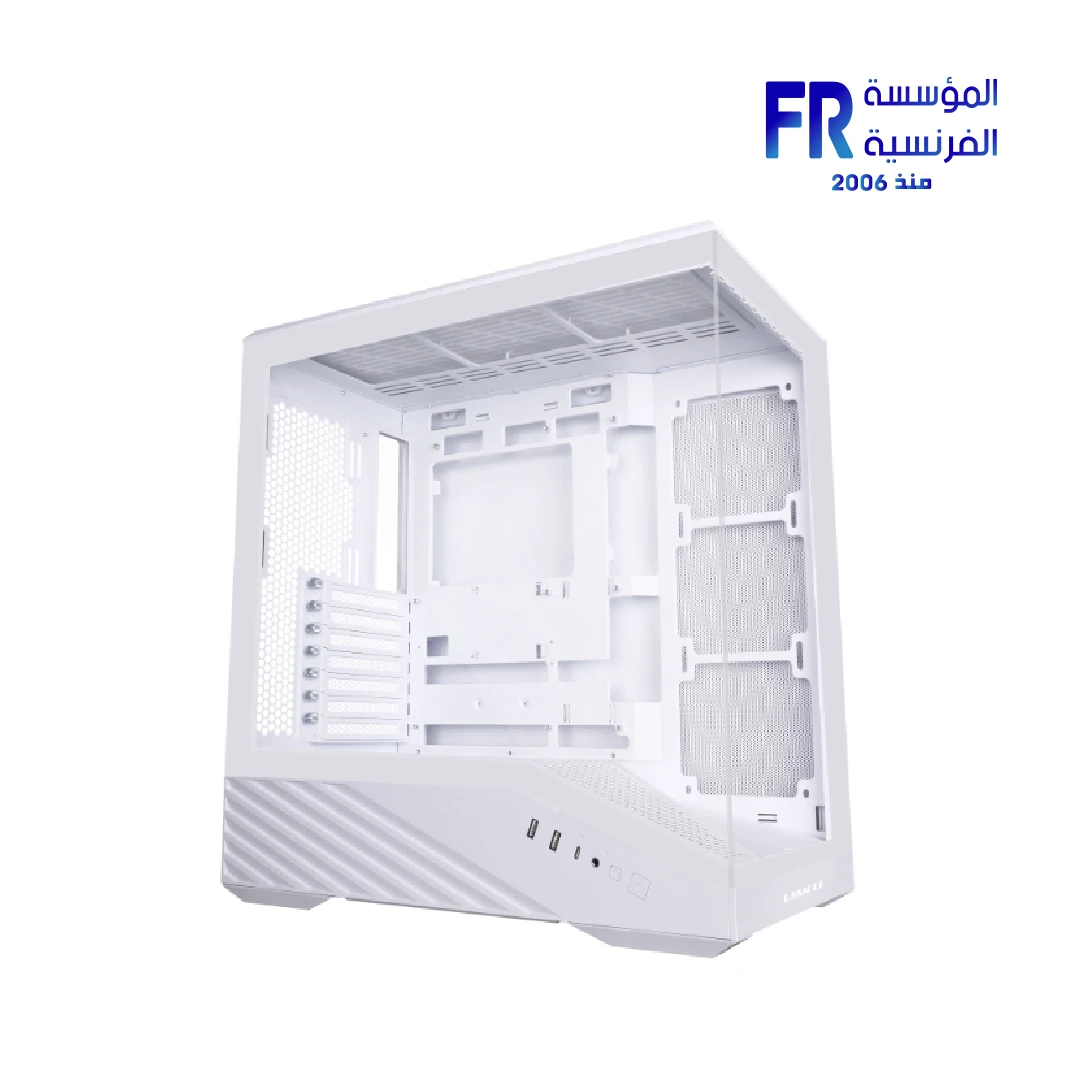

Both the front and side panels are crafted from 4mm tempered glass, offering an unobstructed, panoramic showcase for your internal components.

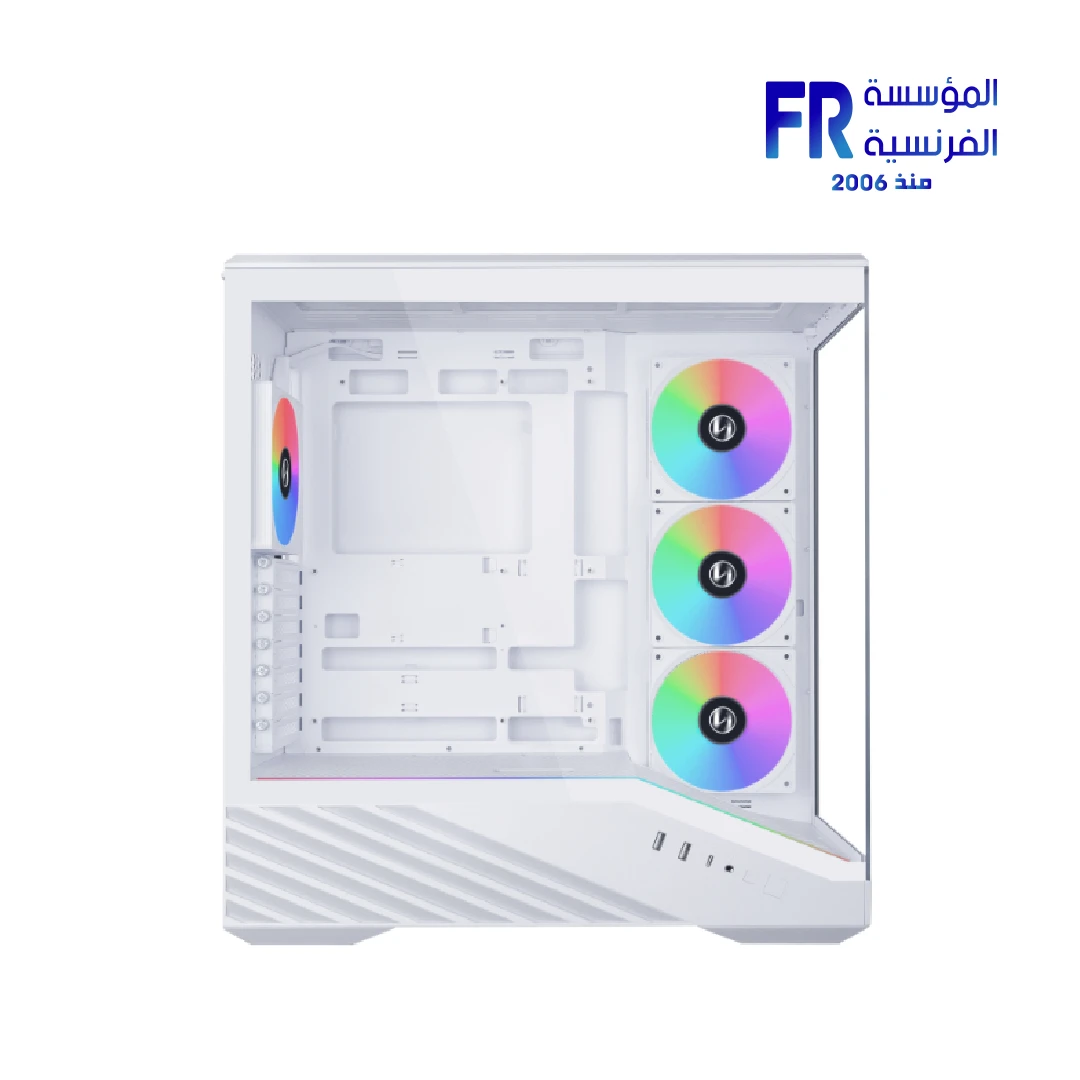

Includes three side-mounted and one rear-mounted 120mm ARGB fans, plus the GB001 GPU support bracket to prevent sagging on heavy graphics cards.
Built-in lighting with customizable modes that sync seamlessly with major motherboard RGB ecosystems via a dedicated button or software.
Ideal For Your Build
- 🔌 Next-Gen BTF Builds: Perfect for builders utilizing ASUS BTF or MSI Project Zero back-connect motherboards for a minimalist, cable-free aesthetic.
- 🖥️ High-End Showcase Rigs: The 270° glass panels and integrated ARGB lighting make it an ideal centerpiece for glass-panel desktops.
- 💧 Custom Liquid Cooling: Supports up to a 360mm radiator at the top, accommodating thick radiators and multiple fans for extreme thermal performance.
- 🎬 Streamer & Creator Stations: The clean front profile and integrated hand rest provide a professional, distraction-free background for video calls and live streaming.
Lian Li Vector V100R vs. Standard Mid-Tower Cases
| Feature | Lian Li Vector V100R (BTF) | Standard Mid-Tower Case |
|---|---|---|
| Motherboard Support | Back-Connect (BTF) & Standard ATX | Standard ATX Only |
| Cable Management | Hidden behind tray (BTF optimized) | Traditional front-side routing |
| Included Fans | 4x 120mm ARGB (Pre-installed) | Usually 1x or 2x basic fans |
| GPU Support Bracket | Pre-installed GB001 Bracket | Sold Separately |
| Glass Panels | Dual 4mm Tempered Glass (270°) | Usually Single Side Panel |
المواصفات الفنية
| Model Name | Vector V100R White |
| Part Number (MPN) | V100RW WHITE |
| SKU | V100RW WHITE |
| EAN / UPC | 840353048676 |
| Form Factor | Mid-Tower |
| Motherboard Support | E-ATX (<246mm) / ATX / M-ATX / Mini-ITX (Back-Connect ATX/M-ATX supported) |
| Dimensions (L x W x H) | 446 x 235.5 x 484.65 mm |
| GPU Clearance | 420mm |
| CPU Cooler Clearance | 178mm |
| PSU Clearance | ATX (Length < 220mm) |
| Fan Support | Top: 3×120 / 2×140 | Side: 3×120 (Pre-installed) | Rear: 1×120/140 (Pre-installed) |
| Radiator Support | Top: Up to 360mm |
| Drive Bays | 1x 2.5″ SSD (Behind Tray), 1x 3.5″ HDD (Bottom) |
| I/O Ports | 2x USB 3.0, 1x USB 3.1 Type-C, Audio, Power, Reset |
| Included Fans | 4x 120mm ARGB |
| الضمان | 1 Year Case / 2 Years Fans |
💡 Pro Tip: BTF & PSU Clearance
To fully utilize the cable-free front chamber, ensure you are pairing this case with a compatible Back-Connect (BTF) motherboard. If using a standard ATX motherboard, you will still have ample room for traditional cable management, but the front-side chamber’s primary aesthetic benefit is optimized for BTF layouts. Additionally, note the strict 220mm PSU length limitation when selecting your power supply to ensure a proper fit in the dedicated bottom chamber.
Frequently Asked Questions
Does this case support standard ATX motherboards?
Yes, the Vector V100R supports standard ATX, M-ATX, Mini-ITX, and E-ATX (up to 246mm width), in addition to Back-Connect (BTF) formats. It is fully backward-compatible with traditional motherboard layouts.
What is the maximum GPU length supported?
The case supports graphics cards up to 420mm in length, accommodating virtually all high-end triple-fan GPUs on the market, including the largest custom-cooled models.
Are the ARGB fans pre-installed?
Yes, the “R” model comes with four 120mm ARGB fans pre-installed (three on the side, one on the rear) for immediate out-of-the-box cooling and lighting. The included GB001 GPU support bracket is also pre-installed.
What size power supply does it require?
It supports standard ATX power supplies, but the maximum length is limited to 220mm. Ensure your chosen PSU fits within this clearance to avoid interference with the cable management chamber.
Need help planning your BTF or showcase PC build?
Speak with our hardware specialists for motherboard compatibility checks, cooling optimization advice, and build guidance.
| MODEL | |
|---|---|
| CASE SIZE | |
| PANEL | |
| Motherboard Type | |
| FANS INCLUDED | |
| Expansion Slots | |
| Fan Support | |
| Radiator Support | |
| GPU Length | |
| CPU Height | |
| PSU SUPPORT | |
| Pre-installed PSU | |
| I/O Ports | Power button, 1x Reset Button, 1x Audio out, 1x USB 3.1 Type-C, 2x USB 3.0 |
| 3.5“ Drive Bays | |
| 2.5 Drive Bays | |
| Color | |
| Part Number | |
| الضمان |
