What type of motherboards does the Lian Li Vector V100R Mini BTF support?

The Vector V100R Mini BTF supports E-ATX (width <246mm), ATX, M-ATX, and Mini-ITX motherboards, including BTF (Back-To-Front) ATX and M-ATX boards for cleaner cable management.

Does the Vector V100R Mini BTF come with fans pre-installed?

Yes. The Vector V100R Mini BTF includes 4 pre-installed fans: 3x 120mm on the side and 1x 120mm on the rear, all with ARGB lighting.

تصفية

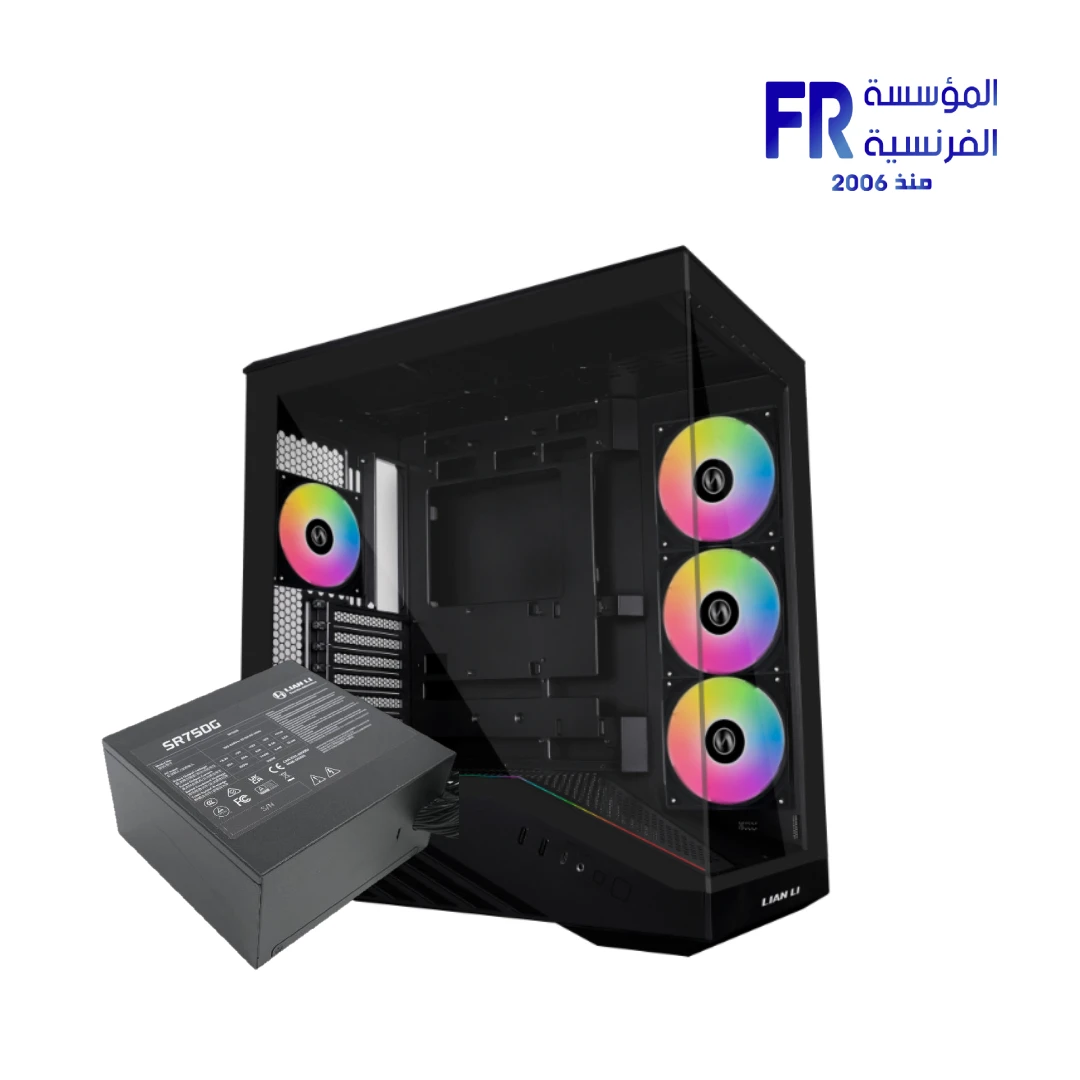

Lian Li Vector V100R combo black case and SR750 power supply front view Nasr City store Egypt

Lian Li Vector V100R BTF 4 Fan ARGB Type C + SR850 850W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case (2)

Lian Li Vector V100R BTF 4 Fan ARGB Type C + SR850 850W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case (1)

Lian Li Vector V100R BTF 4 Fan ARGB Type C + SR850 850W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case (5)

Lian Li Vector V100R BTF 4 Fan ARGB Type C + SR850 850W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case (4)

Lian Li Vector V100R BTF 4 Fan ARGB Type C + SR850 850W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case (3)

Lian Li Vector V100R Mini BTF 4 Fan ARGB Type C + SR750 750W 80 Plus Gold ATX 3.1 Black Mid Tower Gaming Case

5692 جنيه

رقم القطعة: OE814RXSR75G
Case Specs: Mid-Tower BTF | Dual Tempered Glass | 420mm GPU Clearance | 360mm Rad Support | 4x ARGB Fans Included
PSU Specs: 750W | 80 PLUS Gold | ATX 3.1 | 1x 12V-2×6 Connector | DC-DC Design
الضمان: Case 1 Year | PSU 3 Years

متوفر في المخزون

ضمان أفضل سعر

ميعاد التوصيل المتوقع

القاهرة والجيزة والإسكندرية خلال 1–3 أيام عمل

باقي المحافظات خلال 3–6 أيام عمل

أيام عمل من تأكيد الطلب.

أقوى ضمان في مصر: استبدال فوري بجديد
استرجاع خلال 30 يوم لو المنتج بنفس حالته
ادفع كاش عند الاستلام

رمز المنتج: 840353053656 التصنيف: الكيسات الوسوم: tempered glass, PCIe 5.1, GPU support bracket, ATX 3.1, OVP, UVP, black sr750, MID TOWER CASE, OPP, back-connect motherboard support, FULLY MODULAR, SCP, Vector V100R, POWER SUPPLY, 360mm Radiator Support, OCP, 750W, Lian Li, ARGB Lighting, USB 3.1 Type-C, 80 PLUS GOLD, DC to DC, 12V-2x6 العلامة التجارية: LIAN LI

Mini BTF Case | 4 ARGB Fans | 270° Glass | 750W Gold ATX 3.1

Lian Li Vector V100R Mini BTF + SR750 750W Gold ATX 3.1 Combo

The Lian Li Vector V100R Mini BTF mid-tower case features 270° tempered glass visibility, 4 pre-installed ARGB fans, Type-C connectivity, BTF motherboard support, and a GPU support bracket. Bundled with the SR750 750W 80 PLUS Gold ATX 3.1 power supply with native 12V-2x6 600W connector — this combo delivers exceptional aesthetics and reliable power for modern gaming builds.

Mini BTF Case
270° Glass
4 ARGB Fans
750W Gold
ATX 3.1

Lian Li Vector V100R Mini BTF mid-tower gaming case with GEFORCE RTX and LIAN LI branding

Product Gallery

Front View

⤢

Lian Li Vector V100R Mini BTF color options and dimensions

Color Options & Dimensions

⤢

Tempered Glass

⤢

ARGB Light Strip

⤢

Mesh Cooling

⤢

Lian Li Vector V100R Mini BTF fan and radiator support

Fan & Radiator Layout

⤢

Lian Li Vector V100R Mini BTF motherboard compatibility

Motherboard Support

⤢

Cable Management

⤢

GPU Support Bracket

⤢

I/O Panel

⤢

Hand Rest

⤢

Specifications

⤢

Key Features

Lian Li Vector V100R Mini BTF 270 degree tempered glass panels

270° Tempered Glass

Dual 4mm tempered glass panels provide 270° unobstructed visibility of your components for a clean modern aesthetic.

ARGB Lighting

Built-in ARGB light strip with 26 LEDs supports a wide range of lighting modes. Synchronize with motherboard software for a fully immersive gaming ambiance.

Lian Li Vector V100R Mini BTF cooling support

Exceptional Cooling Support

Supports up to 9 fans with 3x 120mm pre-installed on the side and 1x 120mm on the rear. Top supports up to 360mm radiators.

Lian Li Vector V100R Mini BTF mesh cooling

Optimized Mesh Cooling

Optimized mesh panel with a perforation rate of up to 40.3%, greatly enhancing cooling efficiency for both air and liquid cooling setups.

Lian Li Vector V100R Mini BTF GPU support

GPU Support Bracket

Pre-installed GB001 GPU bracket supports heavy graphics cards and prevents sagging, maintaining a secure connection between the GPU and motherboard.

المواصفات الفنية

Lian Li Vector V100R Mini BTF — Case Specifications

الموديل	Vector V100R Mini BTF
Type	Mid-Tower Case (Mini BTF)
Color	Black
Dimensions	446 x 235.5 x 484.65 mm
Materials	Steel, Tempered Glass, Plastic
Motherboard Support	E-ATX (<246mm) / ATX / M-ATX / Mini-ITX
BTF Support	ATX / M-ATX (Back-To-Front)
PSU Clearance	ATX (Length <220mm)
Pre-Installed Fans	3x 120mm Side (ARGB) + 1x 120mm Rear (ARGB)
Max Fan Support	Up to 9 Fans
Radiator Support	Top: Up to 360mm
Max GPU Length	420mm
Max CPU Cooler Height	178mm
I/O Ports	2x USB 3.0, 1x USB 3.1 Type-C, Audio, Power, Reset
GPU Support Bracket	Pre-installed (GB001)
Case Warranty	1 Year

Lian Li SR750 — Power Supply Specifications

الموديل	Lian Li SR750G
Wattage	750W
Efficiency	80 PLUS Gold (91.13% Peak)
ATX Version	ATX 3.1 (PCIe 5.1 Ready)
12V-2x6 Connector	1x 600W (Native)
PCIe 6+2 Connectors	3x
CPU 4+4 Connectors	2x
SATA Connectors	3x
Molex Connectors	1x
Protections	OPP, OVP, SCP, OCP, UVP
Design	DC to DC, Cable Management
Certification	80 PLUS Gold #8106
PSU Warranty	3 Years

CERTIFIED EFFICIENCY

🛡

Power Supply Warranty

3 Years

Case: 1 Year Warranty

View 80 PLUS Gold Certificate →

Is This Combo Right For You?

Best For

Builders wanting a complete case + PSU solution
Showcase builds with 270° tempered glass visibility
Modern systems needing ATX 3.1 and 12V-2x6
High-end GPUs up to 420mm length
BTF motherboard compatibility for cleaner builds

Consider Alternatives If

You need more than 750W for multi-GPU setups
You prefer fully modular power supplies
You require a smaller form factor case
You don't need ARGB lighting

Common Questions

What motherboards does the Vector V100R Mini BTF support?

E-ATX (width <246mm), ATX, M-ATX, Mini-ITX. Also supports BTF (Back-To-Front) ATX and M-ATX motherboards for cleaner cable management.

Does the SR750 have ATX 3.1 and a 12V-2x6 connector?

Yes. The SR750 features ATX 3.1 and PCIe 5.1 readiness with a native 12V-2x6 connector rated at 600W for modern graphics cards.

How many fans are pre-installed?

4 fans total: 3x 120mm ARGB on the side and 1x 120mm ARGB on the rear. Supports up to 9 fans total.

What is the warranty coverage?

Case: 1 Year | PSU: 3 Years. The Lian Li Vector V100R Mini BTF case includes 1 year warranty, while the SR750 power supply includes 3 years warranty.

What's In The Box

🖥️

Vector V100R Mini BTF Case

⚡

SR750 750W PSU

🔌

Power Cables

📖

User Manuals

Case

MODEL	Vector V100R
CASE SIZE	MID TOWER
PANEL	Tempered Glass
Motherboard Type	m-ATX, Mini ITX, ATX, E-ATX
FANS INCLUDED	4 FAN
Expansion Slots	7
Fan Support	3 x 140 mm, 7 x 120 mm
Radiator Support	360 mm
GPU Length	420mm
CPU Height	178mm
PSU SUPPORT	ATX
Pre-installed PSU	750W 80 Plus Gold
I/O Ports	Power button, USB 3.1 Type-C, Audio, 1 x Reset button, 2x USB 3.0
3.5“ Drive Bays	One 3.5-Inch Drive Bay
2.5 Drive Bays	1-Bay Drive
Color	Black
Part Number	OE815RXSR75G
الضمان	3 Years
