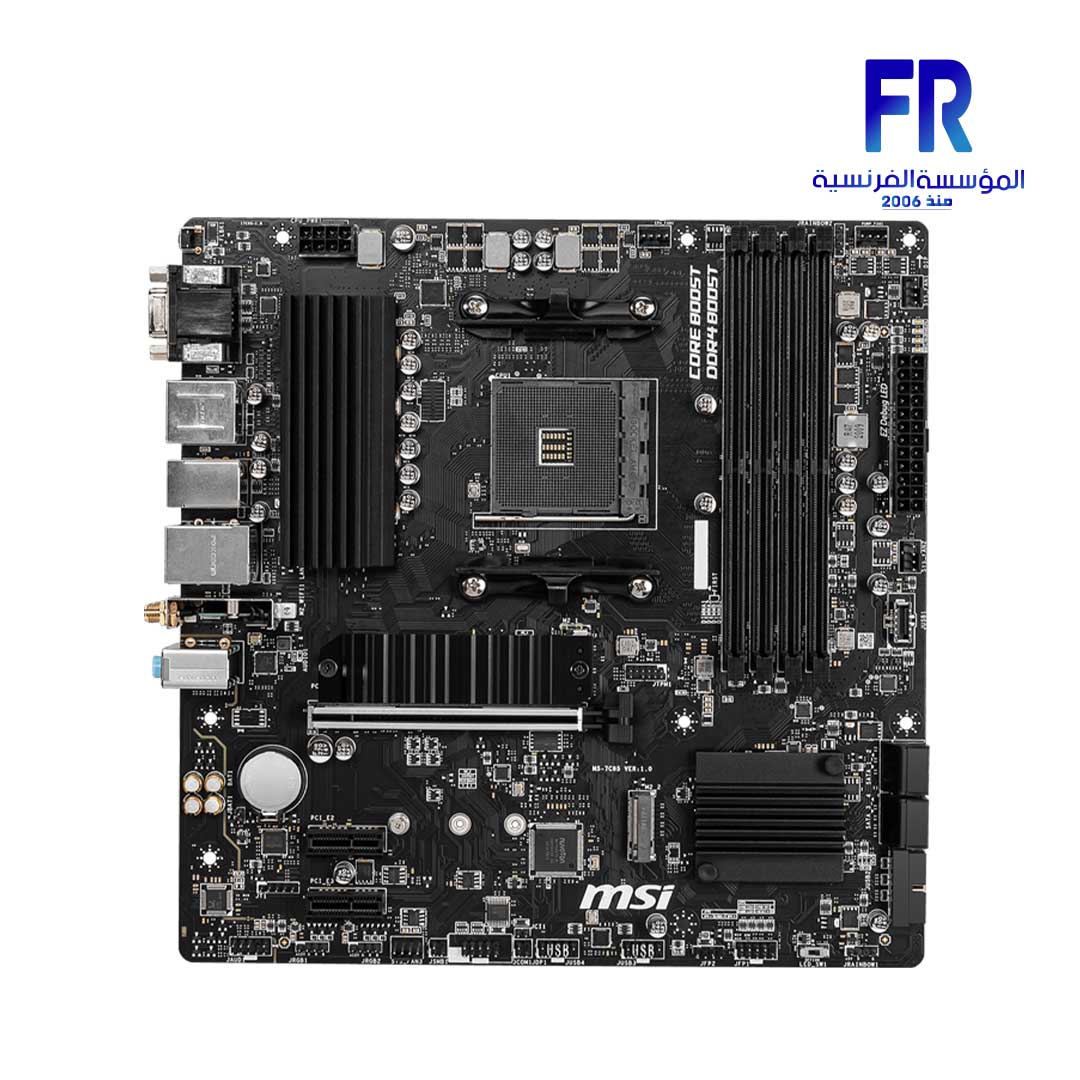

⁦Msi B550M Pro Vdh Wifi Motherboard⁩ - الصورة ⁦2⁩

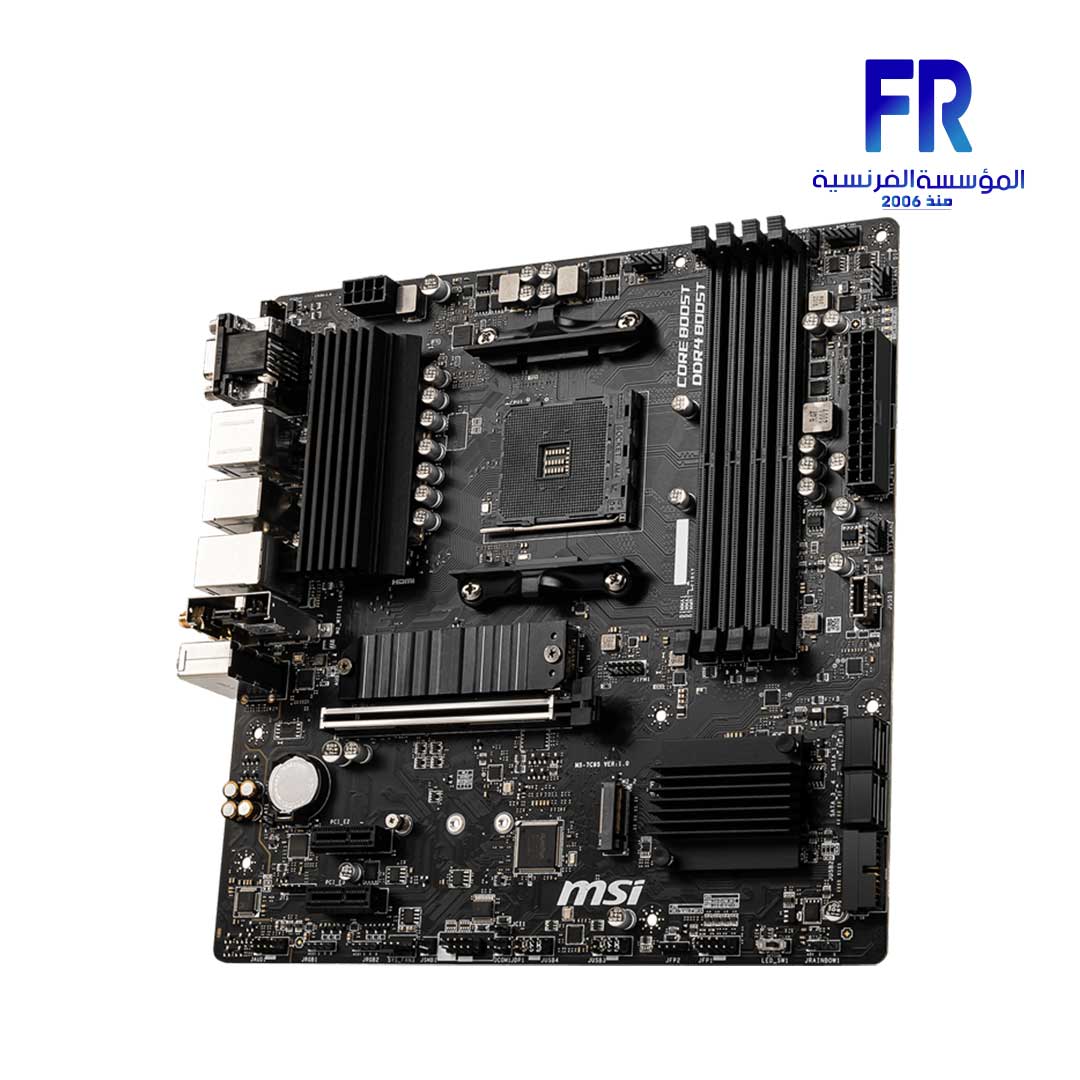

⁦Msi B550M Pro Vdh Wifi Motherboard⁩ - الصورة ⁦3⁩

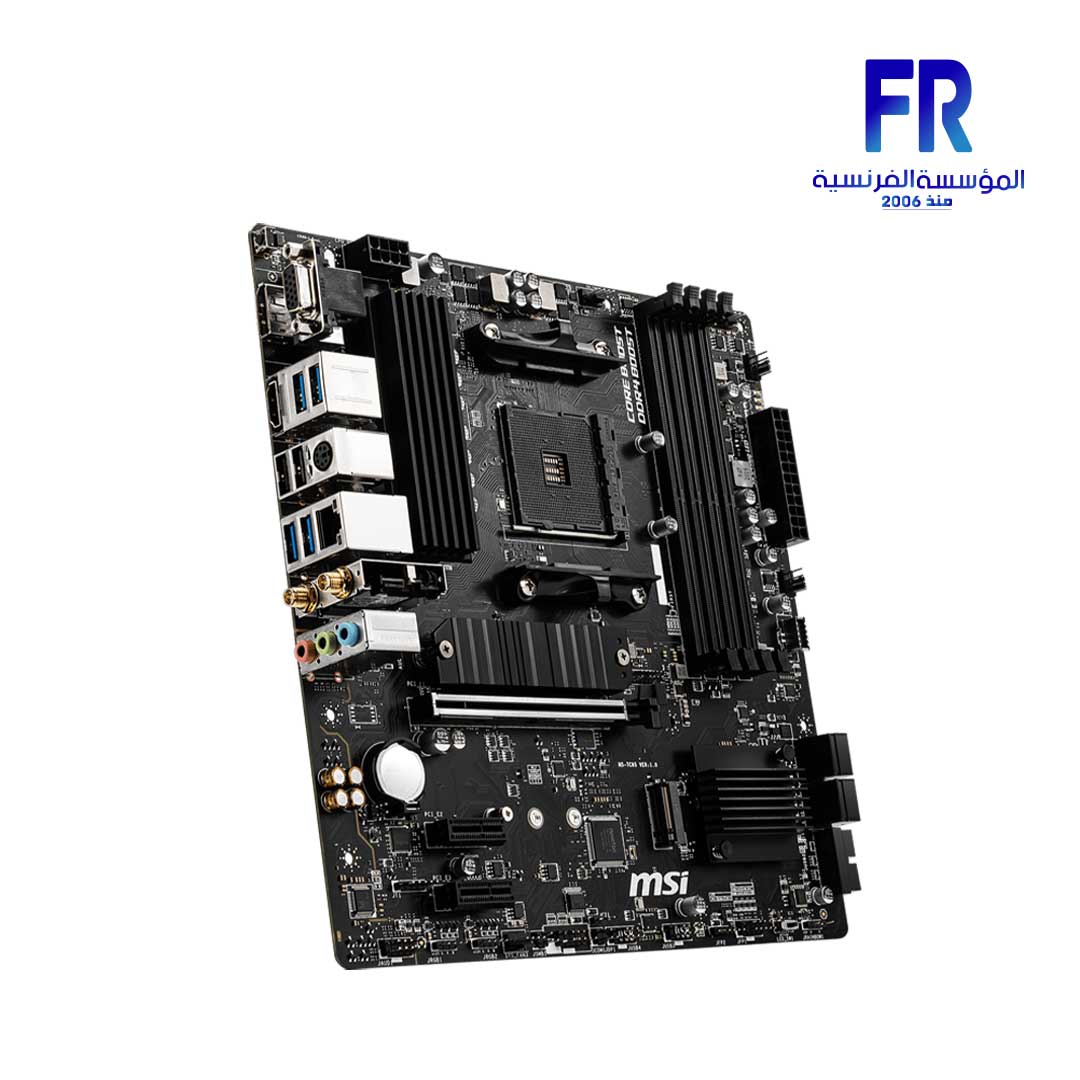

⁦Msi B550M Pro Vdh Wifi Motherboard⁩ - الصورة ⁦4⁩

⁦Msi B550M Pro Vdh Wifi Motherboard⁩ - الصورة ⁦5⁩

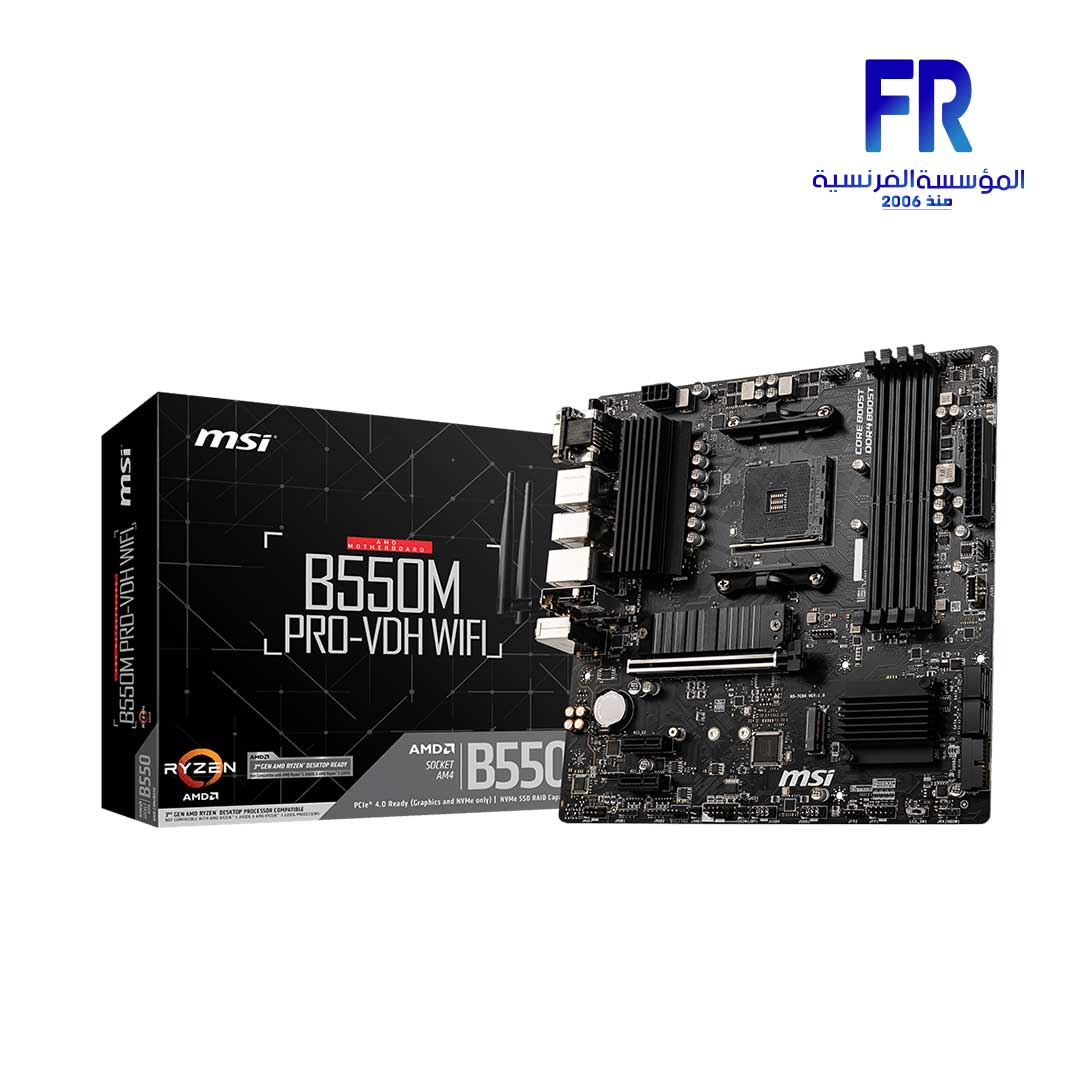

Msi B550M Pro Vdh Wifi Motherboard

7954 جنية

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

مشاهدات 944

Out Of Stock.

رمز المنتج: 824142219393 التصنيفات: AMD Motherboards, اللوحه الام الوسوم: B550M Pro Vdh, B550M Pro Vdh Wifi Motherboard, motherboard, msi, WIFI, Wifi Motherboard

الموديل	B550M Pro Vdh Wifi
CHIPSET MANUFACTURERS	AMD
CPU SOCKET	AM4
MOTHERBOARD CHIPSET	B550
Motherboard Type	Micro ATX
CPU SERIES	Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series
Technology	DDR4
MAX MEMORY SIZE	128 GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 4.0
PCI-E Slots (M.2)	2
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth, Wireless
Part Number	B550M PRO-VDH WIFI
Warranty	3 year

MSI B550M PRO VDH WIFI اللوحه الام

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET

AMD B550 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB ¹
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
  - 1DPC 1R max speed 4400 MHZ
  - 1DPC 2R max speed 3733 MHZ
  - 2DPC 1R max speed 3866 MHZ
  - 2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory

EXPANSION SLOT

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) ¹
2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

ONBOARD GRAPHICS

1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz ¹
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz ¹
1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz ¹ ²
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB

Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.

وحدات تخزين

AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
  - Supports PCIe 4.0/ 3.0 x4 ¹
  - Supports SATA 6Gb/s
  - Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
  - Supports PCIe 3.0×4
  - Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek^® 8111HN Gigabit LAN controller

WIRELESS LAN & BLUETOOTH^®

Wi-Fi AC
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

BACK PANEL PORTS

VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks

DIMENSIONS

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes
