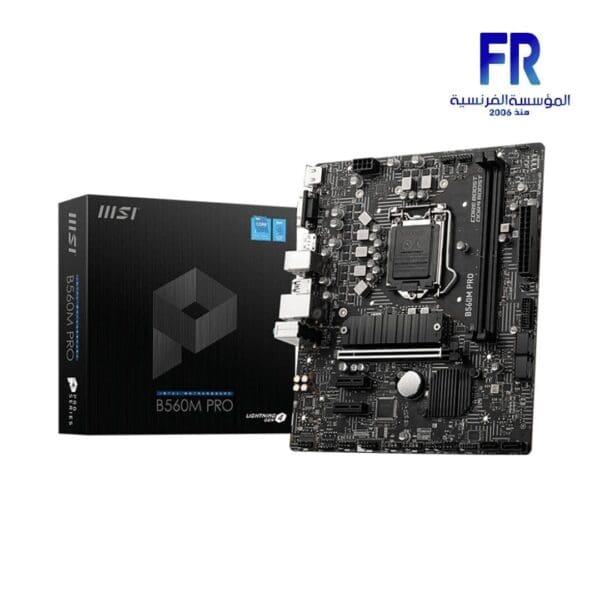

Msi B560M Pro DDR4 Motherboard
4350 جنية
غير متوفر
- CPU
| مقبس وحدة المعالجة المركزية | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th Gen Intel Core Processors, 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |
- Rear Panel I/O Ports
| USB Ports | 2 x USB 3.1 2 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.0b |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antennas |
- Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 header (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Pump fan header 2 x System fan headers |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, M Key, Type 2242/2260/2280/22110 (PCIe Gen4, PCIe Gen 3 or SATA) 1 x M.2 slot, M Key, Type 2242/2260/2280 (PCIe Gen3) 1 x Tuning Controller header |
- Memory
| Memory Bus Speed | 2133/ 2666/ 2933/ 3200 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
- اللوحه الام
| Chipset Manufacturer | Intel |
| Northbridge | B560 |
| RAID Supported | No |
| SATA Supported | Yes |
- Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 2 x PCI Express 3.0 x1 slots |
- Graphics Device
| Integrated Graphics Supported | Yes |
- Sound
| Integrated Sound | Realtek ALC897 |
- شبكات
| Integrated Network | Realtek 8125B |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes |
| Bluetooth | Yes |
- System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
- System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
- Physical
| Form Factor | MicroATX Motherboard |
| In The Box | B560M PRO-VDH WIFI Motherboard Quick Installation Guide MSI Case Badge M.2 Screw / Standoff Sets 2 x SATA Cables Wi-Fi Antenna Driver DVD I/O Shield Product Registration Card |
| Width | 244 mm |
| Length | 244 mm |
- Key Features
| Memory Speed | 3200 MHz |
| RGB Header Type | None |
| Addressable RGB | No |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | 5066 MHz |
| CPU Power Pins (female) | 8 |
| Total M.2 Slots | 2 |
| Maximum NVMe M.2 ports | 2 |
| Maximum SATA M.2 ports | 1 |
| SATA ports | 6 |
| USB2.0 headers | 4 |
| USB3.0 headers | 2 |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| شرائح اللوحة الأم | Intel B560 |
| Thunderbolt | No |
| Motherboard Model | MSI B560M PRO-VDH WIFI |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
- Item Details
| Manufacturer | MSI |
| Manufacturer Code | B560M PRO-VDH WIFI |
| EAN | 4719072807849 |
| Condition | D Grade |
