What is the LAN speed on this motherboard?

This motherboard features a high-speed Realtek® 8126VB 5G LAN controller for ultra-fast networking.

Does it support PCIe 5.0 for graphics cards?

Yes, the primary PCIe x16 slot (PCI_E1) supports PCIe 5.0 speeds (up to x16) with compatible Ryzen 9000/7000 processors.

What is the wireless capability?

It is equipped with the latest Wi-Fi 7 solution (supporting up to 5.8Gbps and 320MHz bandwidth) and Bluetooth 5.4.

تصفية

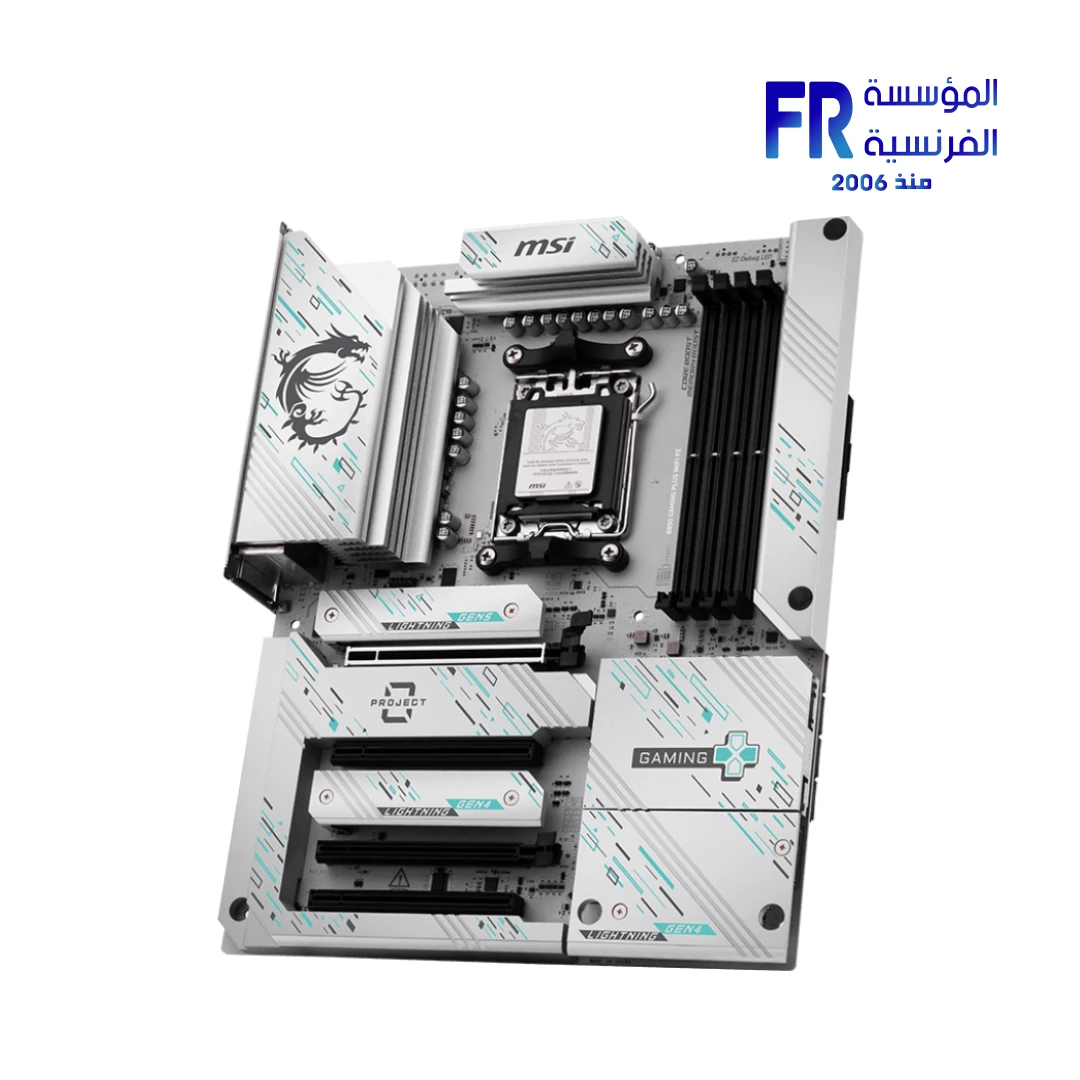

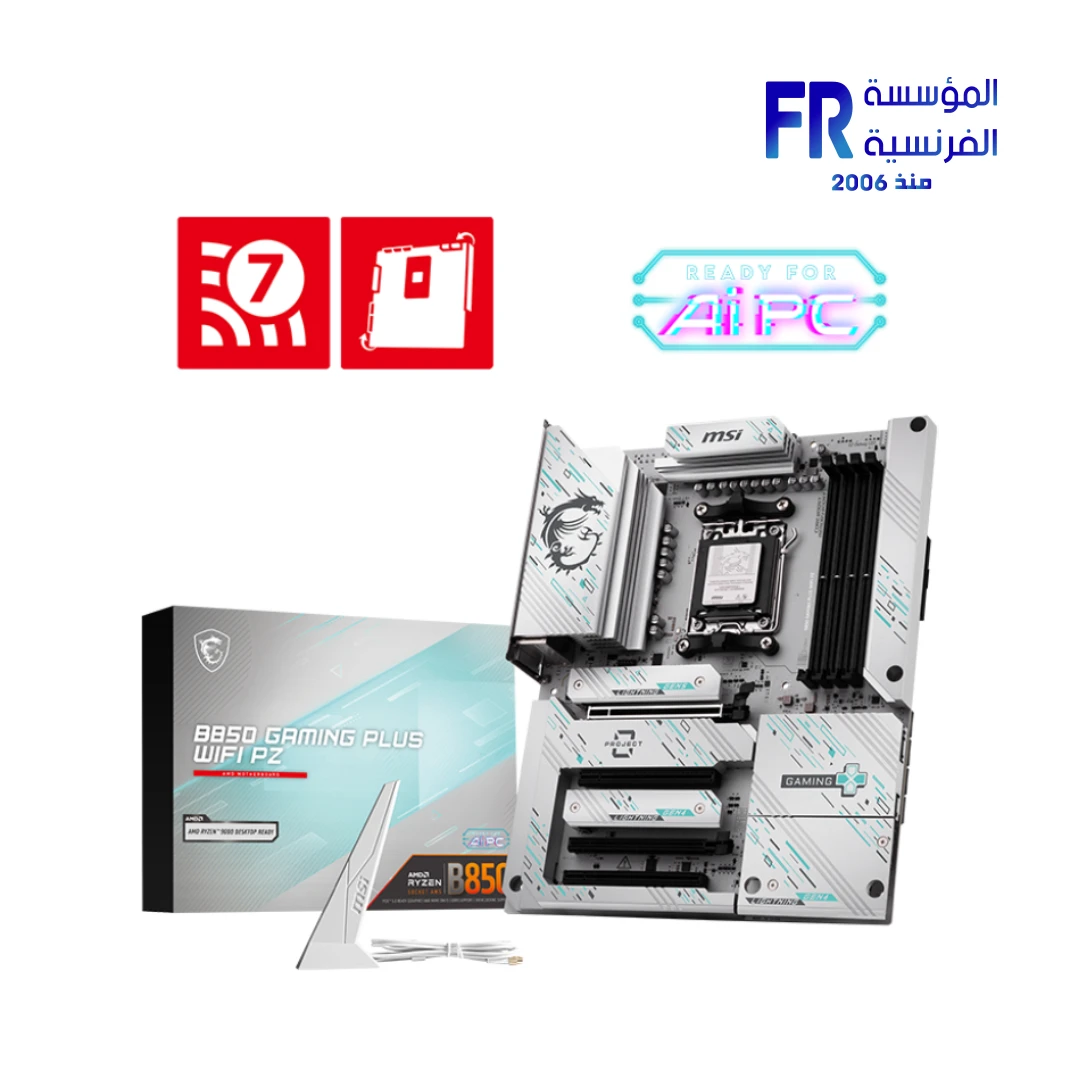

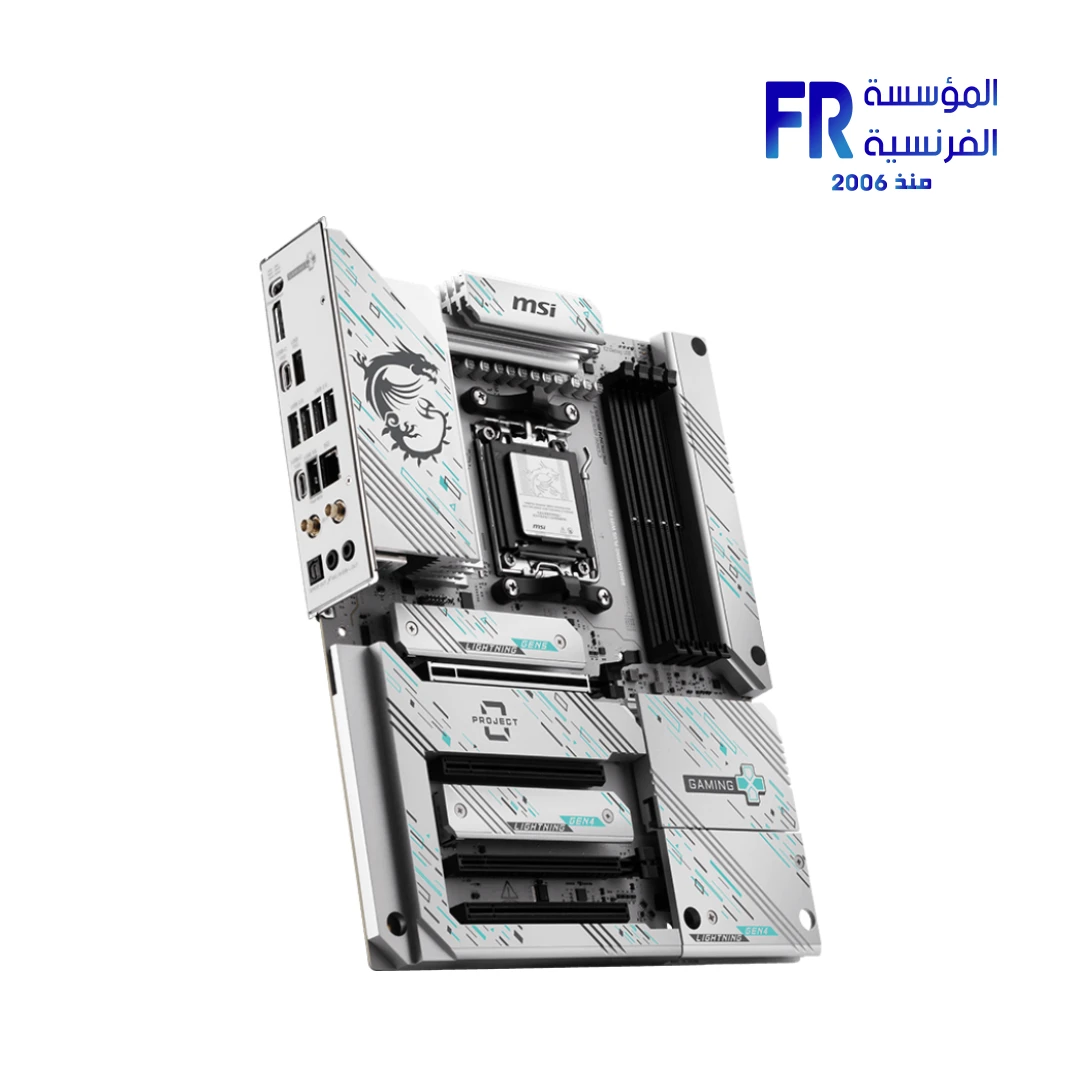

MSI Gaming Plus B850 WIFI PZ WIFI 7 5G LAN Socket AM5 Motherboard

MSI Gaming Plus B850 WIFI PZ WIFI 7 5G LAN Socket AM5 Motherboard

11200 EGP

Part Number 911-7E75-001
Socket / Chipset AM5 Socket / AMD B850
Memory Support 4x DDR5 DIMM, up to 8200+ MT/s (OC)
Primary Slots 1x PCIe 5.0 x16 & 1x M.2 Gen5 x4
Networking Wi-Fi 7 (5.8Gbps) & 5G LAN
Form Factor ATX
Warranty 3 Years

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 824142433553 التصنيفات: MOTHERBOARD, AMD Motherboards الوسوم: motherboard, Socket, B850, B850 Gaming Plus WIFI PZ, Ryzen 9000, 5G Ethernet, gaming, Plus, 5g, msi, Gaming Motherboard, LAN, WIFI, ATX, PZ, DDR5, Wi-Fi 7, 911-7E75-001, AM5, 824142433553, PCIe 5.0, 7, MSI Gaming Plus series العلامة التجارية: MSI

MSI Gaming Plus B850 WIFI PZ AM5 Motherboard

Elevate your build with the MSI Gaming Plus B850 WIFI PZ. Designed for enthusiasts, this ATX motherboard features the cutting-edge Wi-Fi 7 standard, blazing fast 5G LAN, and full PCIe 5.0 support for both GPU and storage, ready for the most demanding Ryzen 9000 setups.

Wi-Fi 7

Up to 5.8 Gbps

5G LAN

Realtek® 8126VB

Gen 5 Ready

PCIe & M.2 Slots

DDR5

8200+ MT/s (OC)

Professional Grade Connectivity

Wi-Fi 7 & 5G LAN

Experience the next era of networking. The onboard Wi-Fi 7 supports 320MHz bandwidth for speeds up to 5.8Gbps, while the 5G LAN port delivers double the bandwidth of standard 2.5G ports for ultra-low latency gaming.

Full PCIe 5.0 Support

Future-proof your system with a PCIe 5.0 x16 slot for next-gen graphics cards and a PCIe 5.0 M.2 slot for the fastest storage devices available, ensuring maximum performance bandwidth.

Advanced Expansion

Built on the ATX form factor, it offers extensive expandability with 3x M.2 slots, multiple PCIe slots, and high-speed USB 10Gbps Type-C ports to handle all your peripherals and storage needs.

Technical Specifications

Feature	Details
Chipset	AMD B850
Socket	AM5 (Ryzen 9000 / 8000 / 7000 Series)
Memory	4x DDR5 Slots, Max 256GB, up to 8200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
Storage	1x M.2 Gen5 x4, 1x M.2 Gen4 x4, 1x M.2 Gen4 x2, 4x SATA 6G
Network	Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, Realtek® 8126VB 5G LAN

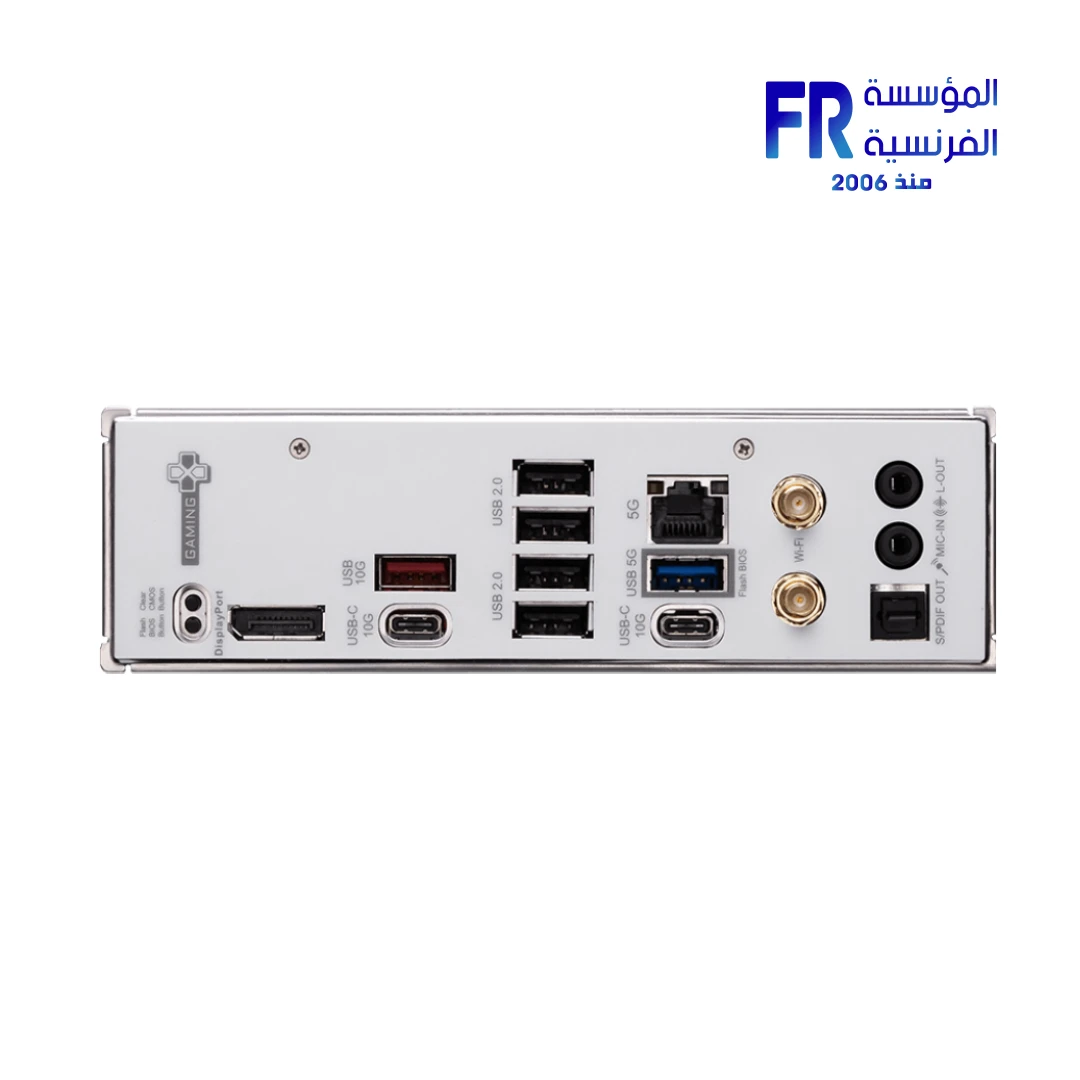

USB Ports	Rear: 2x USB-C 10Gbps, 1x USB-A 10Gbps, 1x USB-A 5Gbps, 4x USB 2.0
Form Factor	ATX (243.84mm x 304.8mm)
Audio	Realtek® ALC897 7.1-Channel HD Audio
