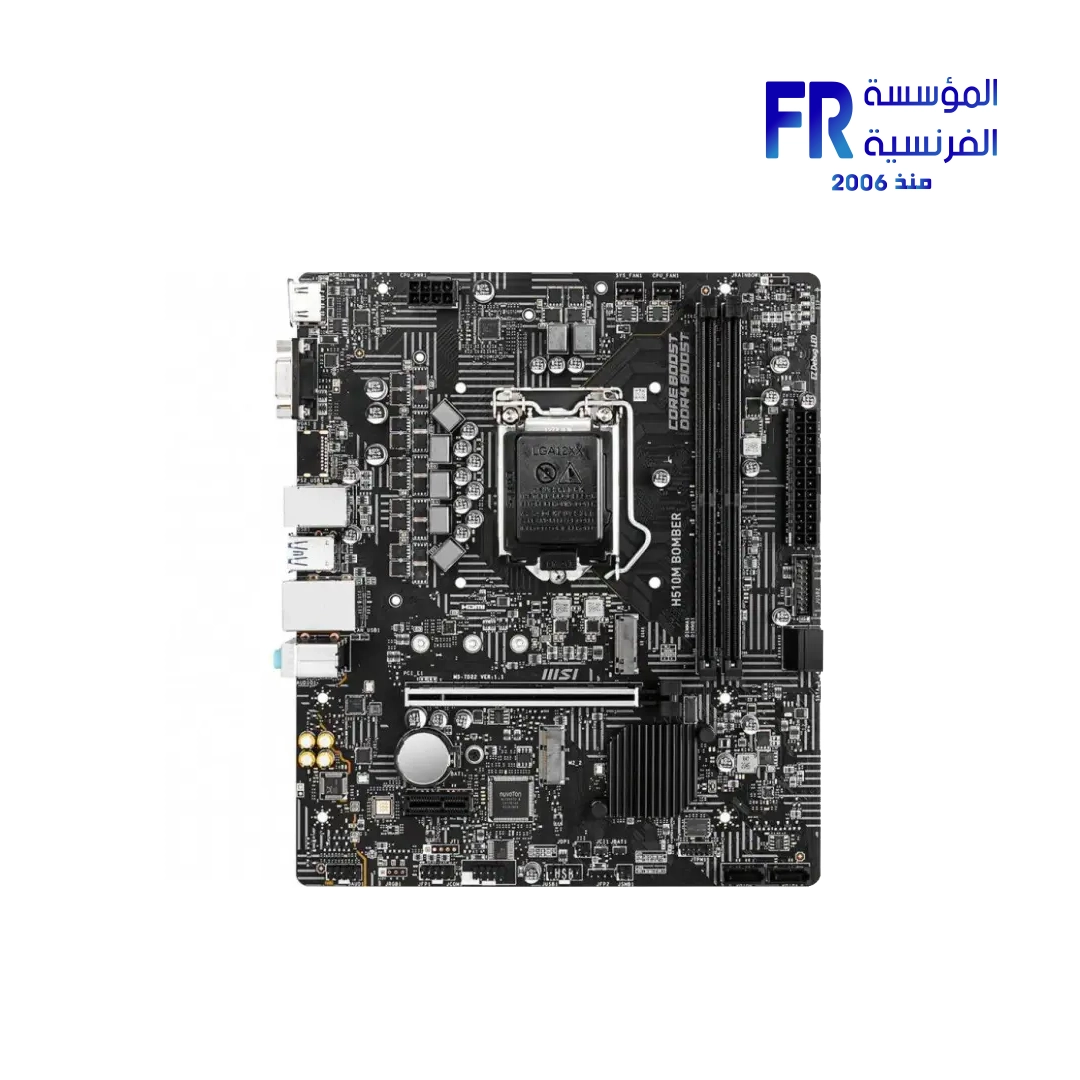

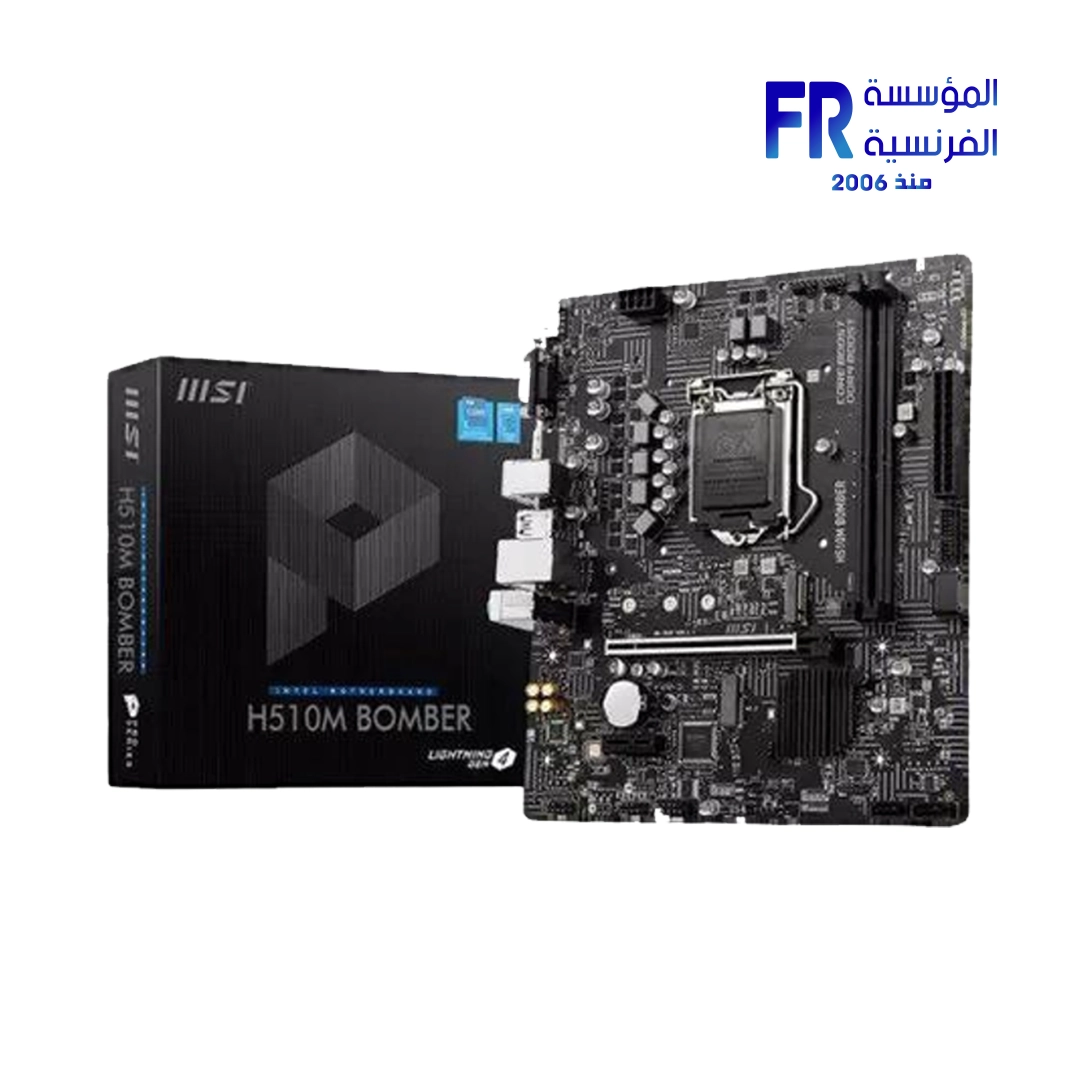

MSI H510M Bomber Motherboard

The MSI H510M Bomber Motherboard is a robust micro-ATX solution designed for Intel LGA 1200 processors. It offers essential features and reliable performance for building a stable and efficient desktop PC. This motherboard is an excellent choice for everyday computing, office tasks, and light gaming setups.

---

Reliable Performance and Essential Connectivity:

Support for Intel LGA 1200 Processors:

The MSI H510M Bomber motherboard supports Intel LGA 1200 socket CPUs, including 10th and 11th Generation Intel Core processors up to i9. This ensures compatibility with a wide range of processors, providing a solid foundation for your system. It delivers consistent performance for daily tasks and multimedia consumption.

DDR4 Memory Support:

Equipped with two DDR4 DIMM slots, this motherboard supports dual-channel DDR4 memory. It allows for memory speeds up to 3200 MHz (MAX) and a maximum system capacity of 64GB. This ensures efficient multitasking and smooth operation for your applications. Consequently, your system will handle everyday workloads with ease.

Fast M.2 Storage Interface:

The H510M Bomber includes an M.2 interface, providing a high-speed connection for NVMe SSDs. This allows for significantly faster boot times, quicker application loading, and rapid file transfers compared to traditional SATA drives. Therefore, it enhances overall system responsiveness and efficiency.

---

Optimized for Daily Use and Multimedia:

Intel Gigabit LAN for Stable Networking:

The motherboard features an Intel® I219V Gigabit LAN controller, providing a stable and reliable wired network connection. This ensures smooth online browsing, streaming, and downloads without interruptions. A consistent network connection is crucial for both work and entertainment.

Integrated Graphics Output Options:

The MSI H510M Bomber offers essential graphics output options, including HDMI and VGA ports. This allows you to connect to a variety of displays directly from the motherboard, leveraging your CPU’s integrated graphics. It supports DirectX 12, providing crisp visuals for multimedia playback and casual gaming.

7.1 CH HD Audio with Realtek Codec:

Experience clear audio with 7.1 Channel HD Audio, powered by the Realtek ALC897 Codec. This integrated audio solution delivers immersive sound for movies, music, and games. It provides a quality audio experience without the need for a dedicated sound card.

Specifications:

• CPU Support: Intel LGA 1200 socket, up to i9 (10th/11th Gen Intel Core Processors)
• Chipset: Intel® H510
• DDR4 Memory: 2 x DIMM Slots, up to 64GB, 3200(MAX) MHz
• M.2 Interface: 1 (PCIe Gen4 support for 11th Gen CPUs, PCIe Gen3 for 10th Gen)
• SATAIII Ports: 4
• PCI-E X16 Slots: 1
• PCI-E X1 Slots: 1
• Graphics Output: 1 x HDMI, 1 x VGA
• Audio: Realtek® ALC897 Codec, 7.1 CH HD Audio
• LAN: 1x Intel® I219V Gigabit LAN controller
• USB 3.2 Gen1 Ports (Front): 2 (Type A)
• USB 3.2 Gen1 Ports (Rear): 2 (Type A)
• USB 2.0 Ports (Front): 2
• USB 2.0 Ports (Rear): 4
• Form Factor: Micro-ATX
• DirectX Support: 12
