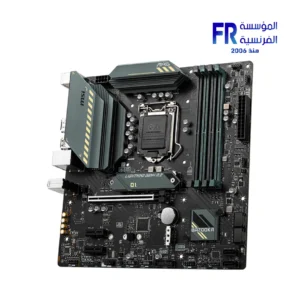

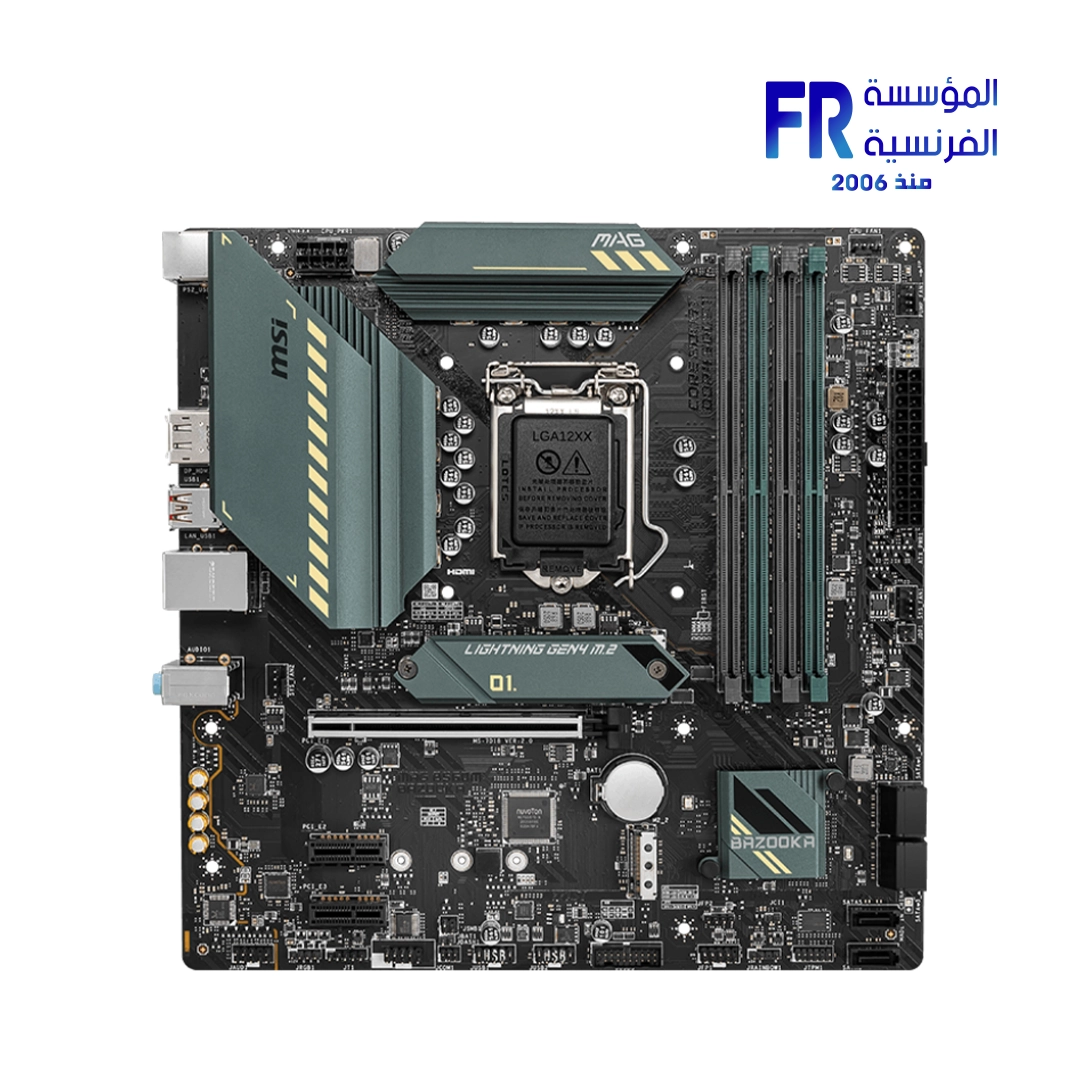

Msi Mag B560M Bazooka Motherboard

MSI Mag B560M Bazooka اللوحات الأم:

The MSI Mag B560M Bazooka Motherboard is a robust Micro-ATX motherboard designed to support 10th and 11th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors with its LGA1200 socket. Built on the Intel® B560 Chipset, it offers dual-channel memory support across four DDR4 DIMM slots, accommodating up to 128GB of RAM. Furthermore, this motherboard provides extensive connectivity and advanced expansion options, ensuring a versatile and high-performance system build for gaming or productivity.

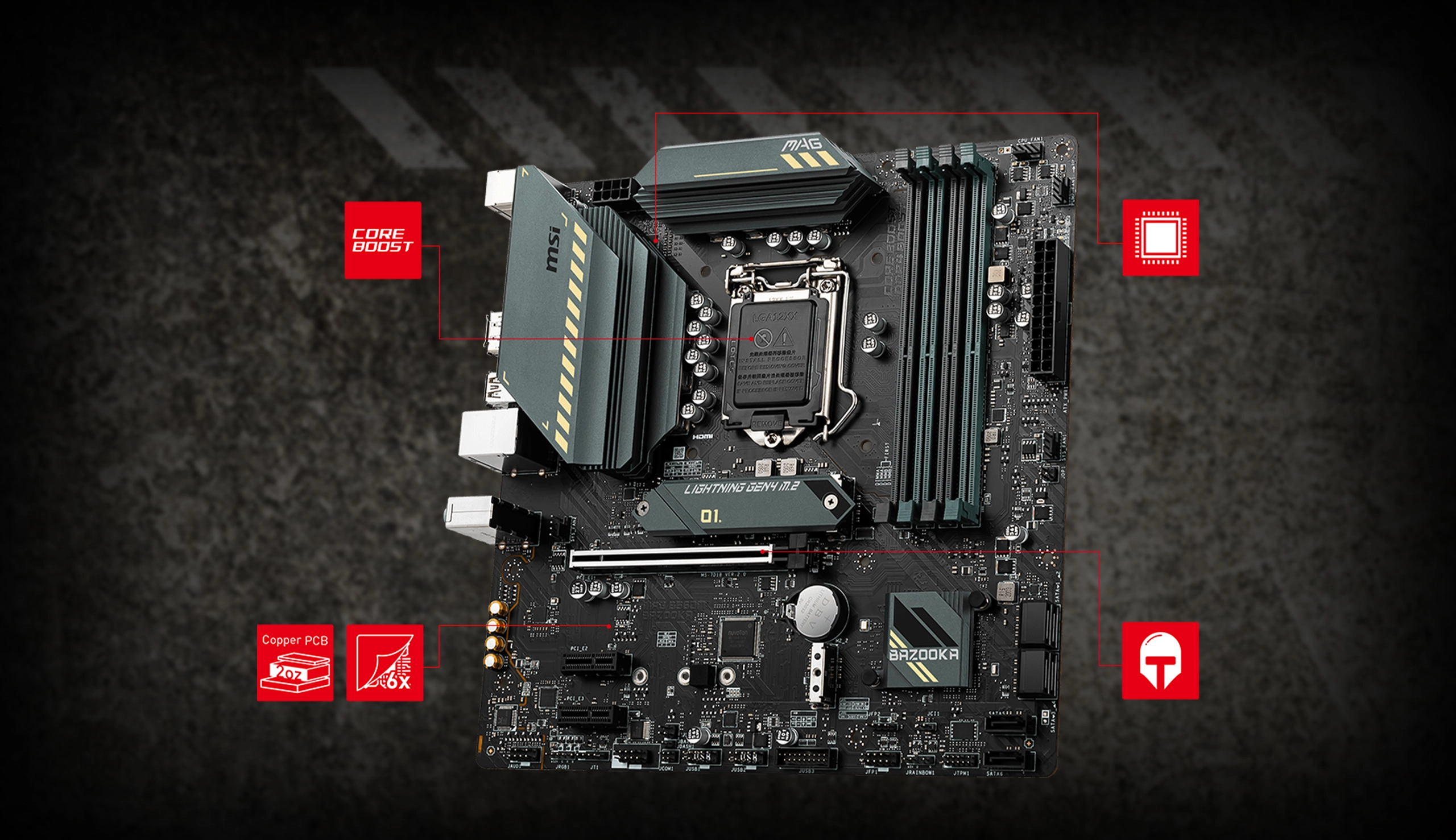

Optimized Performance with Intel® B560 Chipset:

The MSI Mag B560M Bazooka leverages the advanced Intel® B560 Chipset, delivering exceptional performance and stability for your system. This chipset is specifically designed to support the latest Intel® 10th and 11th Gen Core™ processors, providing a solid platform for demanding applications and games. Consequently, users can experience reliable data transfer speeds and improved overall system responsiveness, crucial for modern computing needs. Moreover, the motherboard supports DDR4 memory with a max overclocking frequency of up to 5066 MHz, ensuring high-speed data access for optimal performance.

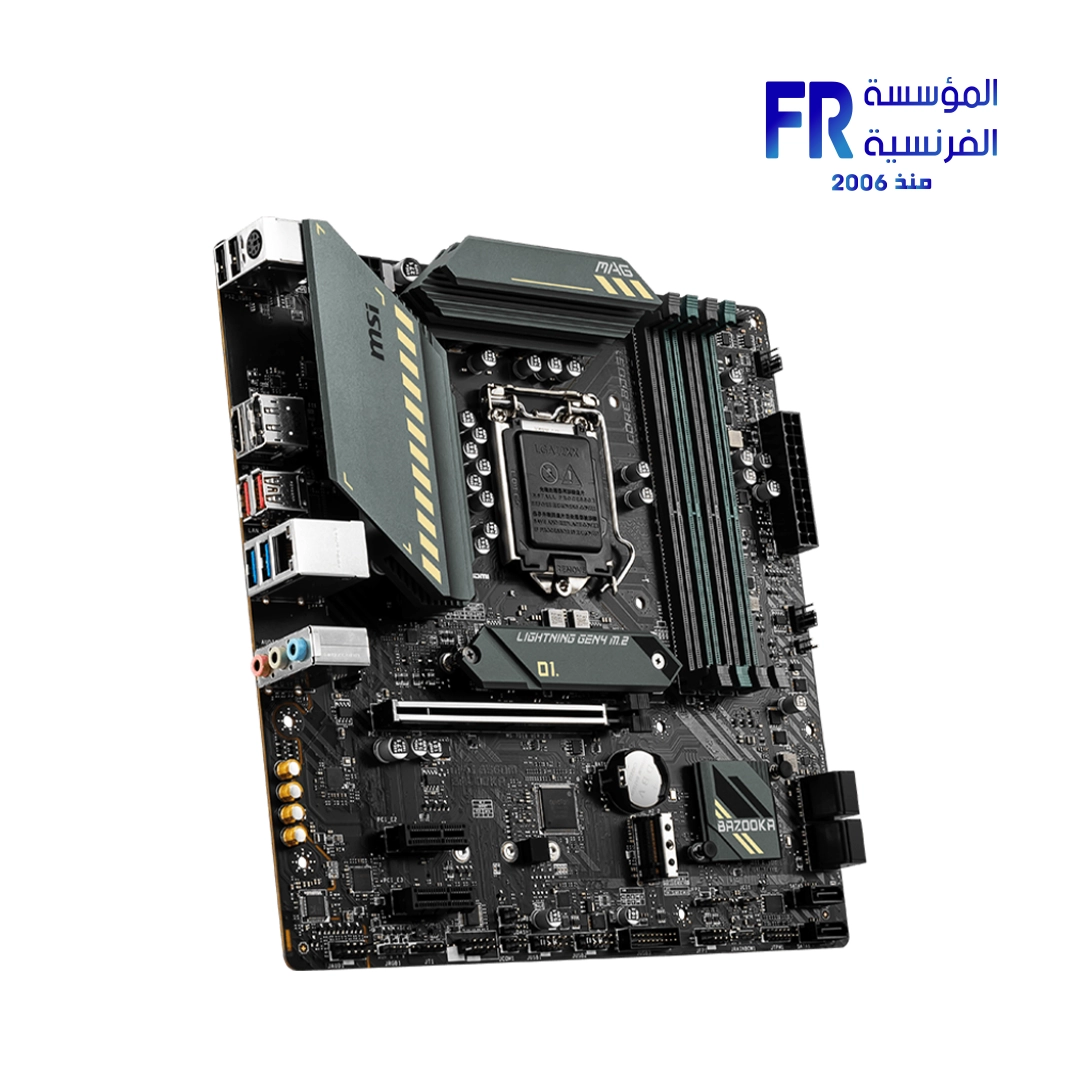

Extensive Connectivity and Expansion for Enthusiasts:

To begin with, this Micro-ATX motherboard is equipped with a comprehensive array of ports and slots to satisfy demanding users. It notably features one PCIe x16 slot (supporting up to PCIe 4.0 for 11th Gen Intel® CPU and PCIe 3.0 for 10th Gen Intel® CPU) and two PCIe 3.0 x1 slots, providing ample room for graphics cards and other expansion cards.

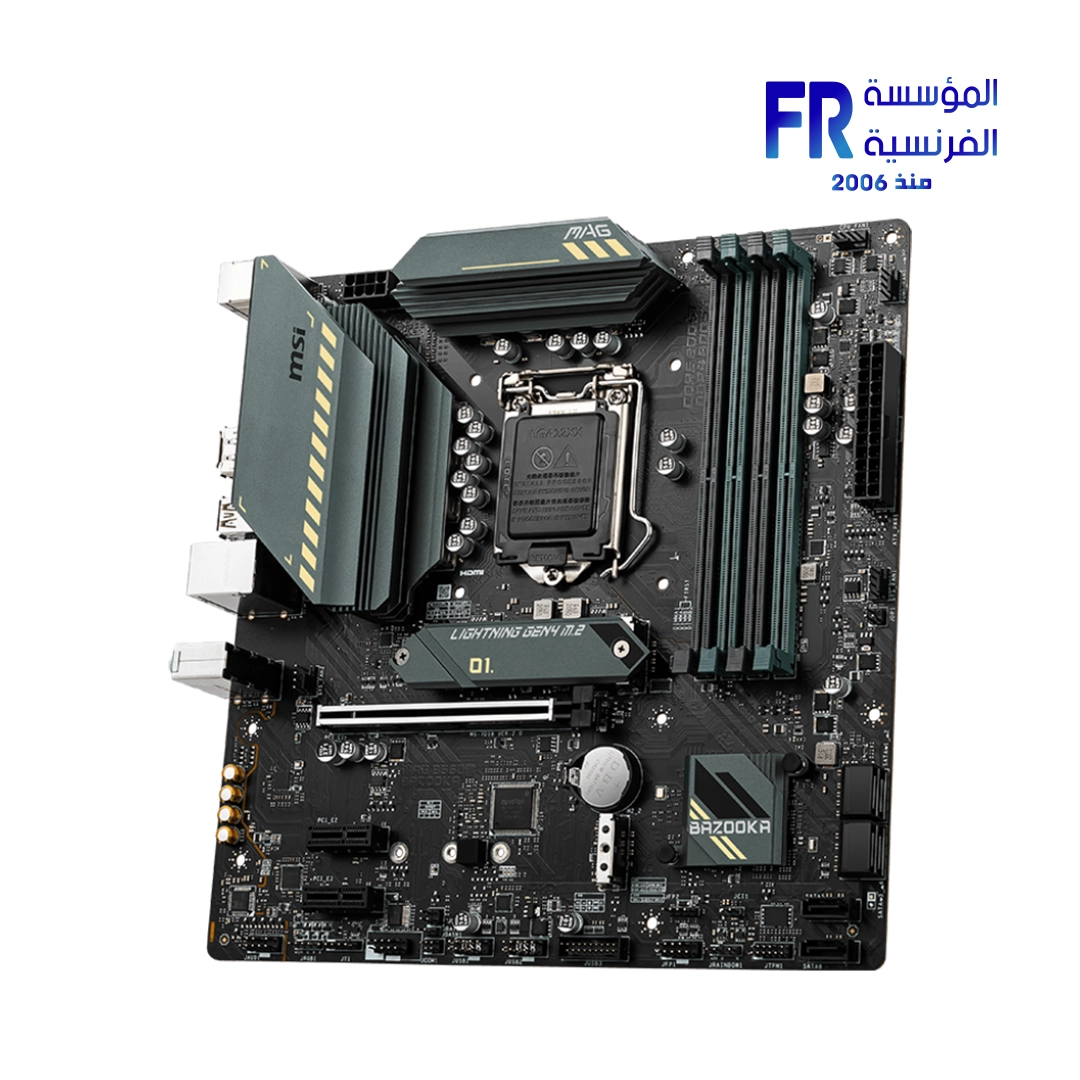

Flexible Storage Solutions:

For storage, the MAG B560M Bazooka provides six SATA 6Gb/s ports and two M.2 slots. Specifically, the M2_1 slot supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU and PCIe 3.0 x4 for 10th Gen Intel® CPU, as well as SATA 6Gb/s. The M2_2 slot supports up to PCIe 3.0 x4. This allows for incredibly flexible and high-speed storage configurations, including NVMe SSDs, thereby dramatically enhancing system responsiveness and load times. Furthermore, it is Intel® Optane™ Memory Ready, offering even faster data access.

Comprehensive USB Connectivity:

Additionally, a wide variety of USB ports are available both front and rear. This includes two USB 3.2 Gen 2 10Gbps Type-A ports on the back panel, four USB 3.2 Gen 1 5Gbps ports (two Type-A on the back, two via internal connector), and six USB 2.0 ports (two Type-A on the back, four via internal connectors). This ensures ample and high-speed connectivity for all your peripherals and external devices, facilitating seamless integration into your high-performance setup.

High-Quality Audio and Display Outputs:

Primarily, the MSI Mag B560M Bazooka integrates a Realtek® ALC897 Codec, delivering 7.1-Channel High Definition Audio for an immersive sound experience. This ensures crystal-clear audio whether you’re gaming, streaming, or enjoying multimedia content.

Versatile Display Capabilities:

Regarding display connectivity, it includes both an HDMI™ 2.0b with HDR port and a DisplayPort 1.4 port. Both support a maximum resolution of 4K 60Hz, ensuring compatibility with a wide range of monitors and providing crisp visual fidelity. Consequently, you can enjoy high-quality visuals for both gaming and productivity, especially with processors featuring integrated graphics.

Robust Build and Features:

The motherboard also features a Realtek® RTL8125B 2.5Gbps LAN controller for ultra-fast wired networking, essential for online gaming and large file transfers. It includes a TPM module connector for enhanced security and various internal connectors for fans, RGB LEDs, and system panels, allowing for a clean and efficient build. The Micro-ATX form factor (9.6 in. x 9.6 in.) ensures compatibility with a wide range of PC cases, while its robust construction guarantees durability and reliability for long-term use.

Explore compatible Motherboards or check MSI Products for other options. Find full details on the official MSI MAG B560M BAZOOKA product page.

Specifications:

• Processor Support: Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
• Processor Socket: LGA1200
• Chipset: Intel® B560 Chipset
• Memory Slots: 4x DDR4 memory slots
• Max Memory (GB): 128
• Memory Support (10th Gen Intel® CPU): 1R 2133/ 2666/ 2933 MHz (by JEDEC & POR)
• Memory Support (11th Gen Intel® CPU): 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Max Overclocking Frequency:
  • 1DPC 1R: Up to 5066 MHz
  • 1DPC 2R: Up to 4600+ MHz
  • 2DPC 1R: Up to 4266+ MHz
  • 2DPC 2R: Up to 4000+ MHz
• Memory Mode: Dual-Channel mode
• Memory Type: Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
• PCIe x16 Slot: 1x (PCI_E1 from CPU, supports up to PCIe 4.0 for 11th Gen Intel® CPU, PCIe 3.0 for 10th Gen Intel® CPU)
• PCIe x1 Slots: 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3 from B560 chipset)
• HDMI™ Port: 1x HDMI™ 2.0b with HDR port (supports max resolution 4K 60Hz)
• DisplayPort: 1x DisplayPort 1.4 port (supports max resolution 4K 60Hz)
• Storage:
  • 6x SATA 6Gb/s ports (from B560 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot: Supports up to PCIe 4.0 x4 (11th Gen Intel® CPU) / PCIe 3.0 x4 (10th Gen Intel® CPU); Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot: Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready
  • Supports Intel® Smart Response Technology for Intel Core™ processors
• USB (Intel® B560 Chipset):
  • 2x USB 3.2 Gen 2 10Gbps Type-A ports (back panel)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A back panel, 2 via internal connector)
  • 2x USB 2.0 Type-A ports (back panel)
• USB (USB Hubs GL850G): 4x USB 2.0 ports (via internal connectors)
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
• LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller
• Internal Connectors: 1x 24-pin ATX main power, 1x 8-pin ATX 12V power, 6x SATA 6Gb/s, 2x M.2 slots, 1x USB 3.2 Gen 1 5Gbps connector (for 2 ports), 2x USB 2.0 connectors (for 4 ports), 1x 4-pin CPU fan, 1x 4-pin water-pump fan, 2x 4-pin system fan, 1x Front panel audio, 2x System panel, 1x Chassis Intrusion, 1x Clear CMOS jumper, 1x TPM module, 1x Serial port, 1x Tuning Controller
• LED Feature: 1x 4-pin RGB LED connector, 1x 3-pin RAINBOW LED connector, 4x EZ Debug LED

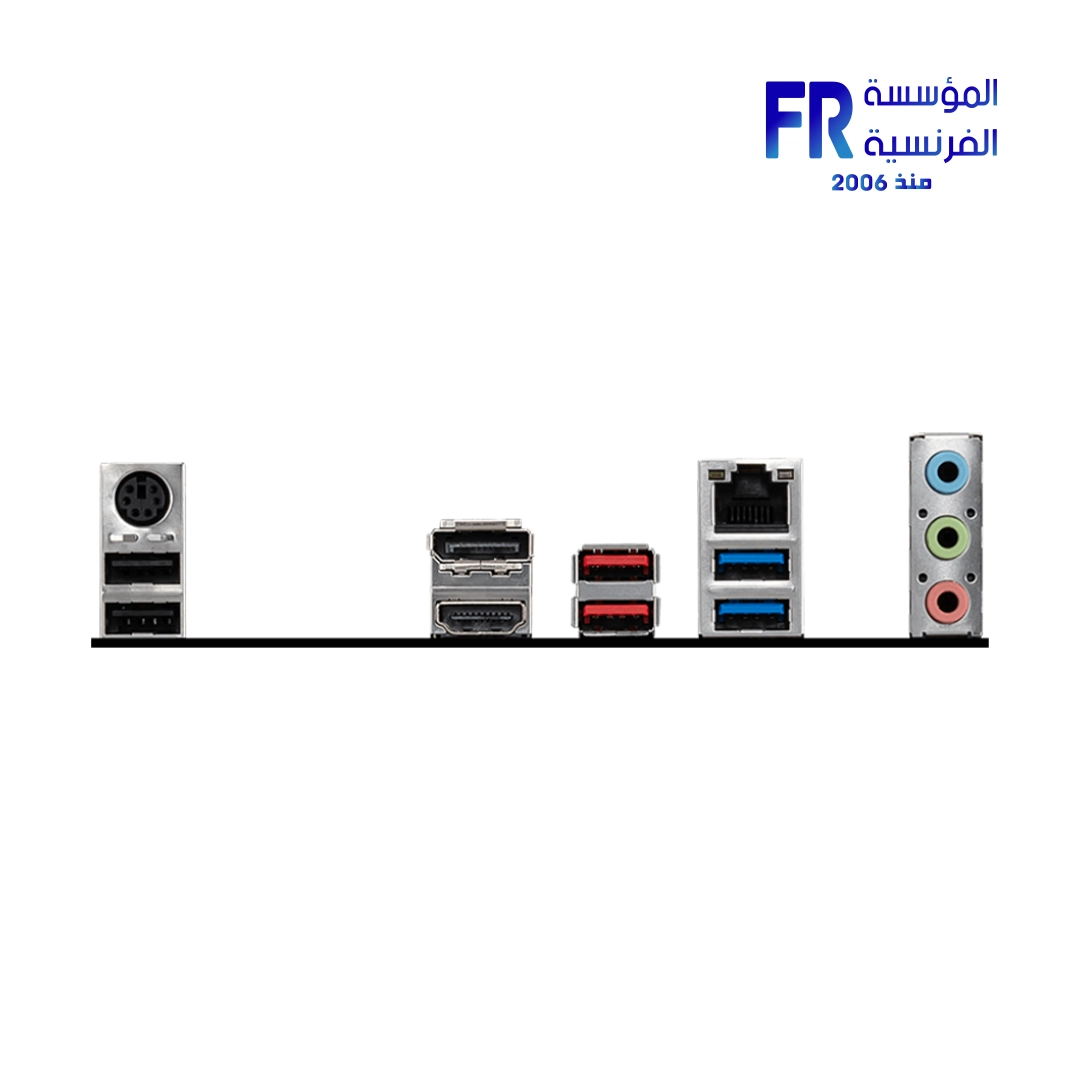

• Back Panel Ports: Mouse / Keyboard, DisplayPort, 2.5G LAN Port, Audio Connectors, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 1 5Gbps Type-A
• Dimensions: Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• Mounting: 8 mounting holes
• Operating System: Support for Windows® 10 64-bit
• Model Number/SKU: 911-7D18-001
• EAN/UPC: 22325010
