What motherboard form factors does the MSI MAG PANO 110R PZ support?

The MSI MAG PANO 110R PZ case supports standard ATX, Micro-ATX, and Mini-ITX motherboards, as well as back-connect ATX and Micro-ATX motherboards.

How many fans are pre-installed in the MAG PANO 110R PZ case?

This case comes with four pre-installed ARGB fans: three reverse blade fans on the side and one standard ARGB fan at the rear.

What is the maximum GPU length and CPU cooler height supported by this case?

The case supports a maximum GPU length of 400 mm (15.75 inches) and a maximum CPU cooler height of 160 mm (6.30 inches).

تصفية

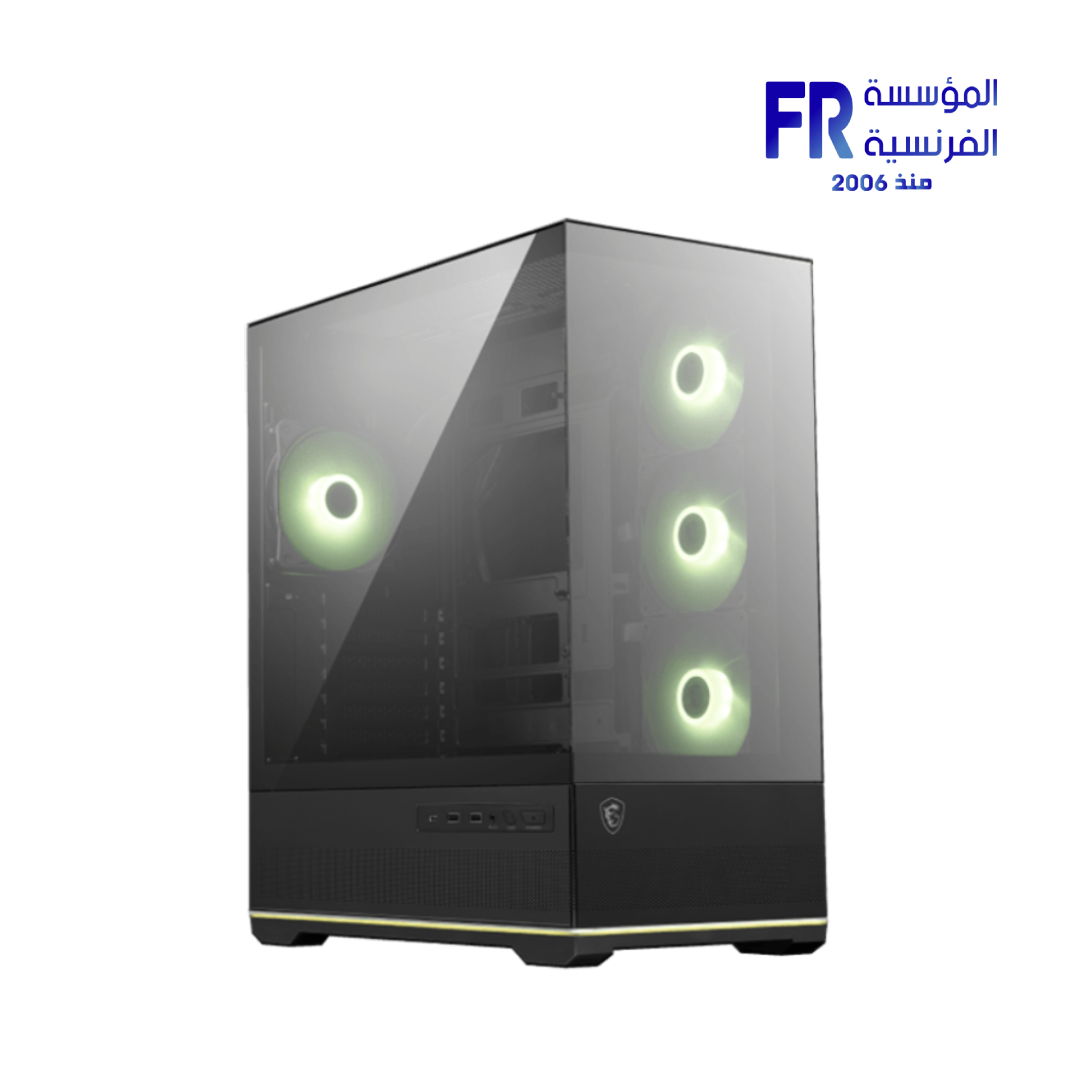

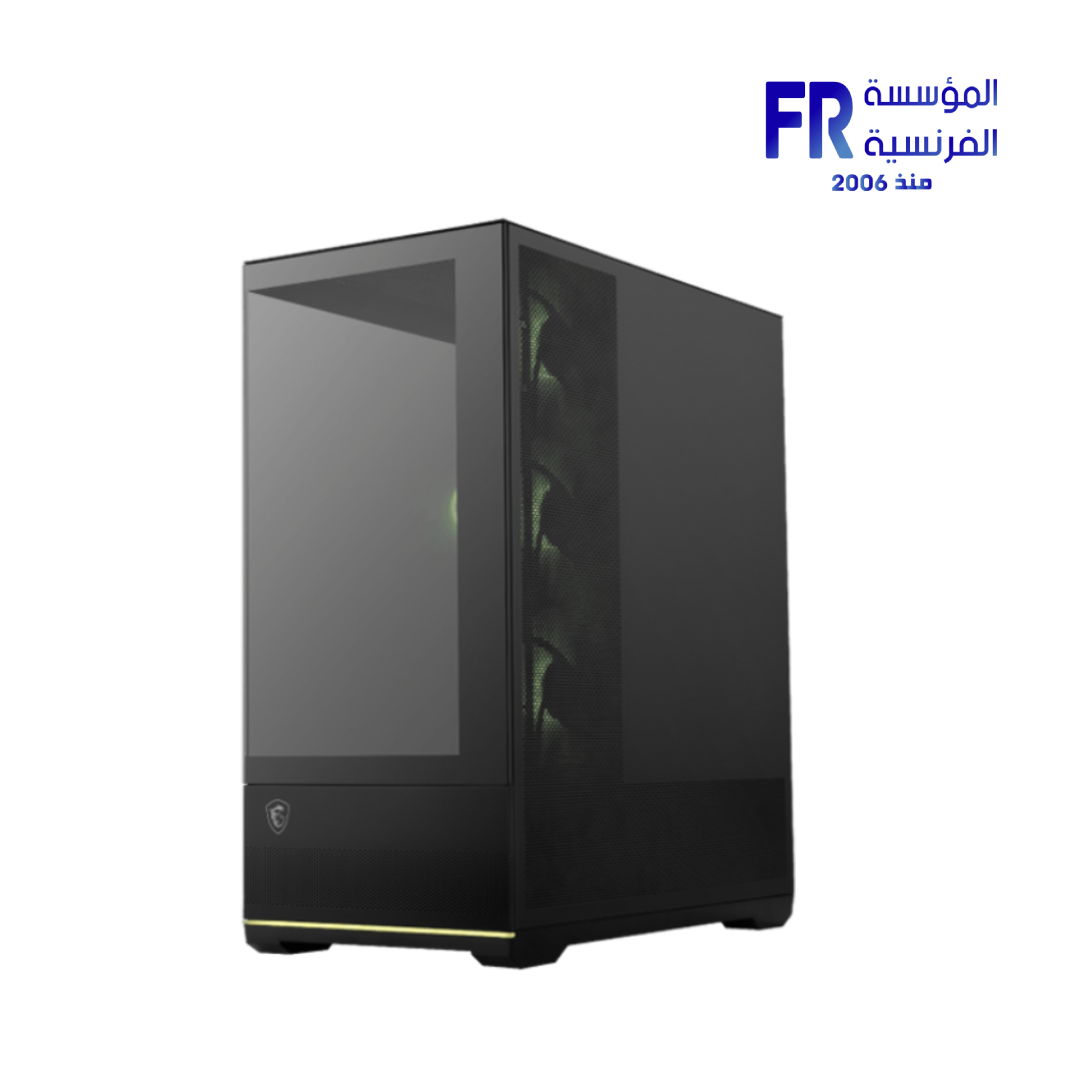

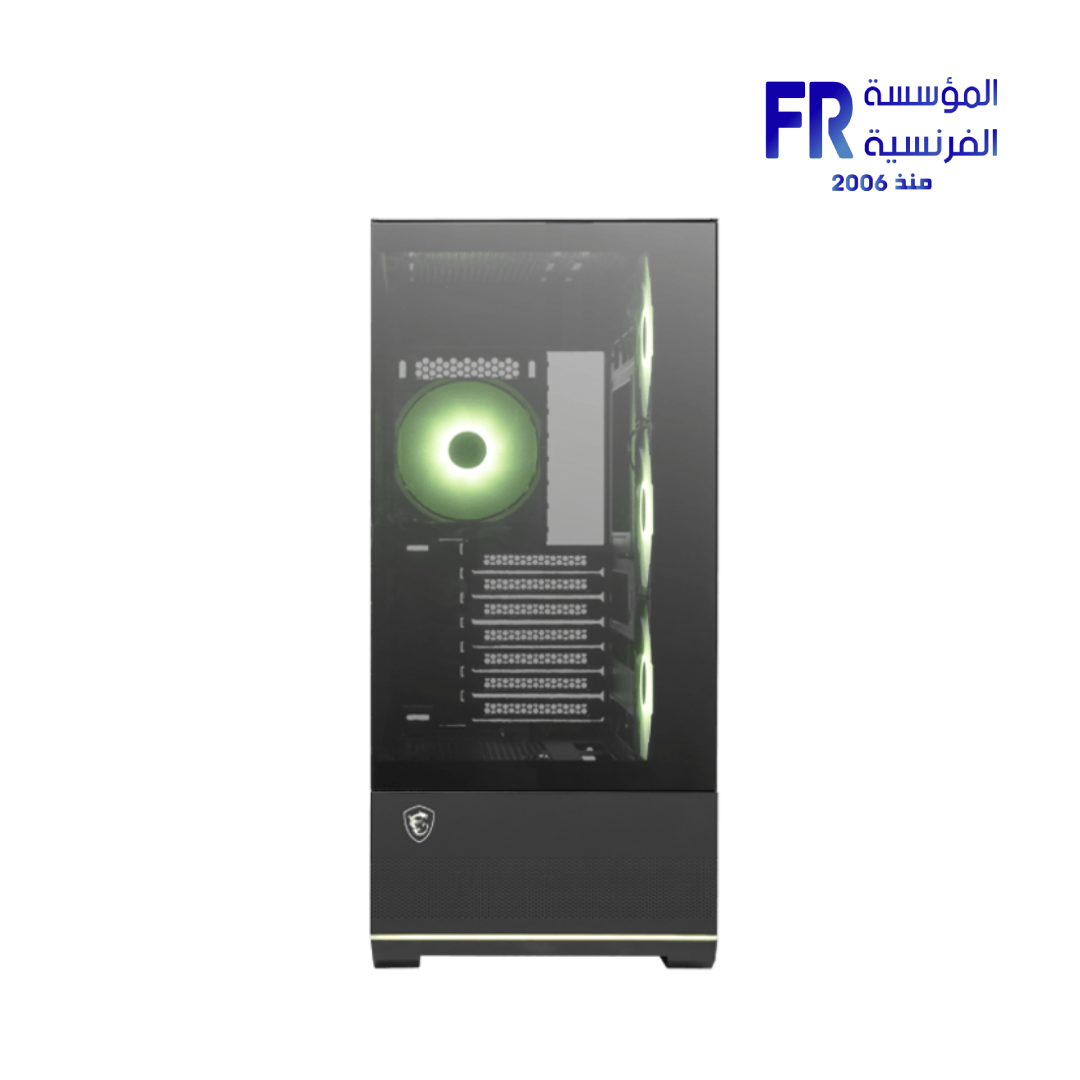

MSI MAG PANO 110R PZ Back-Connect Support With 4 ARGB Fans Mid Tower Gaming Case

MSI MAG PANO 110R PZ Back-Connect Support With 4 ARGB Fans Mid Tower Gaming Case

4999 جنية

Model Name: MAG PANO 110R PZ
Case Form Factor: Mid-Tower
Motherboard Support: Regular & Back-connect ATX/Micro-ATX/Mini-ITX
Pre-installed Fans: 4 x ARGB Fans
Maximum GPU Length: 400mm
I/O Ports: USB 20Gbps (Type-C), 2x USB 5Gbps (Type-A)
Warranty: 1 سنة

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 824142396322 التصنيف: كيس الوسوم: MAG, 4, PANO, ARGB, tempered glass, Liquid Cooling Support, 110R, cable management, DESKTOP, 360mm Radiator Support, Back-Connect, PZ, case, computer case, MID, ARGB Fans, Panoramic Glass, back-connect motherboard support, pc case, gaming case, With, fans, Support, MAG PANO, msi, ATX Case, back-connect support, gaming, MID TOWER, Computer Components, Micro ATX Support, 306-7G28R21-JA4, TOWER, Gaming PC, Mini-ITX Support, 824142396322 العلامة التجارية: MSI

MSI MAG PANO 110R PZ Gaming Case

Build your next gaming rig with the stylish and versatile MSI MAG PANO 110R PZ Gaming Case. This Mid-Tower case offers excellent compatibility for both regular and back-connect motherboards, extensive cooling options, and comes with four pre-installed ARGB fans to light up your build.

Overview of the MSI MAG PANO 110R PZ Case

The MSI MAG PANO 110R PZ Back-Connect Support With 4 ARGB Fans Mid Tower Gaming Case is engineered for builders who demand both aesthetics and performance. Its panoramic design provides a stunning view of your components, while its smart layout supports a wide range of hardware. Furthermore, with extensive support for fans and radiators on the top, rear, and side, you can configure a powerful cooling system to keep high-end components running at peak performance. The case also provides ample drive mount options and modern I/O ports, including a high-speed USB Type-C.

MSI MAG PANO 110R PZ: Key Features

Back-Connect Support: Compatible with the latest back-connect motherboards for a cleaner and more streamlined build.
Extensive Cooling: Comes with 4 pre-installed ARGB fans and supports up to a 360 mm radiator at the top.
Spacious Interior: Accommodates GPUs up to 400 mm in length and CPU coolers up to 160 mm in height.
Modern I/O Panel: Includes a USB 20Gbps (Type-C) port, two USB 5Gbps (Type-A) ports, and an LED control button.

Technical Specs: MSI MAG PANO 110R PZ

The MSI MAG PANO 110R PZ Back-Connect Support With 4 ARGB Fans Mid Tower Gaming Case offers a robust foundation for any high-performance PC. It features a standard ATX power supply mount with ample clearance and provides versatile drive mount support for both 2.5″ and 3.5″ drives. For complete details and the latest information, always refer to the official MSI product page.

Product Name	MAG PANO 110R PZ / WHITE
Case Form Factor	Mid-Tower
Motherboard Form Factor Support	Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX
I/O Ports	1 x USB 20Gbs (Type-C), 2 x USB 5Gbs (Type-A), 1 x Audio-Out / Mic-in, 1 x LED Button, 1 x Power Button
Drive Mount Support	2 x 2.5“, 2 x 3.5“, 2 x 2.5″/3.5″ combo
Expansion Slots	7
Maximum GPU Length	400 mm / 15.75 inches
Maximum CPU Cooler Height	160 mm / 6.30 inches
Power Supply Support	ATX
Maximum PSU Length	200 mm / 7.87 inches
Fan Size Support	Top: 3 x 120 mm / 2 x 140 mm, Rear: 1 x 120 mm, Side: 3 x 120 mm / 2 x 140 mm, Bottom: 3 x 120 mm
Pre-installed Fan	Side: 3 x 120 mm (ARGB Reverse Blade), Rear: 1 x 120 mm (ARGB Fan)
Radiator Size Support	Top: 120 / 140 / 240 / 280 / 360 mm, Rear: 120 mm
Dimensions (DxWxH)	420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches

Frequently Asked Questions

Does this case support back-connect motherboards?

Yes, the MSI MAG PANO 110R PZ is specifically designed to support back-connect ATX and Micro-ATX motherboards for a cleaner build with fewer visible cables.

What is the largest radiator size supported at the top?

The case can accommodate a radiator up to 360mm in length at the top position for excellent liquid cooling performance.

What is the warranty on this PC case?

PC cases typically come with a 1-year warranty on included fans and electronic components. Please verify with the official MSI warranty information for your region.

Shop More From MSI
Explore All PC Cases

All information and descriptions are for illustrative purposes only. Visual representations of the products may not be perfectly accurate. Product specifications, functions, and appearance may vary by model and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. For the most accurate and up-to-date information, please review the official manufacturer’s website. If you notice any discrepancies, please report them to us.

Case

الموديل	MAG PANO 110R PZ
حجم الكيس	MID TOWER
PANEL	Tempered Glass
Motherboard Type	Mini ITX, Micro ATX, ATX
FANS INCLUDED	4 FAN
Expansion Slots	7
Fan Support	10x 120mm
Radiator Support	360mm
GPU Length	400MM
CPU Height	160 mm
PSU SUPPORT	200 mm
Pre-installed PSU	N/A
I/O Ports	USB Type-C 20 Gbps, 2 x USB 5Gbps Type-A
3.5“ Drive Bays	2
2.5 Drive Bays	2-Bay Drive
اللون	اسود
Part Number	306-7G28R21-JA4
الضمان	1 سنة
