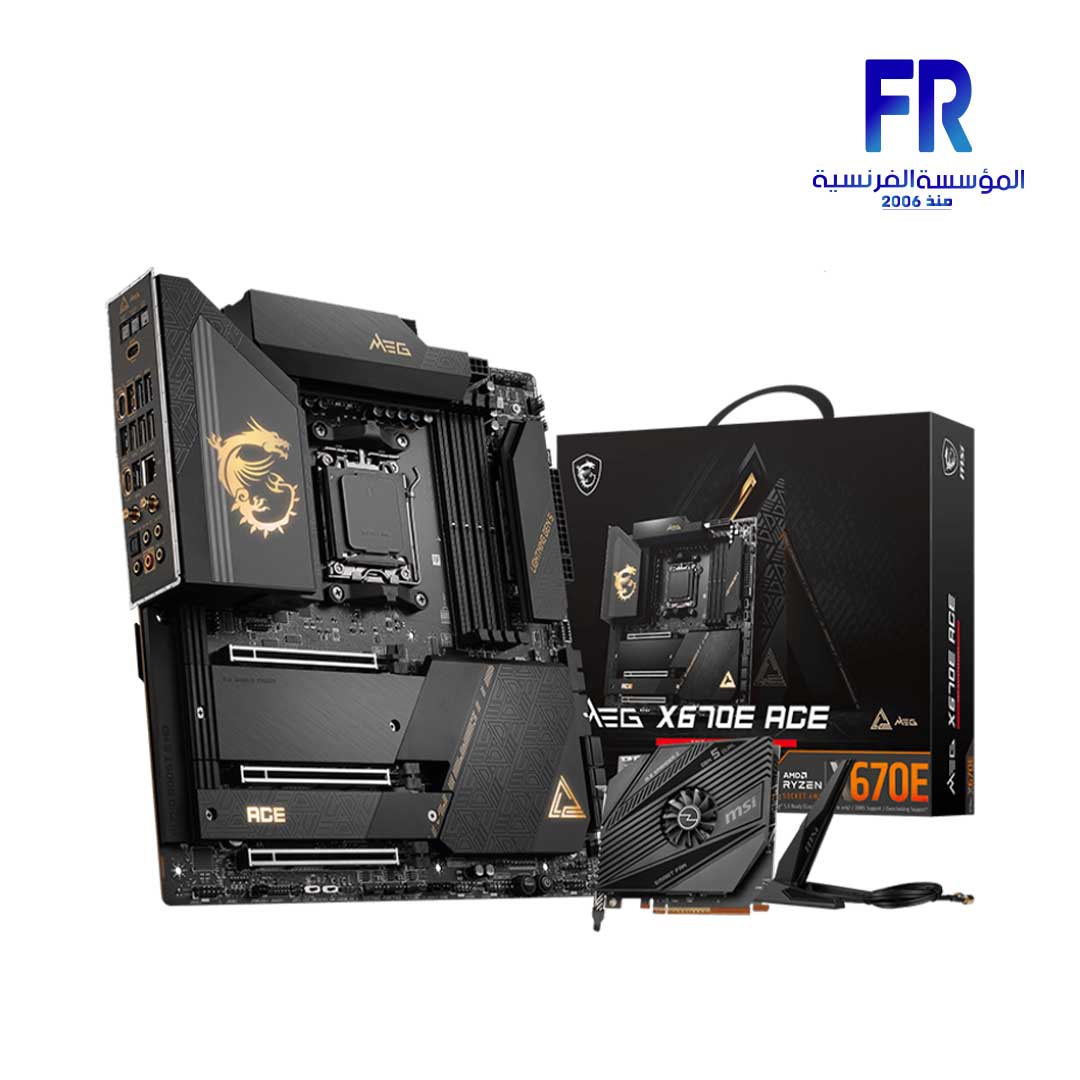

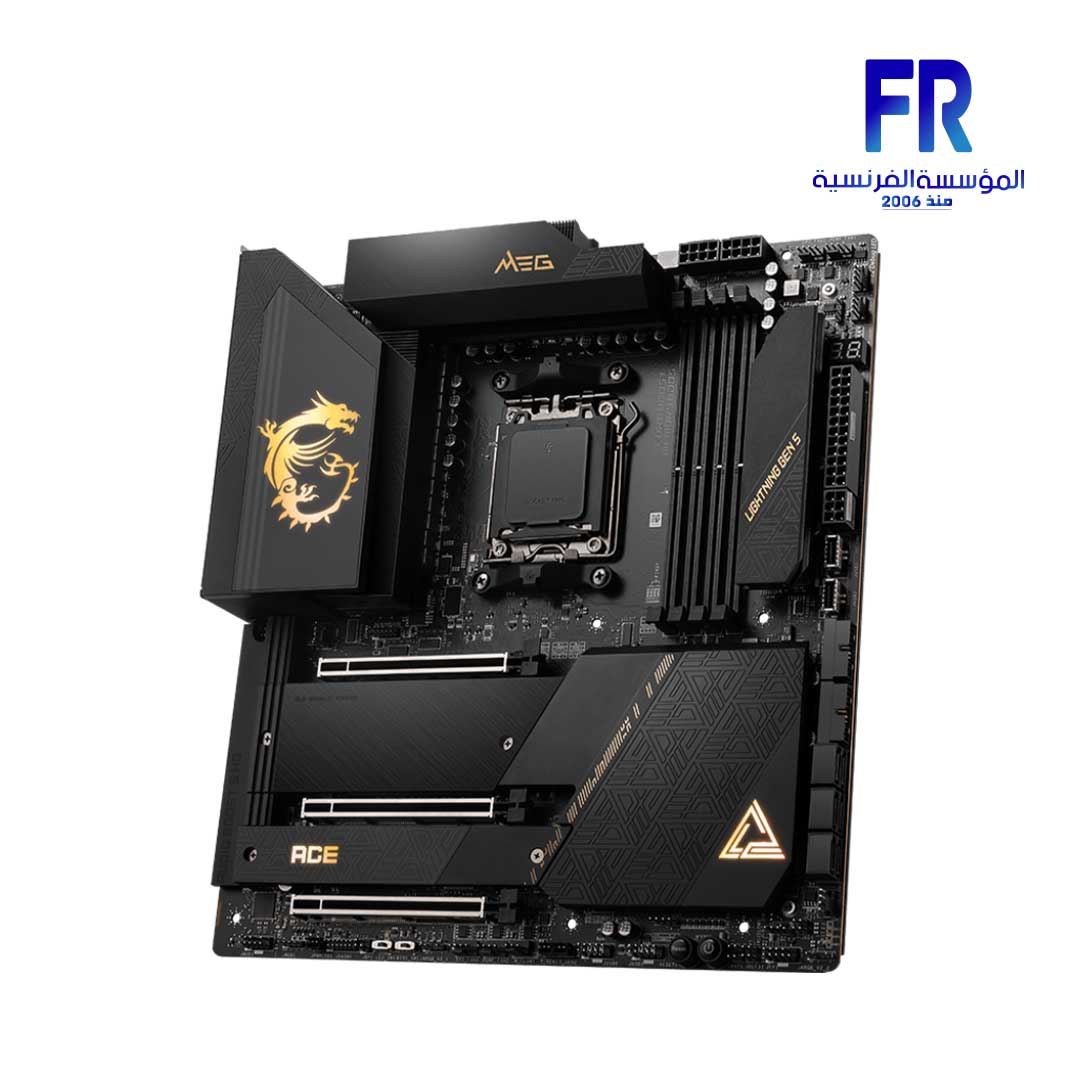

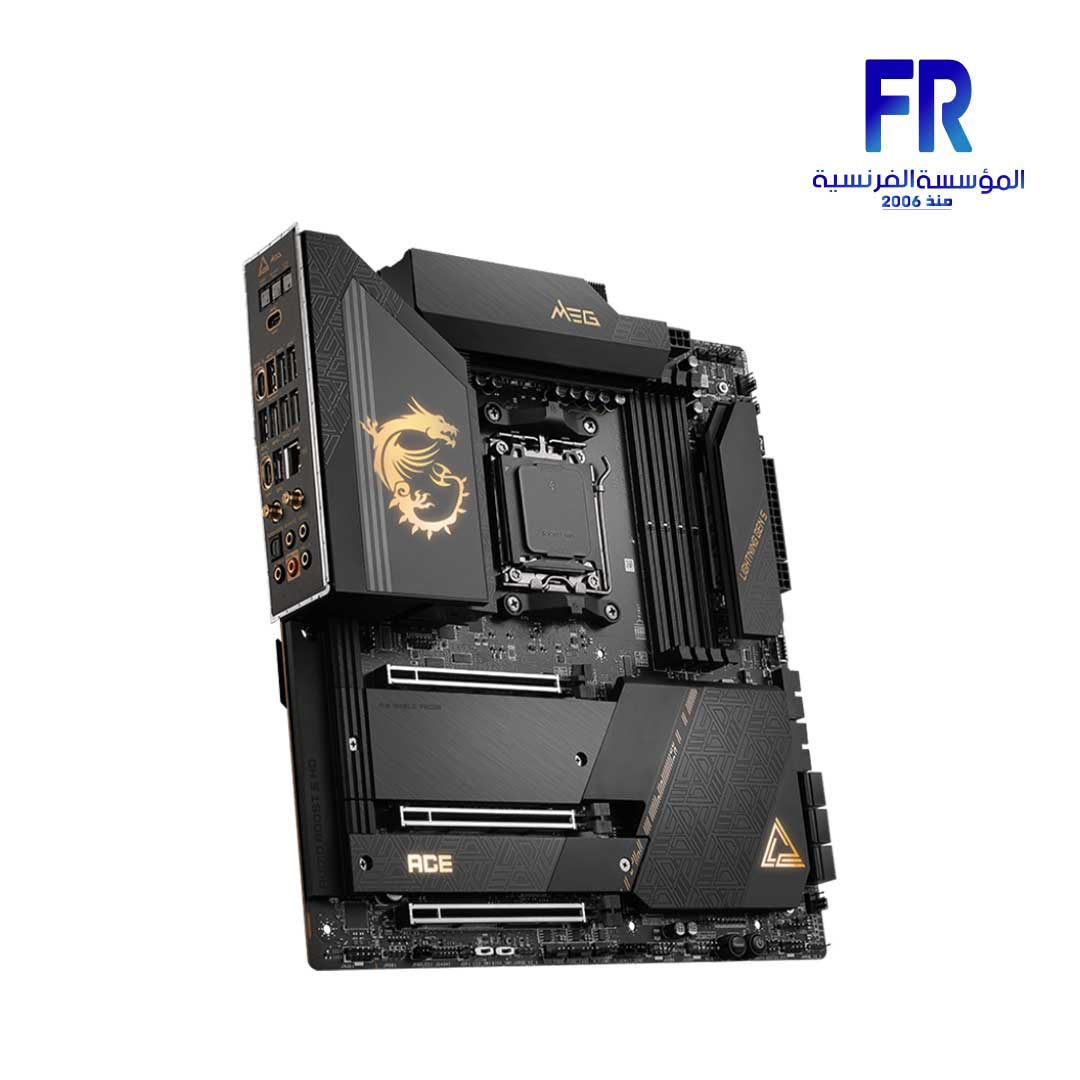

Msi Meg X670E Ace DDR5 Am5 Motherboard
27900 جنية
- Support AMD Ryzen 7000 Series Desktop Processors
- Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC)
- Mystic Light Infinity: Customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the ACE makes your system come alive and infinity
- Lightning Fast Game experience: PCIe 5.0, Triple Lightning Gen5 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2
- Gbps LAN with latest Wi-Fi 6E solution: Onboard 2.5G plus Gigabit LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience
MSI MEG X670E ACE DDR5 AM5 اللوحه الام
CHIPSET
AMD X670
CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6666+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
MULTI-GPU
Supports AMD MULTI-GPU
وحدات تخزين
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
8x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
2x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
LAN
Marvell® AQC113CS-B1-C 10Gbps LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
1x USB 3.2 Gen 2×2 Type-C
1x USB 3.2 Gen 2×2 Type C
V-check point
LED FEATURE
1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

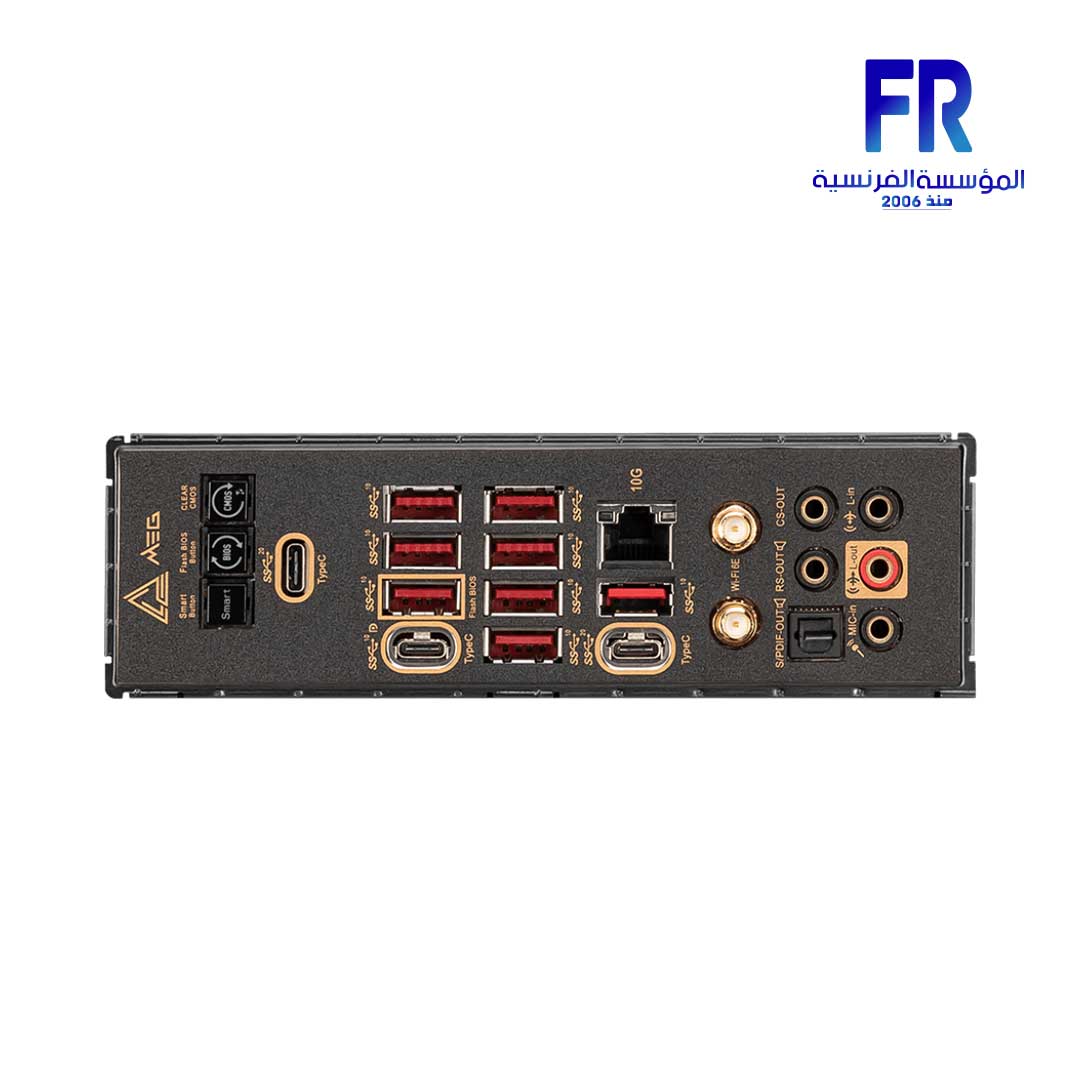

BACK PANEL PORTS
![]() |
1-Clear CMOS Button
2-Flash BIOS Button
3-USB 3.2 Gen 2 10Gbps (Type-A)
4-10G Super LAN
5-Wi-Fi / Bluetooth
6-HD Audio Connectors
7-Smart Button
8-USB 3.2 Gen 2×2 20Gbps (Type-C)
9-USB 3.2 Gen 2 10Gbps (Type-C Display port)
10-USB 3.2 Gen 2×2 20Gbps (Type-C)
11-Optical S/PDIF-Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
E-ATX
277mmx304.8mm
MSI MEG X670E ACE
