Msi MPG X870E Edge TI WIFI Motherboard

20500 EGP

Part Number 911-7E59-001 / 824142395363
Socket / CPU Support AM5 (Ryzen 9000 / 8000 / 7000 Series)
Memory Support 4x DDR5 DIMM, up to 8400+ MT/s (OC)
Primary Slots 1x PCIe 5.0 x16 & 2x M.2 Gen5 x4
Networking Wi-Fi 7 (5.8Gbps) & 5G LAN
Connectivity 2x USB4® (40Gbps Type-C) & HDMI 2.1
Warranty 3 Years

المتوفر في المخزون 1 فقط

Price Match Guarantee

رمز المنتج: 824142395363 التصنيفات: AMD Motherboards, MOTHERBOARD الوسوم: 5G LAN, 824142395363, 911-7E59-001, AM5, DDR5 8400, EDGE, gaming, motherboard, MPG, MPG X870E Edge TI WIFI, msi, MSI MPG series, PCIe 5.0, Ryzen 9000 Ready, TI, USB4 40Gbps, Wi-Fi 7, WIFI, X870E العلامة التجارية: MSI

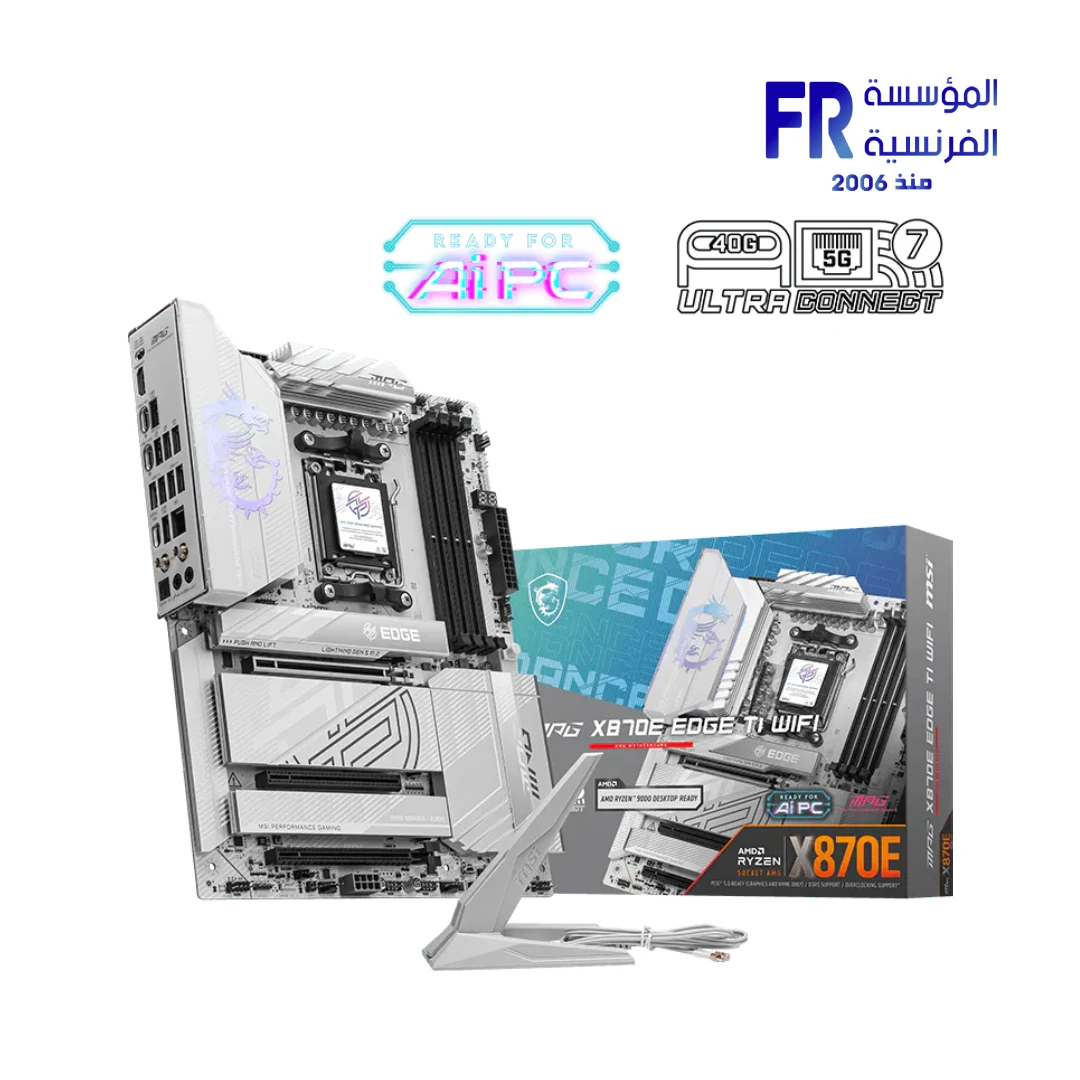

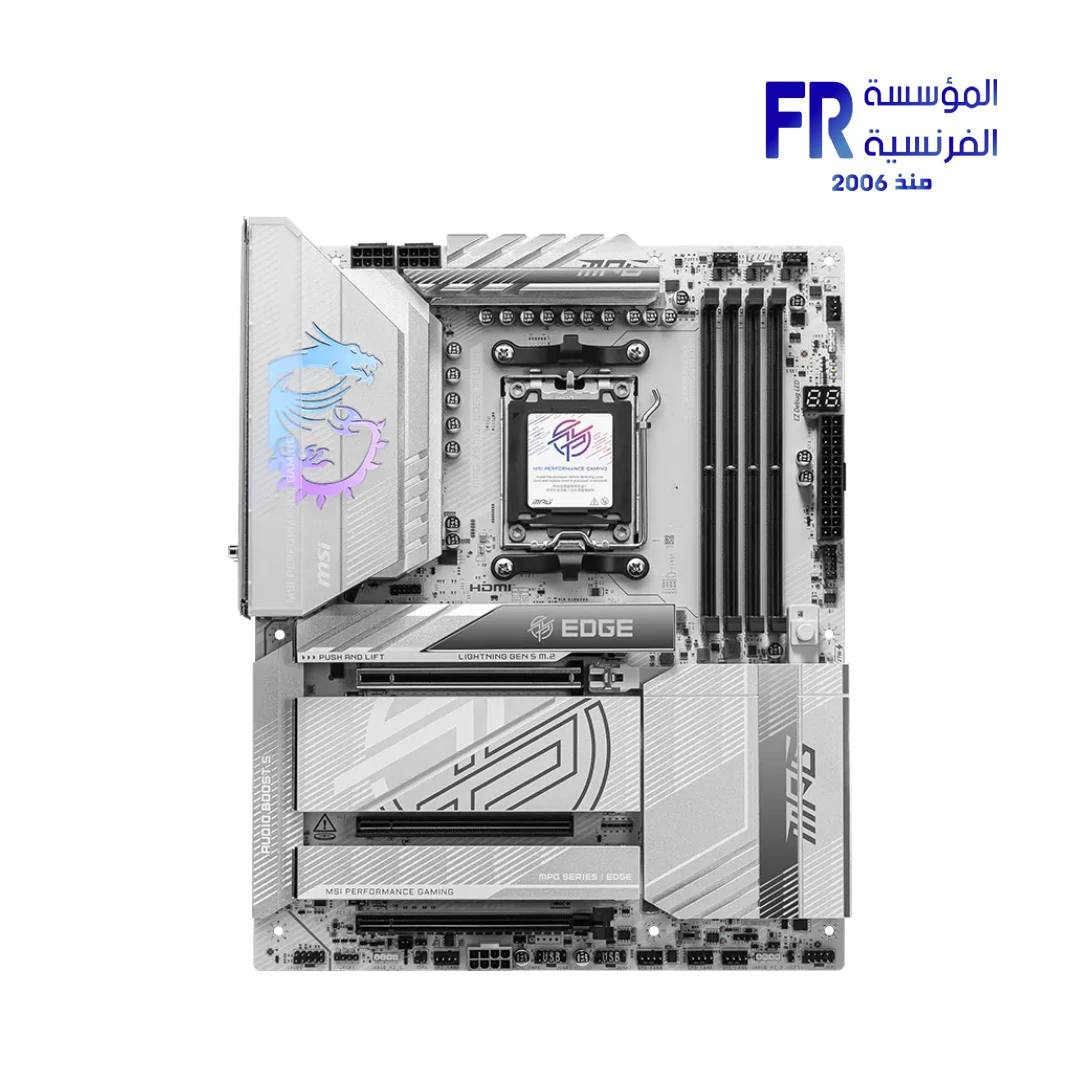

Msi MPG X870E Edge TI WIFI Motherboard

The MSI MPG X870E Edge TI WIFI Motherboard facilitates extreme high-bandwidth data excursions through its integrated USB4 40Gbps and PCIe 5.0 architecture. Specifically engineered for professionals who demand Wi-Fi 7 connectivity and 8400+ MT/s memory synchronization, it bridges the gap between complexity and reliable performance.

USB4

40Gbps Type-C

Wi-Fi 7

5.8Gbps Wireless

Gen 5

PCIe x16 Slot

3 Years

Local Warranty

Why the MPG X870E Edge TI is the Elite Choice for Professionals

Ultra-High Bandwidth Excursions

Specifically, the X870E chipset architecture facilitates dual USB4 40Gbps ports and two PCIe 5.0 M.2 slots for near-instantaneous data transfers. Furthermore, the support for DDR5 8400+ MT/s (OC) technically ensures that high-bandwidth workstation tasks are executed without latency. Consequently, your workstation maintains an elite level of efficiency during high-transient computational cycles.

Next-Generation Digital Connectivity

The architecture features integrated Wi-Fi 7 with MU-MIMO synchronization, technically reaching wireless speeds of 5.8Gbps. Moreover, the 5G LAN interface provides a stable wired fallback for massive data excursions and professional software rendering. This ensure your professional gear remains synchronized and stable across modern networking infrastructures.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	MSI MPG X870E EDGE TI WIFI (911-7E59-001)
Socket / Chipset	AMD AM5 / X870E High-Bandwidth Chipset
Memory Support	4x DDR5 UDIMM, Maximum 256GB (OC up to 8400+ MT/s)
Expansion Slots	1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
Storage Interface	2x M.2 Gen 5 x4, 2x M.2 Gen 4 x4, 4x SATA 6G
USB Ports	2x USB4 40Gbps Type-C, 1x USB 20Gbps Front, 6x USB 10Gbps
Networking	Realtek 5G LAN + Wi-Fi 7 + Bluetooth 5.4
Audio Logic	Realtek ALC4080 Codec 7.1-Channel High Performance
EAN / GTIN	824142395363
Warranty	3 Year Limited Warranty

💡 Technical Note: PCIe 5.0 Bandwidth Sharing

Specifically, the 40Gbps USB4 Type-C ports on the back panel share technical PCIe 5.0 x4 bandwidth with the M.2_2 slot. If a device is installed in the M.2_2 slot, both will run at PCIe 5.0 x2 excursions. Furthermore, if you switch M.2_2 to PCIe 5.0 x4 in the BIOS, the rear USB4 ports will be technically disabled. Plan your storage and peripheral synchronization accordingly before beginning the hardware excursion.

FAQ

Does this motherboard technically support the new Ryzen 9000 series?

Specifically, the X870E chipset architecture technically facilitates full support for AMD Ryzen 9000, 8000, and 7000 series desktop processors. Moreover, it features the AM5 socket, ensuring technical longevity for future hardware excursions in the professional ecosystem.

What are the benefits of Wi-Fi 7 for workstation tasks?

Wi-Fi 7 (802.11be) technically facilitates a wider 320MHz channel bandwidth and 4K-QAM modulation. Consequently, this architecture facilitates wireless speeds up to 5.8Gbps, allowing for high-bandwidth professional asset synchronization without requiring physical wired excursions.

How many Gen 5 M.2 SSDs can be installed simultaneously?

The architecture technically features two PCIe 5.0 x4 M.2 slots (M.2_1 and M.2_2). While M.2_1 provides an independent technical lane from the CPU, M.2_2 shares bandwidth with the USB4 ports. Consequently, you can facilitate two Gen 5 drives simultaneously by adjusting the technical BIOS excursions accordingly.
