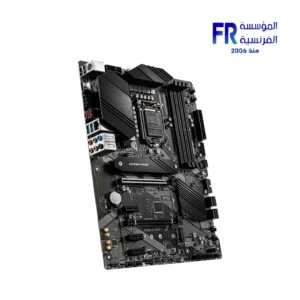

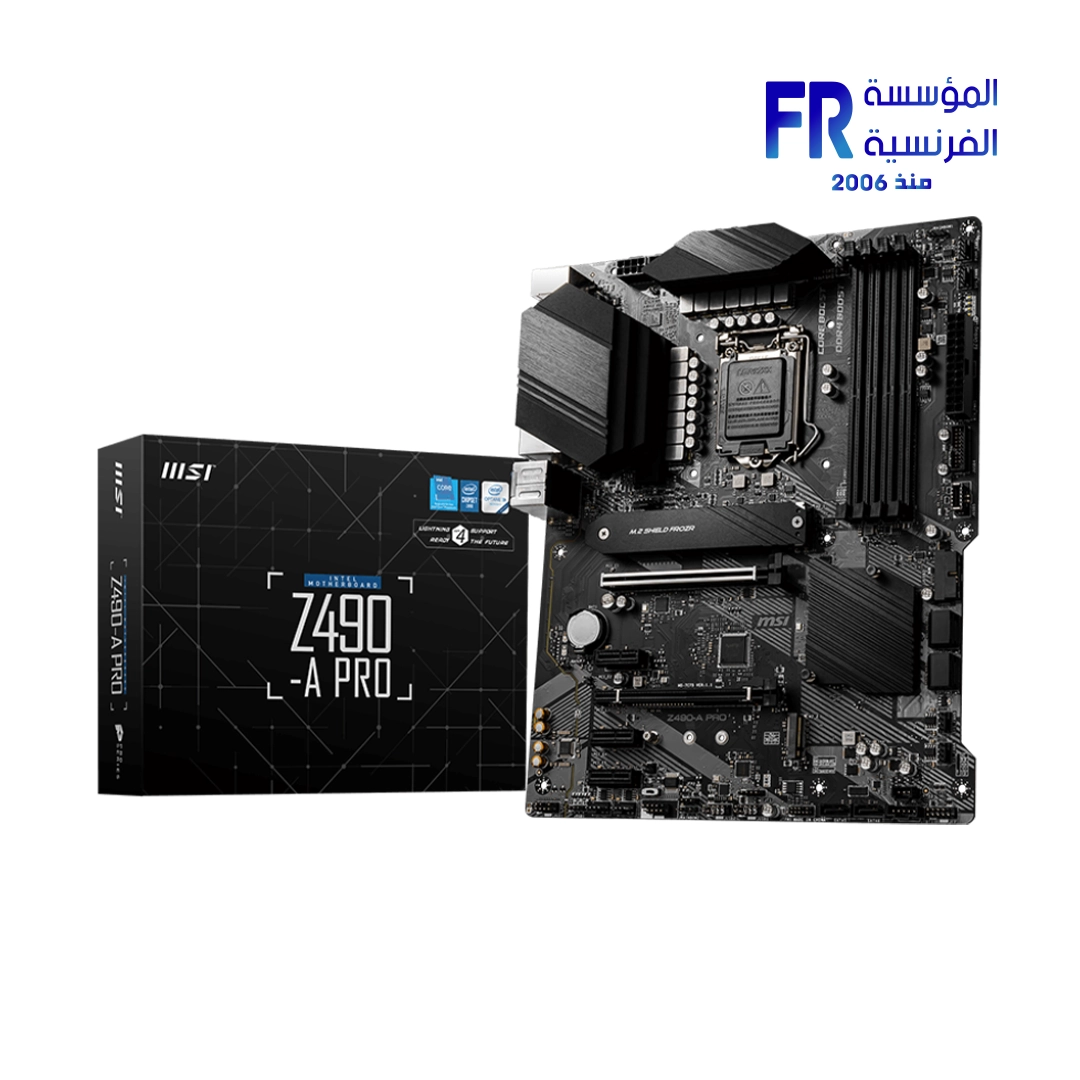

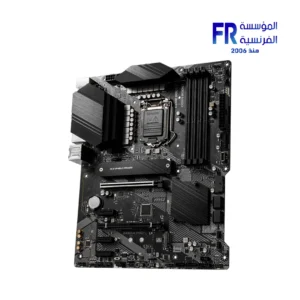

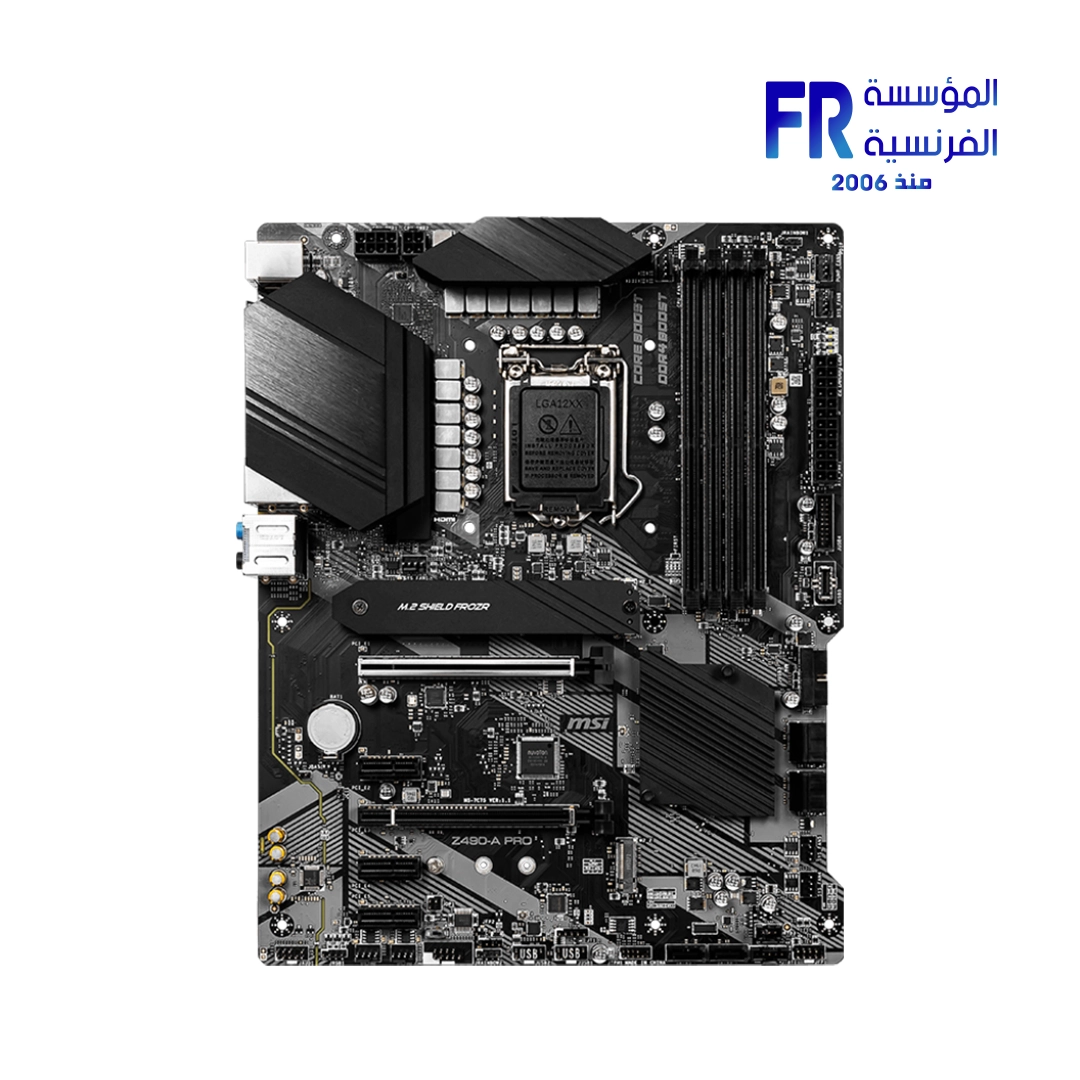

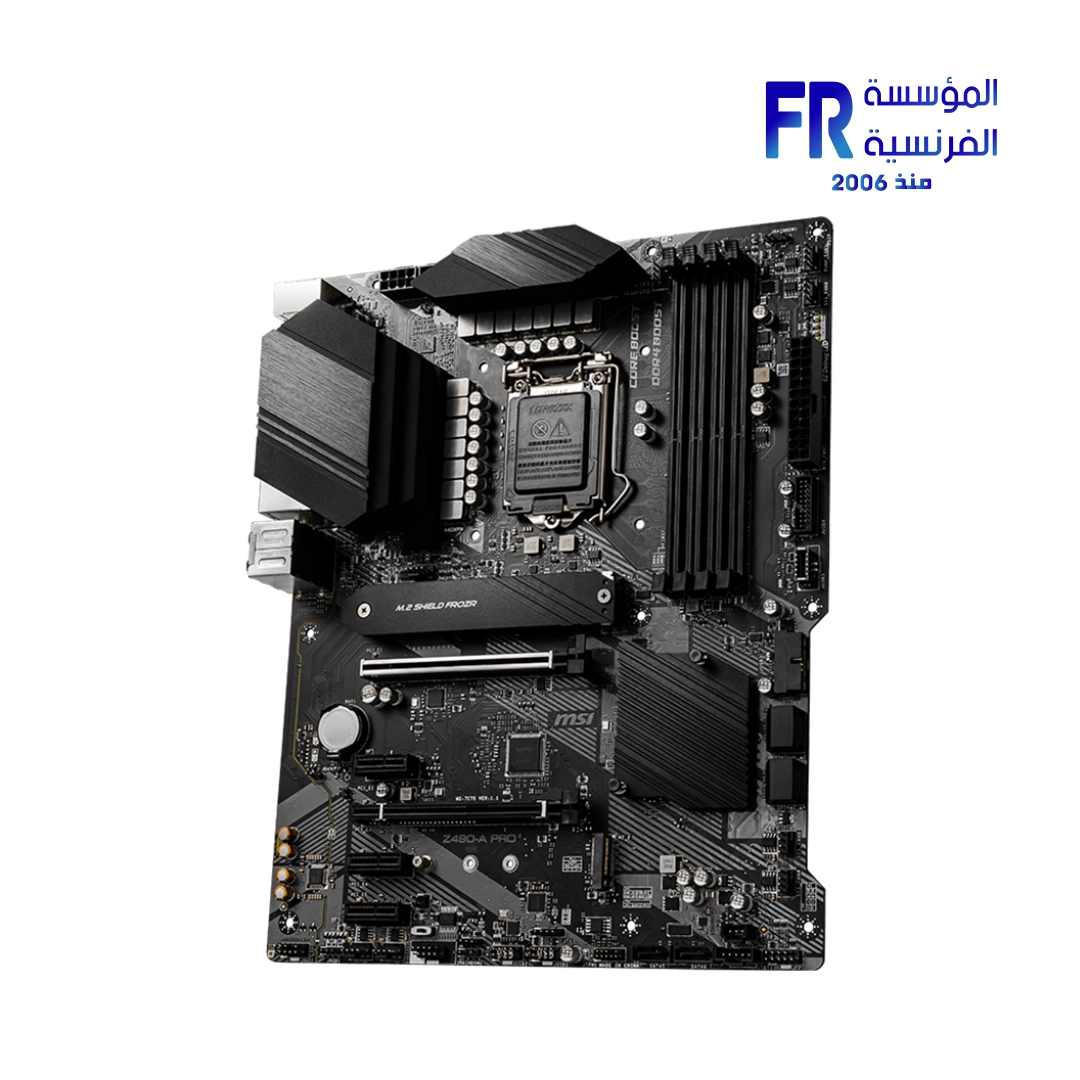

Msi Mpg Z490 A Pro Motherboard

MSI MPG Z490-A PRO اللوحه الام:

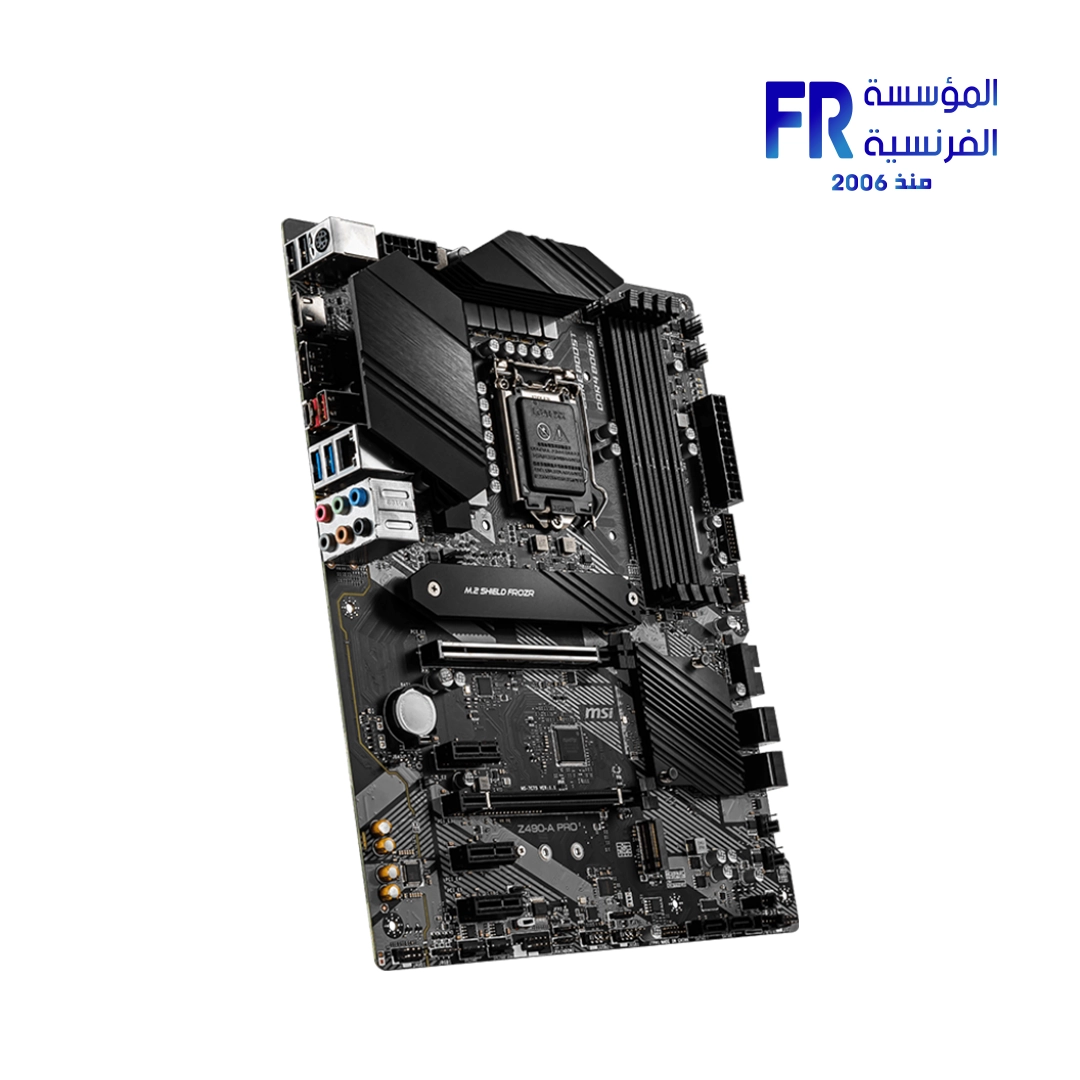

The MSI MPG Z490-A PRO is a robust ATX motherboard meticulously engineered to support both 10th and 11th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, utilizing the LGA 1200 socket. This motherboard, built upon the Intel® Z490 Chipset, delivers a powerful and stable foundation for a wide array of high-performance PC builds. Furthermore, it offers extensive memory support with four DDR4 slots, accommodating up to 128GB of RAM and achieving impressive speeds of over 5000 MHz when configured optimally, ensuring exceptional responsiveness for demanding applications and gaming.

Dynamic Performance and Advanced Connectivity:

Designed for versatility, the MSI MPG Z490-A PRO includes a primary PCIe 3.0 x16 slot, which is ready for PCIe 4.0 with 11th Gen Intel CPUs, alongside an additional PCIe 3.0 x16 slot and three PCIe x1 slots for various expansion needs. Storage capabilities are equally robust, featuring six SATA 6Gb/s ports and two M.2 slots. Specifically, the M2_1 slot supports PCIe 4.0 x4/3.0 x4 modes for 11th Gen Intel CPUs, while both M.2 slots offer compatibility with PCIe 3.0 x4 and SATA 6Gb/s, accommodating diverse storage configurations.

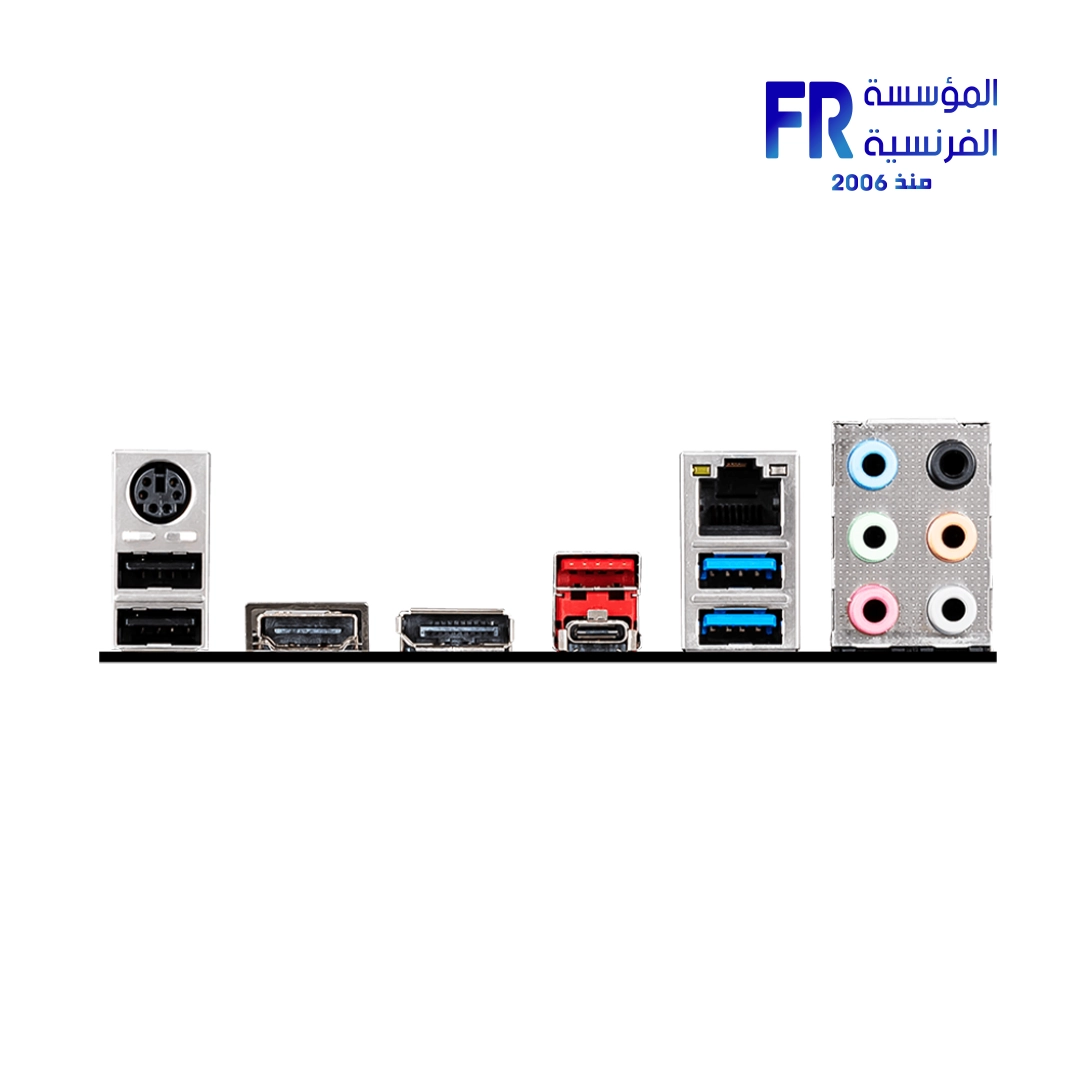

Connectivity is a highlight, with two USB 3.2 Gen 2 10Gbps ports (Type-A and Type-C) on the rear panel, complemented by seven USB 3.2 Gen 1 5Gbps ports and six USB 2.0 ports, providing ample options for peripherals. The integrated Realtek® RTL8125B-CG 2.5G LAN Controller ensures ultra-fast and stable network connections, crucial for online gaming and high-bandwidth applications. Furthermore, the Realtek® ALC892/ALC897 Codec delivers immersive 7.1-Channel High Definition Audio, enhancing your multimedia experience. This motherboard also supports 2-Way AMD® CrossFire™ Technology for multi-GPU setups.

Explore compatible Motherboards or check MSI Products for other options. Find full details on the official MSI MPG Z490-A PRO product page.

Specifications:

• Processor Support: 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
• Chipset: Intel® Z490 Chipset
• Memory: 4 x DDR4 memory slots, support up to 128GB; speeds up to 5000+ MHz (1DPC 1R)
• Expansion Slots: 1x PCIe 3.0 x16 (from CPU, supports PCIe 4.0 for 11th Gen); 1x PCIe 3.0 x16 (from chipset, supports x4 mode); 3x PCIe x1 (from chipset)
• Onboard Graphics: 1x HDMI™ port (4096×2160 @ 30Hz); 1x DisplayPort (4096 x 2304 @ 60Hz)
• Multi-GPU: Supports 2-Way AMD® CrossFire™ Technology
• Storage: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M, M2_1 supports PCIe 4.0 x4/3.0 x4 for 11th Gen Intel® CPU; M2_2 supports PCIe 3.0 x4 and SATA 6Gb/s)
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage; Supports RAID 0 and RAID 1 for M.2 PCIe storage
• USB: 2x USB 3.2 Gen 2 10Gbps (1 Type-A, 1 Type-C back panel); 7x USB 3.2 Gen 1 5Gbps (2 Type-A back panel, 4 internal, 1 Type-C internal); 6x USB 2.0 (2 Type-A back panel, 4 internal)
• Audio: Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio
• LAN: 1x Realtek® RTL8125B-CG 2.5G LAN Controller
• Form Factor: ATX Form Factor (12 in. x 9.6 in. / 30.5 cm x 24.4 cm)
• Operating System Support: Windows® 10 64-bit
• Model Number/SKU: 911-7C75-022
• EAN/UPC: 22314010
