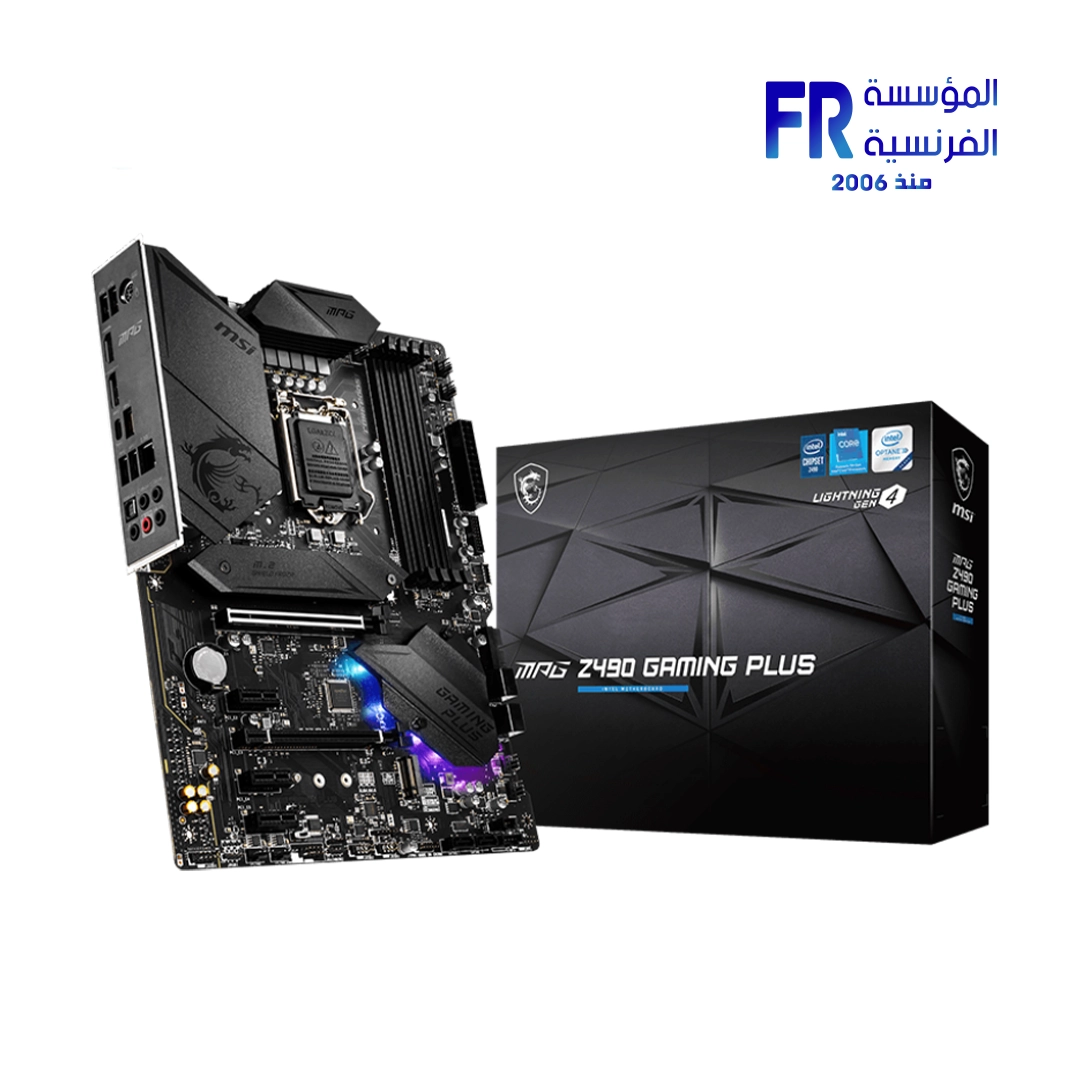

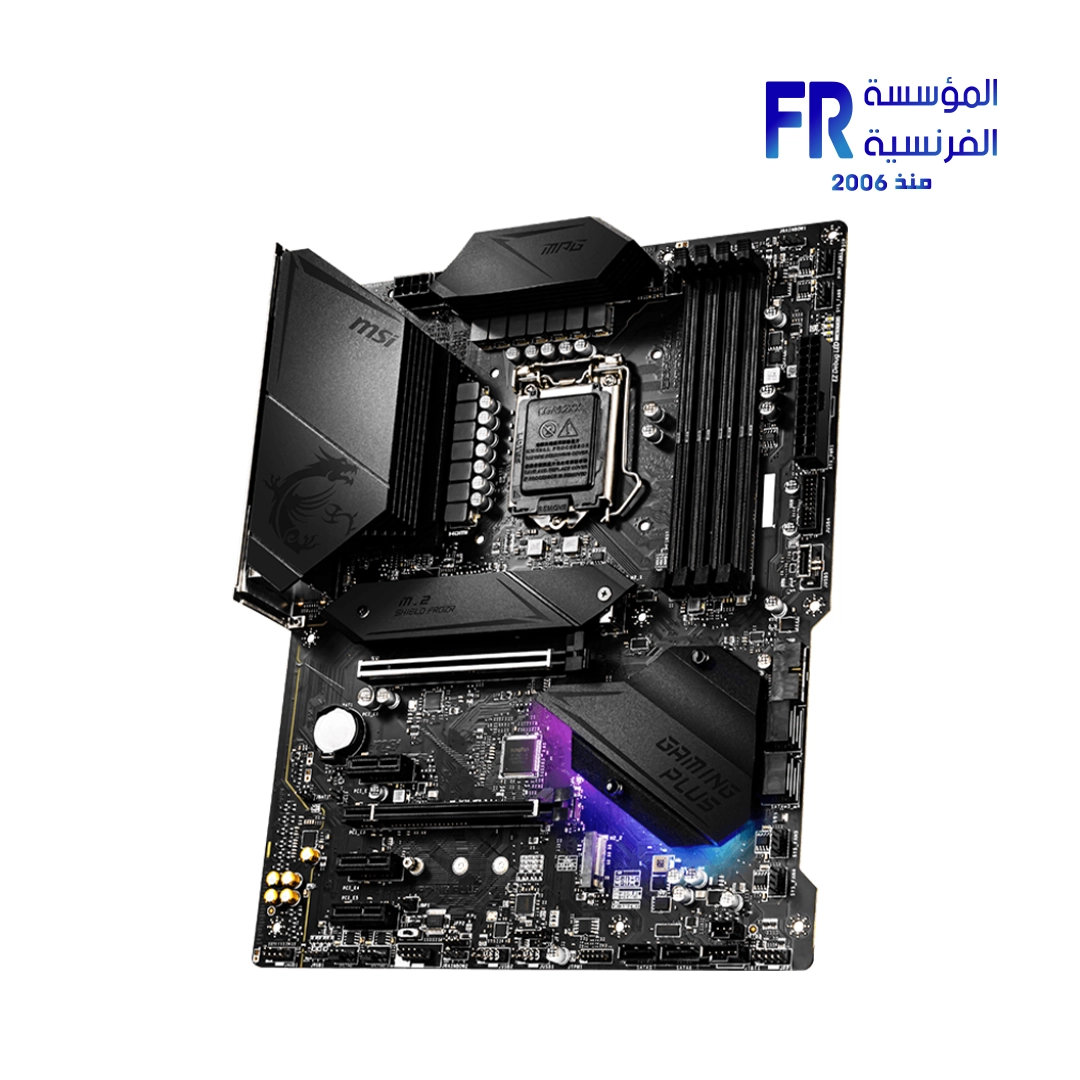

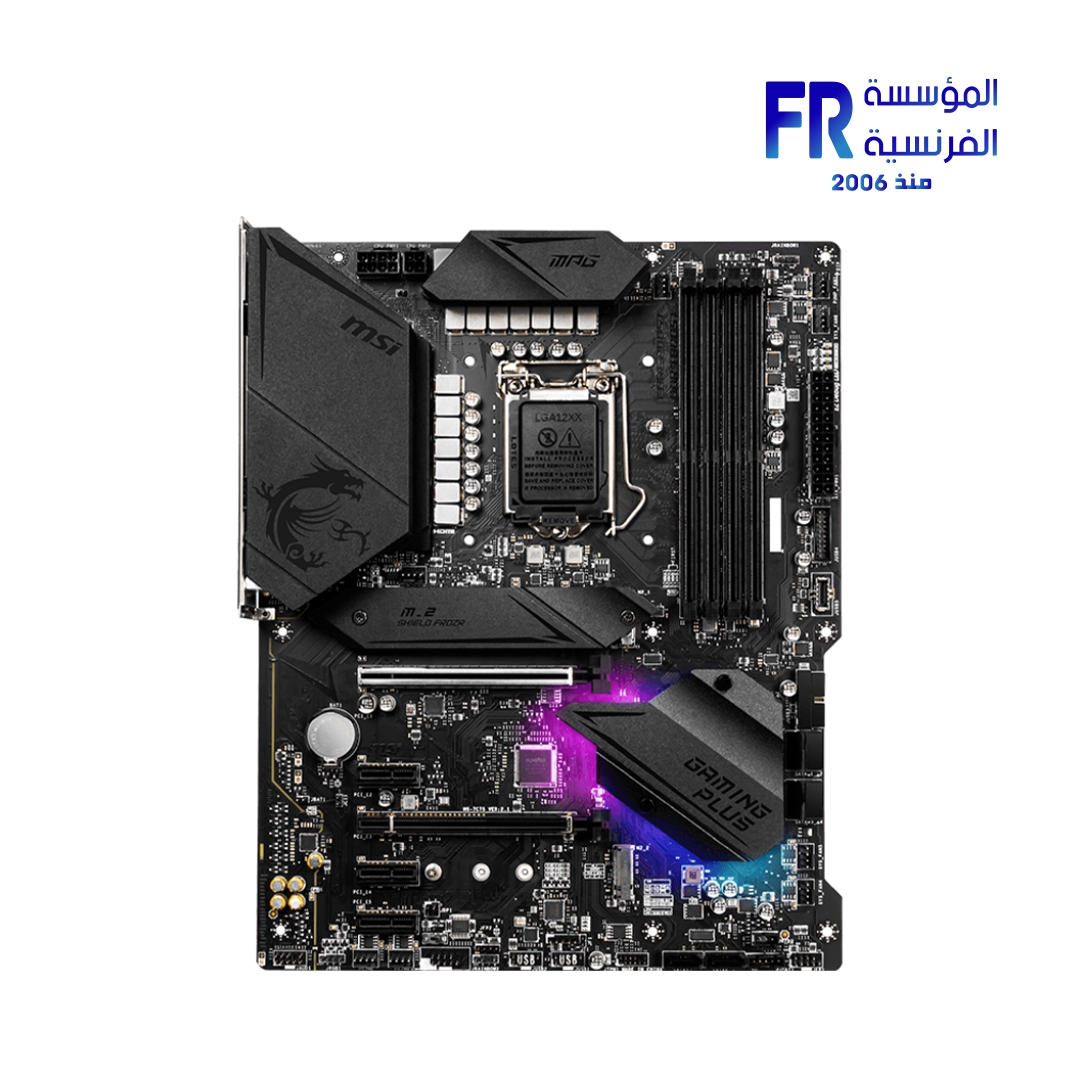

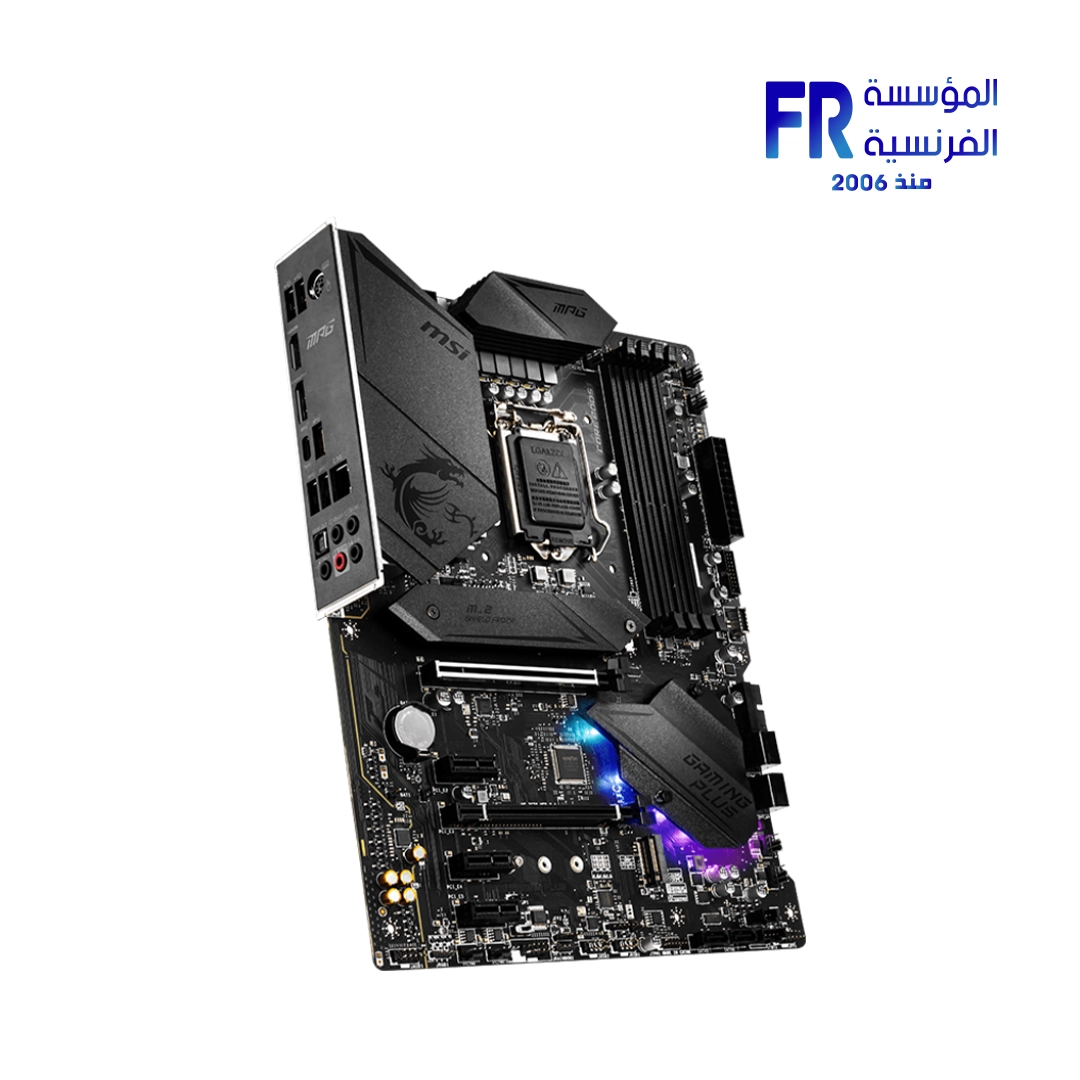

Msi Mpg Z490 Gaming Plus Motherboard

MSI MPG Z490 Gaming Plus اللوحه الام:

The MSI MPG Z490 Gaming Plus is a high-performance ATX motherboard meticulously crafted to support both 10th and 11th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, leveraging the robust LGA 1200 socket. Built on the Intel® Z490 Chipset, this motherboard provides a stable and powerful foundation for a wide range of gaming and enthusiast PC builds. Furthermore, it boasts extensive memory support with four DDR4 slots, accommodating up to 128GB of RAM, and achieving impressive speeds of over 5000 MHz when configured for optimal performance, ensuring seamless multitasking and an immersive gaming experience.

Enhanced Gaming Features and Connectivity:

Designed with gamers in mind, the MSI MPG Z490 Gaming Plus offers dynamic performance through its comprehensive expansion capabilities. It includes a primary PCIe 3.0 x16 slot, which is ready for PCIe 4.0 with 11th Gen Intel CPUs, alongside an additional PCIe 3.0 x16 slot and three PCIe x1 slots for various expansion cards. Storage is robust, featuring six SATA 6Gb/s ports and two M.2 slots (Key M). The M2_1 slot specifically supports PCIe 4.0 x4/3.0 x4 modes for 11th Gen Intel CPUs, while both M.2 slots offer compatibility with PCIe 3.0 x4 and SATA 6Gb/s, providing versatile options for high-speed storage.

Connectivity is a key highlight, with two USB 3.2 Gen 2 10Gbps ports (Type-A and Type-C) on the rear panel, complemented by seven USB 3.2 Gen 1 5Gbps ports and six USB 2.0 ports, ensuring ample options for all your peripherals. The integrated Realtek® RTL8125B-CG 2.5G LAN Controller delivers ultra-fast and stable network connections, crucial for competitive online gaming and high-bandwidth applications. Furthermore, the Realtek® ALC1200-VD1 Codec provides immersive 7.1-Channel High Definition Audio with S/PDIF output support, elevating your audio experience. This motherboard also supports 2-Way AMD® CrossFire™ Technology for multi-GPU setups, offering flexibility for powerful graphics configurations.

Explore compatible Motherboards or check MSI Products for other options. Find full details on the official MSI MPG Z490 Gaming Plus product page.

Specifications:

• Processor Support: 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
• Chipset: Intel® Z490 Chipset
• Memory: 4 x DDR4 memory slots, support up to 128GB; speeds up to 5000+ MHz (1DPC 1R)
• Expansion Slots: 1x PCIe 3.0 x16 (from CPU, supports PCIe 4.0 for 11th Gen); 1x PCIe 3.0 x16 (from chipset, supports x4 mode); 3x PCIe x1 (from chipset)
• Onboard Graphics: 1x HDMI™ port (4096×2160 @ 30Hz); 1x DisplayPort (4096 x 2304 @ 60Hz)
• Multi-GPU: Supports 2-Way AMD® CrossFire™ Technology
• Storage: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M, M2_1 supports PCIe 4.0 x4/3.0 x4 for 11th Gen Intel® CPU; M2_2 supports PCIe 3.0 x4 and SATA 6Gb/s)
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage; Supports RAID 0 and RAID 1 for M.2 PCIe storage
• USB: 2x USB 3.2 Gen 2 10Gbps (1 Type-A, 1 Type-C back panel); 7x USB 3.2 Gen 1 5Gbps (2 Type-A back panel, 4 internal, 1 Type-C internal); 6x USB 2.0 (2 Type-A back panel, 4 internal)
• Audio: Realtek® ALC1200-VD1 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
• LAN: 1x Realtek® RTL8125B-CG 2.5G LAN Controller

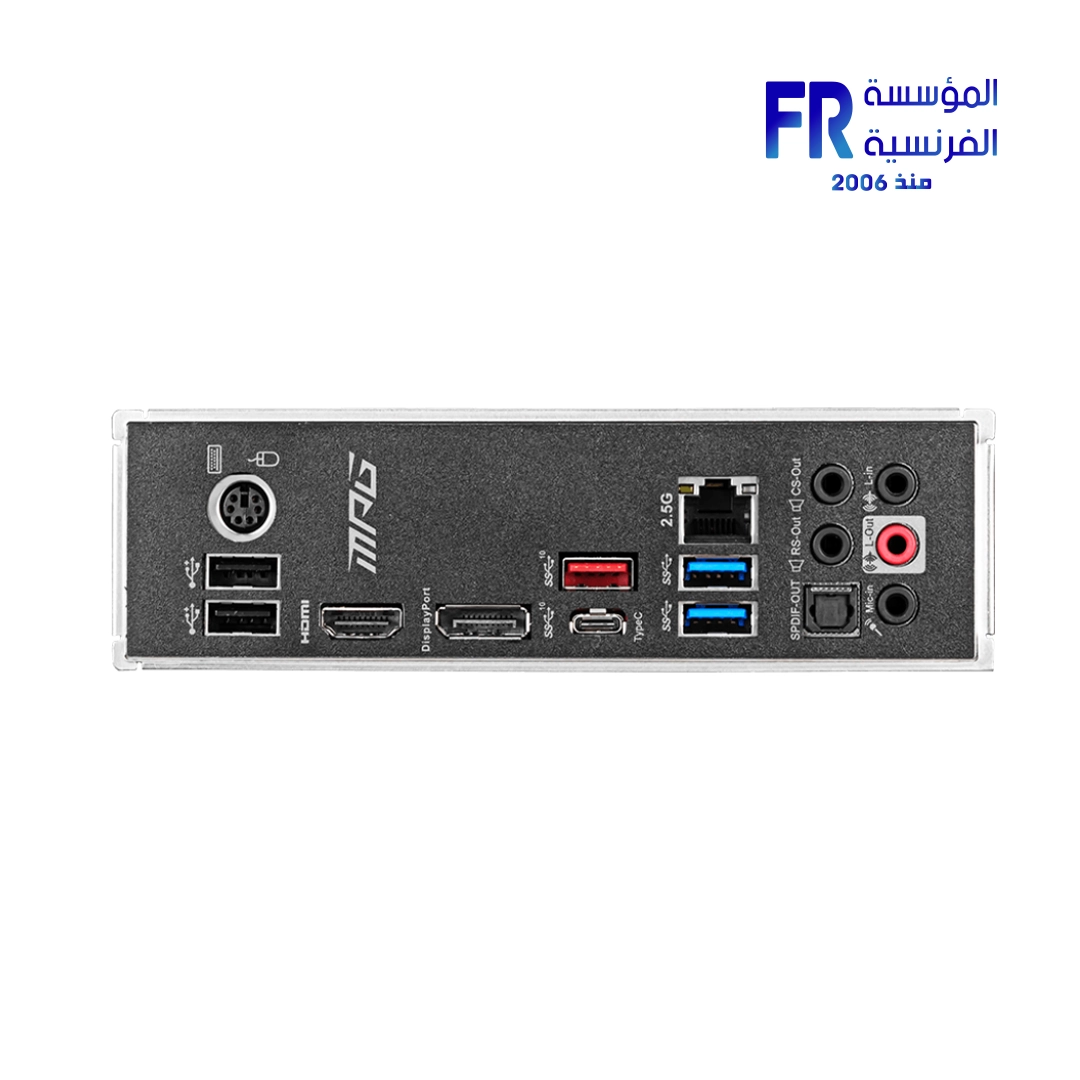

• Back Panel Ports: PS/2 Combo Port, USB 3.2 Gen 2 10Gbps (Type-A), LAN Port, HD Audio Connectors, USB 2.0 Ports, HDMI™ Port, DisplayPort, USB 3.2 Gen 2 10Gbps (Type-C), USB 3.2 Gen 1 5Gbps (Type-A), Optical S/PDIF OUT
• Form Factor: ATX Form Factor (12 in. x 9.6 in. / 30.5 cm x 24.4 cm)
• Operating System Support: Windows® 10 64-bit
• Model Number/SKU: 911-7C75-015
• EAN/UPC: 22315010
