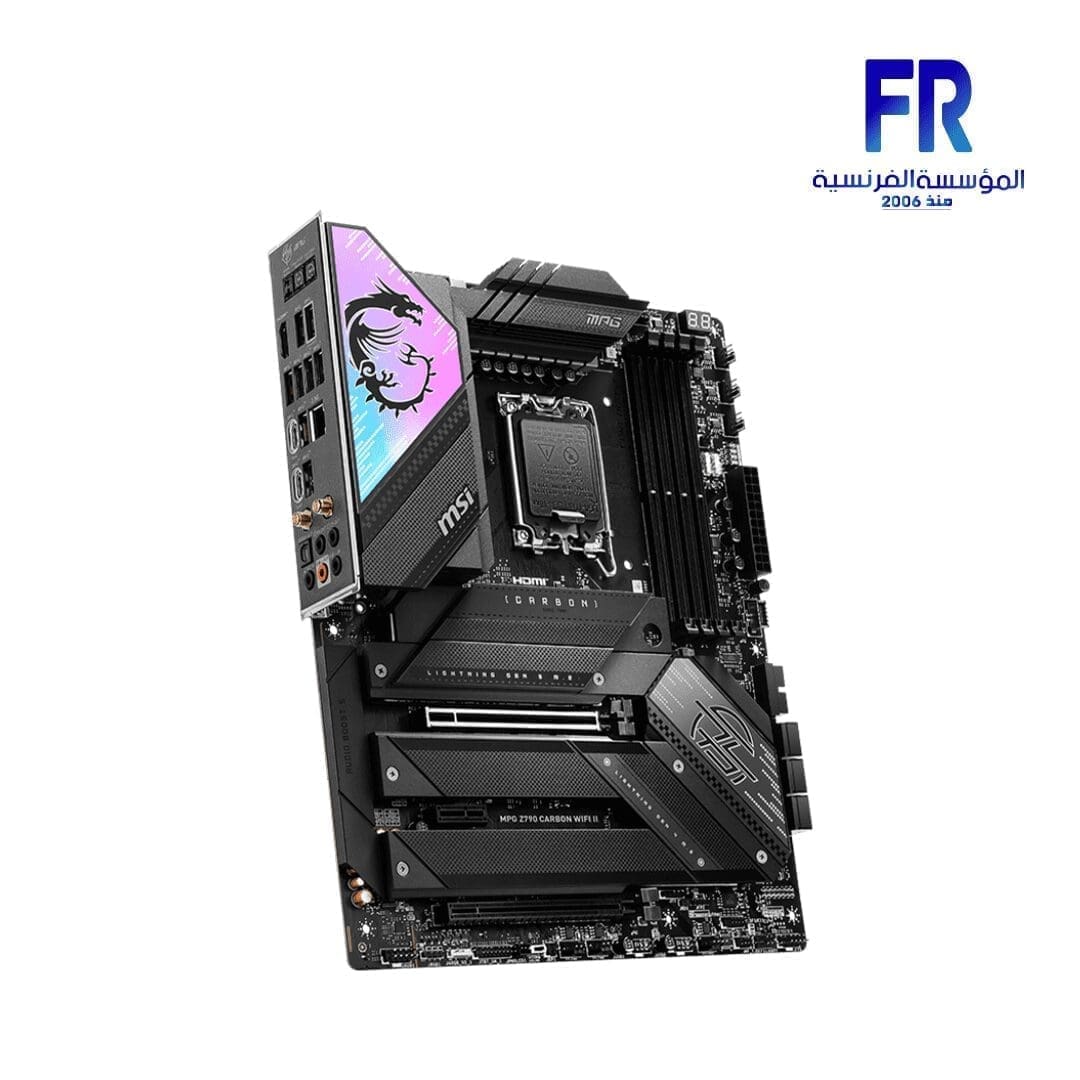

Msi MPG Z790 Carbon Wifi II Motherboard

22500 جنية

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 8-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

المشاهدات 106

المتوفر في المخزون 2 فقط

رمز المنتج: 824142340639 التصنيفات: Intel Motherboards, اللوحه الام الوسوم: Msi MPG Z790 Carbon Wifi II Motherboard

MODEL	MPG Z790 Carbon Wifi II
CHIPSET MANUFACTURERS	انتل
CPU SOCKET	FCLGA1700
MOTHERBOARD CHIPSET	Z790
Motherboard Tybe	ATX
CPU SERIES	intel 14th & 13th & 12th
Technology	DDR5
Memory Speed	4800 MHZ, 5200MHZ, 5600 MHz, 6000MHz, 6200MHZ, 6400Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ
MAX MEMORY SIZE	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	5
SATAIII	6x SATA 6G
Communication module	Bluetooth, Wireless
Part Number	911-7D89-010
Warranty	3 year

Msi MPG Z790 Carbon Wifi II اللوحه الام

Msi MPG Z790 Carbon Wifi II Motherboard

CHIPSET	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
AUDIO	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
وحدات تخزين	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
LAN	Intel® 2.5Gbps LAN
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.
USB	4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot *Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LED FEATURE	4x EZ Debug LED 1x 2-Digit Debug Code LED 1x EZ LED Control switch

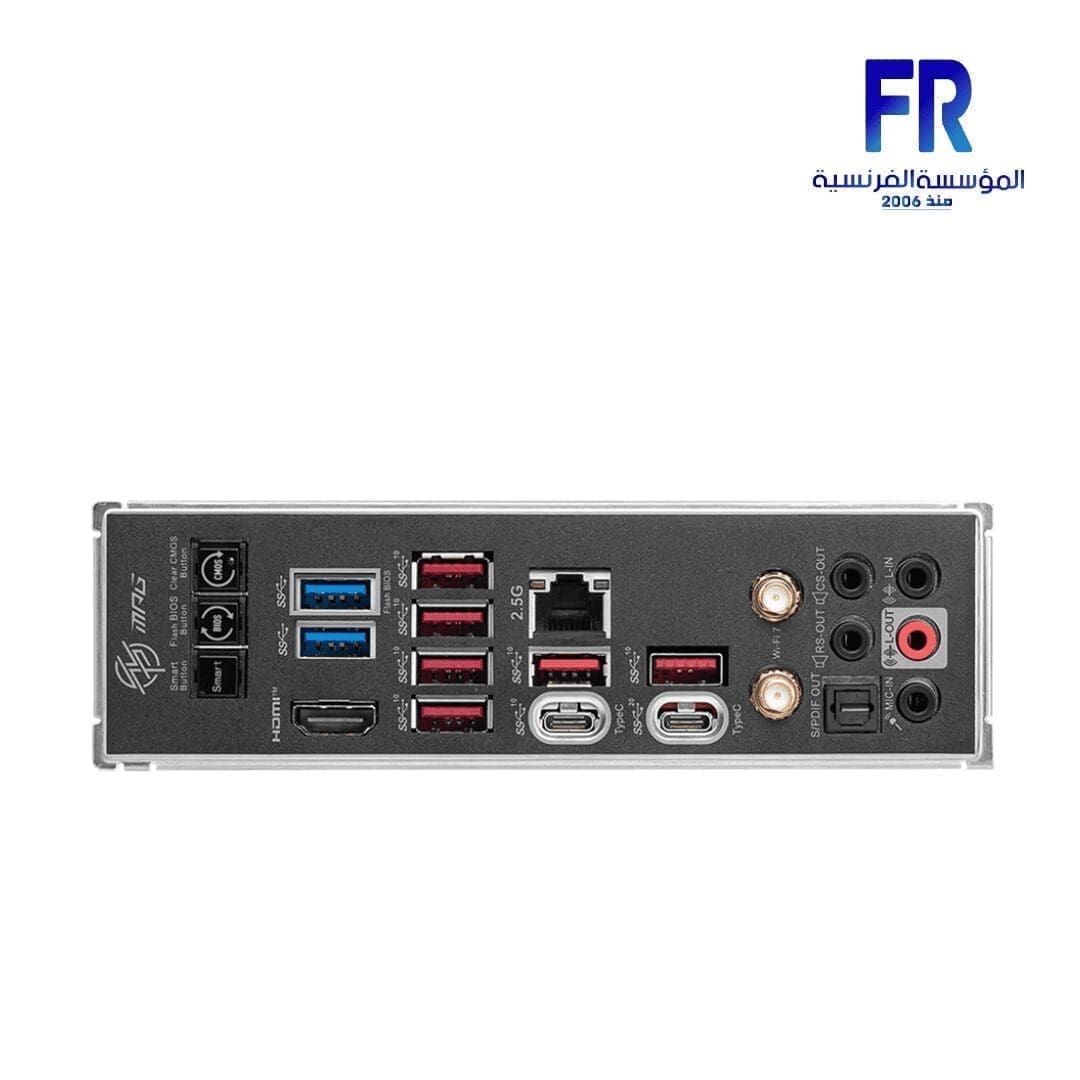

BACK PANEL PORTS	Flash BIOS / Clear CMOS USB 5 Gbps (Type-A) USB 10Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Smart Button HDMI™ USB 10Gbps (Type-C) USB 20Gbps (Type-C) Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB INFO	ATX 243.84mmx304.8mm
