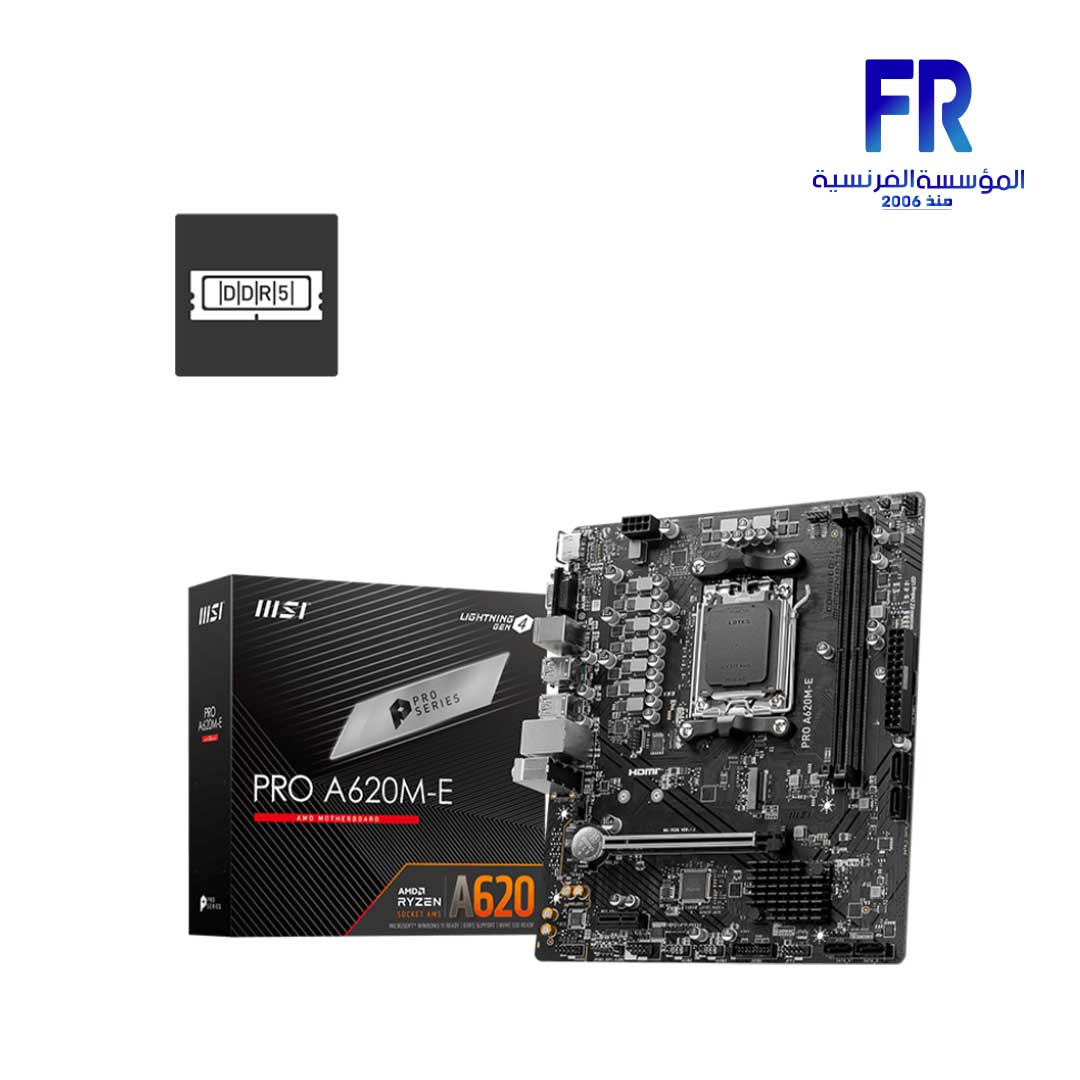

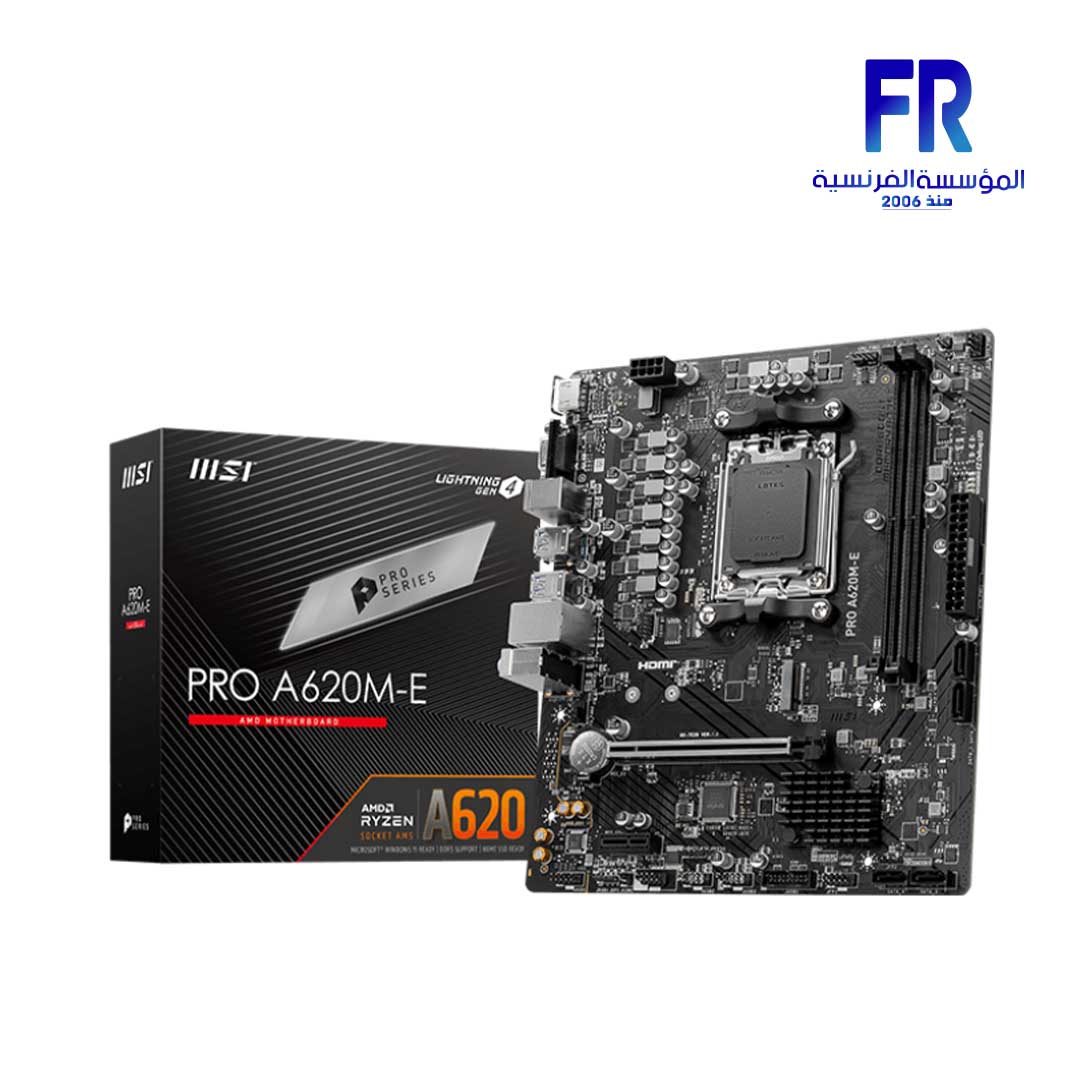

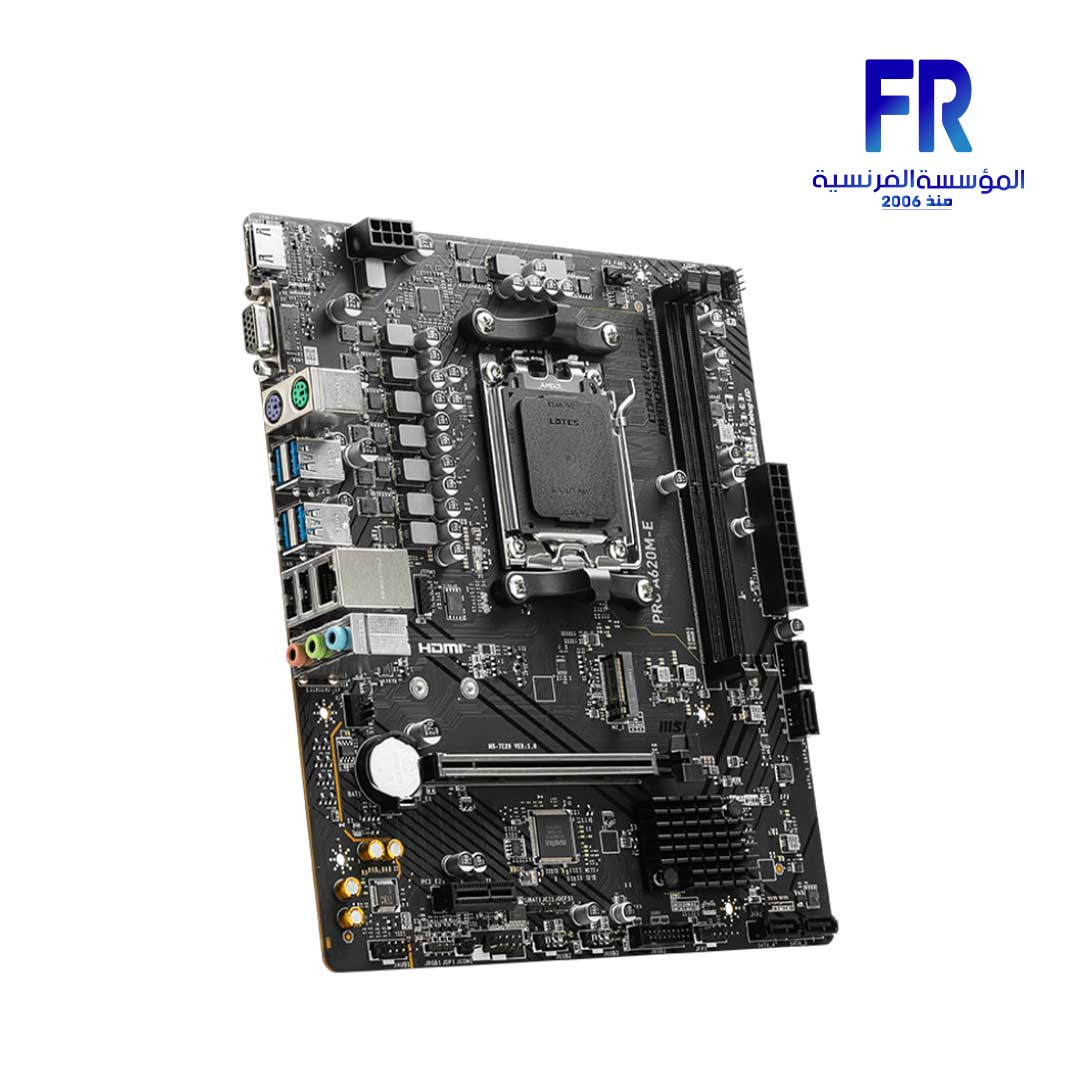

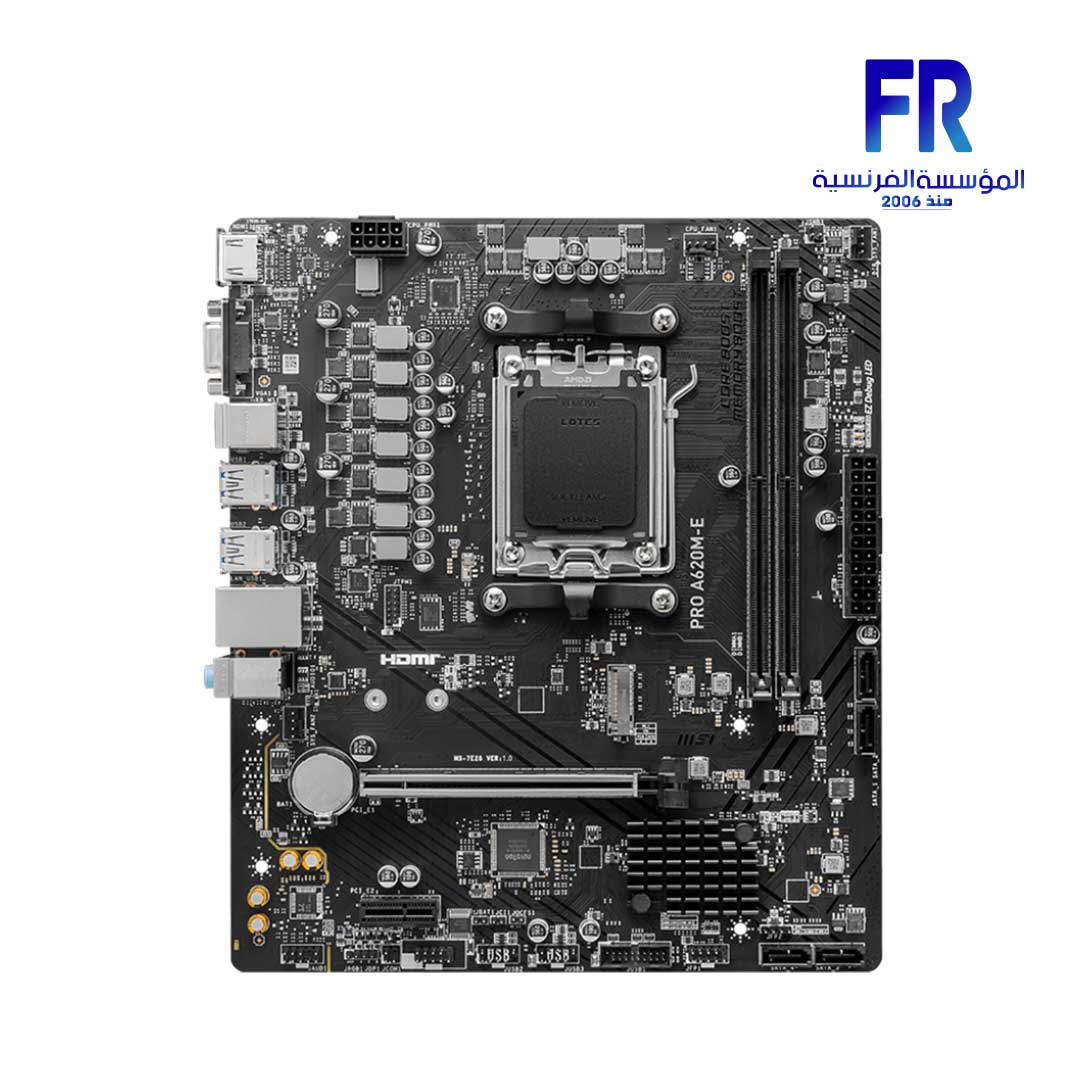

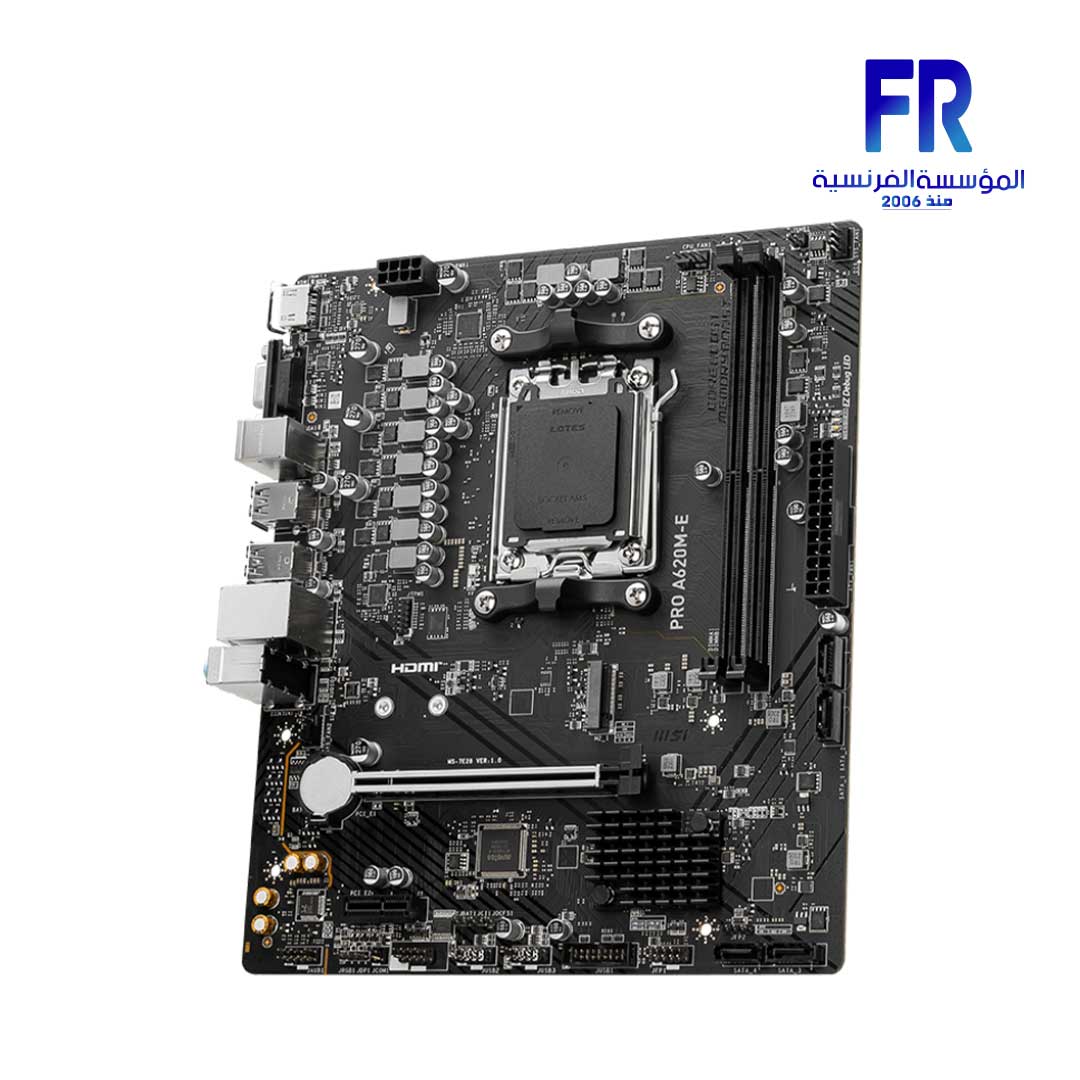

Msi Pro A620M E DDR5 Motherboard

4900 جنية

Micro-ATX Form Factor
A620 Chipset
AM5 Socket
2 x Dual-Channel DDR5 RAM Slots
4 x SATA III, 1 x M.2 PCIe
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Gigabit Ethernet
USB 2.0 & 3.2 Gen 1
7.1-Channel Audio Support
Windows 10 & Windows 11 Support

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 824142322406 التصنيفات: AMD Motherboards, لوحة الام الوسوم: DDR5 Motherboard, Pro A620M E DDR5 Motherboard, Pro A620M E, msi, motherboard, DDR5 العلامة التجارية: MSI

Msi Pro A620M E DDR5 اللوحه الام

CHIPSET	AMD A620
CPU	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
ONBOARD GRAPHICS	1x HDMI™ Support HDMI^TM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
وحدات تخزين	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek^® RTL8111H Gigabit LAN
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

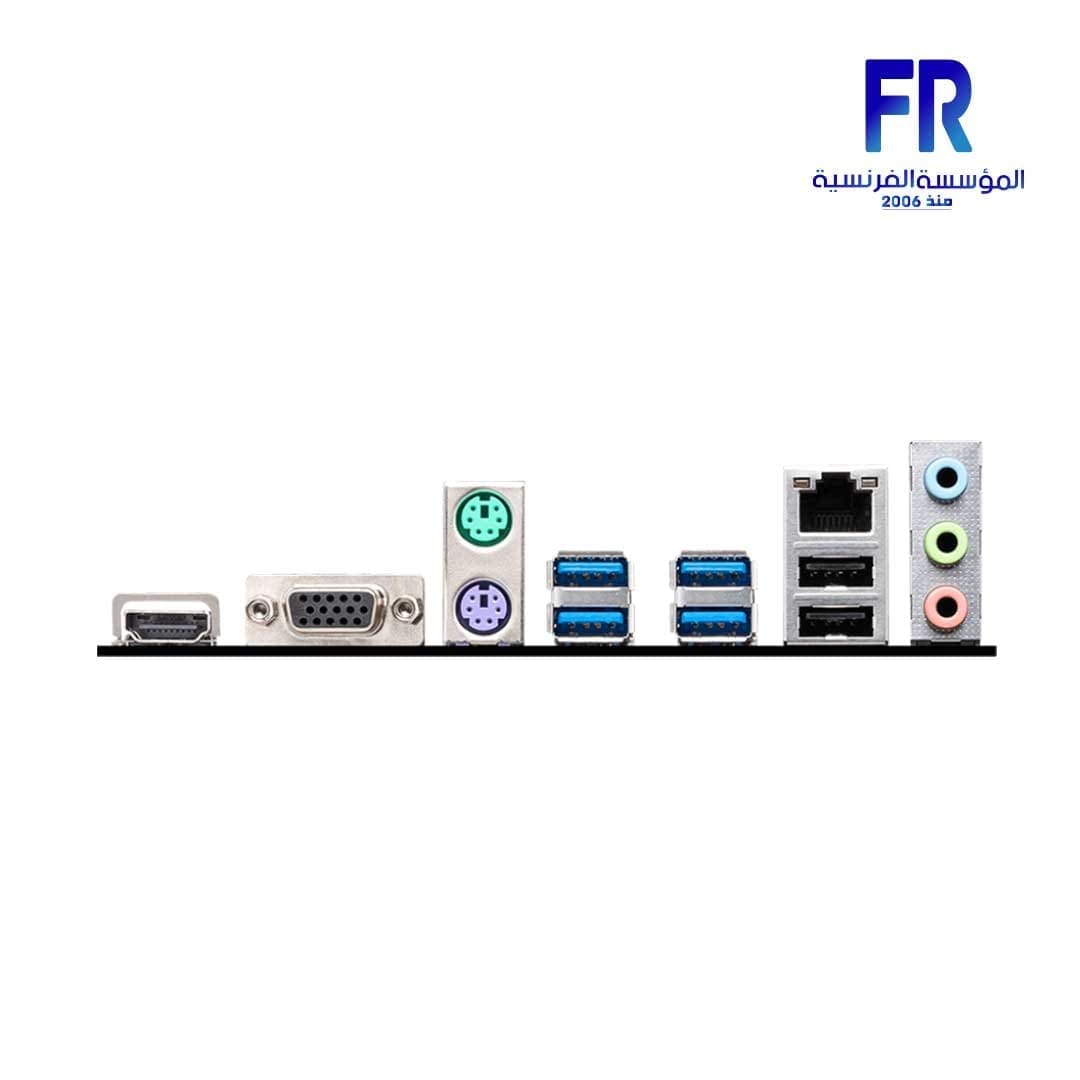

BACK PANEL PORTS	HDMI™ كارت الشاشة Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB INFO	mATX 211mmx243.84mm

Msi Pro A620M E DDR5 Motherboard

لوحة الام

الموديل	Pro A620M E DDR5
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	A620
Motherboard Type	Micro ATX
CPU SERIES	AMD Ryzen 7000 Series
Technology	DDR5
Memory Speed	4800 MHZ, 5200MHZ, 5600 MHz, 6000MHz, 6200MHZ, 6400Mhz, 6800Mhz
Max Memory Size	96GB
Memory Slot	2
PCI-E X16	YES
PCI-E GEN	PCIe 4.0
PCI-E Slots (M.2)	1
SATAIII	4x SATA 6.0 Gb/s
Communication module	N/A
Part Number	911-7E28-001
الضمان	3 سنوات
