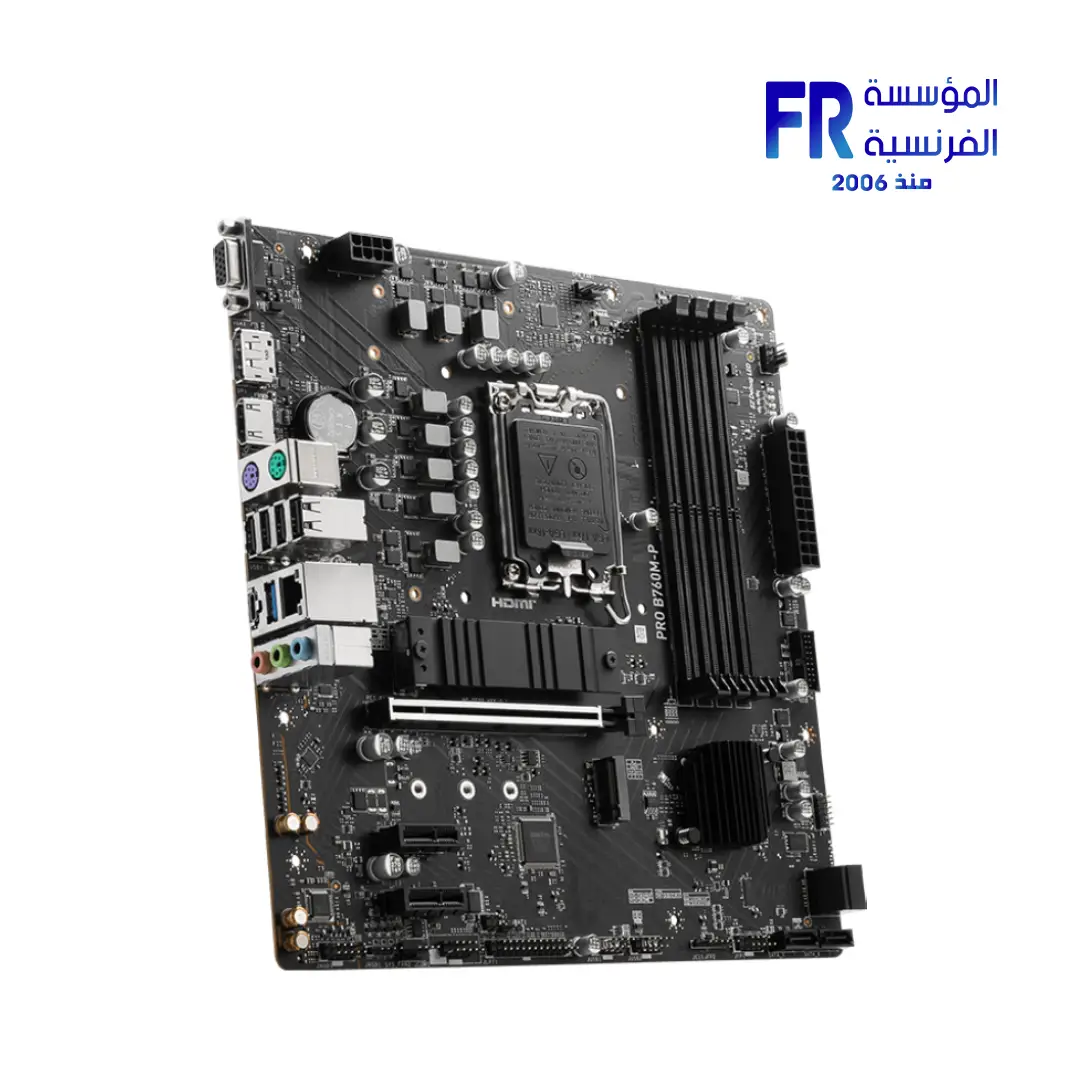

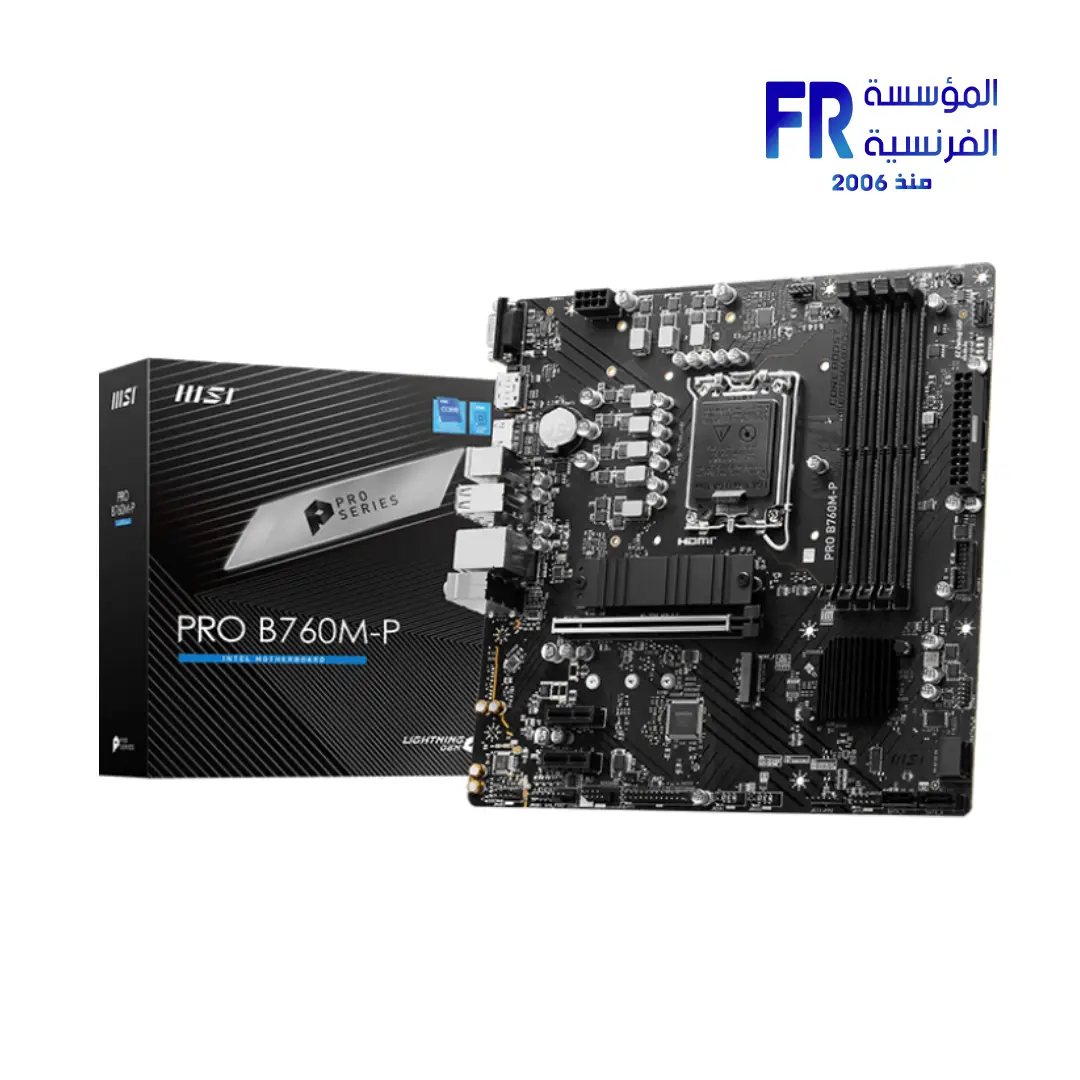

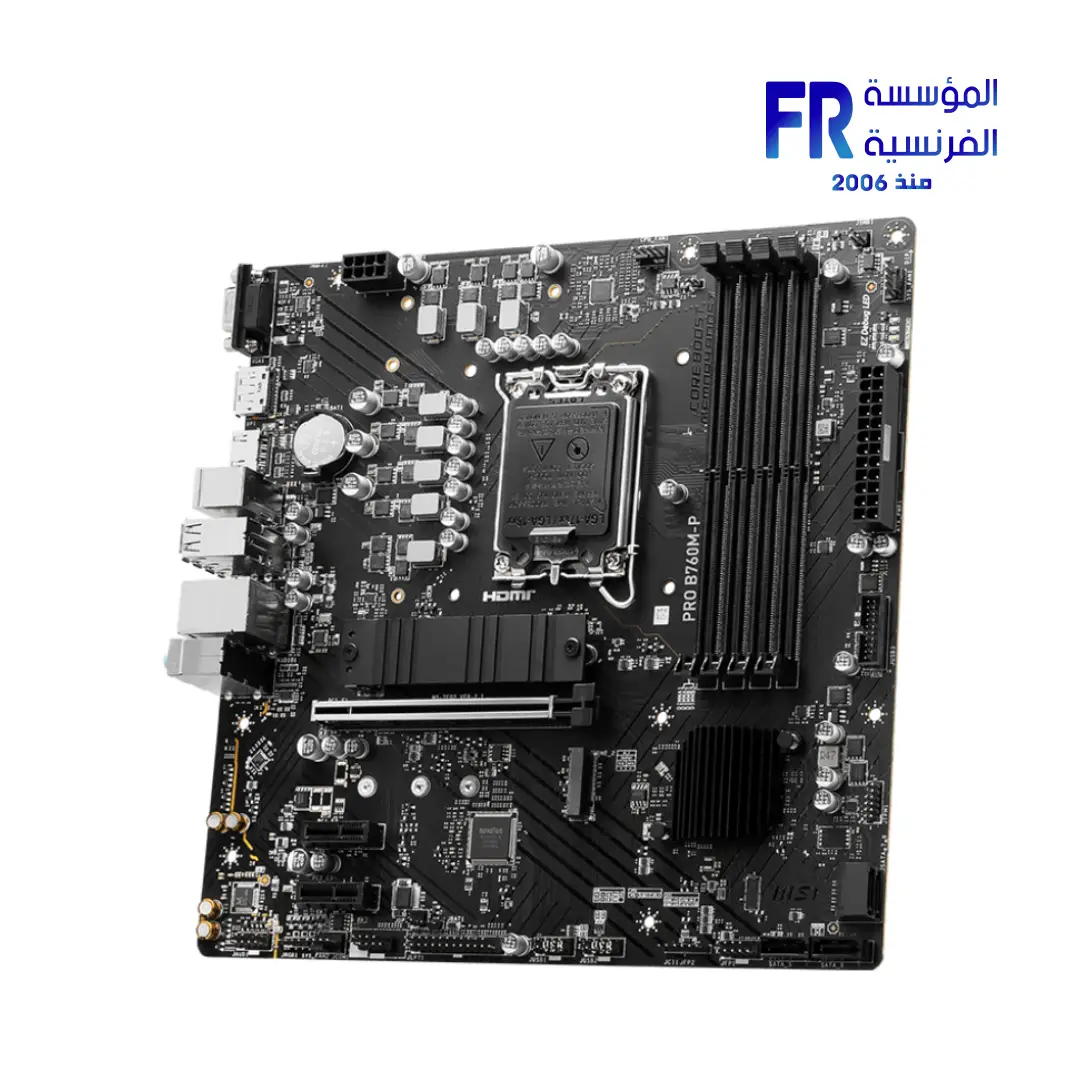

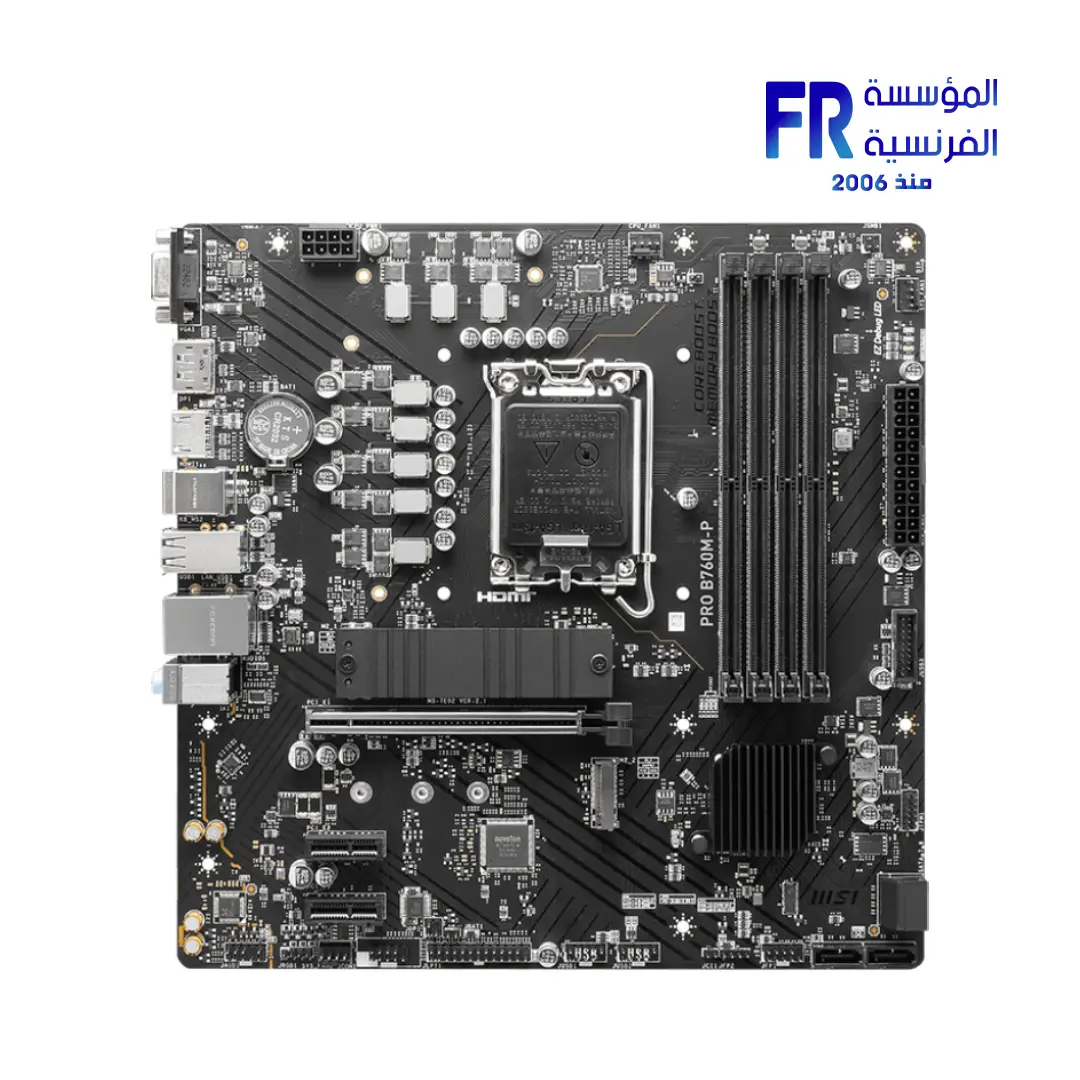

Msi Pro B760M P LGA 1700 Motherboard

Msi Pro B760M P LGA 1700 اللوحه الام

The Msi Pro B760M P LGA 1700 Motherboard is engineered for professional and business use, offering robust performance and stability. This MSI PRO B760M-P Motherboard supports Intel® Core™ 14th, 13th, and 12th Gen Processors, along with Intel® Pentium® Gold and Celeron® Processors for LGA 1700. Furthermore, it features DDR5 memory support, multiple M.2 slots, and comprehensive connectivity options, making it an ideal foundation for reliable computing.

Key Features of the MSI PRO B760M-P Motherboard

Next-Gen Processor and Memory Support

This MSI PRO B760M-P Motherboard boasts a powerful Intel B760 chipset. It fully supports Intel® Core™ 14th, 13th, and 12th Gen Processors, ensuring compatibility with the latest high-performance CPUs. You can also utilize Intel® Pentium® Gold and Celeron® Processors. The LGA 1700 socket provides a solid foundation for your build.

For memory, it features four DDR5 slots. These support a maximum capacity of 256GB. You can achieve overclocking frequencies up to 6800+ MHz (1DPC 1R). It supports Intel® XMP 3.0 OC and Dual-Controller Dual-Channel mode. This ensures high-speed and stable memory performance. The motherboard also supports non-ECC, un-buffered memory.

Versatile Storage and Graphics Connectivity on this B760 Motherboard

The MSI PRO B760M-P Motherboard offers versatile storage solutions. It includes two M.2 slots. M.2_1 (from CPU) supports PCIe 4.0 x4 for ultra-fast SSDs. M.2_2 (from Chipset) supports PCIe 4.0 x4 / SATA mode. Both slots support 2280/2260/2242 devices. Additionally, four SATA 6G ports provide ample connectivity for traditional storage devices. Note that SATA5 becomes unavailable if you install an M.2 SATA SSD in the M2_2 slot. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.

For graphics, it features multiple onboard display outputs. You get one HDMI™ 1.4 port (4K 30Hz max), one DisplayPort 1.4 (4K 60Hz max), and one VGA port (2048×1536 50Hz max). These are available on processors with integrated graphics. It also includes one PCI-E x16 slot (PCIe 4.0) and two PCI-E x1 slots (PCIe 4.0) for expansion cards.

Extensive USB and Internal I/O for this MSI Motherboard

The MSI PRO B760M-P Motherboard provides extensive USB connectivity. It features four USB 2.0 ports at the rear and four at the front. You also get one USB 5Gbps Type-A at the rear and two at the front. A high-speed USB 10Gbps Type-C port is available at the rear. This ensures plenty of options for peripherals and external drives.

Internal I/O includes standard connectors. These comprise ATX and CPU power connectors, fan headers (CPU, system), front panel headers, and chassis intrusion. It also has front audio, printer, and COM ports. An RGB LED connector (JRGB) allows for lighting customization. A TPM pin header supports TPM 2.0. Realtek® ALC897 Codec provides 7.1-Channel High Definition Audio. Realtek® RTL8111H offers Gigabit LAN connectivity. This LGA 1700 motherboard supports Windows® 11 64-bit and Windows® 10 64-bit.

Explore compatible Motherboards or check MSI Motherboards for other options. Find full details on the official MSI PRO B760M-P Motherboard product page. For more information on Intel B760 chipset, visit Intel’s official website.

Specifications of the MSI PRO B760M-P Motherboard

• Chipset: INTEL B760
• CPU Support: Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors (LGA 1700)
• Memory: 4x DDR5 slots, Max 256GB, DDR5 6800+(OC) MHz max speed, Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory
• Onboard Graphics: 1x HDMI™ 1.4 (4K 30Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x VGA (2048×1536 50Hz) (Available on processors with integrated graphics)
• Slots: 1x PCI-E x16 slot (PCIe 4.0 from CPU), 2x PCI-E x1 slots (PCIe 4.0 from Chipset)
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
• Storage: 2x M.2 slots (M.2_1: PCIe 4.0 x4 from CPU; M.2_2: PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G ports
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
• USB: Rear: 4x USB 2.0, 1x USB 5Gbps Type A, 1x USB 10Gbps Type C; Front: 4x USB 2.0, 2x USB 5Gbps Type A
• LAN: Realtek® RTL8111H Gigabit LAN
• Internal IO: ATX/CPU Power, CPU/System Fan, Front Panel, Chassis Intrusion, Front Audio, Printer/Com Port, RGB LED, TPM pin header, USB 2.0/5Gbps headers
• LED Feature: 4x EZ Debug LED
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor: mATX (243.84mm x 243.84mm)
• Model Number/SKU: PRO B760M-P / 911-7E02-026
• EAN/UPC: 824142319802
