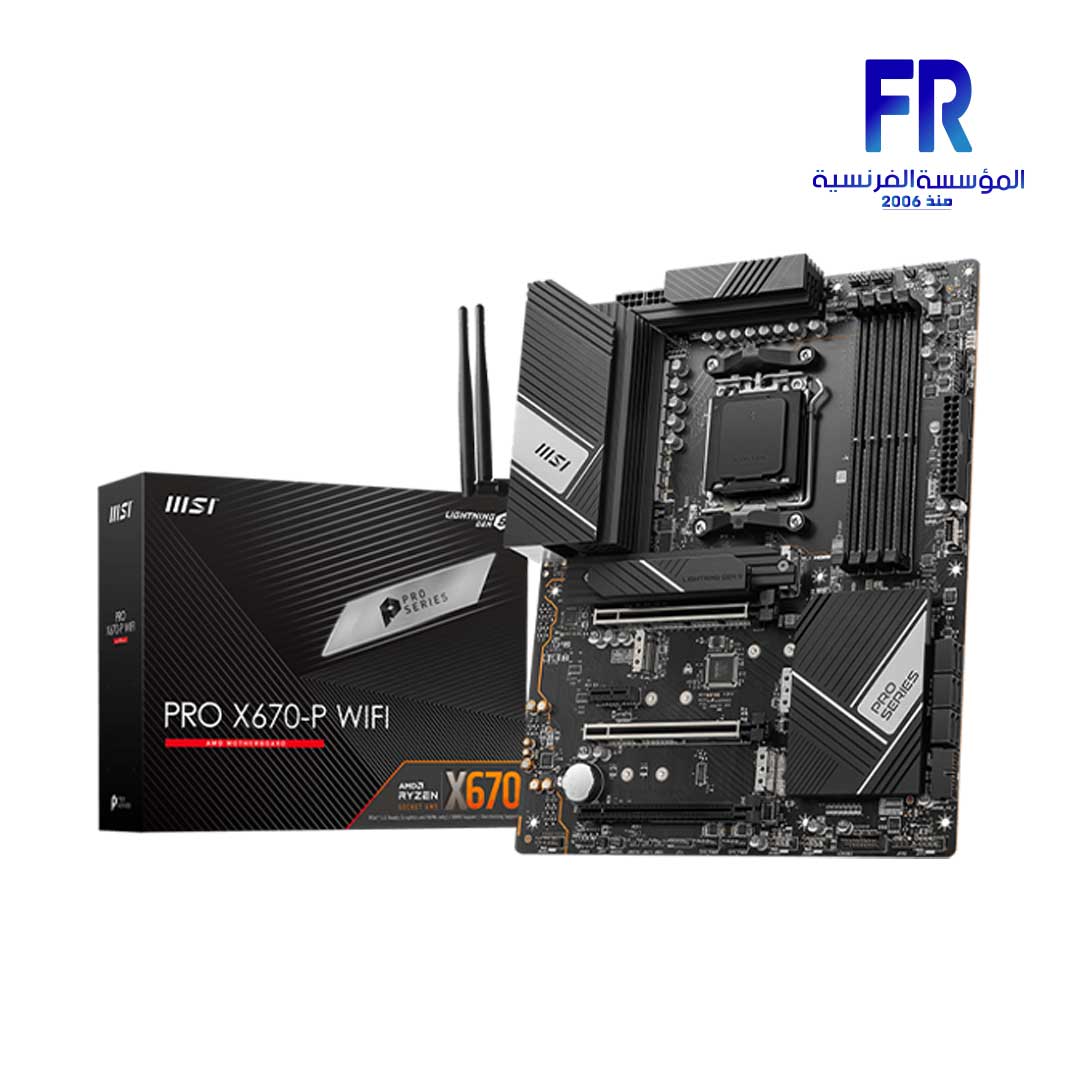

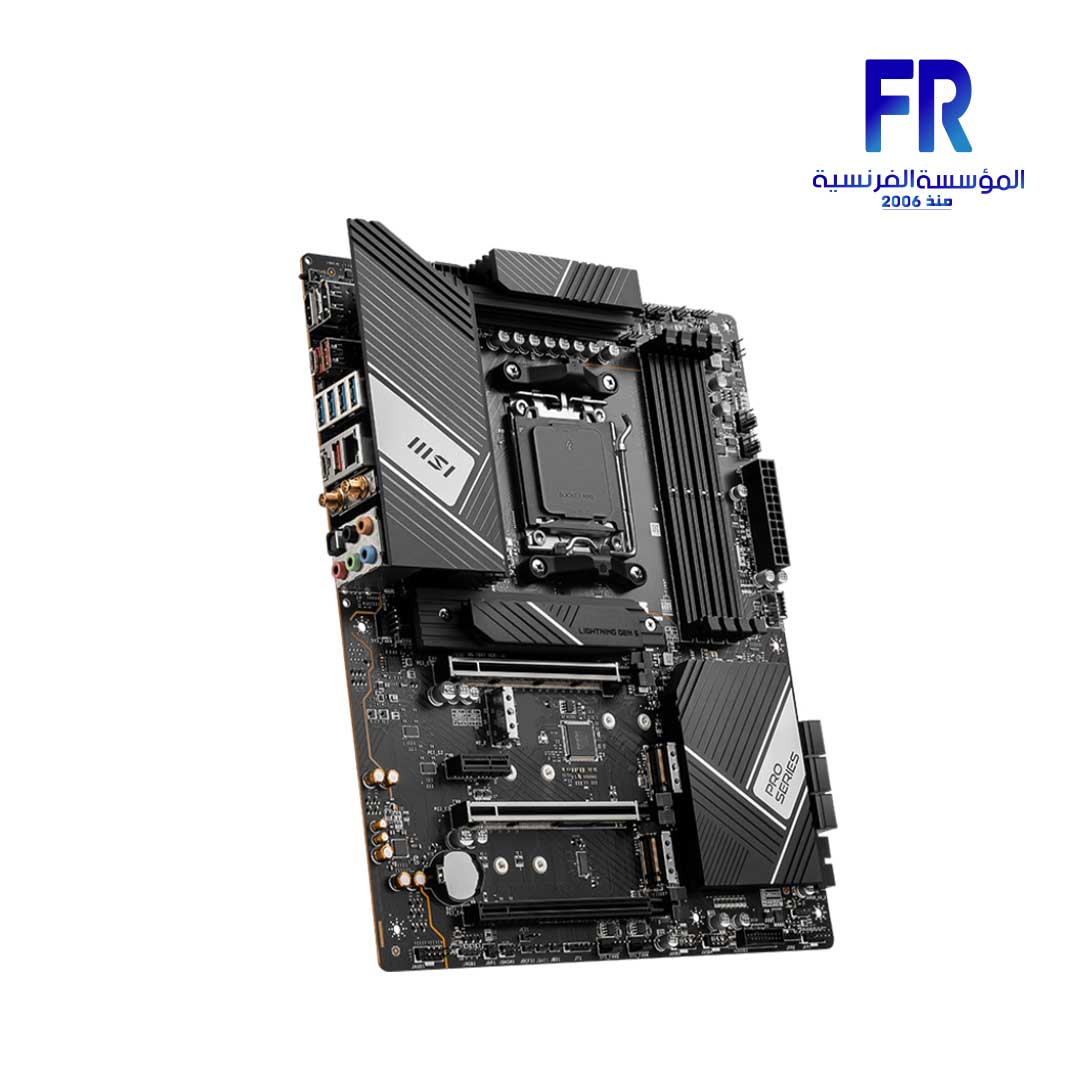

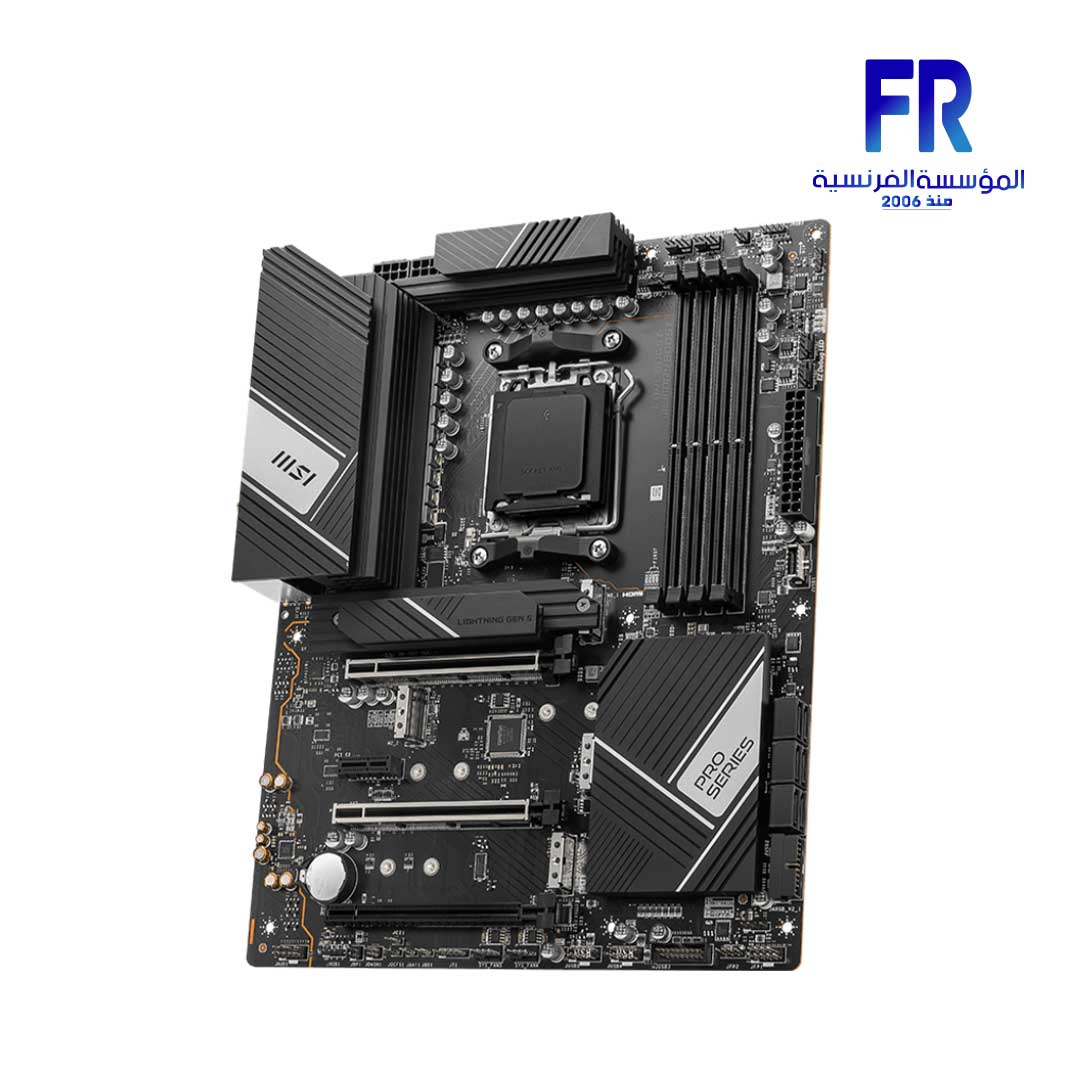

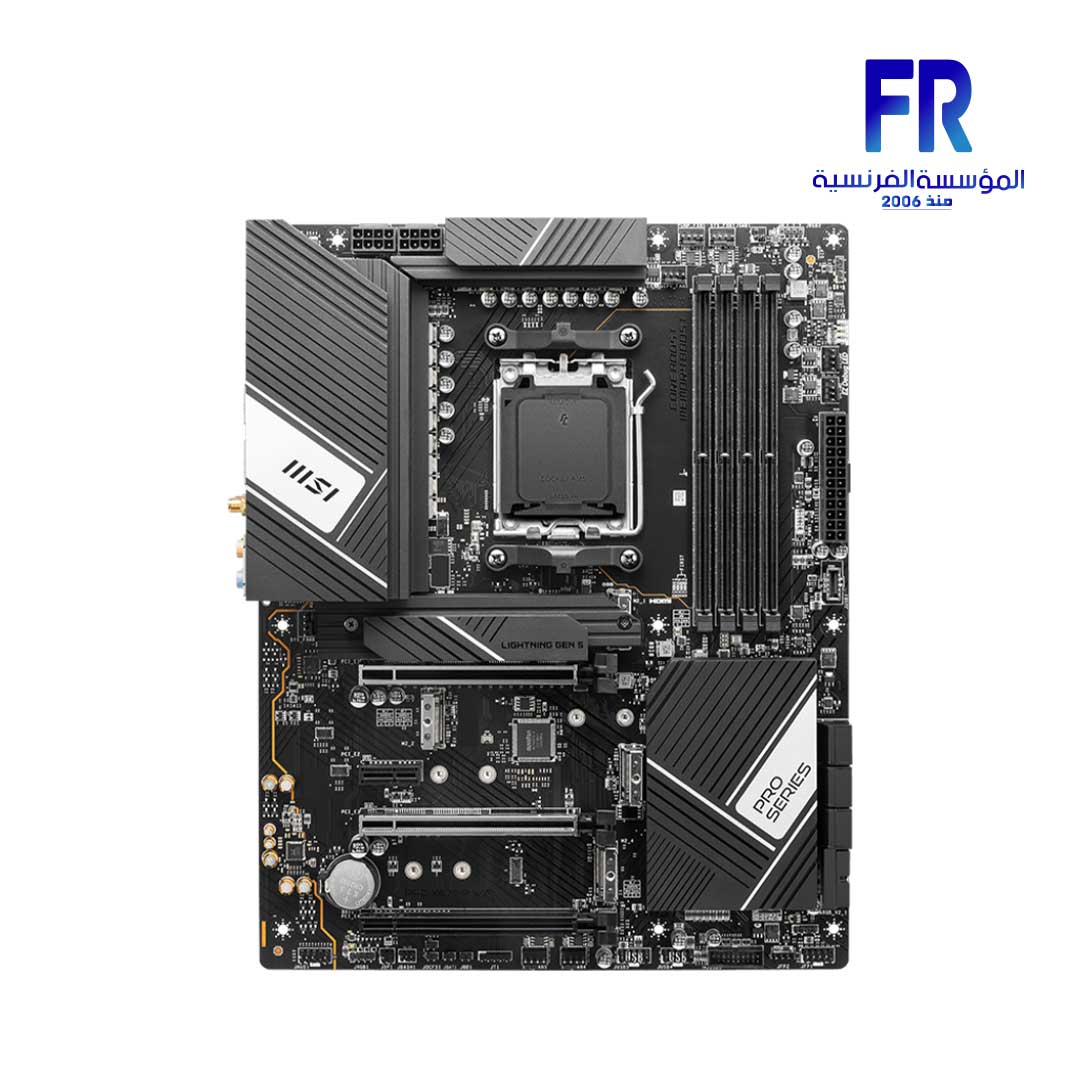

Msi Pro X670P Wifi DDR5 Am5 Motherboard

12200 جنية

CHIPSET AMD X670
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
WIRELESS / BLUETOOTH AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX 243.84mmx304.8mm

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 25612010 التصنيفات: AMD Motherboards, لوحة الام الوسوم: MOTHERBOARD MSI, Motherboard WIFI, MSI PRO X670P WIFI DDR5 AM5 Motherboard, X670P, PRO X670P WIFI العلامة التجارية: MSI

CHIPSET AMD X670
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max.overclocking frequency:
1DPC 1R Max speed up to 6600+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS
1x HDMI™
1xDisplayPort
1xType-C DisplayPort
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
EXPANSION SLOT 1x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
*SATA_A1 & SATA_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4xUSB 3.2 Gen1 Type A (Rear)
4xUSB 3.2 Gen1 Type A (Front)
2xUSB 3.2 Gen2 Type A (Rear)
1xUSB 3.2 Gen2 Type C (Rear)
1xUSB 3.2 Gen2 Type C (Front)
1xUSB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xCPU Fan
1xPump Fan
6xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xTuning Controller connector(JDASH)
2xAddressable V2 RGB LED connector (JARGB_V2)
2xRGB LED connector(JRGB)
4xUSB 2.0
4xUSB 3.2 Gen1 Type A
1xUSB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
243.84mmx304.8mm
MSI PRO X670 P
