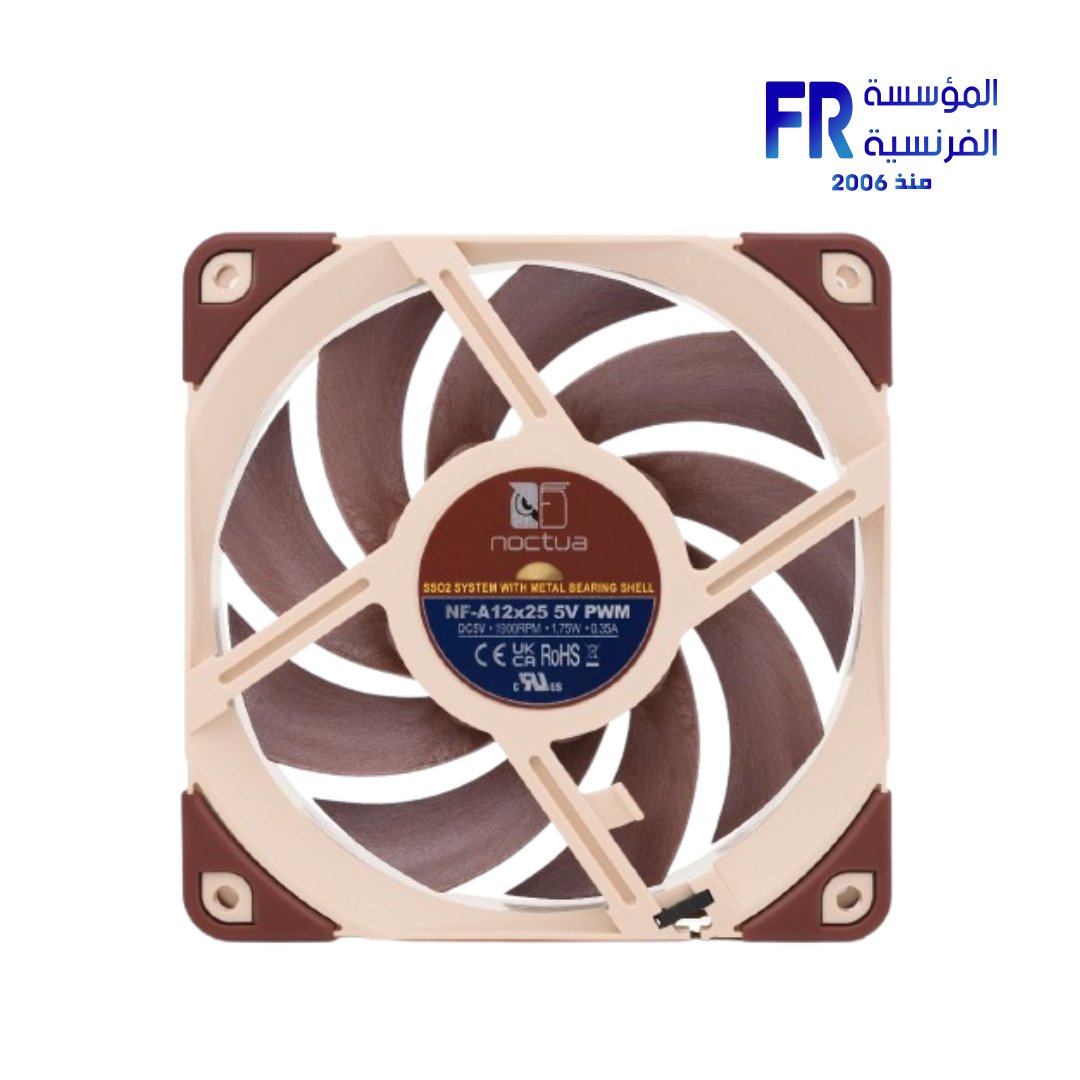

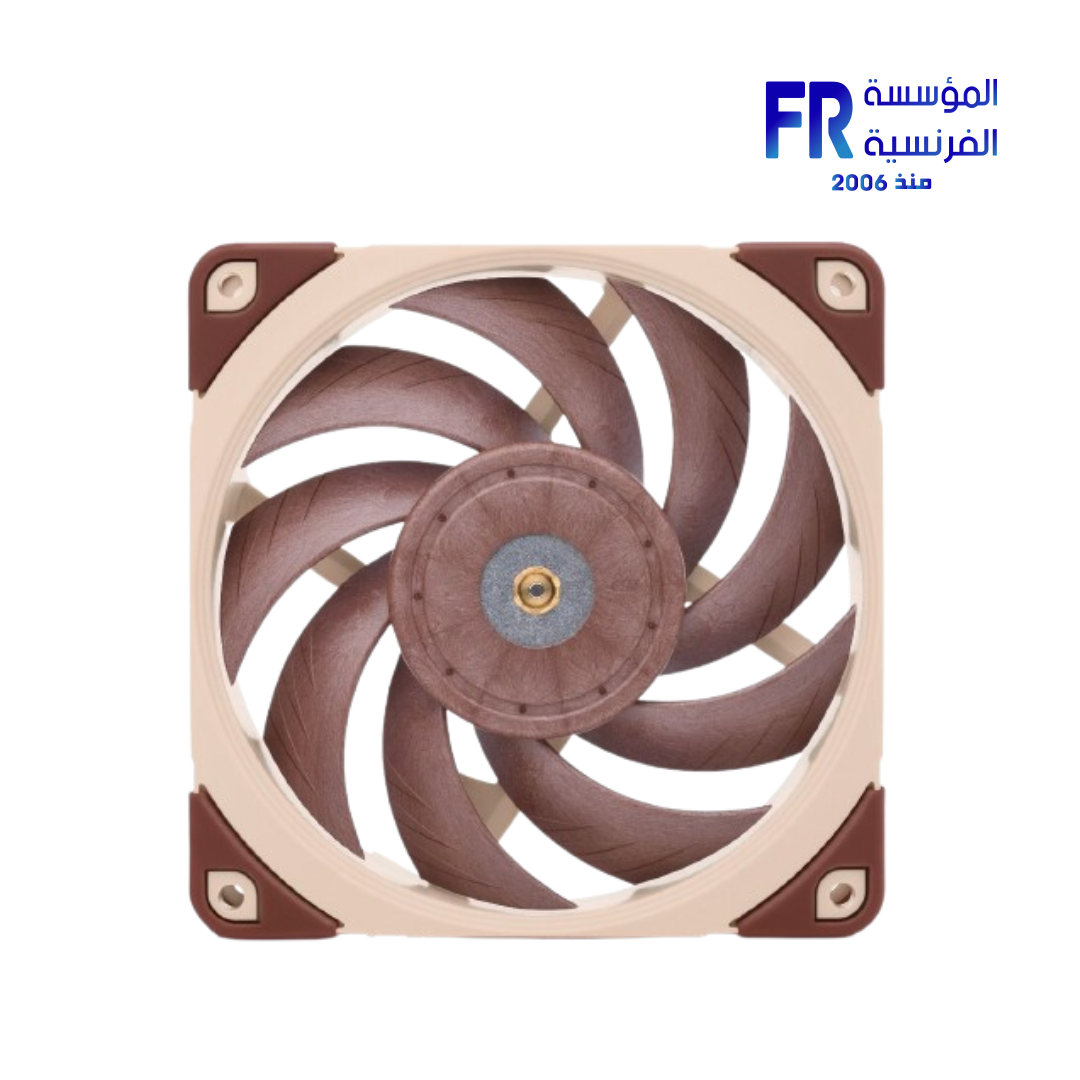

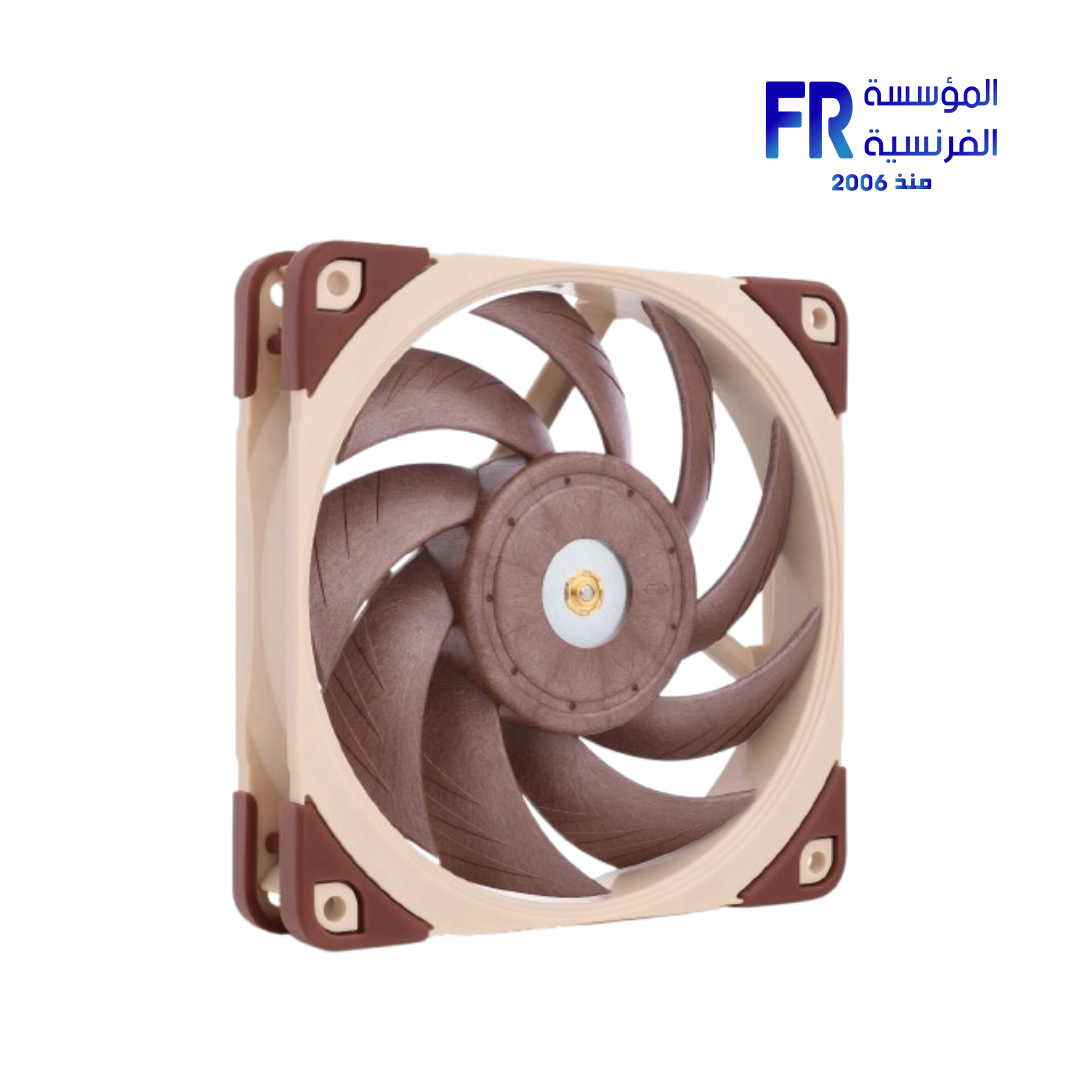

Noctua NF-A12x25 5V PWM 120mm Premium Fan

The Noctua NF-A12x25 5V PWM redefines silent airflow with its advanced aerodynamic design and 5V addressable RGB lighting. Featuring Noctua’s renowned SSO2 bearing and PWM control, this 120mm fan delivers exceptional performance for PCs and coolers.

Advanced Quiet Cooling:

Sterrox Liquid-Crystal Polymer:

Advanced LCP blades maintain precise tolerances at all speeds for minimized turbulence. The tight 0.5mm blade-tip clearance reduces vortex noise.

5V Addressable RGB:

Subtle lighting with 16.8 million colors complements the fan’s signature brown/black color scheme. Compatible with major motherboard sync software.

Technical Specifications:

• Model: NF-A12x25 5V PWM
• Size: 120x120x25mm
• Speed: 450-2000 RPM (±10%)
• Airflow: 102.1 m³/h (max)
• Static Pressure: 2.34 mm H₂O
• Noise Level: 22.6 dB(A)
• Bearing: SSO2 with magnetic stabilization
• Connector: 4-pin PWM + 3-pin ARGB
• MTBF: >150,000 hours
• Voltage: 5V ARGB / 12V fan

Premium Features:

PWM Speed Control:

4-pin PWM support allows precise speed adjustment from 450 to 2000 RPM. Includes Low-Noise Adapter (LNA) for ultra-quiet operation.

Integrated Anti-Vibration Pads:

Custom silicone pads reduce vibration transmission by 50% compared to standard mounts. The included NA-AVP1 anti-vibration mounts provide additional noise reduction.

Package Contents:

• NF-A12x25 5V PWM fan
• 4-pin PWM extension cable
• 5V ARGB extension cable
• Low-Noise Adapter (LNA)
• 4x silicone anti-vibration pads
• 4x NA-AVP1 anti-vibration mounts
• Noctua metal badge

Discover more premium cooling fans or visit the official Noctua product page for technical documentation.
