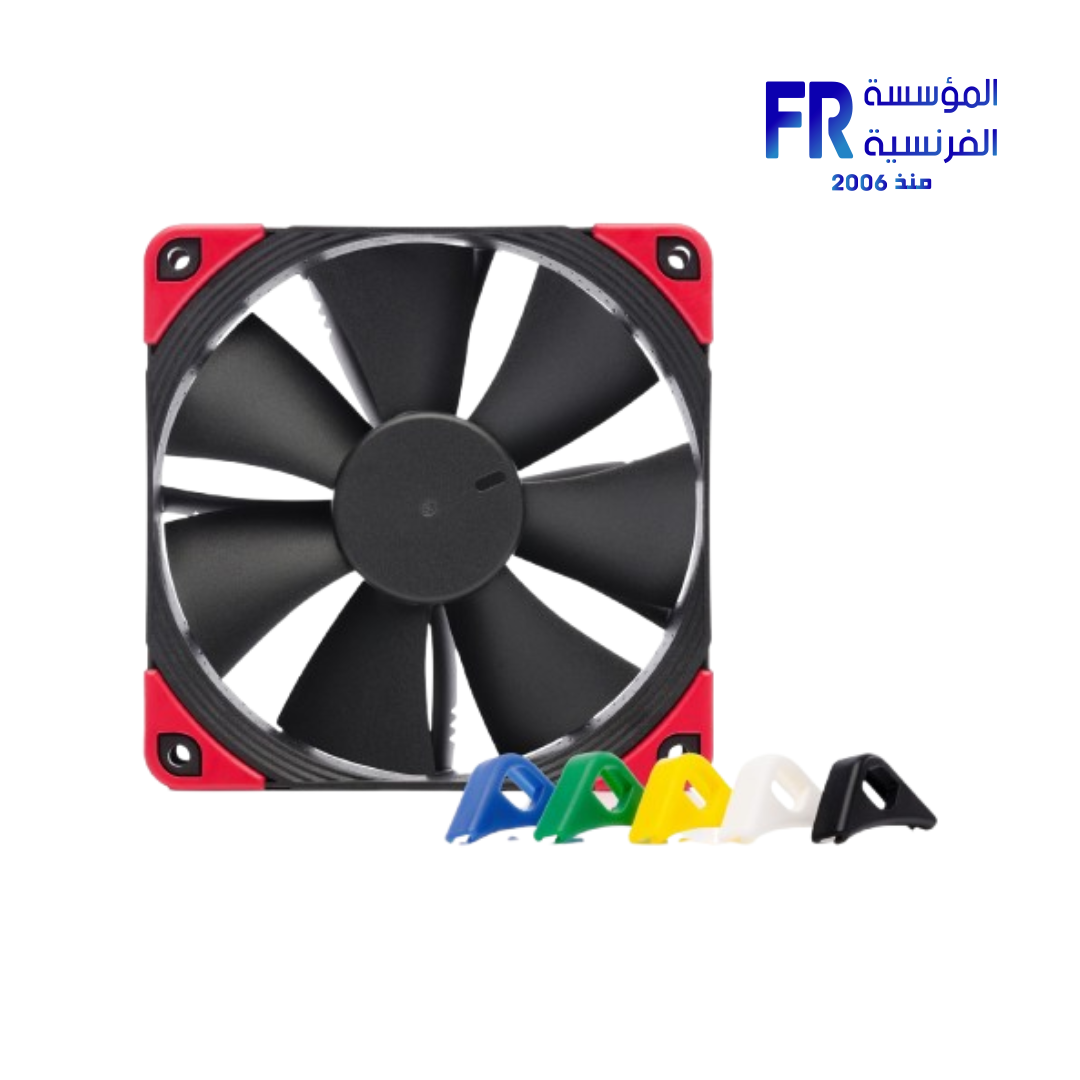

Noctua NF-F12 PWM chromax.black.swap 120mm Premium Case Fan

The Noctua NF-F12 PWM chromax.black.swap combines professional-grade cooling performance with customizable aesthetics, featuring Noctua’s renowned engineering in a sleek all-black design with interchangeable colored anti-vibration corners.

High-Performance Focused Airflow:

Focus Flow Frame Design:

The NF-F12’s advanced aerodynamic design features Noctua’s Focused Flow system that channels air precisely where it’s needed most, making it ideal for heatsinks, radiators, and restricted airflow situations. The optimized blade geometry creates exceptional static pressure.

PWM Precision Control:

With 4-pin PWM support, the fan automatically adjusts between 300-1500 RPM (±10%) for optimal balance between cooling performance and noise levels. The integrated PWM IC enables precise speed control across the entire range.

Technical Specifications:

• Model: NF-F12 PWM chromax.black.swap
• Dimensions: 120 × 120 × 25 mm
• Bearing: SSO2 Bearing with magnetic stabilization
• Speed Range: 300 – 1500 RPM (±10%)
• Max. Airflow: 93.4 m³/h
• Max. Noise Level: 22.4 dB(A)
• Static Pressure: 2.61 mm H₂O
• Input Power: 0.6 W
• MTTF: >150,000 hours

Chromax Customization Features:

Interchangeable Color Corners:

The chromax.black.swap version includes four sets of colored anti-vibration corners (black, white, red, blue, and green) that can be mixed and matched to complement your build’s color scheme while maintaining Noctua’s signature vibration damping performance.

Stealth Black Design:

Unlike Noctua’s classic brown/tan color scheme, the chromax.black.swap features an all-black frame and blades for seamless integration into any color-coordinated build without compromising performance.

Premium Accessories:

• 4 sets of colored anti-vibration corners (black, white, red, blue, green)
• Low-noise adapter (L.N.A.)
• 4-pin PWM extension cable (30cm)
• 4-pin y-cable for dual-fan connections
• Anti-vibration mounts
• Mounting screws for all standard applications
