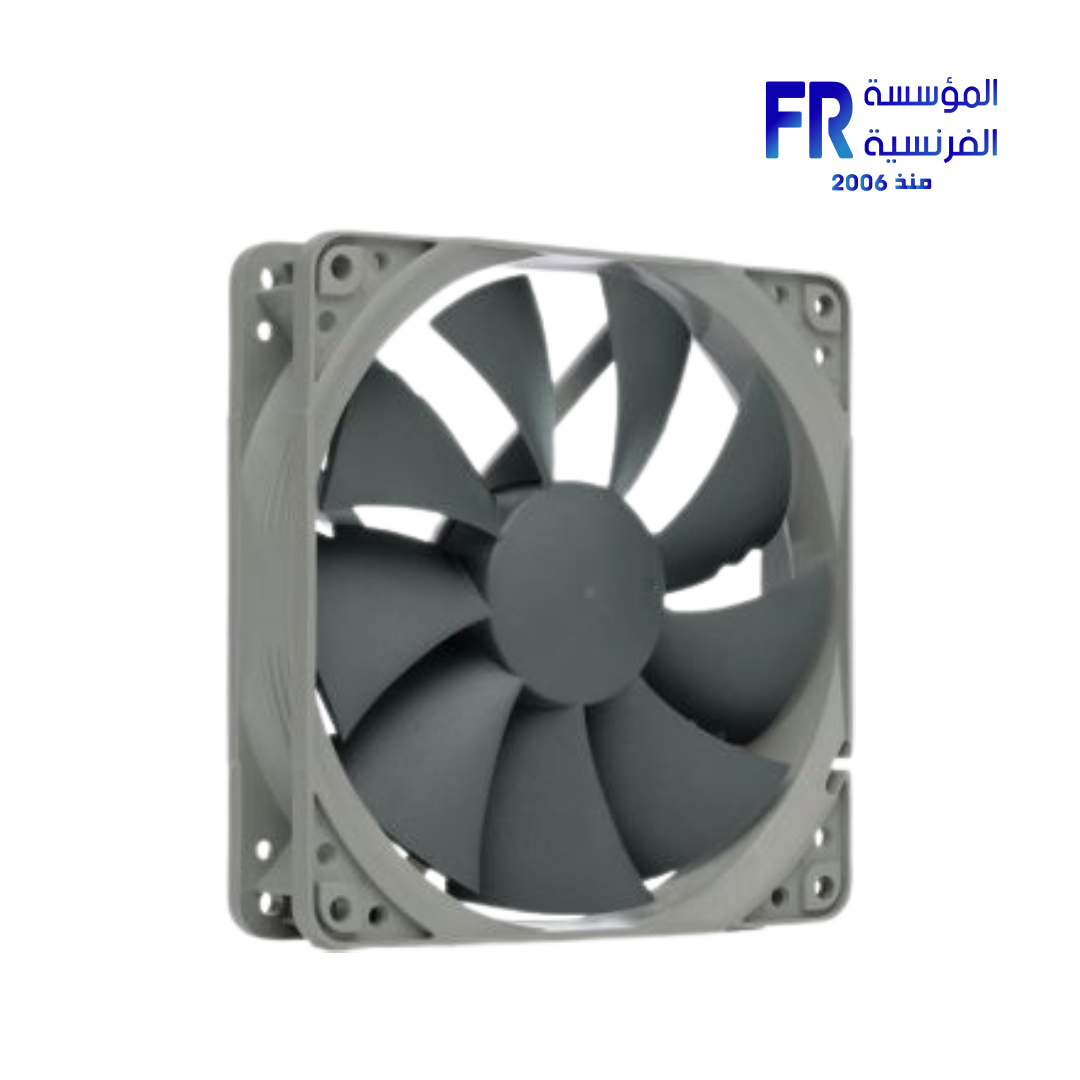

Noctua NF P12 redux 1300 120mm Fan

Noctua NF-P12 redux-1300 PWM: Performance 120mm Fan

The Noctua NF-P12 redux-1300 PWM delivers exceptional cooling performance with 1300 RPM max speed, generating 54.3 CFM (92.3 m³/h) airflow at just 19.8 dB(A). Featuring Noctua’s pressure-optimized 9-blade design in a cost-effective redux package, this PWM-controlled fan provides 2.21 mm H₂O static pressure for heatsinks and radiators. Furthermore, its SSO bearing ensures >150,000 hours of reliable operation in continuous-use scenarios.

Precision Cooling Features:

Engineered with staggered blade tips and flow acceleration channels, the NF-P12 redux-1300 excels in restricted airflow environments. The 4-pin PWM control allows precise speed adjustment from 450-1300 RPM via motherboard headers, while the redux grey-and-black design maintains Noctua’s quality at reduced cost. Moreover, the included Low-Noise Adapter (LNA) enables 1000 RPM operation for near-silent cooling when maximum performance isn’t required.

Key Specifications:

• Airflow: 54.3 CFM (92.3 m³/h) at 1300 RPM
• Static Pressure: 2.21 mm H₂O
• Noise Level: 19.8 dB(A) (quieter than whispering)
• Speed Control: 450-1300 RPM via PWM
• Bearing: SSO (Self-Stabilizing Oil-Pressure)
• Voltage: 12V DC (4-pin connector)
• Power Draw: 1.08W max
• MTBF: >150,000 hours

Technical Details:

Bundle Includes:

• 4x Anti-vibration rubber mounts (NA-SAV2 redux)
• 1x Low-Noise Adapter (LNA)
• 1x 30cm 4-pin extension cable
• 4x Fan screws

Optimal Use Cases:

• CPU air coolers (e.g., NH-U12S redux)
• 240mm/360mm radiators
• High-airflow case ventilation
• Workstation/servers requiring 24/7 operation
• Silent builds (with LNA at 1000 RPM)
