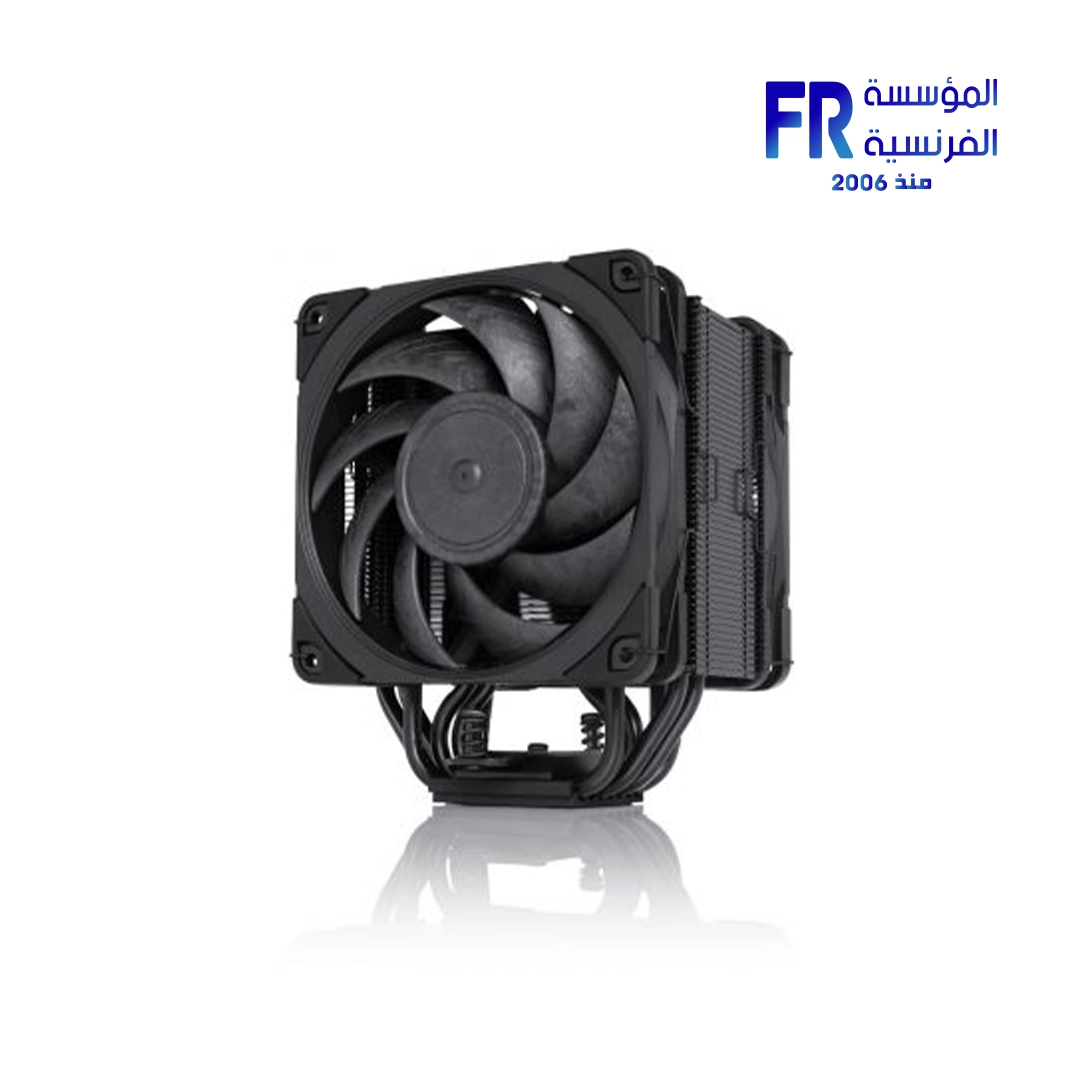

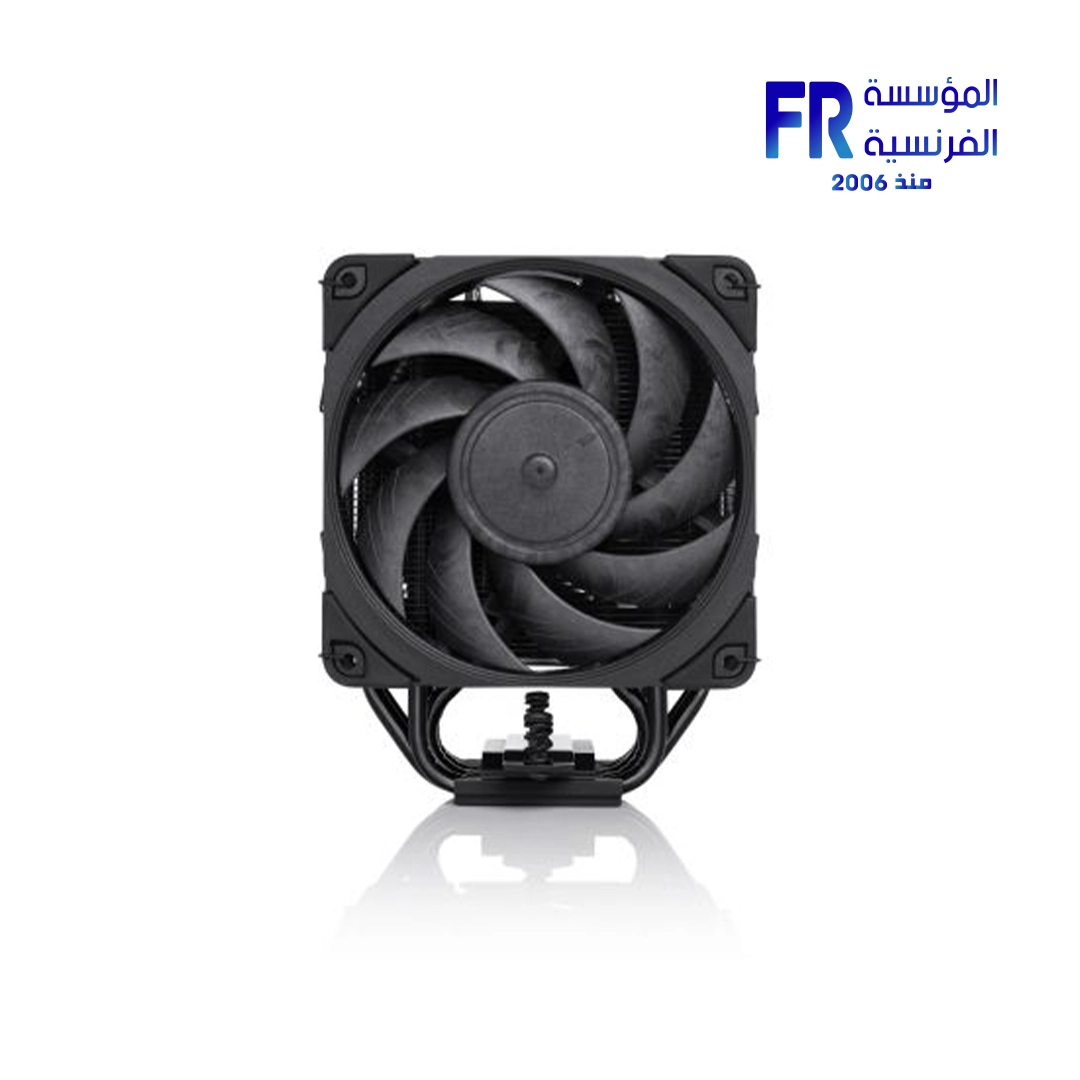

Noctua NH U12A chromax black Air Cpu Cooler

Noctua NH-U12A chromax.black Air CPU Cooler

The Noctua NH-U12A chromax.black Air CPU Cooler is an all-black version of Noctua’s award-winning NH-U12A. It offers premium-quality quiet cooling. This cooler fuses best-in-class cooling performance with superb quietness of operation and outstanding RAM, case, and PCIe compatibility. It delivers a sleek stealth look for your PC build.

Key Features:

Top-Tier Performance in 120mm Size:

• Features an asymmetrical single-tower heatsink design. This, combined with state-of-the-art NF-A12x25 PWM fans, allows it to rival the performance of many 140mm units.
• Equipped with 7 heatpipes and 37% more fin surface area (compared to NH-U12S). This pushes the performance envelope in the 120mm class.

Quiet Operation & All-Black Design:

• Includes two NF-A12x25 PWM chromax.black premium fans. These are highly optimized for quiet cooling performance.
• Maximum acoustical noise is 22.6 dB(A). It can be reduced to 18.8 dB(A) with the included Low-Noise Adaptors (L.N.A.).
• The cooler is black from head to toe. This includes the coated heatsink, black fans, anti-vibration pads, fan clips, and mounting parts. It integrates seamlessly into all-black builds.

Excellent Compatibility & Easy Installation:

• Offers 100% RAM compatibility on Intel LGA1851/LGA1700/LGA1200/LGA115x and AMD AM4/AM5 based motherboards. It does not overhang RAM slots.
• Classic 120mm tower size (158mm tall, 125mm wide with fans) ensures excellent case and PCIe compatibility. It clears the top PCIe slot on most ATX/Micro-ATX motherboards.
• Features the renowned SecuFirm2™ multi-socket mounting system. This provides easy and secure installation for a wide range of Intel and AMD sockets.
• Comes with NT-H1 high-grade thermal compound for optimal heat transfer.

Explore compatible Air Coolers or check Noctua Products for other options. Find full details on the official Noctua NH-U12A chromax.black product page.

Specifications:

• Product Name: NH-U12A chromax.black
• Socket Compatibility: Intel LGA1851, LGA1700, LGA1200, LGA115x, LGA20xx (LGA2066, LGA2011-0, LGA2011-3), AMD AM5, AM4
• Height (with fan): 158 mm
• Width (with fan): 125 mm
• Depth (with fan): 112 mm
• Weight (with fan): 1220 g
• Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
• NSPR: 169
• TDP (Max.): 169W (based on NSPR)
• Fan Model: 2x NF-A12x25 PWM chromax.black premium fan
• Fan Bearing: SSO2
• Fan Speed (Max): 2000 RPM (+/- 10%)
• Max. Airflow: 102.1 m³/h
• Max. Acoustical Noise: 22.6 dB(A)
• Input Power (Max.): 1.68 W
• Voltage Range: 12 V
• MTTF: > 150,000 h
• Scope of Delivery: Black NH-U12A heatsink, 2x NF-A12x25 PWM chromax.black premium fan, 2x NA-RC14 Low-Noise Adaptor (L.N.A.), NA-YC1 4-pin PWM splitter cable, NT-H1 high-grade thermal compound, Black SecuFirm2™ mounting kit, Noctua Metal Case-Badge
• Part Number: NH-U12A chromax.black
• EAN: 9010018000245
• UPC: 841501100246
