⚡ Engineering Highlights at a Glance:

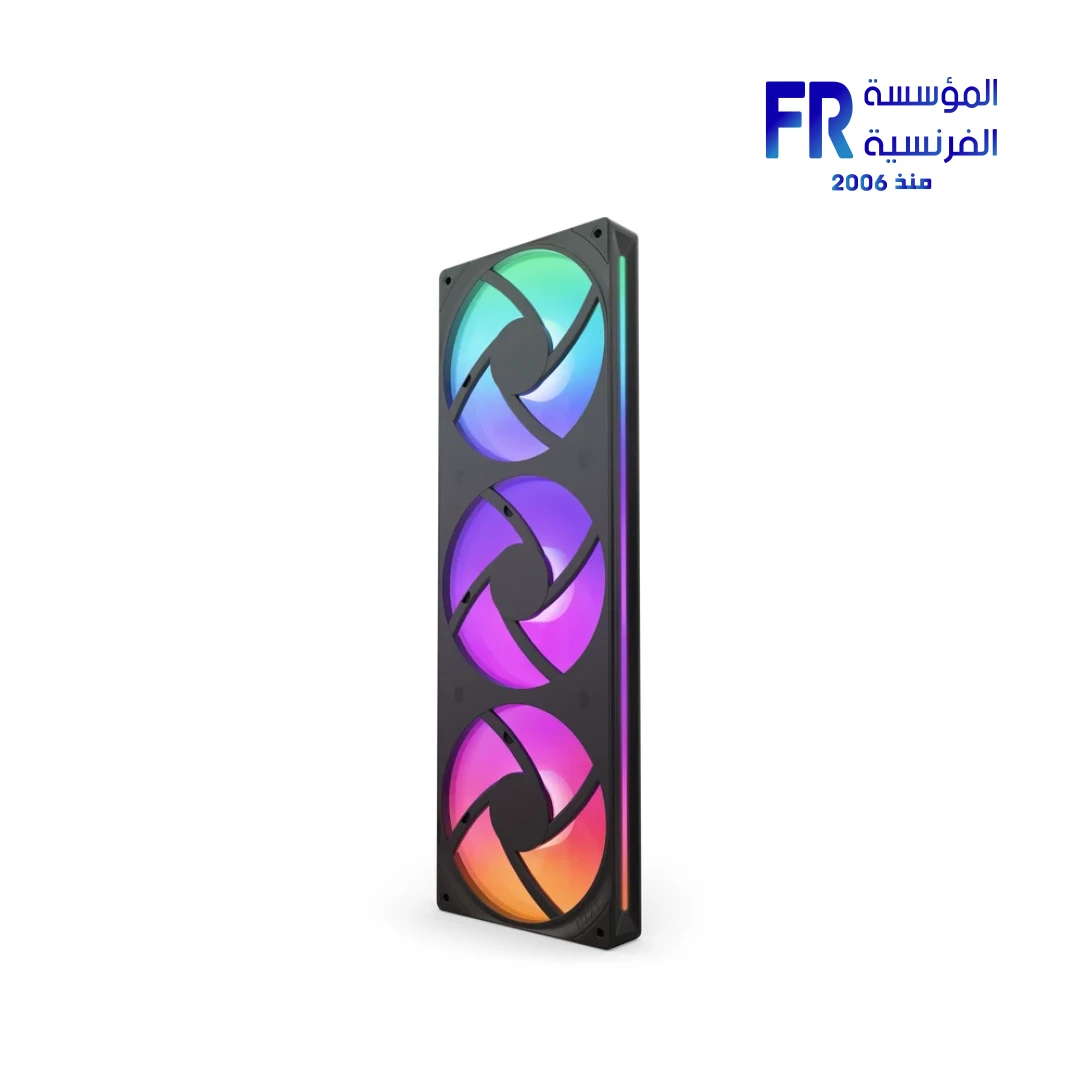

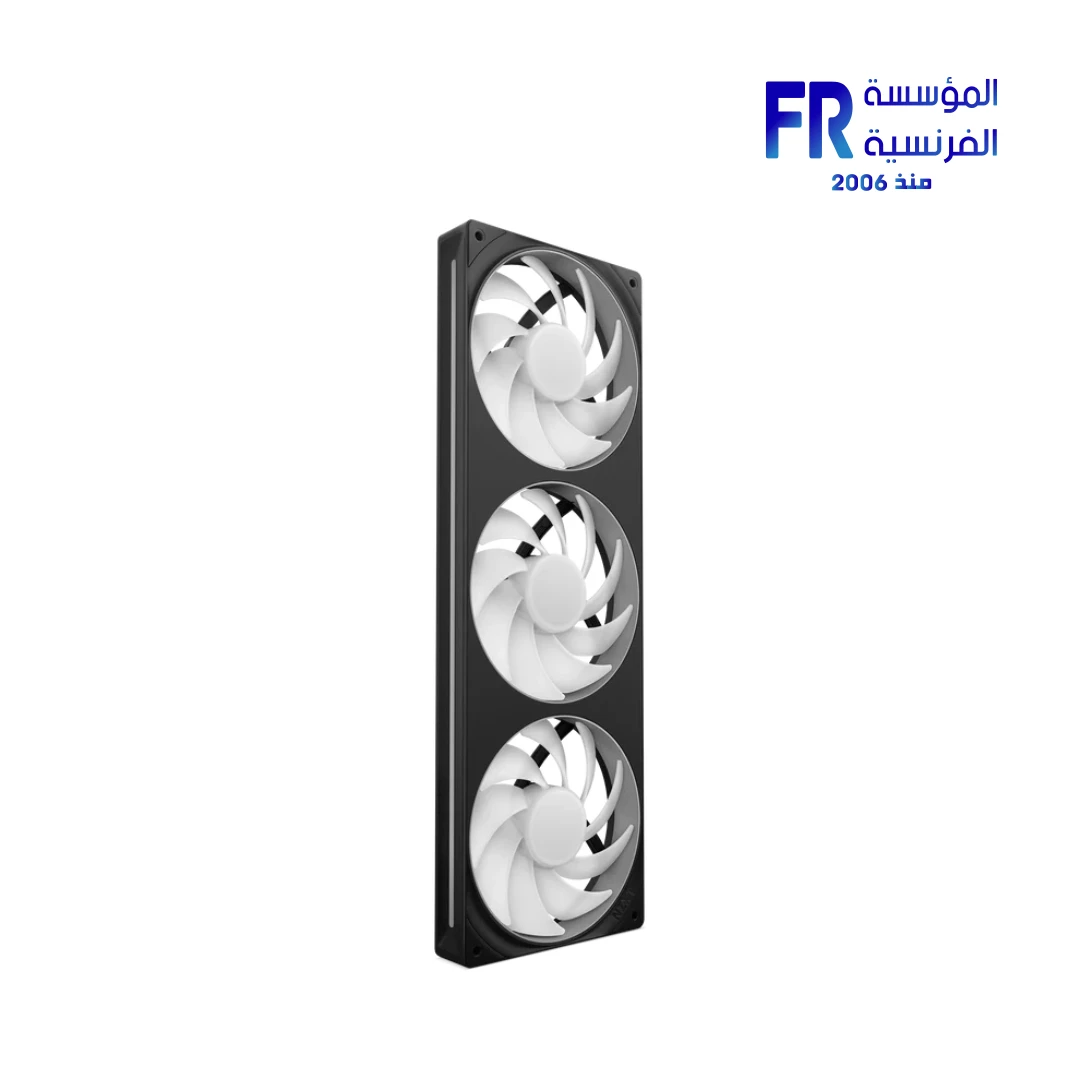

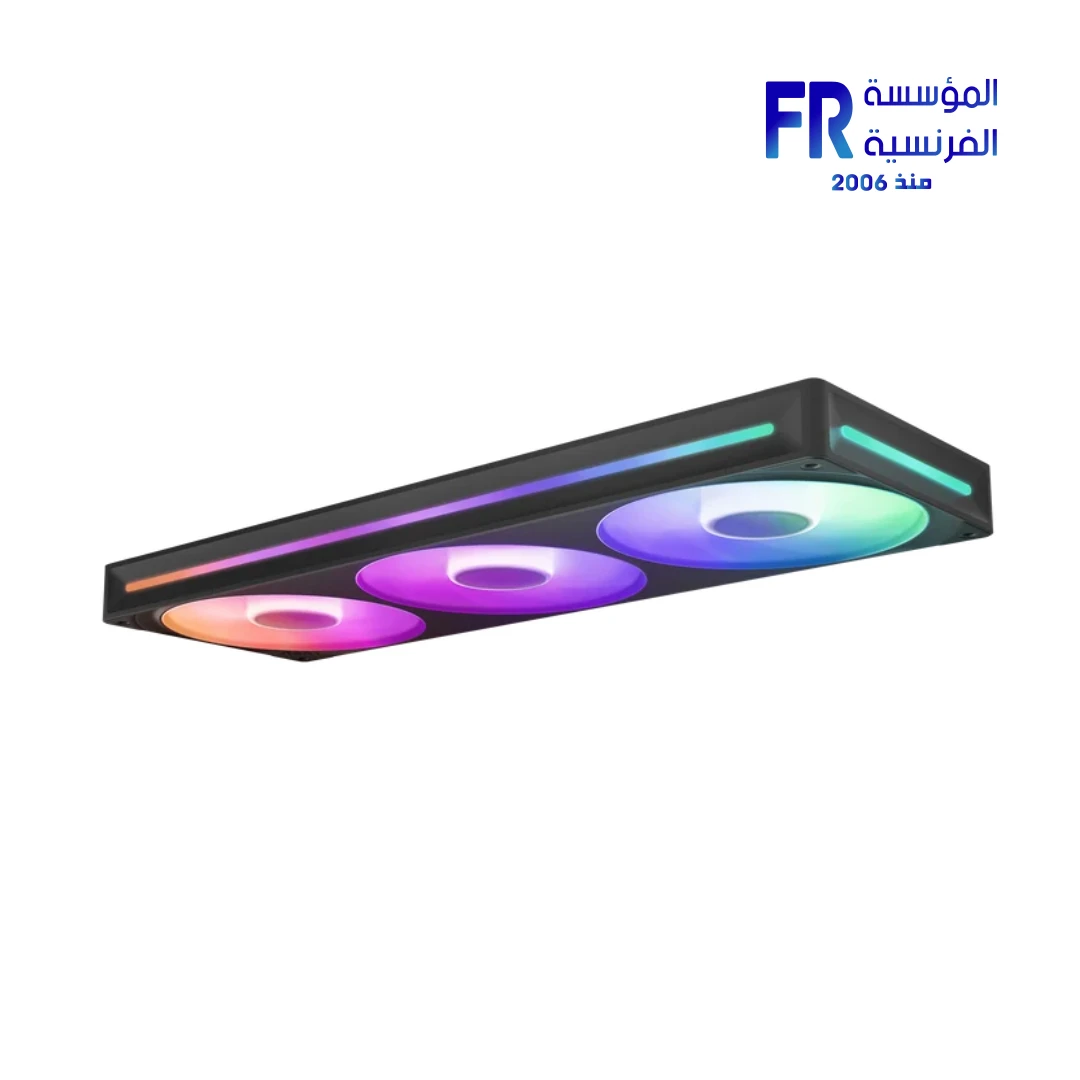

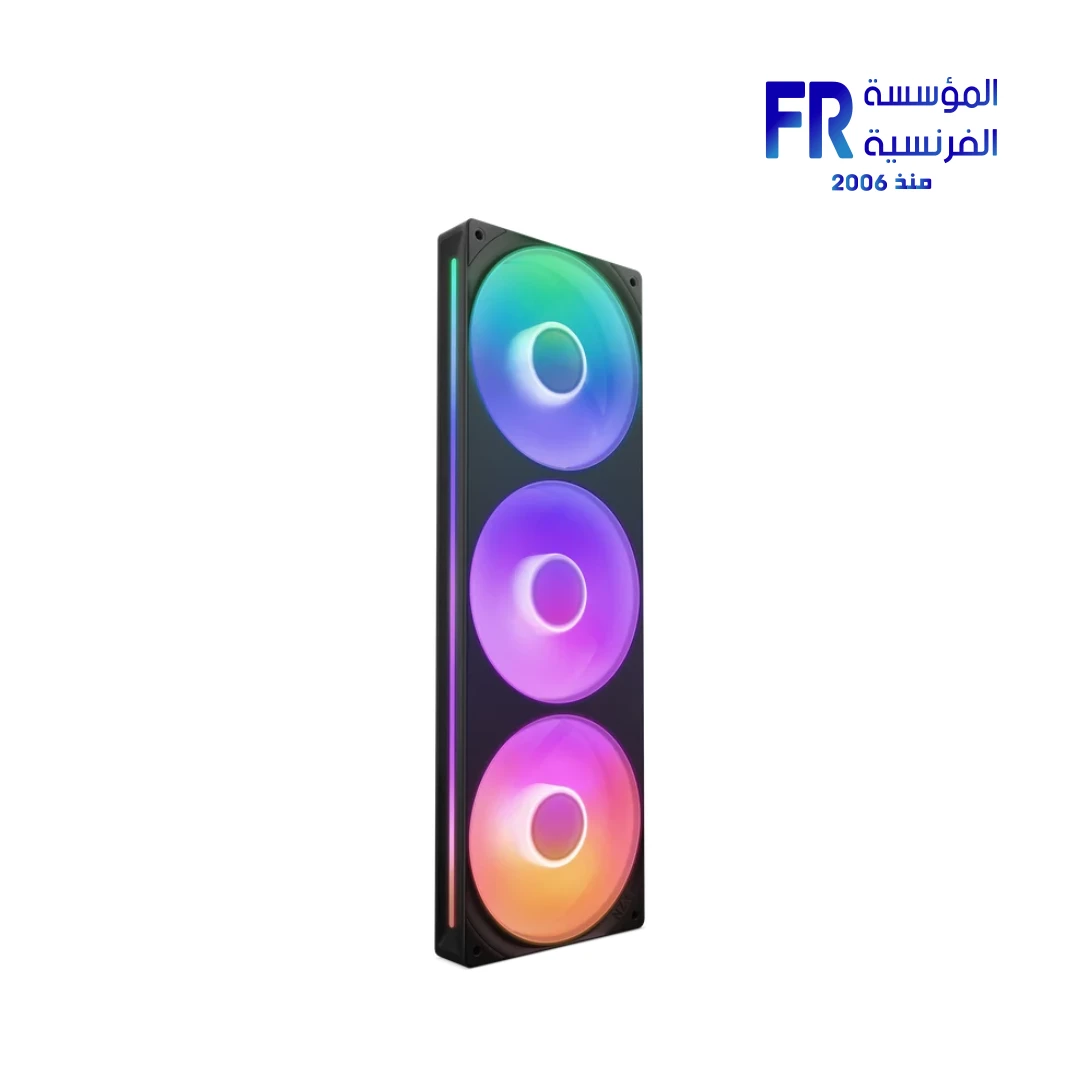

• Single-Frame 360mm Design: Three 120mm fans share one housing, which reduces screws and cables for simpler installation.
• Balanced Airflow and Pressure: Up to 75.12 CFM and 3.3 mmH₂O per fan at 2,400 RPM, suitable for intake, exhaust, and 360mm radiators.
• Fluid Dynamic Bearings: Rated for 60,000 hours of quiet, stable operation across the speed range.
• Eight RGB LEDs per Fan: Individually addressable LEDs diffused through semi-translucent blades and side windows for gradient effects.
• PWM Speed Control: Fans adjust speed based on system temperature when connected to a PWM header or controller.
• Anti-Vibration Corners: Rubber corners dampen vibration noise at any speed.
• Dual Connectivity: Use the 8-pin connector with an NZXT controller for CAM control, or the included splitter cable for any motherboard’s 5V ARGB header.

Connecting and Controlling the Fans

The F360 RGB Core uses an 8-pin connector for PWM and RGB. To control fan speed and lighting through NZXT CAM, connect it to an NZXT controller (sold separately) or a compatible NZXT motherboard. If you do not have one, use the included splitter cable to connect to any motherboard’s 5V ARGB header and a PWM fan header. In that case, use your motherboard’s software or BIOS for fan speed and lighting control. Note that Zero RPM Mode requires an NZXT controller or NZXT motherboard.

Case Fit and Mounting

The single-frame dimensions are 360 x 120 x 25mm, so your case needs a 360mm fan or radiator mount on the top, front, or side. Because it mounts as a single unit, confirm that your mounting holes are spaced for 360mm fans and that the fan cables reach your controller or motherboard header. The pack weighs 455 g, which most 360mm mounting points support without extra bracing.

Noise and Fan Curves

At full speed, each fan reaches 30.00 dBA, which is quiet for a 120mm fan. Use PWM control to set a fan curve that ramps up under sustained load and stays quiet at idle. The anti-vibration rubber corners reduce vibration noise, but keep the frame firmly screwed down to avoid rattling. Clean the blades with a soft brush or compressed air every few months to maintain airflow and keep noise down.

Confirm that your case or radiator has a 360mm mount and that the mounting holes are spaced for 120mm fans. The single-frame design mounts as one unit, so measure the mounting points and space above and below the frame before ordering.

Decide how you want to control the fans before you build. If you want CAM control for fan speed and RGB, plan to use an NZXT controller or a compatible NZXT motherboard; otherwise, use the included splitter cable with your motherboard’s 5V ARGB header and a PWM fan header.

Set a fan curve that ramps up under sustained load and stays quiet at idle. The 500–2,400 RPM range gives you room to balance airflow and noise; at full speed, each fan reaches 30.00 dBA, which is quiet for a 120mm fan.

Because the fans use fluid dynamic bearings rated for 60,000 hours, keep the frame firmly screwed down to prevent rattling and check the blades periodically for dust buildup. Clean the blades with a soft brush or compressed air to maintain airflow and reduce noise over time.
