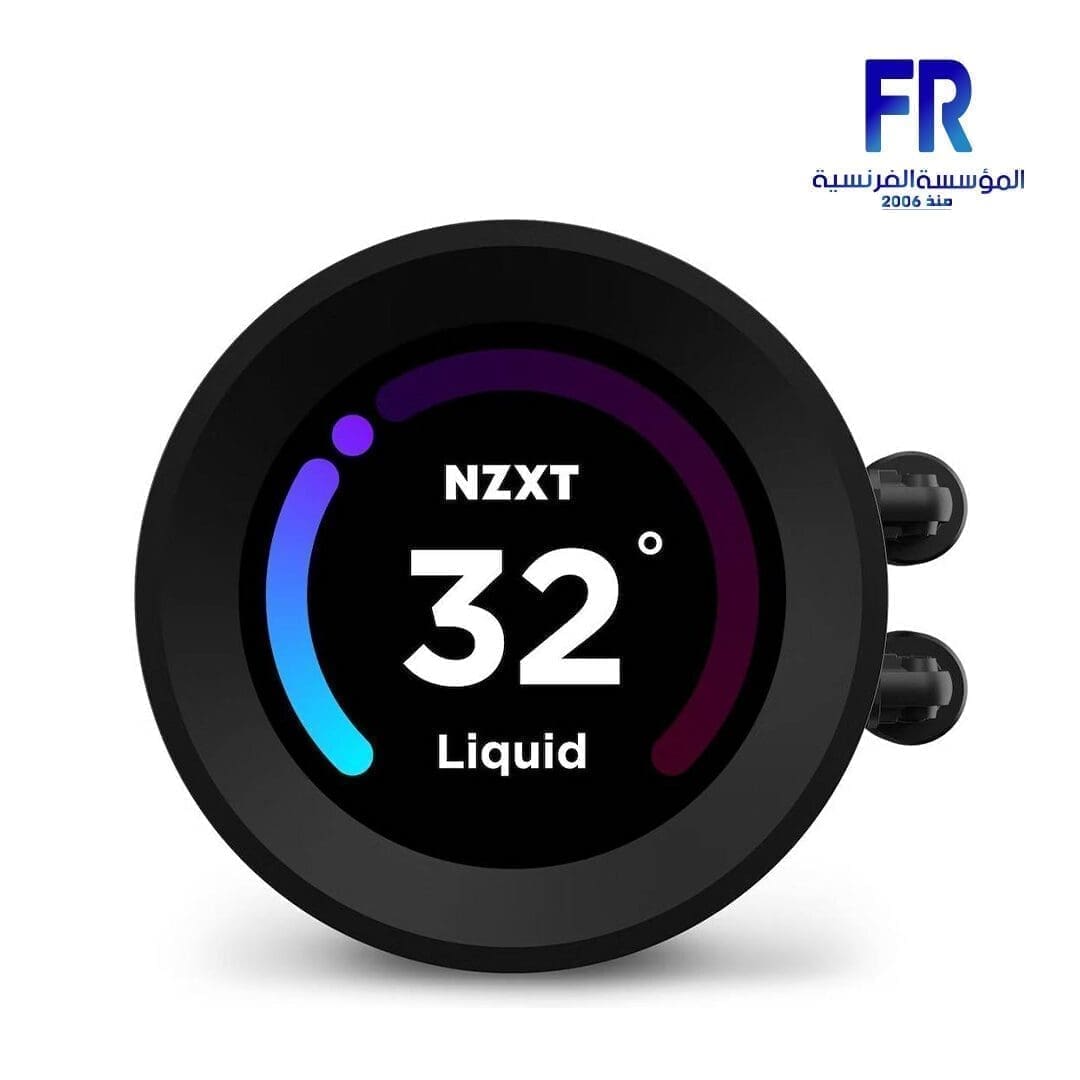

CAP

• Material:Aluminum, Plastic
• Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
• Display Panel Active Area:2.36” (60mm) diameter
• Display Color:24-bit true color LCD
• Display Resolution:640 x 640 px
• Display Brightness:690 cd/m²
• Display Panel Type:TFT-LCD (Wide Viewing Angle)

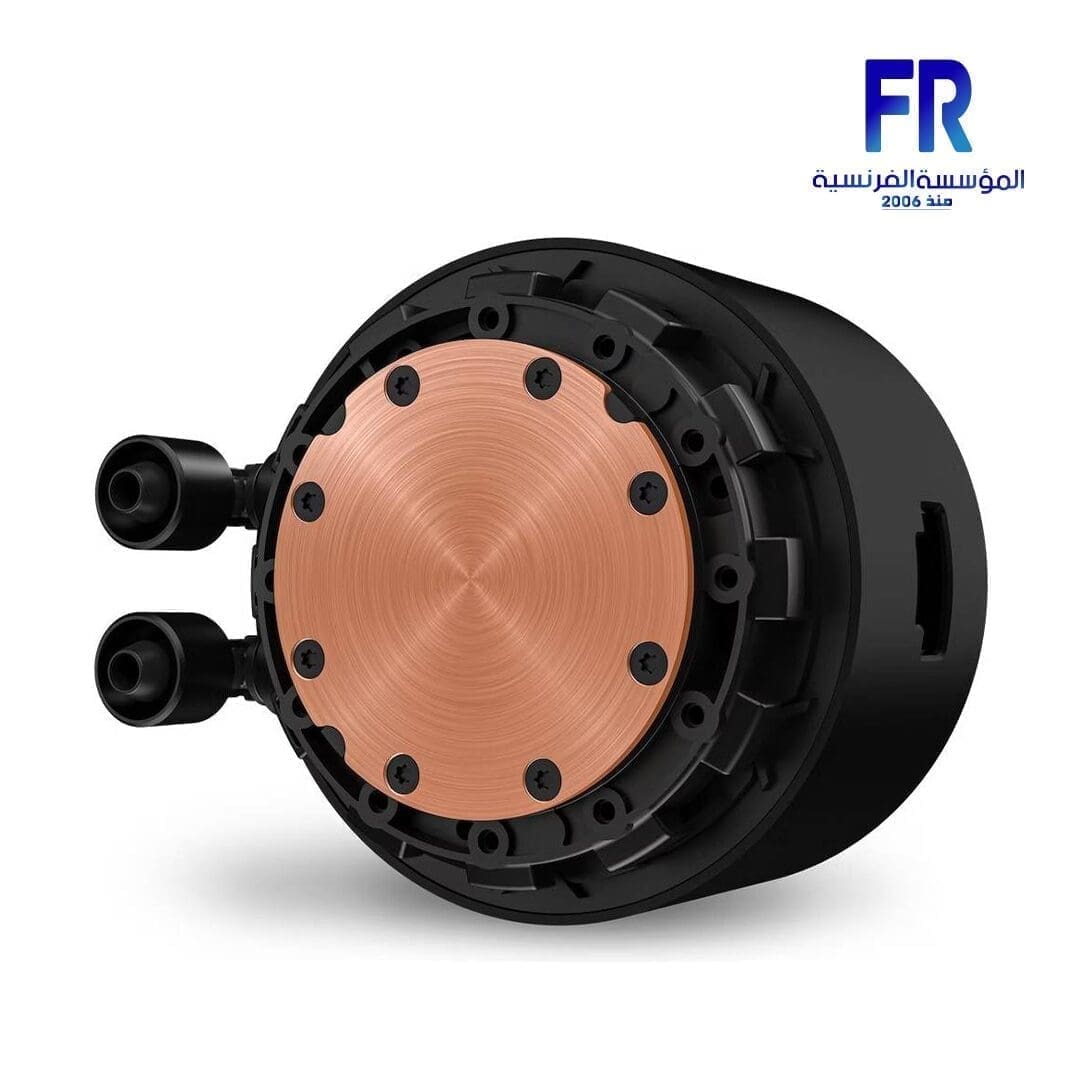

WATER BLOCK

• Dimensions:Diameter: 81.9mm H: 59.5mm
• Material (Block):Copper
• Material (Housing):Plastic

PUMP

• Motor Speed:800 – 2,800 ± 300 RPM
• Power:12V DC, 0.3A

RADIATOR

• Dimensions:123 x 275 x 30mm
• Material:Aluminum

TUBE

• Length:400mm
• Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve

FAN SPECS

• Model:F120 RGB Core Fans
• Quantity:2
• Dimension:120 x 120 x 26mm
• Speed:500 – 1,800 ± 180RPM
• Airflow:78.86 CFM
• Air Pressure:2.57 mm H2O
• Noise:33.88 dBA
• Bearing:Fluid Dynamic Bearing
• Power Consumption:12 V DC, 0.2 A, 2.4 W
• Fan Connector:4-pin PWM
• Life:60,000 hours / 6 Years

RGB CONTROLLER

• Dimensions:63.2 x 53.2 x 12.8mm
• Weight:52.8g
• Mounting:Magnet and 3M Dual Lock
• Connection Cables:1x USB 2.0 internal connector 1x SATA power cable
• Input Connector:12V DC / 2.6A
• RGB Lighting Channels:3
• Output Channel Voltage:5V DC
• NZXT RGB Channel Output LED Qty.:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels

COMPATIBLE SOCKET & CPU

• Intel :Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
• AMD :AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
