Seasonic Focus GX-1000 ATX3 1000W Atx 3.1 80 Plus Gold Fully Modular Hybrid Fan White Power Supply
10600 EGP
- Part Number: SRP-FGX102-A5A32SF White
- Model & Barcode: FOCUS GX-1000 V4 White | 882016002878
- Power & Efficiency: 1000W | 80 Plus Gold Certified
- Cabling & Form Factor: Fully Modular | Compact ATX (140mm)
- Standards & Cooling: ATX 3.1 & PCIe 5.1 | 120mm FDB Fan | Hybrid Control
- Warranty: 10 Years Warranty
Official Authorized Seasonic Retailer – Egypt
Genuine local stock with full 10-Year local manufacturer warranty support.
⚡ Quick Verdict:
The FOCUS GX-1000 White Edition is the premier power centerpiece for custom themed rigs. Delivering 1000W of stable gold-certified power, full modularity, and quiet thermal stages under an outstanding 10-year warranty, it perfectly combines clean aesthetics with high power headroom.

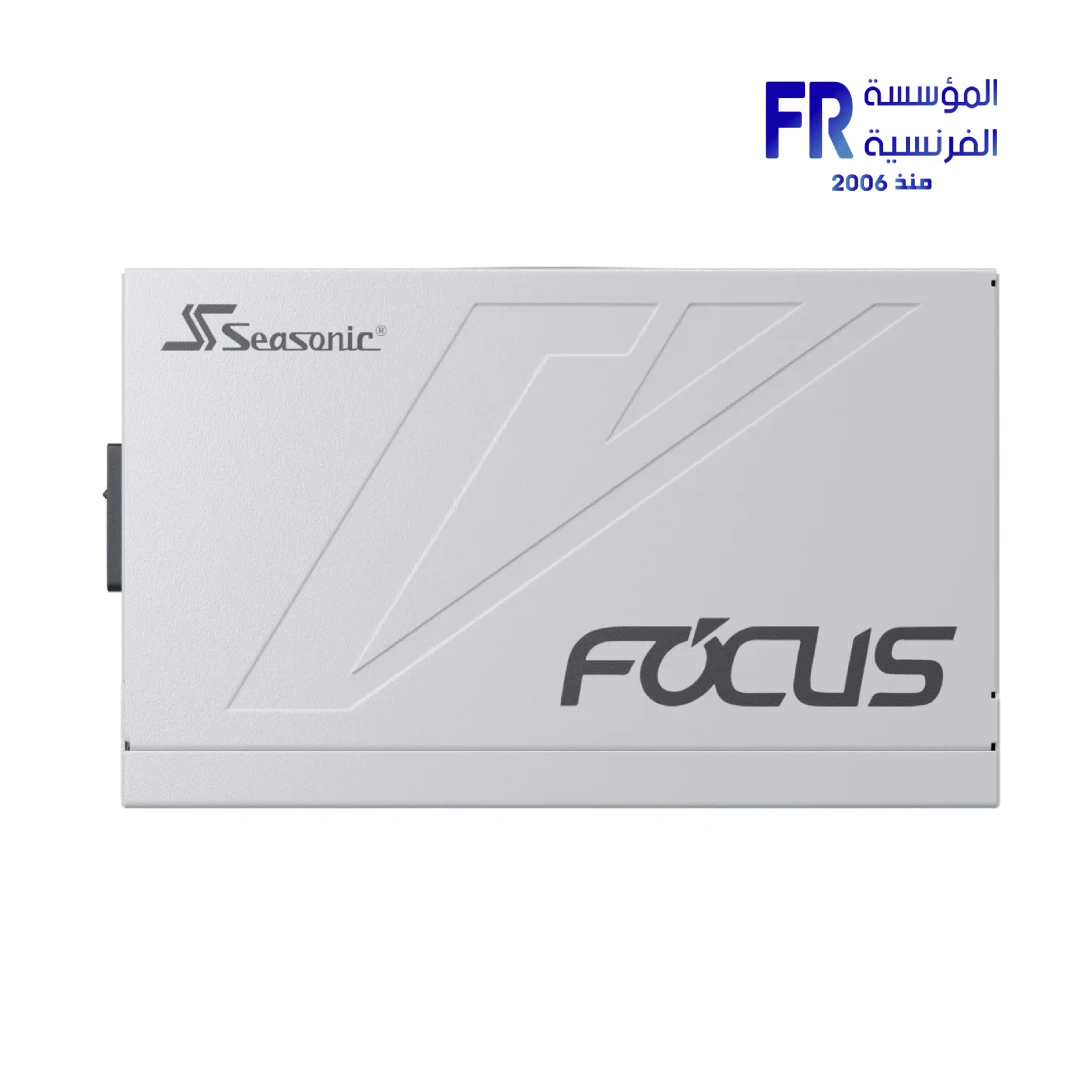

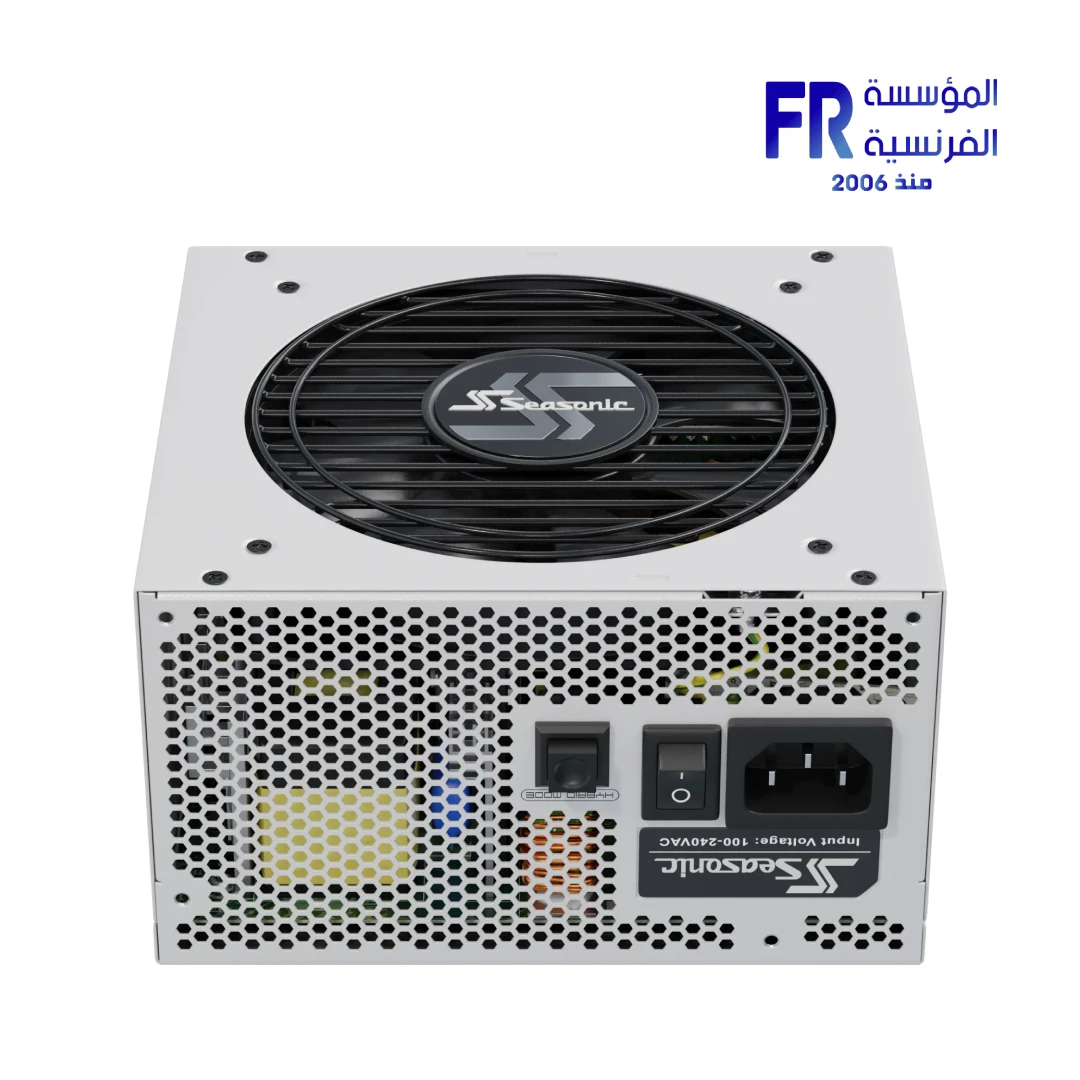

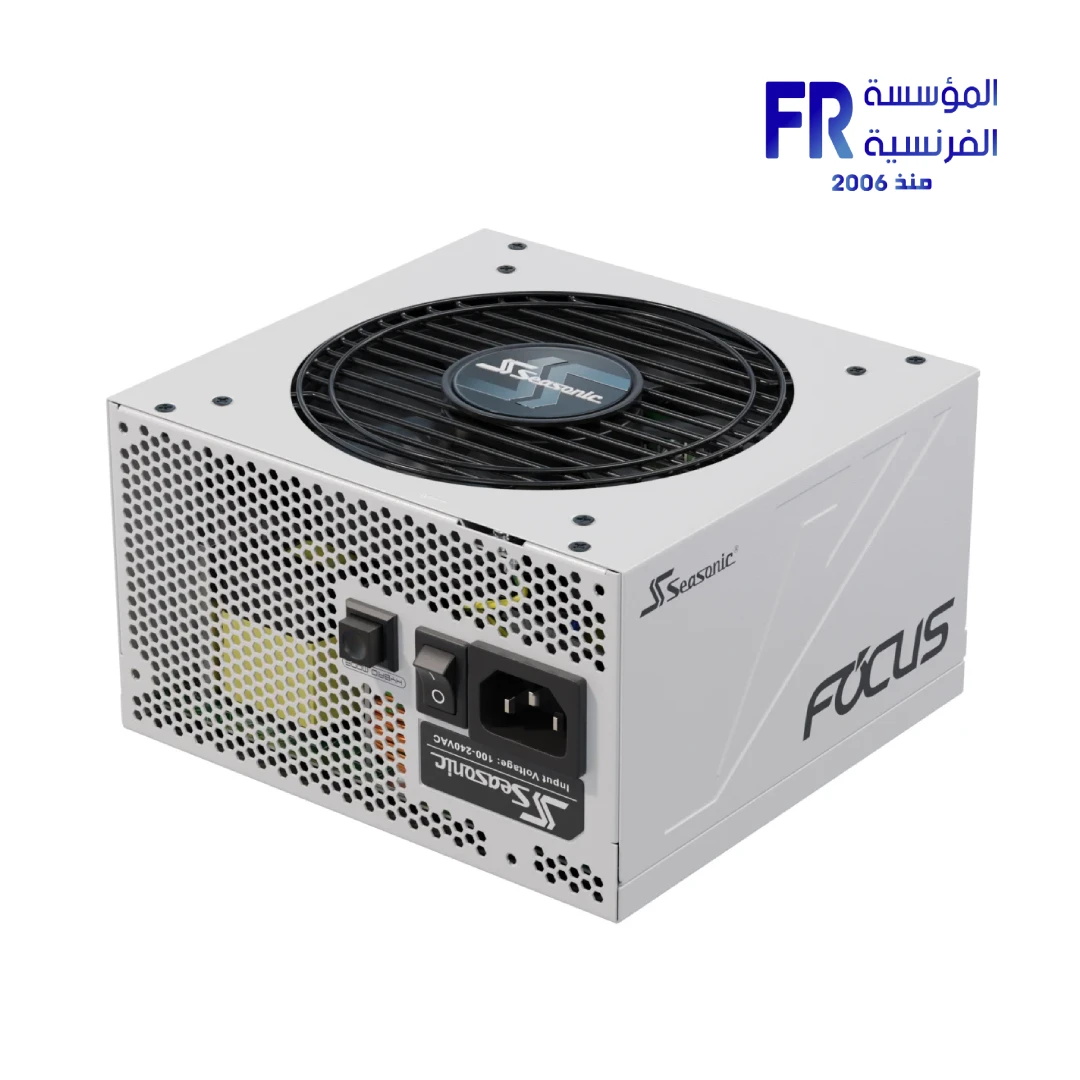

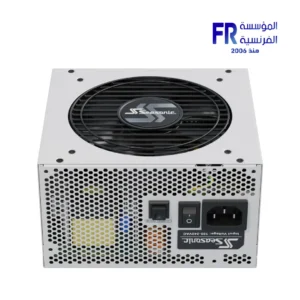

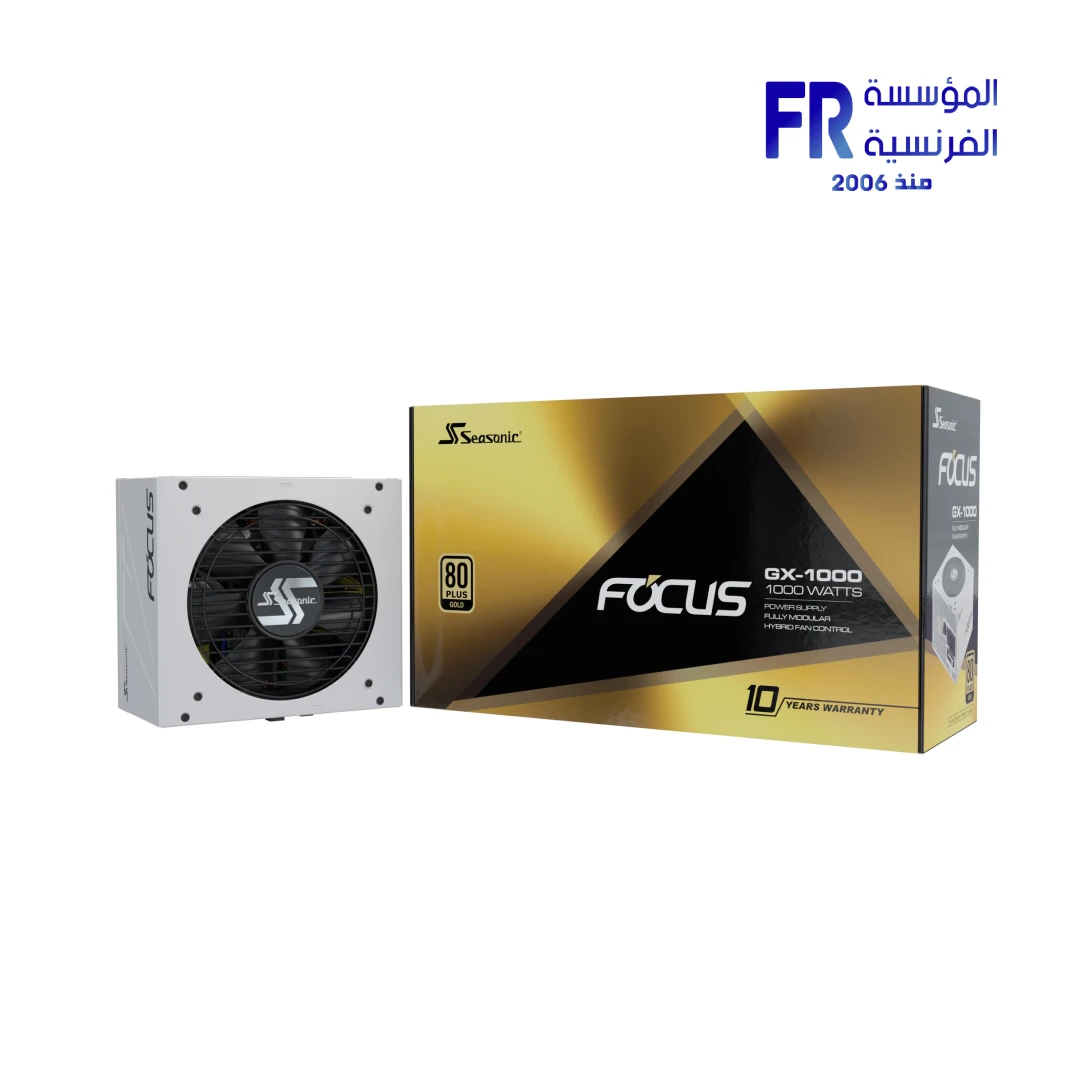

Seasonic Focus GX-1000 ATX 3.1 1000W White Power Supply
The Center of Attention. Legendary Power Reformed.
The newly upgraded Seasonic FOCUS GX series is the successor to the FOCUS PLUS Series, which became an instant top seller in the power supply market.
In alignment with the OneSeasonic Initiative, this powerhouse has been updated with a beautiful white finish on both the housing and modular cables.
Achieving 80 PLUS® Gold certification, it guarantees 90% efficiency at half-system loads, keeping heat production low and power delivery optimal.

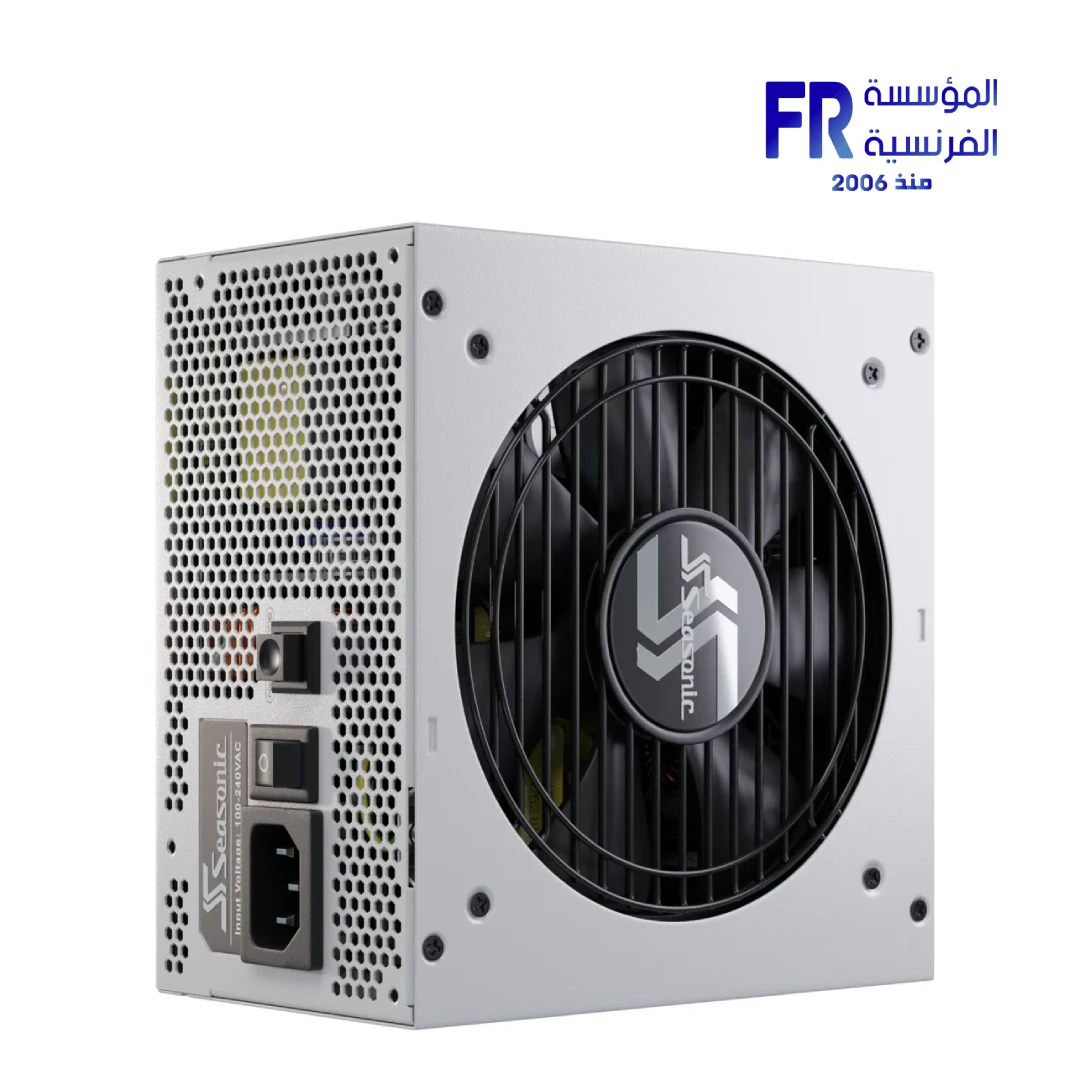

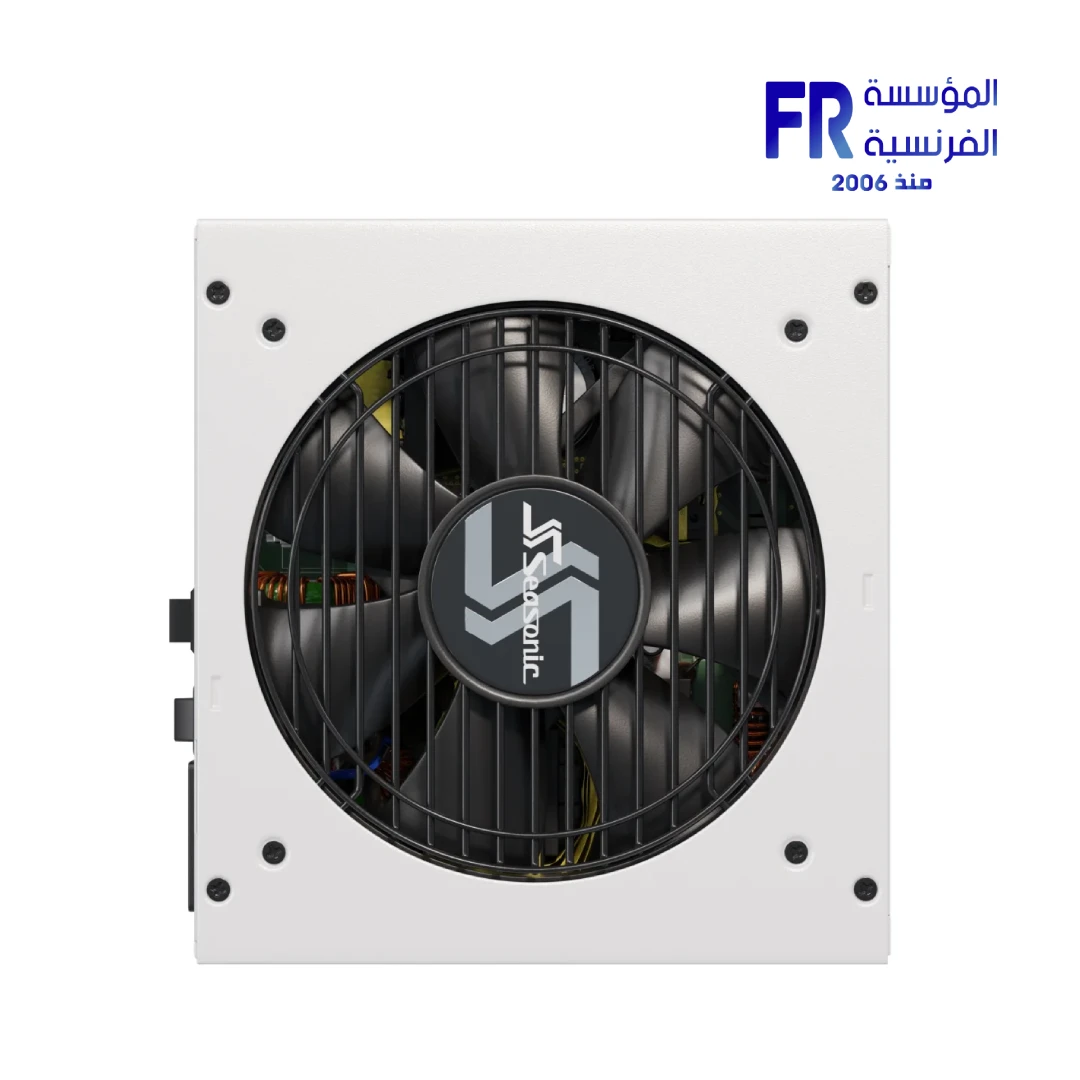

A silent 120 mm Fluid Dynamic Bearing (FDB) fan coordinates with Seasonic’s advanced three-phased Hybrid Silent Fan Control (S3FC).
This patented controller disables fan rotation entirely at up to 30% load, allowing whisper-quiet acoustics during your essential tasks.
💚 Pro Tip: The pure white chassis and matching white modular flat cables are perfect for showcase chassis, keeping internal aesthetics seamlessly integrated without the need for aftermarket extensions.
Technical Specifications
| Model Name | Focus GX-1000 V4 White |
| Part Number / MPN | SRP-FGX102-A5A32SF White |
| SKU / EAN-13 | 882016002878 |
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Dimensions | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Control | S3FC (including Fanless Mode) |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % – 65 % RH |

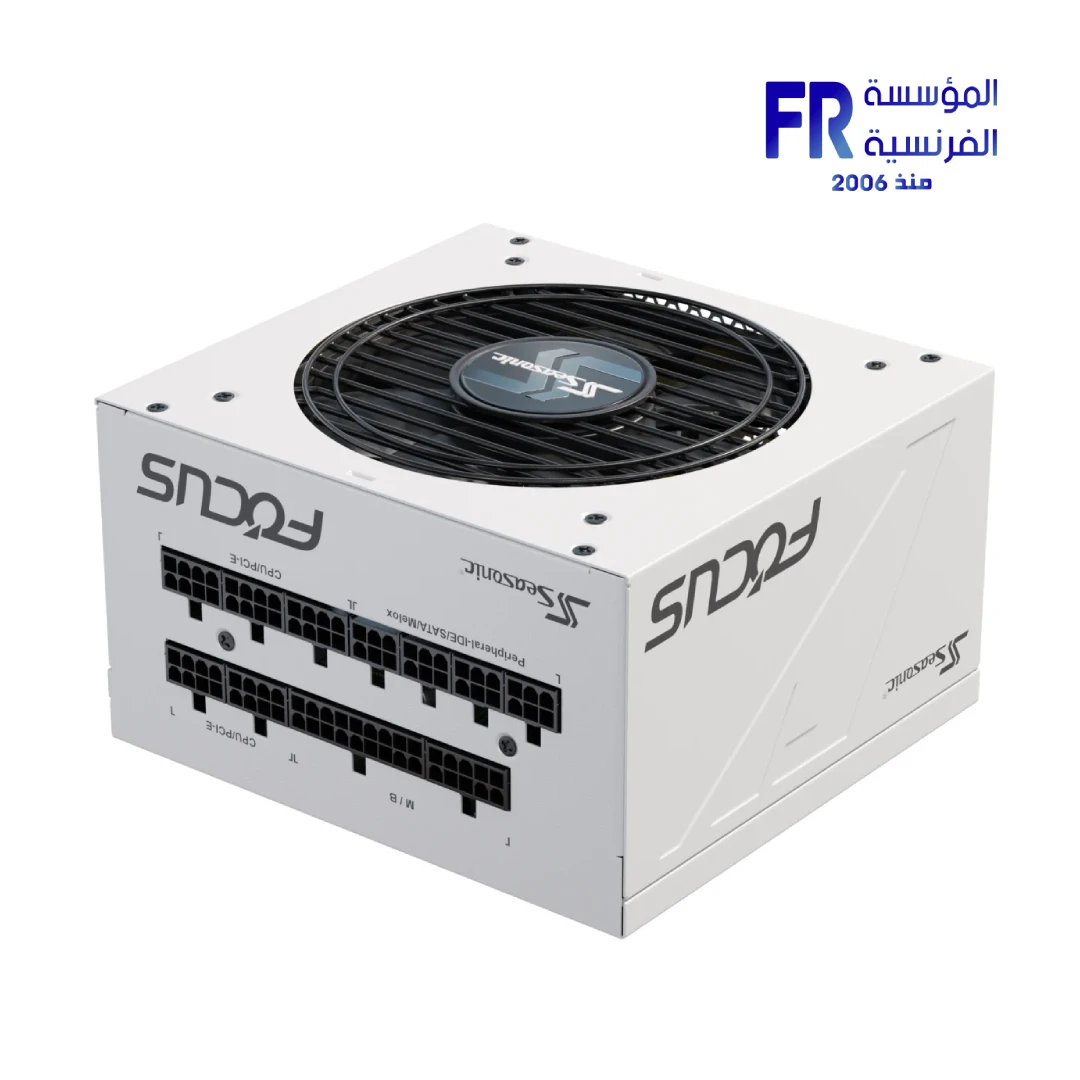

| Modularity | Fully Modular |
| Operating Temperature | 0 – 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 10 Years Local Warranty |
Power Output Details
| AC Input | 100 V – 240 V, 13 – 6.5 A, 50 Hz – 60 Hz | ||||
|---|---|---|---|---|---|
| DC Output Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Current | 25 A | 25 A | 83 A | 0.3 A | 3 A |
| Maximum Power | 125 W (Combined) | 996 W | 3.6 W | 15 W | |
| Total Continuous Power | 1000 W | ||||

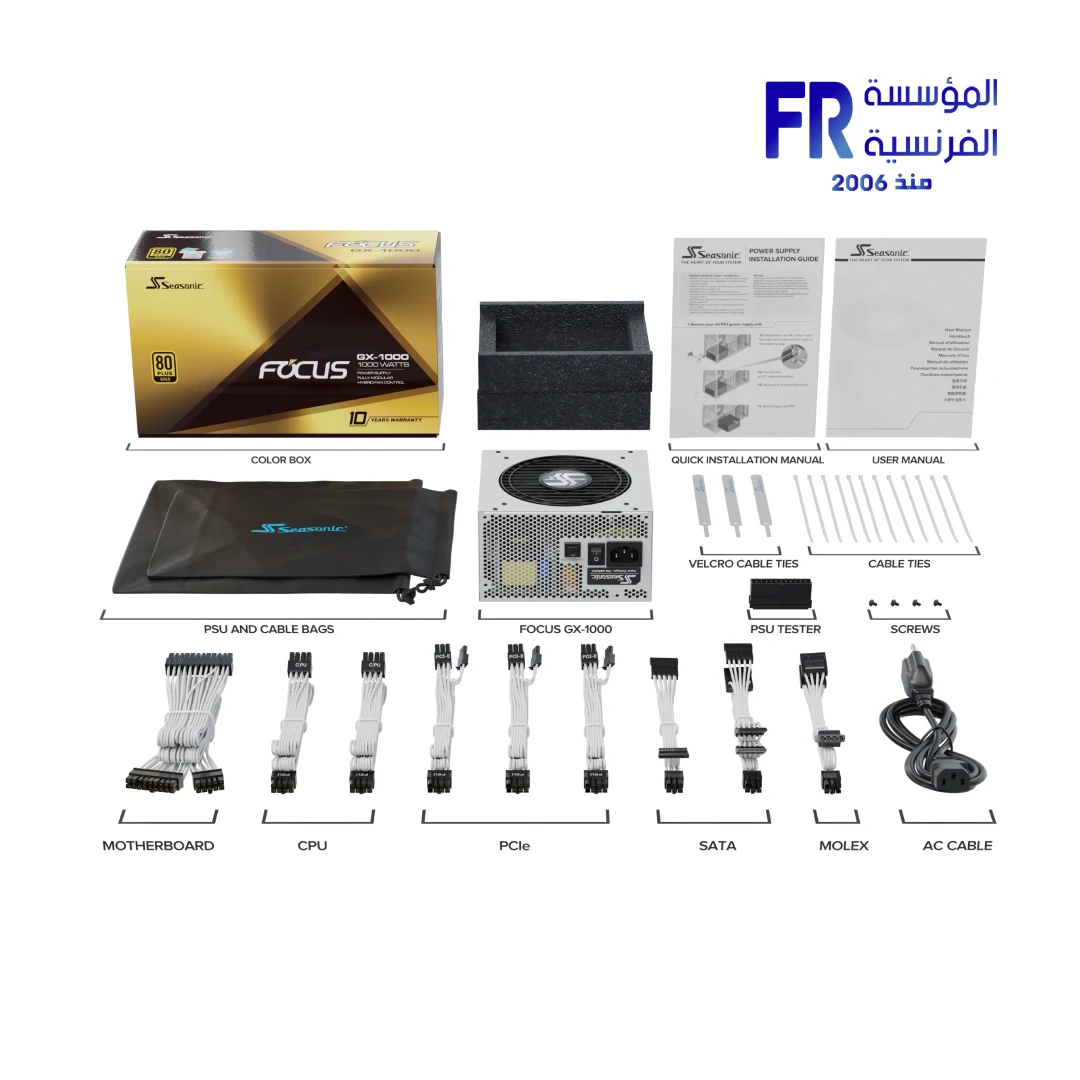

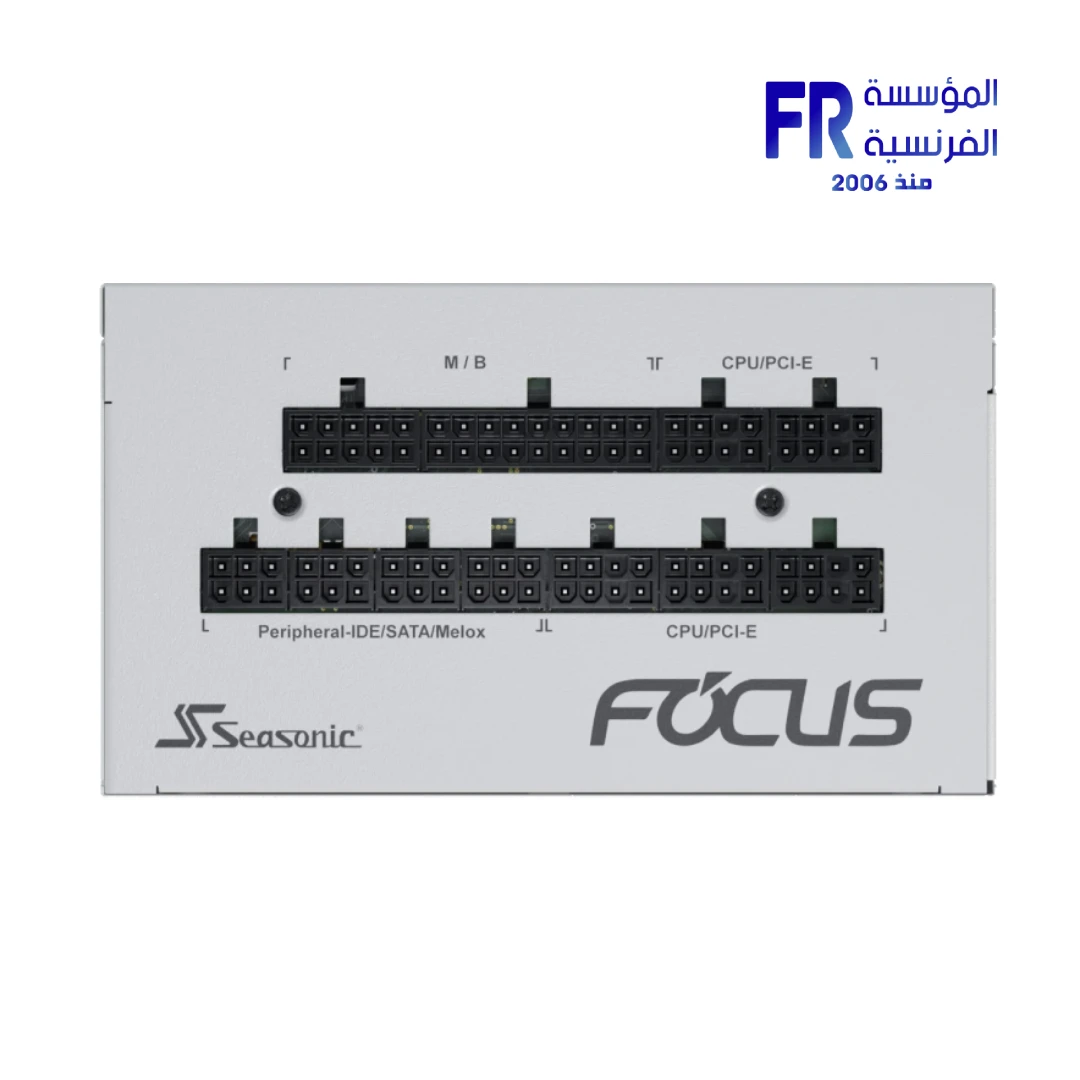

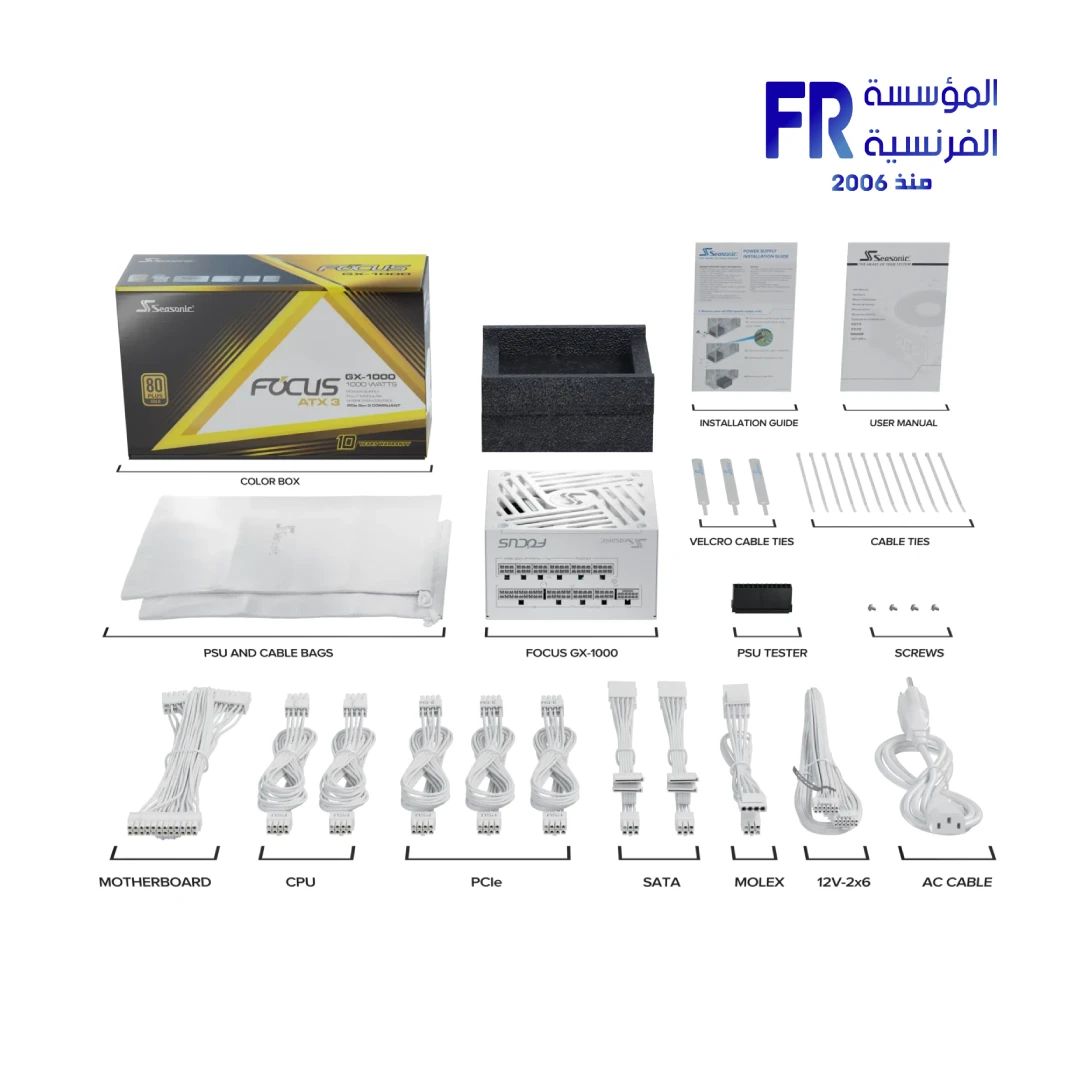

Cable Specifications
| Cable Details | Connectors per Cable | Cables Count | Total Length | Type |
|---|---|---|---|---|
| MB (24/20 pins) | 1 Connector | 1 Cable | 610 mm | Modular |
| CPU (8/4 pins) | 1 Connector | 2 Cables | 650 mm | Modular |
| PCIe (8/6 pins) | 2 Connectors | 3 Cables | 750 mm | Modular |
| SATA | 4 Connectors | 1 Cable | 810 mm | Modular |
| SATA | 4 Connectors | 1 Cable | 860 mm | Modular |
| SATA | 2 Connectors | 1 Cable | 450 mm | Modular |
| Molex | 3 Connectors | 1 Cable | 690 mm | Modular |
| Molex | 2 Connectors | 1 Cable | 470 mm | Modular |
| Molex to SATA 3.3 Adapter | 2 Connectors | 1 Cable | 300 mm | Modular |
Frequently Asked Questions
Q: Does the Seasonic FOCUS GX-1000 White feature modular white cables out of the box?
A: Yes. It comes bundled with a beautiful white flat cable configuration, allowing you to establish a perfectly color-matched setup without the clutter of black connectors.
Q: What is the benefit of the S3FC Hybrid Silent Fan Control?
A: Seasonic’s patented S3FC balances acoustics and thermodynamics across three states: Fanless (active up to roughly 30% system load), Silent, and Cooling modes, minimizing background mechanical noise.
Q: How does the Fluid Dynamic Bearing (FDB) fan benefit system longevity?
A: High-performance FDB fans absorb physical shocks using thin internal dynamic oil layers, which dramatically reduces rotational friction and heat output while extending the fan’s lifespan to 50,000 hours.
