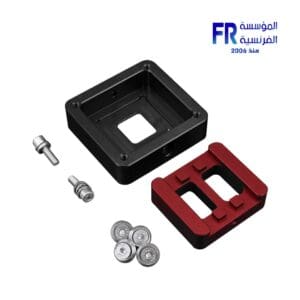

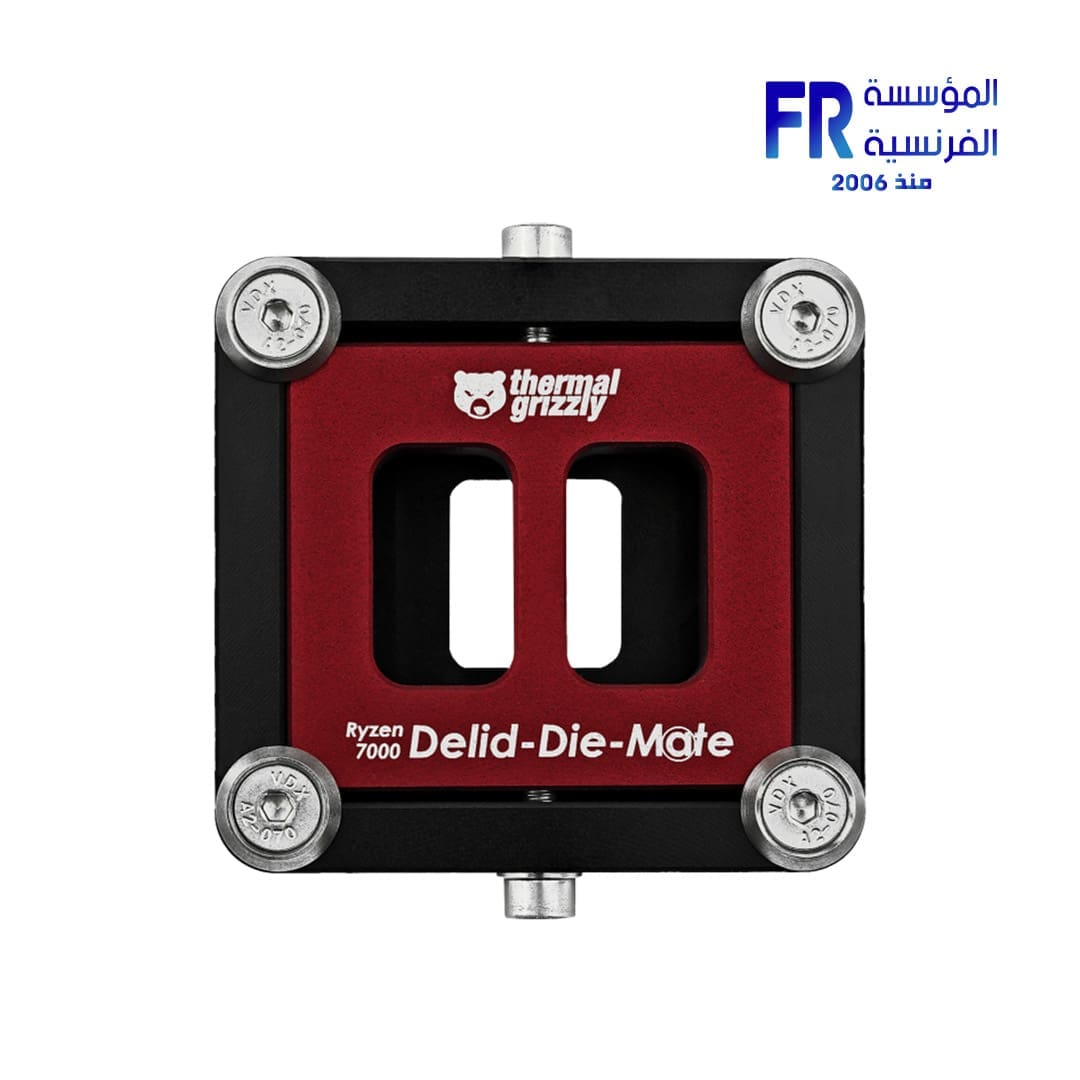

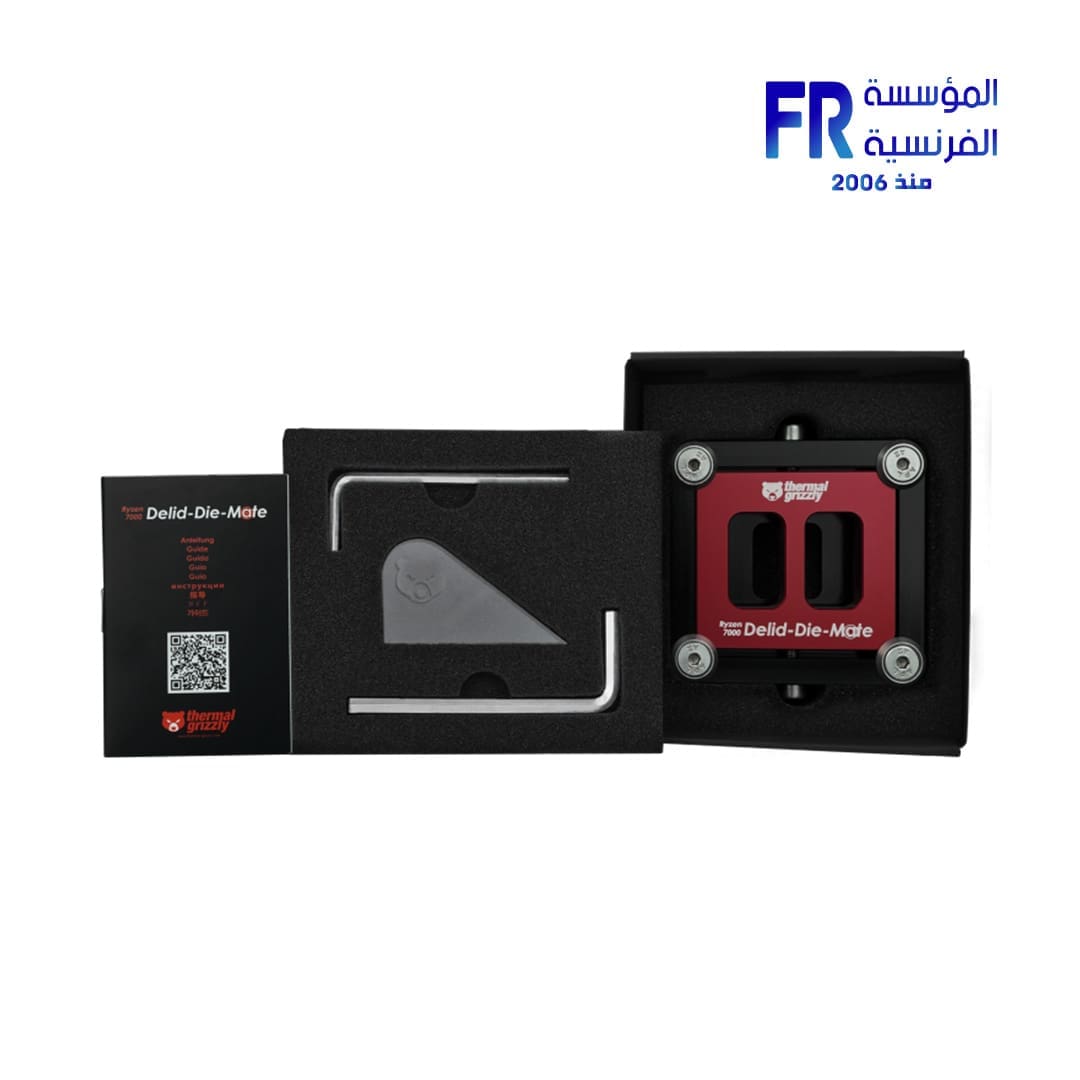

Thermal Grizzly AMD Ryzen 7000 Delid Die Mate

• Color: Black, Red
• Material: Aluminum
• Socket Manufacturer: AMD
• Socket Type: AM5

Overview

The Ryzen 7000 Delid-Die-Mate is a specialized tool designed to safely remove the heatspreader (“delidding”) from AMD Ryzen 7000, Ryzen 8X00G, and Ryzen 9000 processors. By removing the heatspreader, users can implement the Direct Die cooling method , where the CPU cooler is mounted directly onto the processor’s dies (CCDs and I/O die). This eliminates the heatspreader from the thermal path, significantly improving heat transfer and reducing operating temperatures.

Key Features

• Compatibility : Designed for Ryzen 7000/8X00G/9000 CPUs , including X3D variants (as of March 2025).
• Purpose : Facilitates safe removal of the heatspreader for Direct Die cooling setups.
• Material : Constructed from durable aluminum , ensuring stability and precision during delidding.
• Optimized Cooling : Enables up to 10-20°C lower temperatures when paired with high-performance thermal interface materials like liquid metal (e.g., Conductonaut).

المواصفات الفنية

• Processor Compatibility :
  • Ryzen 7000 Series
  • Ryzen 8000G Series APUs
  • Ryzen 9000 Series
  • Ryzen 9000X3D Series
• Functionality : Removes the heatspreader to enable Direct Die cooling, bypassing the stock heatspreader for improved thermal performance.
• Material : Aluminum construction for durability and ease of use.

Why Delidding & Direct Die Cooling?

• Soldered Processors : Unlike older unsoldered CPUs, Ryzen 7000 processors use indium solder between the dies and heatspreader. Replacing this solder is impractical due to the large gap it would create, making delidding for Direct Die cooling the preferred approach.
• Improved Heat Transfer : Direct Die cooling reduces thermal resistance by mounting the CPU cooler directly onto the CCDs and I/O die, bypassing the heatspreader.
• Temperature Reduction : Tests conducted by renowned Tech YouTubers like Roman “der8auer” Hartung and Jason “JayzTwoCents” Langevin have shown temperature reductions of 10-20°C when using liquid metal as TIM.

Challenges with Ryzen 7000 Heatspreaders

• Thicker Heatspreader : The AM5 platform introduced thicker heatspreaders compared to AM4, reducing cooling efficiency.
• Smaller Surface Area : Ryzen 7000 heatspreaders have a surface area of approximately 910 mm² , significantly smaller than AM4’s 1,300 mm² , further impacting thermal performance.

Safety Enhancements

• Direct Die Frame Recommendation : To minimize the risk of damaging the delicate chiplets (CCDs and I/O die) during Direct Die cooling, the Ryzen 7000 Direct Die Frame is recommended. It covers the edges of the PCB, providing additional protection during cooler installation.

Compatibility Note

• Supported Processors :

  • Ryzen 7000 series CPUs

  • Ryzen 8000G series APUs

  • Ryzen 9000 series CPUs (including X3D variants, as of March 2025).

Important Notes

• Delidding Risks : Removing the heatspreader (“delidding”) is performed at your own risk and voids the manufacturer’s warranty . Any damage caused by delidding is not covered by the manufacturer.

• Direct Die Cooling Precautions : Direct Die cooling requires careful handling to avoid damaging the delicate chiplets. Use the Ryzen 7000 Direct Die Frame to reduce risks.

Use Cases

• Enthusiast Builds : Ideal for overclockers and enthusiasts seeking maximum thermal performance through Direct Die cooling.

• Custom Cooling Loops : Perfect for users building custom water-cooling setups with improved heat dissipation.

• High-Performance Workstations : Suitable for professionals running intensive workloads, such as video editing, 3D rendering, and scientific simulations.

Safety and Warranty Disclaimer

• Warning : Installation and use of the Delid-Die-Mate require technical expertise. Mishandling may result in permanent damage to the processor.

• Warranty Void : Delidding and replacing the heatspreader invalidates the manufacturer’s warranty. Proceed at your own risk.

• Disclaimer : Always follow the provided instructions carefully and ensure proper safety precautions are taken.
