Thermal Grizzly Intel 13th 14th Generation Cpu Contact Frame SPECIFICATIONS:

---

• Color: Black
• Material: Aluminum
• Socket Manufacturer: Intel
• Socket Type: LGA 1700

---

Overview

The Intel 13th/14th Gen CPU Contact Frame by der8auer is a premium mounting aid designed for Intel processors in the 12th, 13th, and 14th generations (LGA1700 socket). This updated version simplifies assembly with its revised inner contour, eliminating the need for specific torque during installation. Manufactured in Berlin, Germany, this frame ensures even pressure distribution across the Integrated Heat Spreader (IHS), reducing concave bending and improving thermal contact with the CPU cooler.

---

Key Features

• Compatibility : Designed for Intel 12th, 13th, and 14th Gen CPUs (LGA1700 socket).
• Purpose : Shifts contact pressure from the center to the edges of the CPU, avoiding concave curvature of the IHS and improving cooling efficiency.
• Material : Constructed from anodized aluminum , ensuring durability, corrosion resistance, and a sleek aesthetic.
• Ease of Installation : Simplified assembly process with no need for specific torque, making it user-friendly for enthusiasts and professionals alike.

---

المواصفات الفنية

• Processor Compatibility :
  • Intel 12th Gen CPUs
  • Intel 13th Gen CPUs
  • Intel 14th Gen CPUs (LGA1700 socket).
  • Compatible with CPUs whose IHS has been sanded down by no more than 0.2 millimeters .
• Functionality : Replaces the motherboard’s Integrated Loading Mechanism (ILM) to ensure uniform pressure distribution on the CPU.
• Material : Anodized aluminum for enhanced durability and aesthetics.

---

Scope of Delivery

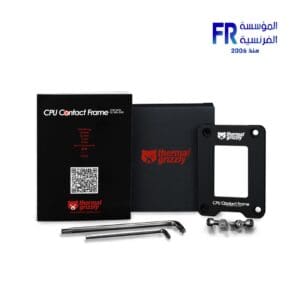

• 1x 13th/14th Gen CPU Contact Frame by der8auer
• 4x Pan-head screws (UNC thread 3/8″)
• 1x Hexagon socket wrench (5/64″)
• 1x Angle wrench (Torx T20)

---

Benefits

• Improved Cooling Performance : By eliminating concave bending of the IHS, the frame ensures better contact between the CPU cooler and the processor, enhancing heat dissipation.

• Temperature Reduction : Provides a larger contact surface for dissipating waste heat, leading to noticeable reductions in CPU temperatures.

• Simplified Assembly : The revised design eliminates the need for specific torque during installation, making it easier and faster to set up.

• Durability : High-quality anodized aluminum construction ensures long-lasting performance and resistance to wear.

---

Why Use the CPU Contact Frame?

• Standard ILM Limitations : The stock Integrated Loading Mechanism (ILM) applies uneven pressure to the CPU, causing the IHS to curve concavely. This results in suboptimal thermal contact, as the CPU cooler primarily rests on the edges of the IHS.

• Optimized Pressure Distribution : The CPU Contact Frame shifts pressure from the center to the edges, preventing concave bending and ensuring uniform contact across the IHS.

• Enhanced Thermal Efficiency : Better contact between the CPU cooler and the IHS improves heat transfer, reducing operating temperatures and enabling higher sustained performance.

---

Installation Process

1. Remove the Integrated Loading Mechanism (ILM) : Carefully detach the motherboard’s ILM.

2. Mount the Contact Frame : Secure the CPU Contact Frame using the included pan-head screws and tools. No specific torque is required.

3. Verify Compatibility : Ensure no electronic components are located under the frame, especially on Mini-ITX motherboards.

---

Important Notes

• Warranty Risk : Removing the motherboard’s Integrated Loading Mechanism (ILM) may void the manufacturer’s warranty for the motherboard. Proceed with caution.

• Compatibility Check : Ensure the CPU and cooler are compatible with the contact frame before installation.

• IHS Sanding Limitation : The frame is only compatible with CPUs whose IHS has been sanded down by no more than 0.2 millimeters .

---

Use Cases

• Enthusiast Builds : Ideal for overclockers and enthusiasts seeking to maximize cooling performance and achieve lower CPU temperatures.

• High-Performance Workstations : Suitable for professionals running intensive workloads, such as video editing, 3D rendering, and scientific simulations.

• Silent PCs : Enables quieter operation by reducing CPU temperatures and minimizing fan noise.

---

Safety and Warranty Disclaimer

• Warning : Installation of the CPU Contact Frame requires technical expertise. Mishandling may result in permanent damage to the motherboard or CPU.

• Warranty Void : Removing the Integrated Loading Mechanism (ILM) invalidates the motherboard manufacturer’s warranty. Proceed at your own risk.

• Disclaimer : Always follow the provided instructions carefully and ensure proper safety precautions are taken.
