Thermal Grizzly Intel Lga1700 Cpu LT Contact Frame SPECIFICATIONS:

---

• اللون: Black
• Material: ABS
• Socket Manufacturer: Intel
• Socket Type: LGA 1700

---

Overview

The Thermal Grizzly CPU Contact Frame Intel 1700 LT is a lightweight, cost-effective mounting solution designed to improve cooling performance for Intel processors in the 12th, 13th, and 14th generations (LGA1700 socket). Manufactured using glass fiber-reinforced ABS plastic , this “Lite” version of the CPU Contact Frame ensures even pressure distribution across the Integrated Heat Spreader (IHS), reducing concave bending and improving thermal contact with the CPU cooler.

---

Key Features

• Compatibility : Designed for Intel 12th, 13th, and 14th Gen CPUs (LGA1700 socket).
• Purpose : Shifts contact pressure from the center to the edges of the CPU, avoiding concave curvature of the IHS and improving cooling efficiency.
• Material : Made from glass fiber-reinforced ABS plastic (15% glass fiber content) for enhanced durability and stability.
• Ease of Installation : Simple mounting process with included tools, ensuring quick and hassle-free setup.

---

Technical Specifications

• Processor Compatibility :
  • Intel 12th Gen CPUs
  • Intel 13th Gen CPUs
  • Intel 14th Gen CPUs (LGA1700 socket).
  • Compatible with CPUs whose IHS has been sanded down by no more than 0.2 millimeters .
• Functionality : Replaces the motherboard’s Integrated Loading Mechanism (ILM) to ensure uniform pressure distribution on the CPU.
• Material : Glass fiber-reinforced ABS plastic for enhanced strength and durability.

---

Scope of Delivery

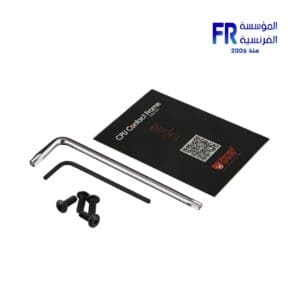

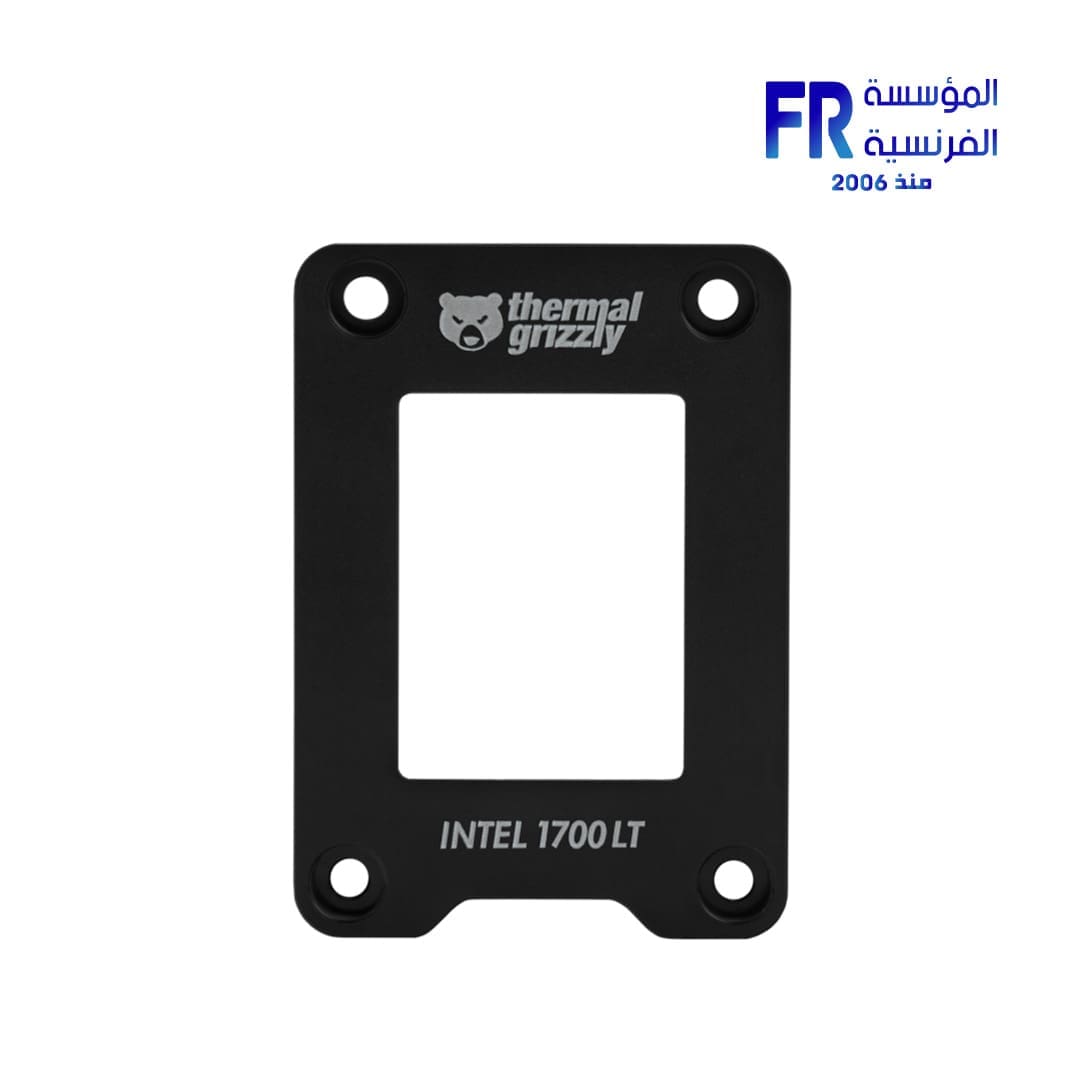

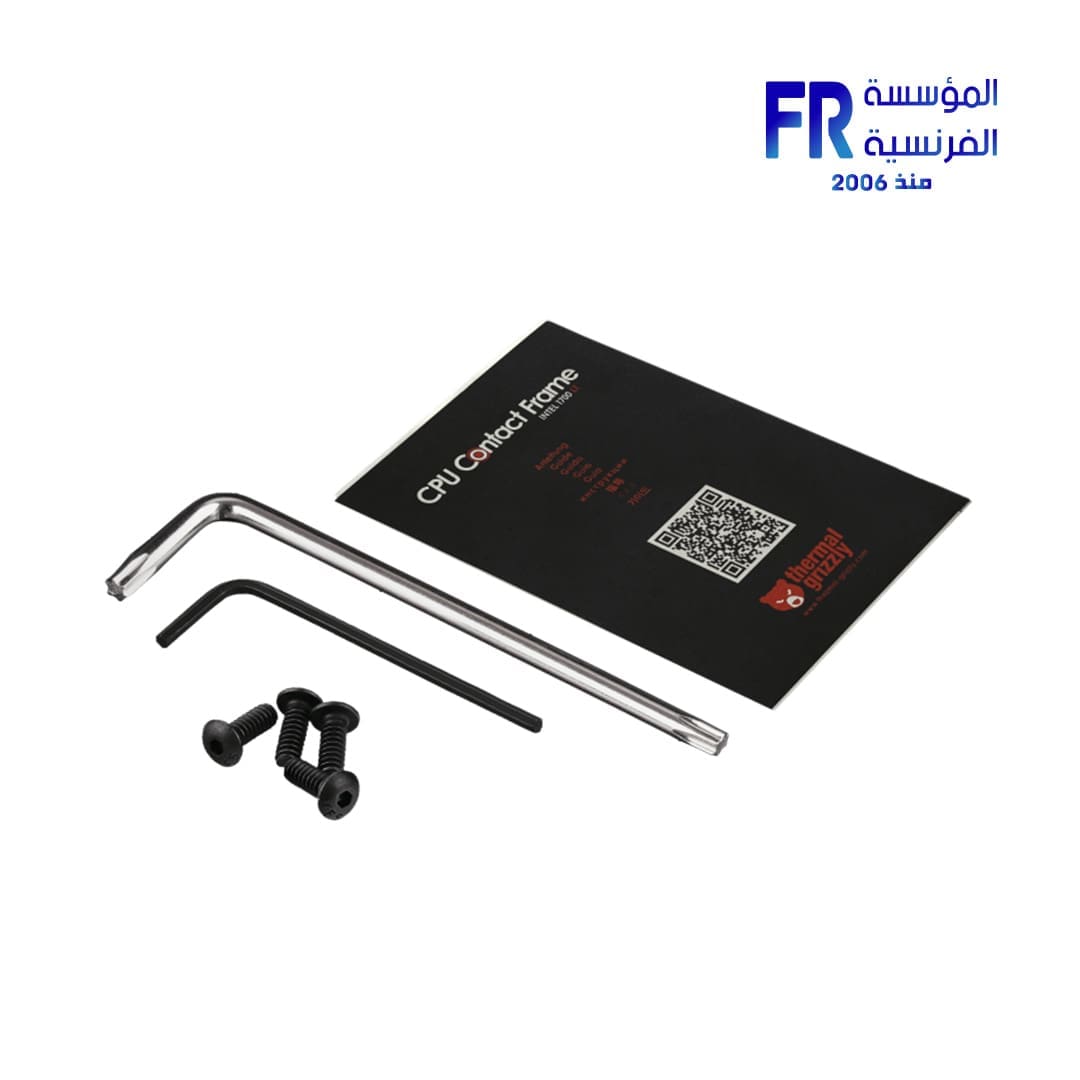

• 1x CPU Contact Frame Intel 1700 LT
• 4x Pan-head screws (UNC thread 3/8″)
• 1x Hexagon socket wrench (5/64″)
• 1x Angle wrench (Torx T20)

---

Benefits

• Improved Cooling Performance : By eliminating concave bending of the IHS, the frame ensures better contact between the CPU cooler and the processor, enhancing heat dissipation.

• Temperature Reduction : Provides a larger contact surface for dissipating waste heat, leading to noticeable reductions in CPU temperatures.

• Lightweight Design : The “Lite” version offers a cost-effective and easy-to-install solution without compromising performance.

• Durability : Glass fiber-reinforced ABS plastic ensures long-lasting stability and resistance to wear.

---

Why Use the CPU Contact Frame Intel 1700 LT?

• Standard ILM Limitations : The stock Integrated Loading Mechanism (ILM) applies uneven pressure to the CPU, causing the IHS to curve concavely. This results in suboptimal thermal contact, as the CPU cooler primarily rests on the edges of the IHS.

• Optimized Pressure Distribution : The CPU Contact Frame shifts pressure from the center to the edges, preventing concave bending and ensuring uniform contact across the IHS.

• Enhanced Thermal Efficiency : Better contact between the CPU cooler and the IHS improves heat transfer, reducing operating temperatures and enabling higher sustained performance.

---

Installation Process

1. Remove the Integrated Loading Mechanism (ILM) : Carefully detach the motherboard’s ILM.

2. Mount the Contact Frame : Secure the CPU Contact Frame using the included pan-head screws and tools.

3. Verify Compatibility : Ensure no electronic components are located under the frame, especially on Mini-ITX motherboards.

---

Important Notes

• Warranty Risk : Removing the motherboard’s Integrated Loading Mechanism (ILM) may void the manufacturer’s warranty for the motherboard. Proceed with caution.

• Compatibility Check : Ensure the CPU and cooler are compatible with the contact frame before installation.

• IHS Sanding Limitation : The frame is only compatible with CPUs whose IHS has been sanded down by no more than 0.2 millimeters .

---

Use Cases

• Enthusiast Builds : Ideal for overclockers and enthusiasts seeking to maximize cooling performance and achieve lower CPU temperatures.

• High-Performance Workstations : Suitable for professionals running intensive workloads, such as video editing, 3D rendering, and scientific simulations.

• Silent PCs : Enables quieter operation by reducing CPU temperatures and minimizing fan noise.

---

Safety and Warranty Disclaimer

• Warning : Installation of the CPU Contact Frame requires technical expertise. Mishandling may result in permanent damage to the motherboard or CPU.

• Warranty Void : Removing the Integrated Loading Mechanism (ILM) invalidates the motherboard manufacturer’s warranty. Proceed at your own risk.

• Disclaimer : Always follow the provided instructions carefully and ensure proper safety precautions are taken.
