What is the maximum graphics card length supported by the Xigmatek Aqua Compact case?

The Xigmatek Aqua Compact case supports graphics cards up to 320mm in length, accommodating a wide range of modern GPUs.

What CPU cooler height does the Aqua Compact case allow?

This case allows for CPU air coolers with a maximum height of 158mm, providing compatibility with many popular aftermarket cooling solutions.

What radiator sizes can be installed in the Xigmatek Aqua Compact?

The Aqua Compact supports a 240mm radiator (max thickness 28mm) mounted adjacent to the motherboard and a 120mm radiator at the rear panel.

تصفية

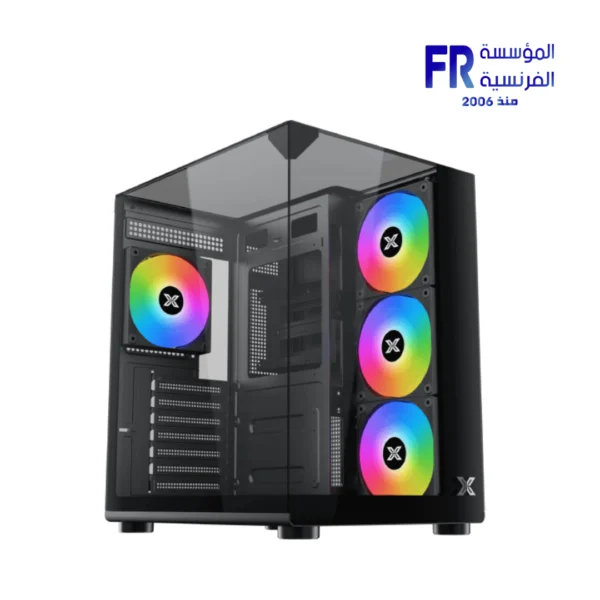

Xigmatek Aqua Compact 4 Fan ARGB PWM Mid Tower Case

Xigmatek Aqua Compact 4 Fan ARGB PWM Mid Tower Case

2799 EGP

Model Name: Aqua Compact 4 Fan ARGB PWM Mid Tower Case
Part Number: EN48241
Form Factor/MB: Mid Tower / Supports ATX, Micro ATX, Mini ITX
Cooling: Up to 6x 120mm Fans Supported / 240mm Radiator Support (MB Panel)
Clearance: 320mm Max GPU Length / 158mm Max CPU Cooler Height
Warranty: 1 Year

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 883371028244 التصنيف: CASES الوسوم: tempered glass, mini-ITX, Aqua, ARGB, DESKTOP, Gaming PC, EN48241, computer case, MID, 4, gaming case, Pwm, Liquid Cooling Support, FAN, ATX, ARGB Fans, XIGMATEK, Compact, Compact Case, case, MID TOWER, High Airflow, pc case, TOWER, micro-ATX, PWM Fan Control العلامة التجارية: XIGMATEK

Xigmatek Aqua Compact 4 Fan ARGB PWM Mid Tower Case

Build your next system in the stylish and versatile Xigmatek Aqua Compact Case. This mid-tower chassis supports ATX motherboards while maintaining a compact footprint. Furthermore, it offers ample cooling options and component clearance for a capable build.

ATX Support

Motherboard

320mm

Max GPU Length

158mm

CPU Cooler Height

240mm Radiator

MB Mount Support

Compact Design, Broad Compatibility in the Xigmatek Aqua Compact Case

Space-Efficient ATX Support

Despite its compact dimensions (340x275x406mm), the Aqua Compact surprisingly accommodates standard ATX motherboards, alongside Micro ATX and Mini ITX. Consequently, this offers builders flexibility without demanding excessive desk space. Moreover, it provides ample clearance for GPUs up to 320mm and CPU coolers up to 158mm.

Optimized Cooling Potential

Keep your components cool with versatile fan and radiator options. The case supports up to six 120mm fans in total: three adjacent to the motherboard, two at the bottom, and one at the rear. In addition, for liquid cooling, you can mount a 240mm radiator beside the motherboard and a 120mm radiator at the rear.

Technical Specifications

Specification	Detail
Product Name	Aqua Compact
Model No.	EN48241
Dimensions (LxWxH)	340 x 275 x 406 mm
Motherboard Support	ATX, Micro ATX, Mini ITX
Expansion Slots	7 Standard Slots
Drive Bays	1x 3.5″ & 1x 2.5″ (HDD Bracket), 1x 2.5″ (Bottom Panel)
Max GPU Length	320mm
Max CPU Cooler Height	158mm
Max PSU Length	160mm (Standard PS2 ATX)
Fan Support	MB: 3x 120mm, Bottom: 2x 120mm, Rear: 1x 120mm
Radiator Support	MB: 240mm (≤ 28mm thick), Rear: 120mm
I/O Panel	1x USB 3.0, 1x USB 2.0, HD Audio

💡 Pro Tip:

Maximize airflow in the compact Aqua case by installing intake fans at the bottom (2x 120mm) and exhaust fans at the rear (1x 120mm). Furthermore, if using a 240mm AIO beside the motherboard, configure its fans as intake to provide fresh air directly to your CPU cooler.
