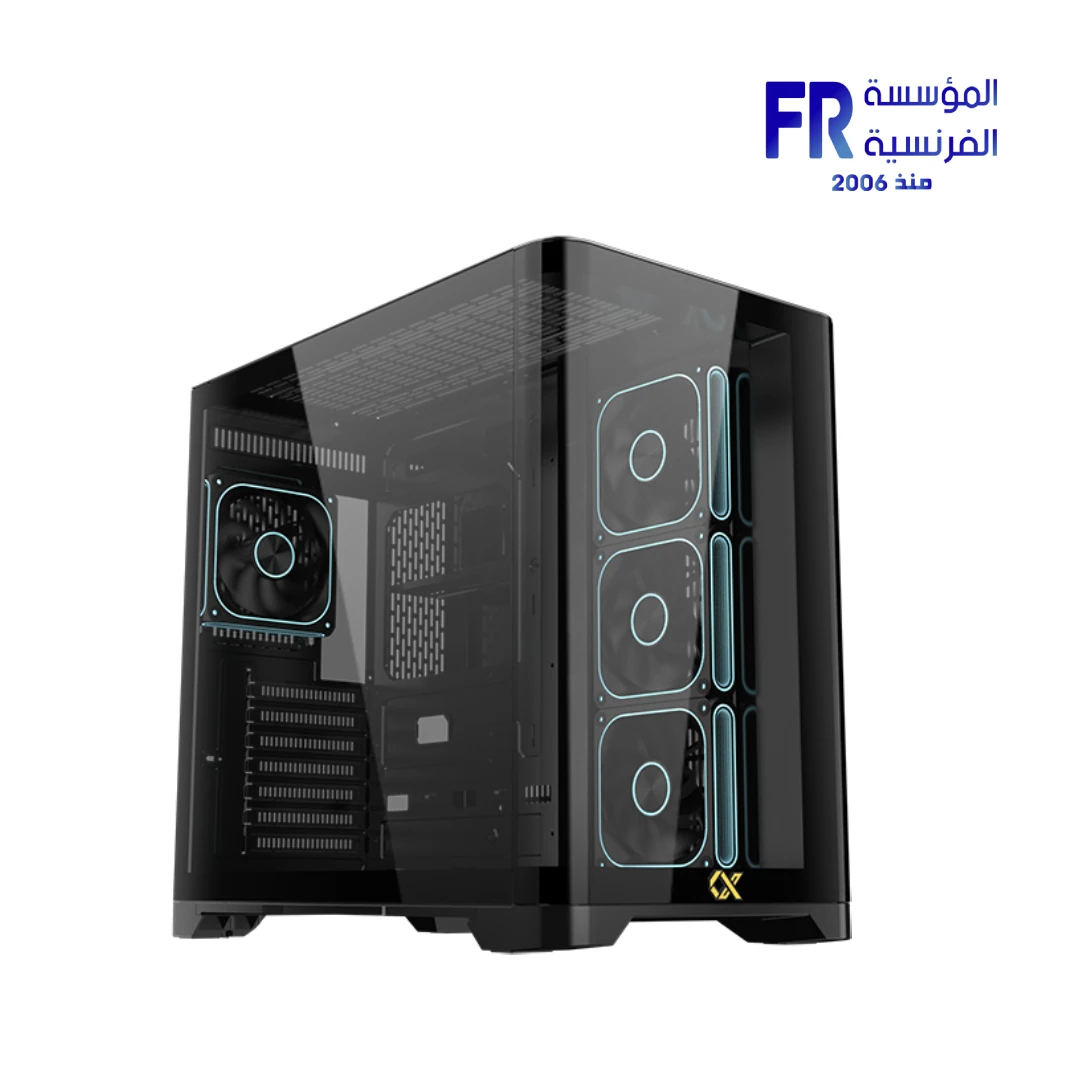

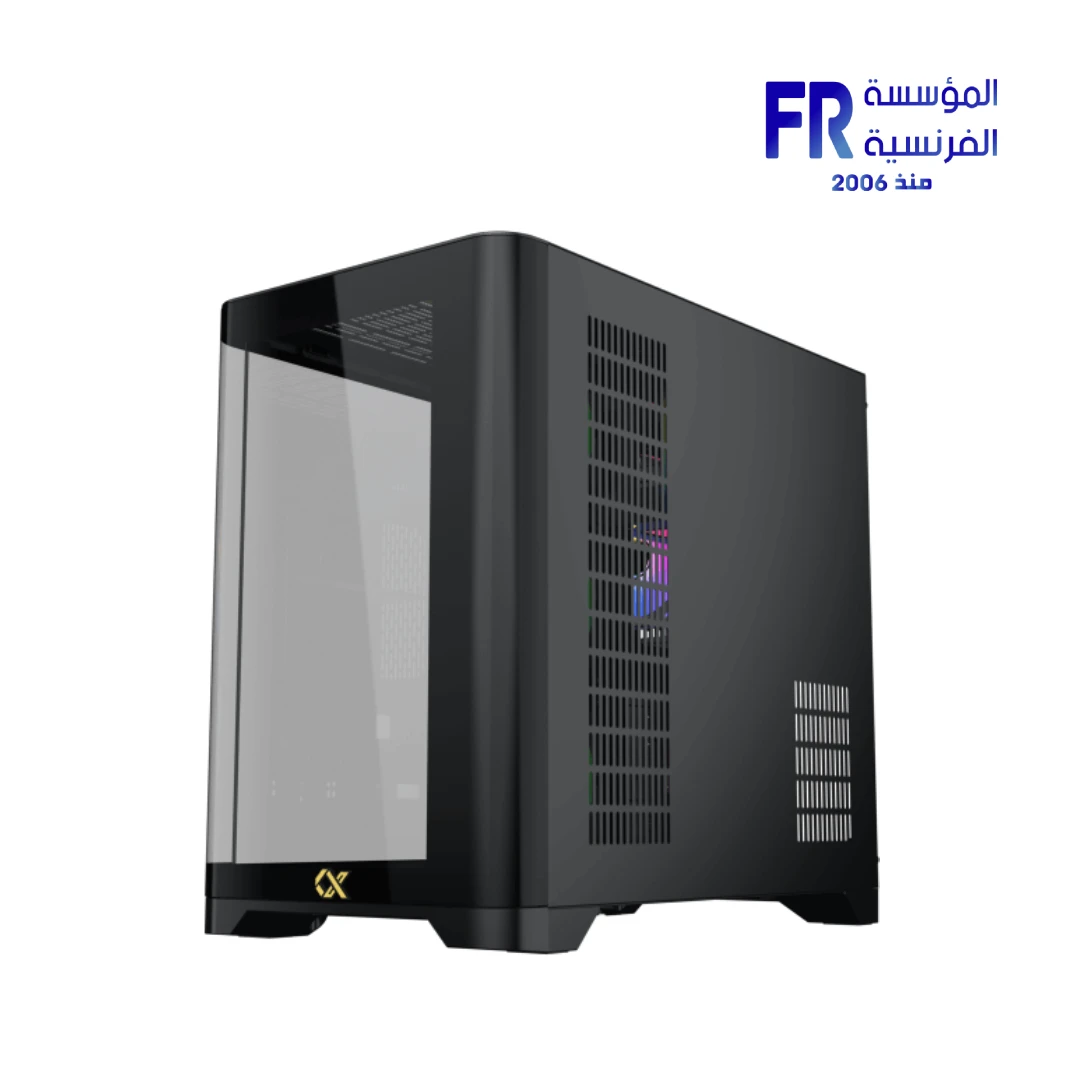

Xigmatek Crystal Storm V2 4 fan PWM Argb Curved TG Mid Tower Case
0 EGP
- Model Name: Xigmatek Crystal Storm V2
- Part Number: EN49392
- Form Factor: Mid Tower (E-ATX/ATX/mATX/ITX), Curved Tempered Glass
- Clearance: GPU 420mm, CPU Cooler 160mm, PSU 220mm
- Cooling & I/O: 4x PWM ARGB Fans Included, Top/Side 360mm Radiator Support, USB 3.0
- Warranty: 1 Year
Xigmatek Crystal Storm V2 4 Fan ARGB Curved TG Mid Tower Case
Curved Glass Elegance. Massive Cooling Potential. Flagship Ready.

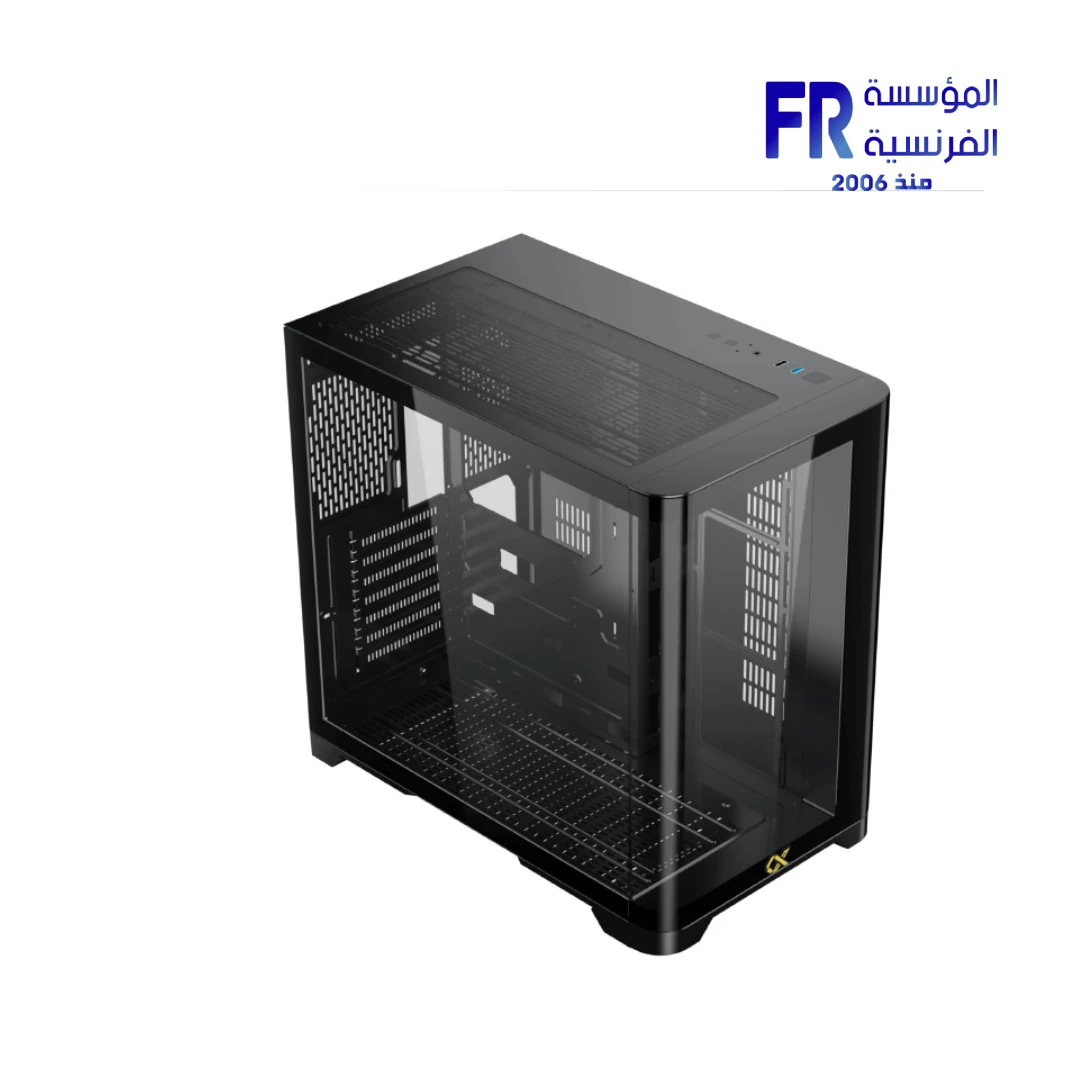

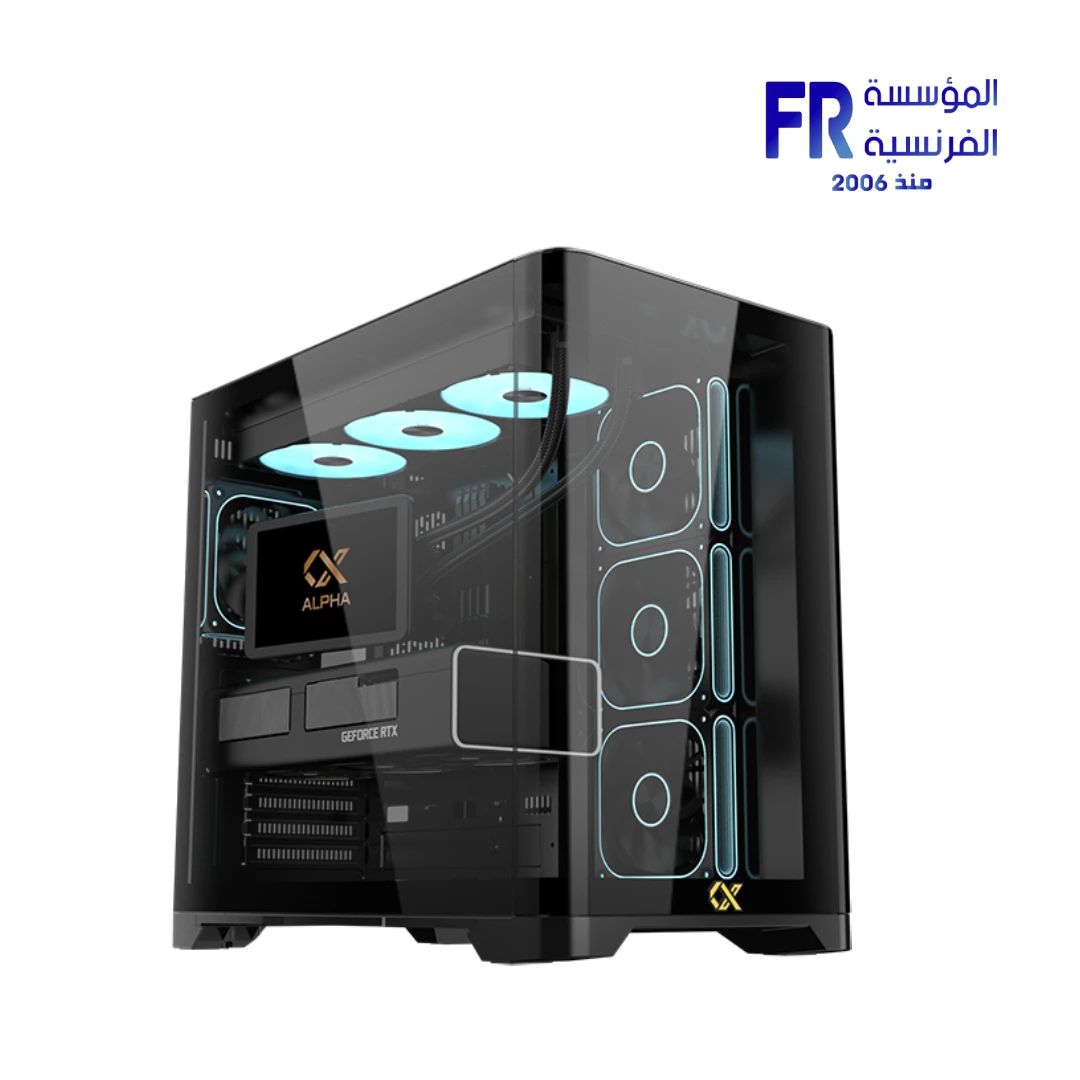

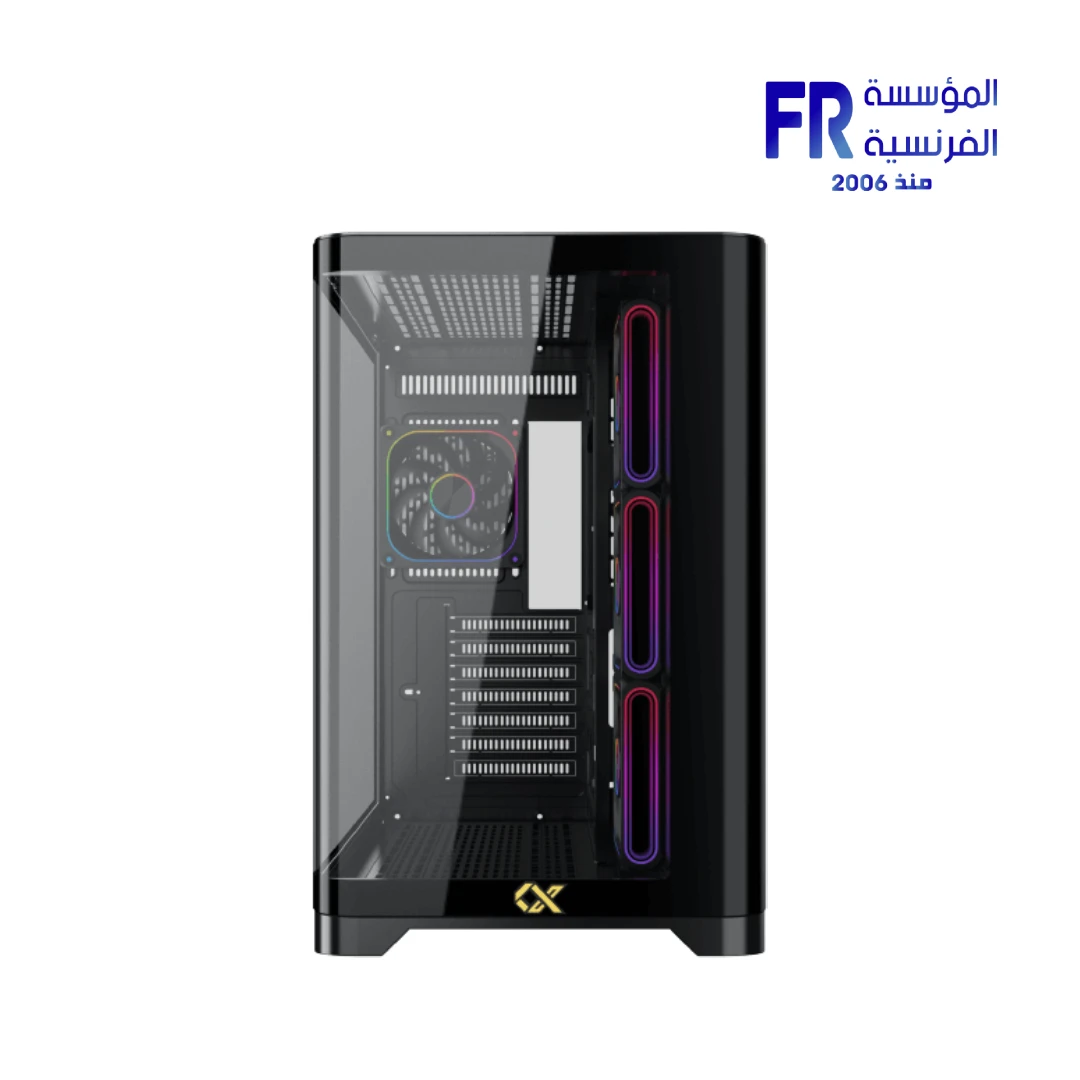

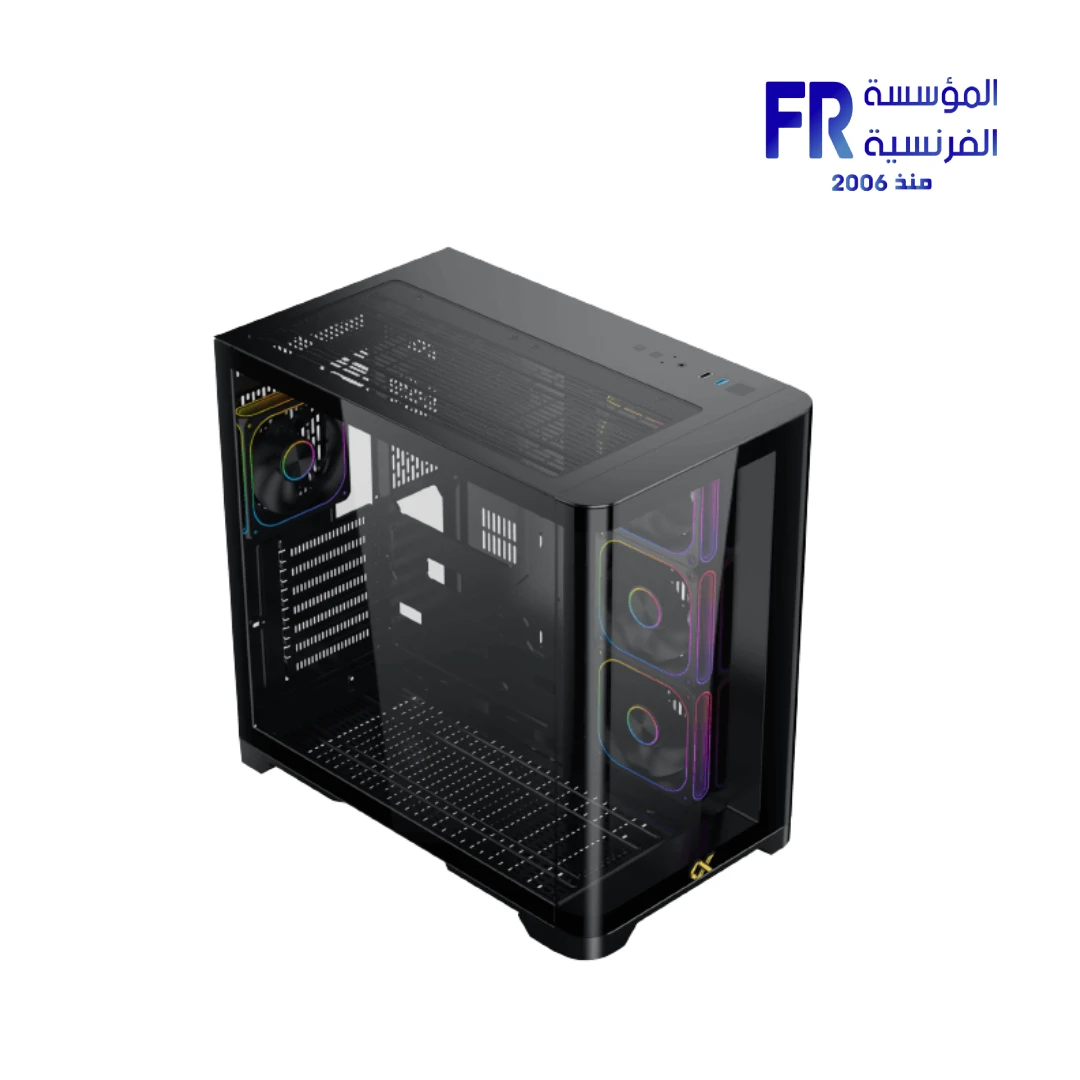

The Xigmatek Crystal Storm V2 is a premium mid-tower case featuring a stunning curved tempered glass panel and four pre-installed ARGB PWM fans. Supporting up to E-ATX motherboards, massive 420mm GPUs, and dual 360mm radiators, it offers immense cooling potential and flagship component compatibility for high-end showcase builds.

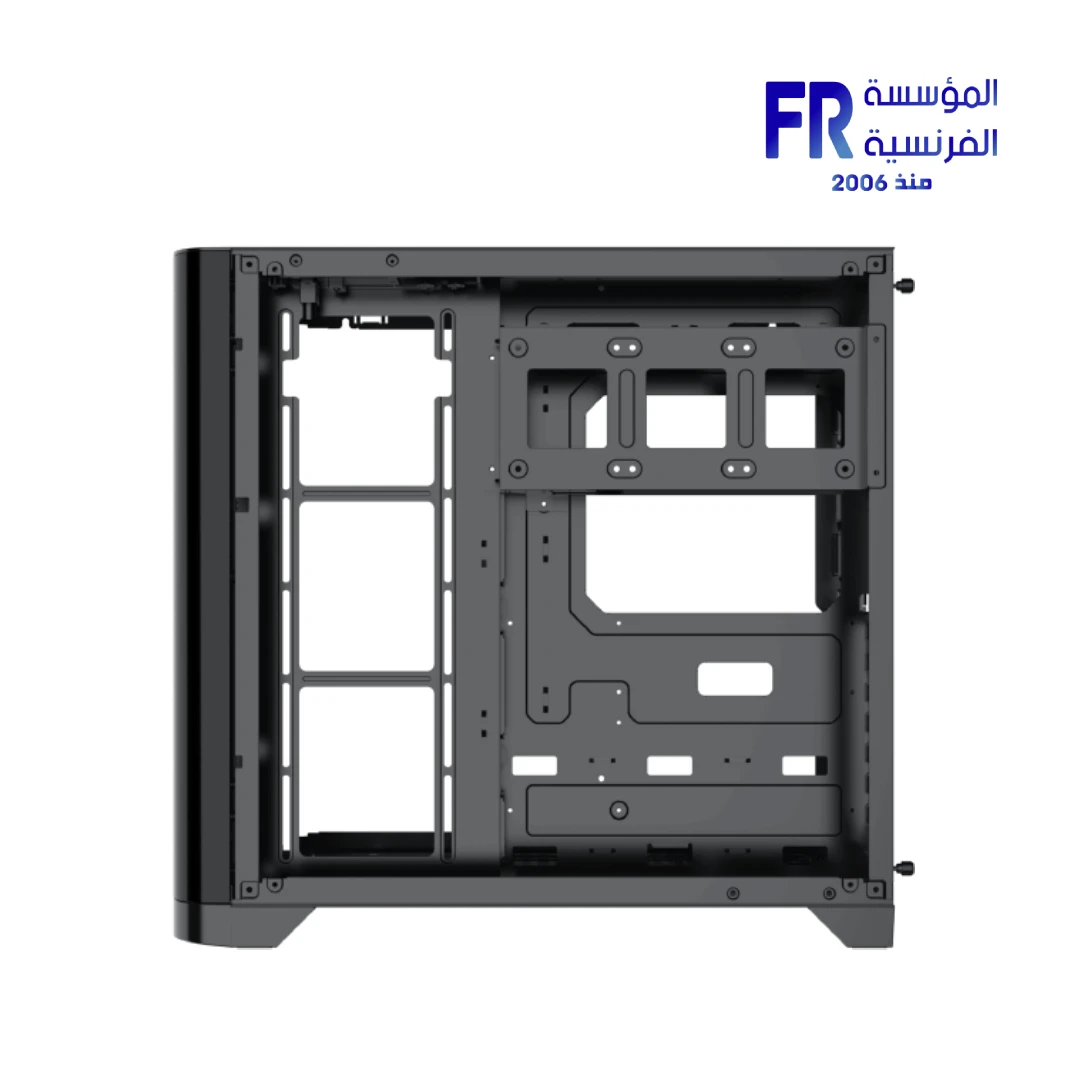

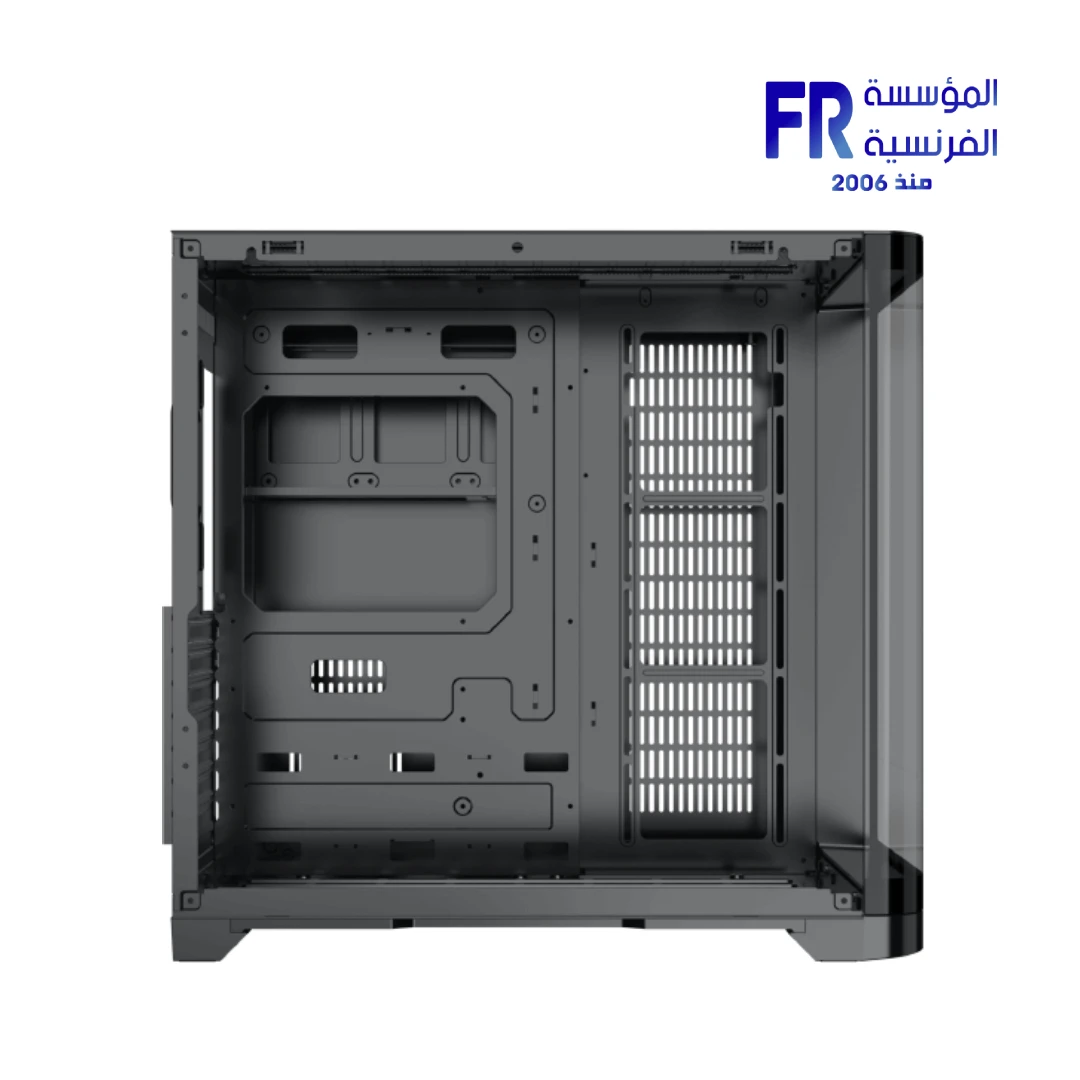

Engineered for maximum airflow and visual impact, the chassis accommodates up to ten 120mm fans across the top, side, bottom, and rear. The interior provides generous 220mm PSU clearance and versatile storage options with brackets for two 3.5″ HDDs and three 2.5″ SSDs. Its sleek steel construction and panoramic curved glass make it the perfect canvas for custom water loops and high-end gaming hardware.
💡 Alfrensia Tech Note: CPU Clearance & E-ATX Side Mount Limits
While the Crystal Storm V2 supports massive 420mm GPUs and E-ATX motherboards, builders must note two critical spatial constraints. First, the CPU air cooler clearance is exactly 160mm, meaning massive dual-tower air coolers may require low-profile RAM; a 240mm or 360mm AIO liquid cooler is highly recommended. Second, if you install a wide E-ATX motherboard (over 272mm wide), you will lose the side fan and side radiator mounts. For maximum side intake cooling, stick to standard ATX or narrower boards.
Frequently Asked Questions
Q: Does the Xigmatek Crystal Storm V2 have a USB-C port on the front?
A: No, the front I/O panel features 1x USB 3.0, 1x USB 2.0, and an HD Audio jack. It does not include a native USB Type-C port.
Q: How many fans come pre-installed?
A: The case comes with 4 pre-installed ARGB PWM fans to get your lighting and airflow started right out of the box, with support for up to 10 total 120mm fans across the top, side, bottom, and rear.
Q: Can I mount a 360mm radiator on the side intake?
A: Yes, you can mount a 360mm or 240mm radiator on the side intake, but only if you are using a standard ATX (or smaller) motherboard. Wide E-ATX motherboards will block the side radiator clearance.
Technical Specifications
| Model Name | Crystal Storm V2 |
| Warranty | 1 Year Local Warranty |
| Dimensions (LxWxH) | 453 x 280 x 435 mm |
| Motherboard Support | E-ATX, ATX, M-ATX, ITX |
| GPU Clearance | Up to 420mm |
| CPU Cooler Clearance | Up to 160mm |
| Radiator Support | Top (360mm), Side (360mm), Rear (120mm) |
| Pre-Installed Fans | 4x 120mm ARGB PWM |
| I/O Ports | 1x USB 3.0, 1x USB 2.0, HD Audio |
| Material | Steel & Curved Tempered Glass |
Ready to Build Your Curved Glass Showcase?
| MODEL | |
|---|---|
| CASE SIZE | |
| PANEL | |
| Motherboard Type | |
| FANS INCLUDED | |
| Expansion Slots | |
| Fan Support | |
| Radiator Support | |
| GPU Length | |
| CPU Height | |
| PSU SUPPORT | |
| Pre-installed PSU | |
| I/O Ports | |
| 3.5“ Drive Bays | |
| 2.5 Drive Bays | |
| Color | |
| Part Number | |
| Warranty |
