Xpg Probe 600w 80 Plus Bronze Power Supply

Xpg Probe 600w 80 Plus Bronze Power Supply

2350 جنية

Dimensions (L x W x H): 140 x 150 x 86mm
80 Plus Rating: BRONZE
ATX Version: ATX 2.52
Protections: OVP / OPP / SCP / UVP / OTP / SIP
Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA, EAC, RCM
PFC: > 0.99 @ Typical load
Input Voltage: 100-240V, 47~63Hz
Input Current: 9A – 10A
Input Frequency: 47 – 63Hz
DC Output Voltage: +5V | +3.3V | +12V | -12V | +5Vsb
Total Output (600W): +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
Power Excursion (600W): Total:600W, +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
Operating Temperature: 0~40°C
Fan Size: 120mm
Fan Bearing: Sleeve Bearing Fan
Fan Speed: 2400 ± 10% RPM
MTBF: >100,000 hours @ 25°C
ATX 24 Pin Connector: 1

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 842243033960 التصنيف: مزود طاقة الوسوم: Reliable PSU, desktop-psu, ATX PSU, xpg-600w, probe-series, مزود طاقة, Modular PSU, 80 PLUS BRONZE, PC Power, XPG, probe, 600 وات, xpg-probe, Gaming PSU, bronze-certified العلامة التجارية: XPG

Xpg Probe 600w 80 Plus Bronze مزود الطاقة

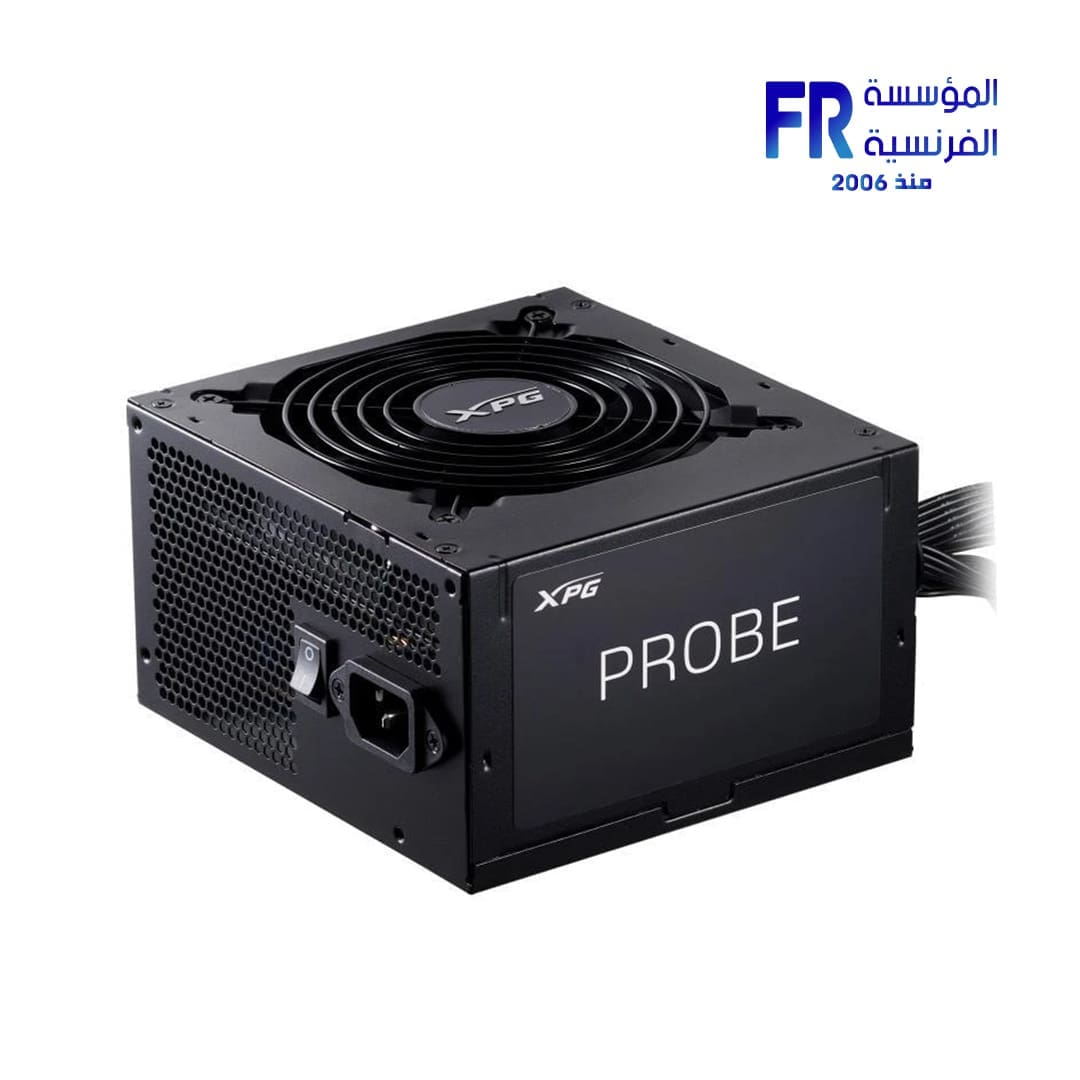

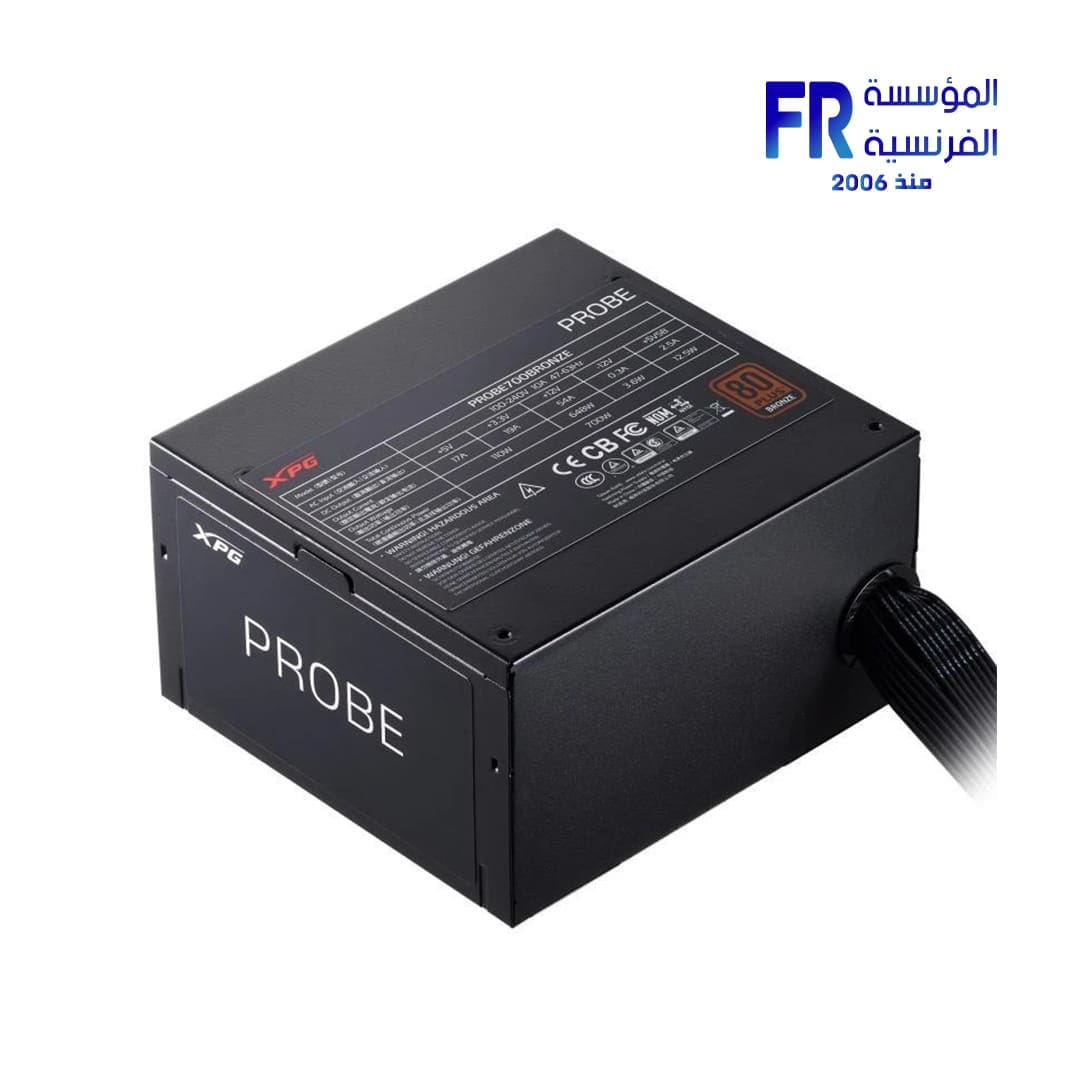

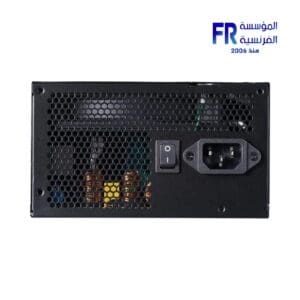

Xpg Probe 600w 80 Plus Bronze Power Supply

The XPG PROBE BRONZE Power Supply is designed to deliver stable and reliable power to your system. With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, it offers viable, applicable, and reliable performance for your PC.

Key Features

80 Plus Bronze Efficiency: XPG PROBE exceeds 80 Plus Bronze certification requirements with up to 87% efficiency at 50% load, ensuring stable power delivery to all components and minimizing the risk of power-related damage.

Enhanced Safety in Operation: Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.

Compact Size for Easy Installation: With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.

Intelligent Fan-Curve Design: The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.

Long, Reliable Lifespan: XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.

Six Industrial Safeguards: XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power (OPP), over-voltage (OVP), surge and inrush (SIP), under-voltage (UVP), short circuits (SCP), and over temperature (OTP).

Explore more about XPG’s portfolio of PSU Products.

Specifications

Model Name: PROBE BRONZE Power Supply
Dimensions (L x W x H): 140 x 150 x 86mm
80 Plus Rating: BRONZE
ATX Version: ATX 2.52
Protections: OVP / OPP / SCP / UVP / OTP / SIP
Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA, EAC, RCM
PFC: > 0.99 @ Typical load
Input Voltage: 100-240V, 47~63Hz
Input Current: 9A – 10A
Input Frequency: 47 – 63Hz
DC Output Voltage: +5V | +3.3V | +12V | -12V | +5Vsb
Total Output (600W): +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
Power Excursion (600W): Total:600W, +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
Operating Temperature: 0~40°C
Fan Size: 120mm
Fan Bearing: Sleeve Bearing Fan
Fan Speed: 2400 ± 10% RPM
MTBF: >100,000 hours @ 25°C
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 2
Molex 4 Pin Connector: 2
SATA Connector: 5
Weight (600W): 1480.1g
