What generation of PCIe does the ZOTAC RTX 5070 use?

The ZOTAC GAMING GeForce RTX 5070 Twin Edge is built on the latest PCI Express 5.0 x16 interface. This ensures maximum bandwidth and future-proof compatibility for the fastest data transfer speeds between the GPU and your motherboard.

What is the new power connector used by the RTX 5070 Twin Edge?

The card features one 12V-2x6 power input connector, which is the latest standard for high-wattage graphics cards. The package includes a 2x 8-pin to 16-pin cable adapter for compatibility with older power supplies.

Is the ZOTAC RTX 5070 Twin Edge suitable for small form factor PCs?

Yes, this model is classified as an NVIDIA SFF-Ready Enthusiast GeForce Card. Its compact length (241.5mm) and 2-slot design make it ideal for high-performance builds in smaller form factor chassis while retaining powerful cooling.

تصفية

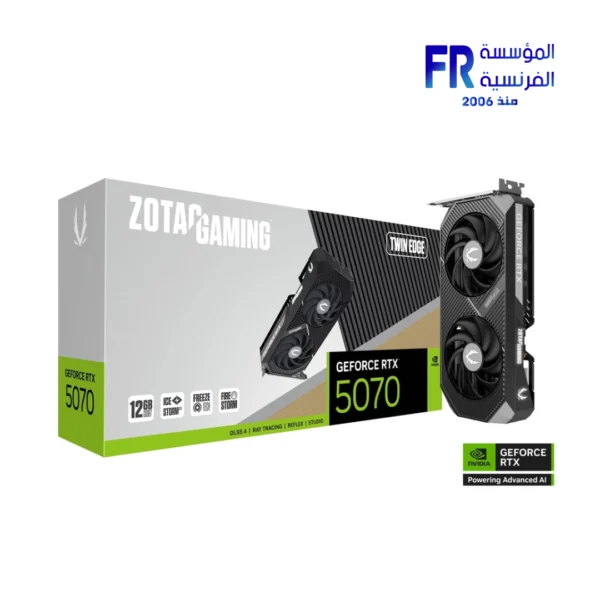

Zotac Gaming Geforce RTX 5070 TWIN EDGE 12GB 192Bit GDDR7 Graphic Card

Zotac Gaming Geforce RTX 5070 TWIN EDGE 12GB 192Bit GDDR7 Graphic Card

32999 جنية

Model Name: ZOTAC GAMING GeForce RTX 5070 Twin Edge
Part Number: ZT-B50700E-10P
Architecture: NVIDIA Blackwell Architecture
Video Memory: 12GB GDDR7
CUDA Cores: 6144
Boost Clock: 2512 MHz
Interface: PCI Express 5.0 x16
Warranty: 3 سنوات

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 810012085670 التصنيفات: كارت شاشة, Nvidia Graphics Card الوسوم: Card, 5070, RTX, 12GB, Twin, gaming, 192BIT, RTX 5000 series, GeForce, ZT-B50700E-10P, ZOTAC, High Performance, P288-1N764-201Z8, EDGE, Video Card, 810012085670, GRAPHIC, GDDR7, Geforce series العلامة التجارية: ZOTAC

Zotac Gaming Geforce RTX 5070 TWIN EDGE 12GB 192Bit GDDR7 Graphic Card

GeForce RTX 50 Series – Game Changer! The ZOTAC RTX 5070 Twin Edge delivers the pinnacle of gaming and AI performance, featuring the cutting-edge Blackwell Architecture and 12GB of ultrafast GDDR7 memory. This compact dual-fan powerhouse is ready to transform your gaming experience.

12GB GDDR7

Ultrafast Video Memory

PCIe 5.0

Next-Gen Interface

6144 CUDA Cores

Massive Processing Power

SFF-Ready

Compact 241.5mm Length

Blackwell Architecture and Next-Gen Performance

Unrivaled Speed with GDDR7 and PCIe 5.0

To begin with, the ZOTAC RTX 5070 Twin Edge harnesses the power of 12GB GDDR7 memory running at a blistering 28 Gbps. Consequently, combined with the immense bandwidth of a PCI Express 5.0 x16 interface, this card drastically enhances demanding tasks like high-level gaming, 4K content creation, and complex AI application processing.

Compact Design with IceStorm 2.0 Cooling

Furthermore, despite its immense power, this Graphics Card maintains a compact, dual-fan form factor. In addition, the highly efficient IceStorm 2.0 Cooling system, paired with the FREEZE Fan Stop feature, ensures maximum heat dissipation and whisper-quiet operation during low-load tasks. Ultimately, the card’s slim 2-slot design offers broad compatibility, even for Small Form Factor (SFF) enthusiasts.

Technical Specifications

Specification	Detail
Model Number	ZT-B50700E-10P
VGA Series	RTX 5070
Video Memory Size	12GB GDDR7
CUDA Cores	6144
Engine Clock (Boost)	2512 MHz
PCI Express	PCI Express 5.0 x16
Recommended PSU	650W
Power Input	1 x 12v-2×6
Card Length	241.5mm / 2 Slot
Display Outputs	3x DisplayPort 2.1b, 1x HDMI 2.1b

💡 Pro Tip:

When installing your RTX 5070 with a traditional power supply, use the included 2x 8-pin to 16-pin cable adapter carefully. Ensure both 8-pin connectors are fully seated into the باور سبلاي cable and the 16-pin end is securely connected to the graphics card to prevent thermal or power issues.
