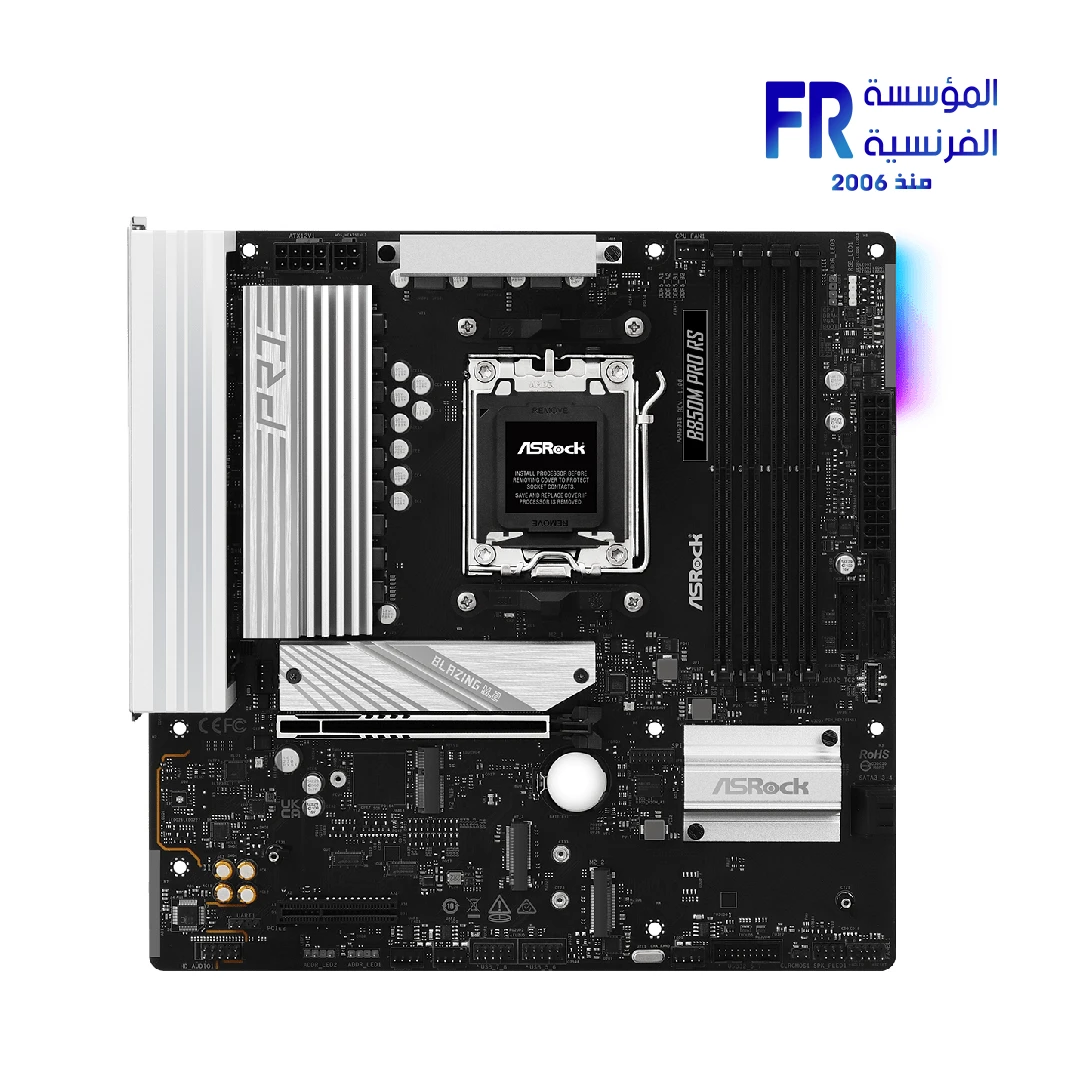

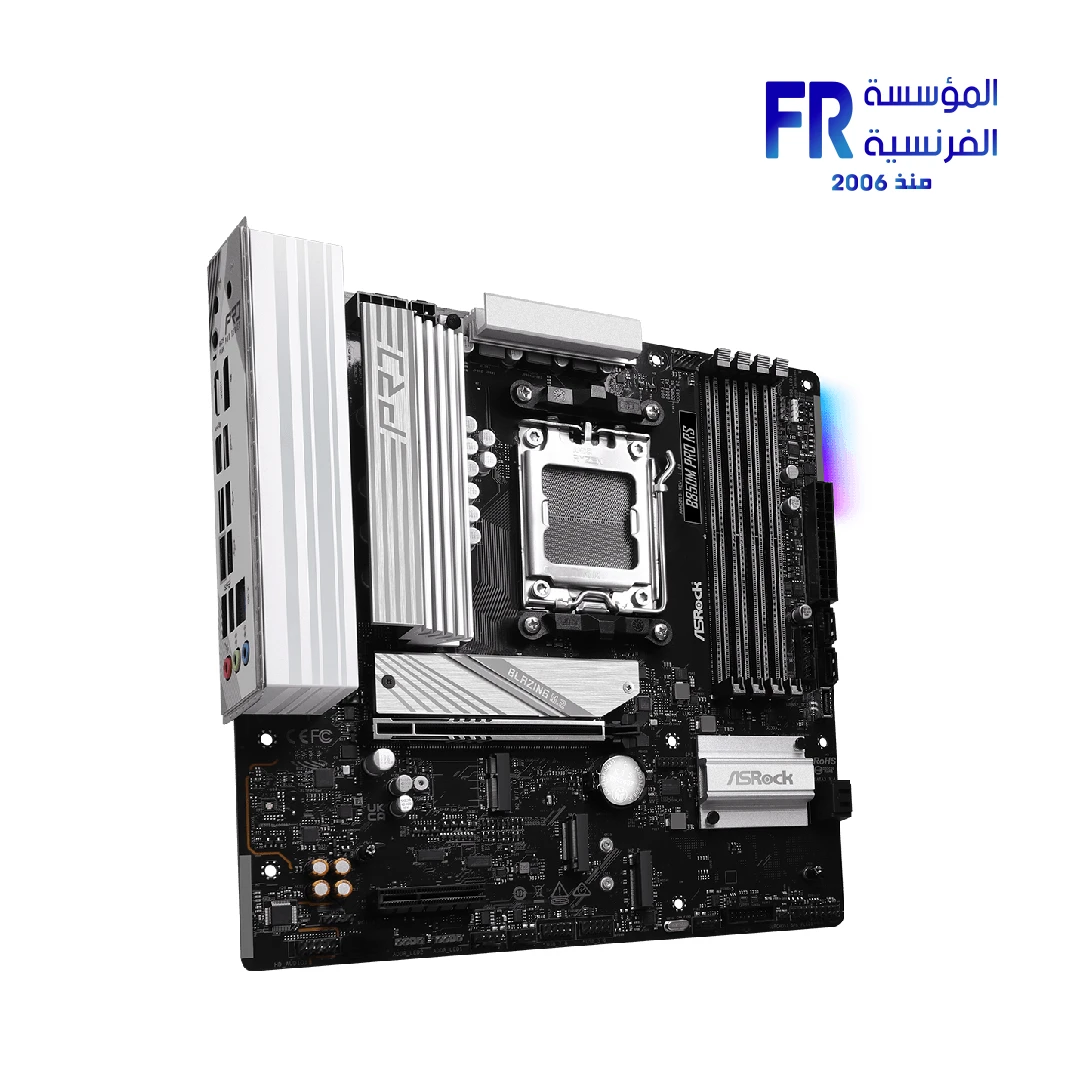

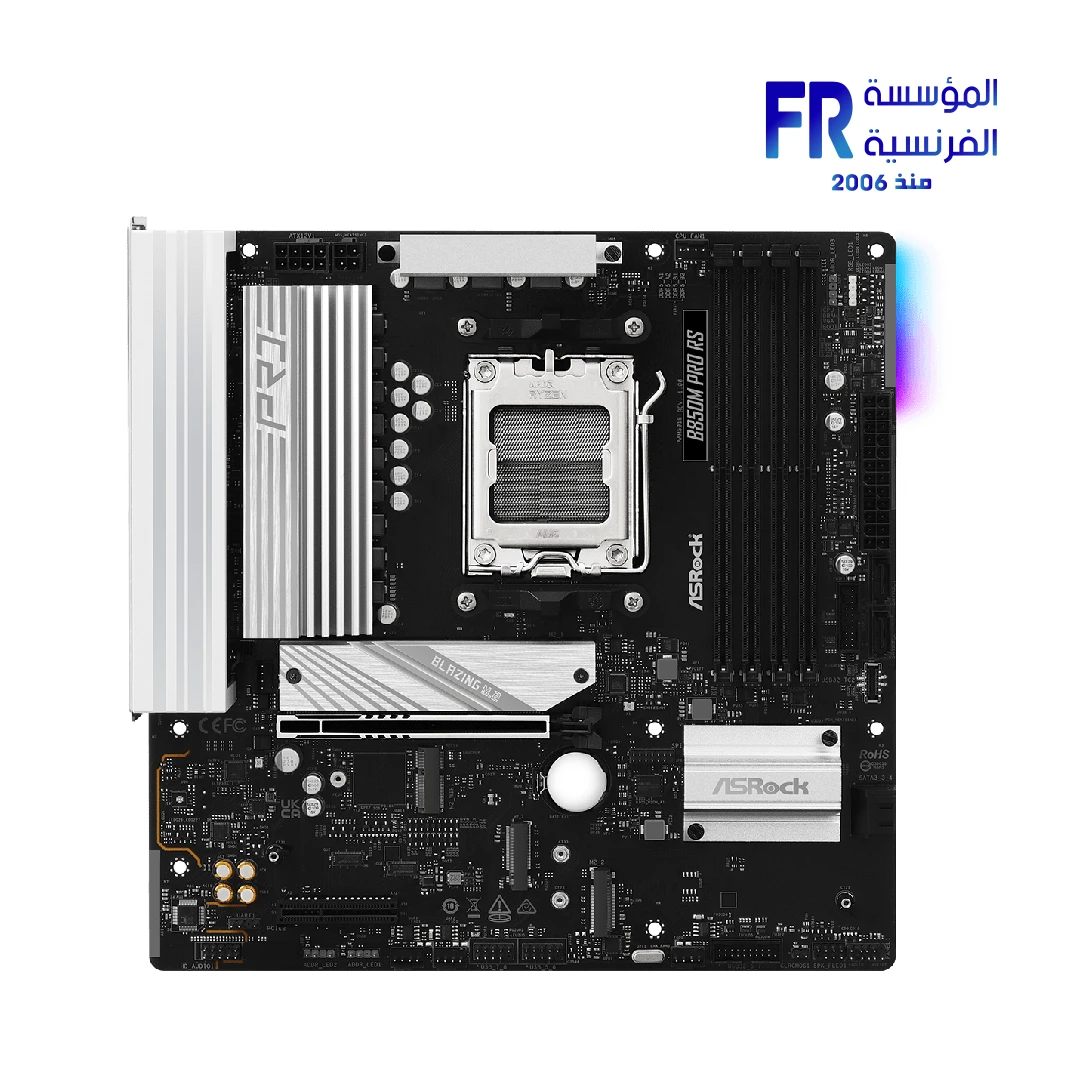

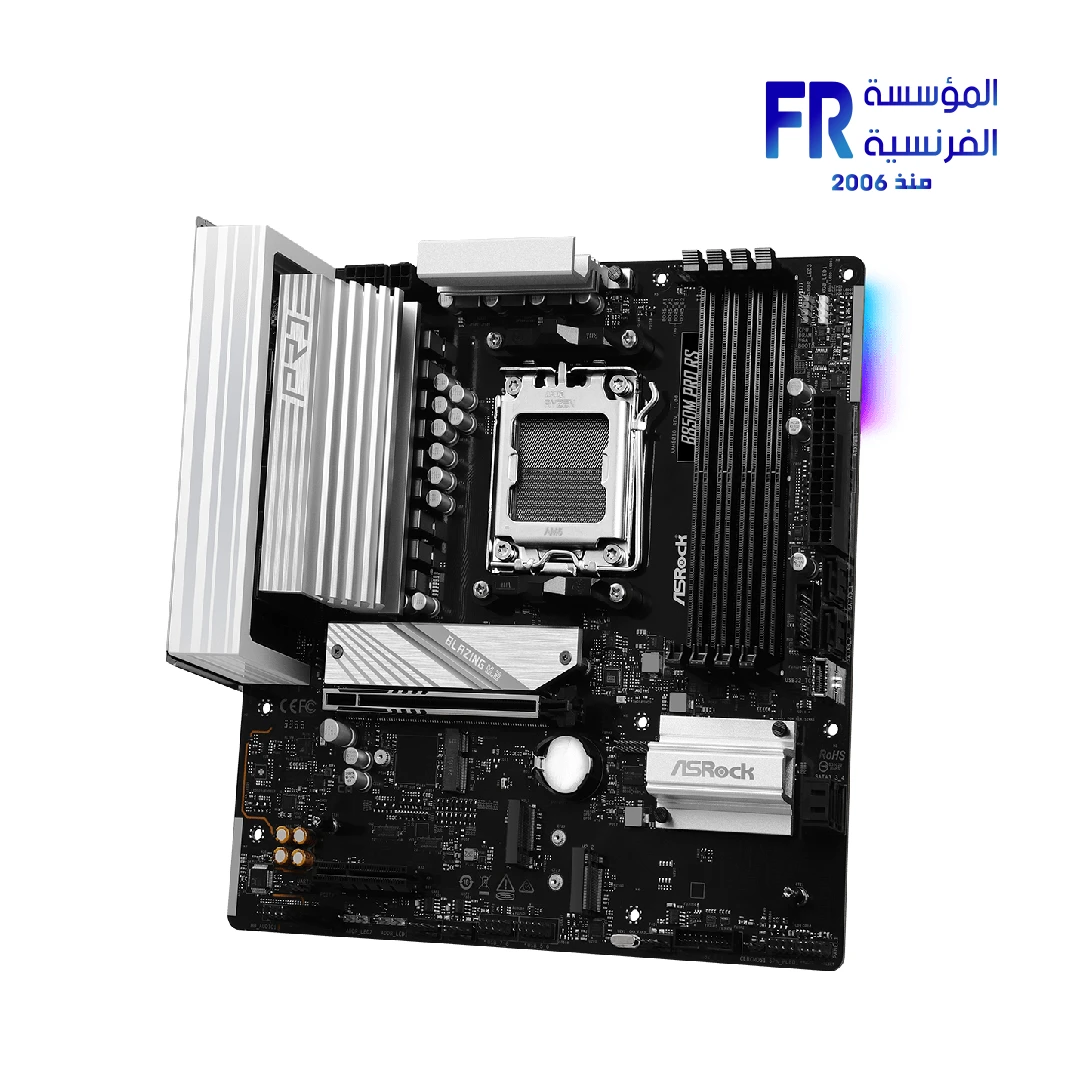

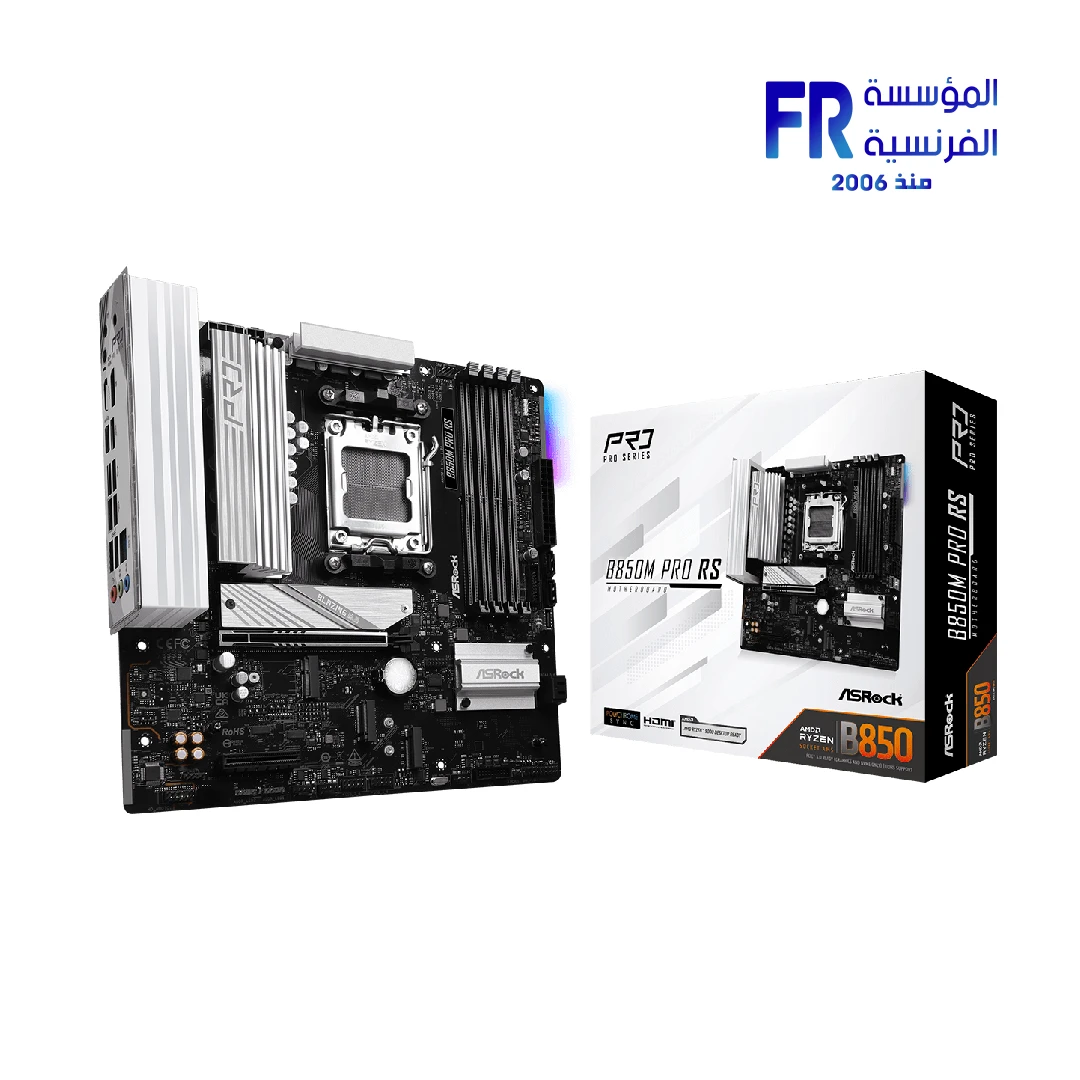

ASRock Pro RS B850M Pro RS DDR5 PCIe 5.0 2.5G LAN Socket AM5 Motherboard
8399 جنيه
- Part Number 90-MXBR60-A0UAYZ
- سوكت المعالج AM5 (Ryzen 9000 / 8000 / 7000 Series)
- Chipset AMD B850
- Memory Support 4x DDR5 DIMM, up to 8000+(OC) MT/s
- Primary Expansion Slot 1x PCIe 5.0 x16 (Gen 5 Ready)
- وحدات التخزين 3x M.2 Slots (1x Blazing Gen5x4, 2x Hyper Gen4x4)
- Networking Dragon 2.5G LAN
- الضمان 3 Years
ASRock Pro RS B850M Pro RS DDR5 PCIe 5.0 2.5G LAN Socket AM5 Motherboard
Elevate your build with the ASRock B850M Pro RS. This Race Sport Edition motherboard offers a futuristic design and perfect balance of features, including PCIe 5.0 for graphics and storage, delivering high-speed performance for AM5 enthusiasts.
Evolution of Pro Performance
Superb Productivity
Harness the speed of PCIe Gen5. The primary x16 slot and the Blazing M.2 socket both support Gen5 speeds, providing maximum bandwidth for the latest GPUs and NVMe SSDs to eliminate bottlenecks.
Rock-Solid Durability
Built with an 8+2+1 Power Phase design using 50A Dr.MOS, this board ensures stable power delivery to your Ryzen CPU. The pre-installed I/O shield and high-density power connectors further enhance longevity.
Smart Connectivity
Experience lag-free gaming with Dragon 2.5G LAN, providing 2.5x the speed of standard Gigabit. Plus, the dedicated M.2 Key E slot allows for easy upgrades to Wi-Fi/Bluetooth modules whenever you need.
المواصفات الفنية
| Feature | Details |
|---|---|
| Chipset | AMD B850 |
| Socket | AM5 (Ryzen 9000/8000/7000 Ready) |
| Memory | 4x DDR5 DIMM, Max 256GB, up to 8000+(OC) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x M.2 Key E (for WiFi) |
| وحدات التخزين | 1x Blazing M.2 (Gen5x4), 2x Hyper M.2 (Gen4x4), 4x SATA3 |
| Networking | Dragon 2.5G LAN |

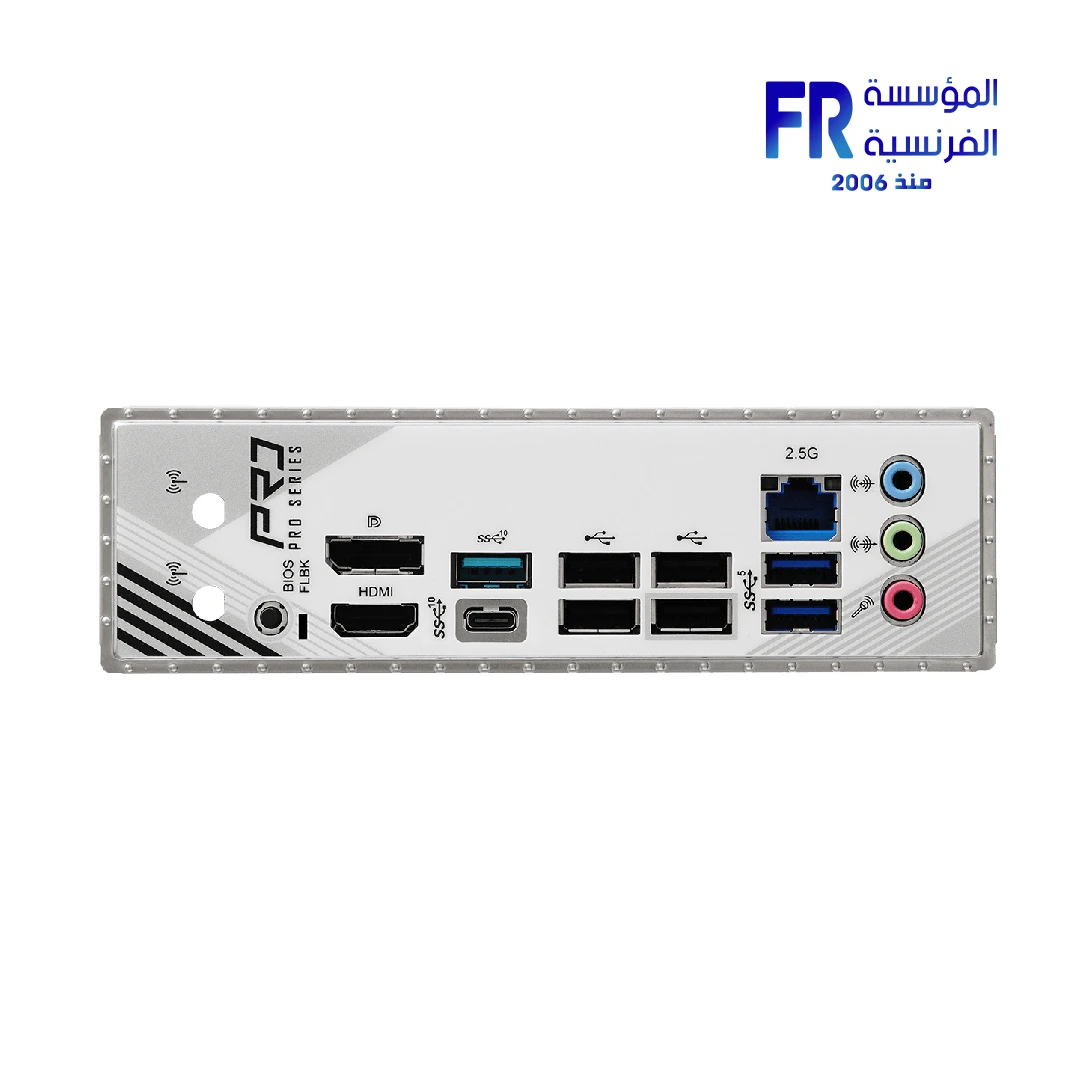

| Rear USB | 1x USB-C 3.2 Gen2, 1x USB-A 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0 |
| Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
💡 Pro Tip:
To achieve the best storage performance, always install your primary NVMe drive in the Blazing M.2 (M2_1) slot, as it is the only one connected directly to the CPU with PCIe Gen5 x4 bandwidth.
Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer.
If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.
