Gigabyte B650M Gaming Wifi AM5 Gaming Motherboard

Gigabyte B650M Gaming Wifi AM5 Gaming Motherboard

The Gigabyte B650M Gaming Wifi motherboard is a powerhouse built for next-gen performance. It supports the latest AMD AM5 Ryzen™ 7000, 8000, and 9000 Series Processors. This motherboard combines robust power delivery, lightning-fast connectivity, and integrated Wi-Fi. It is an excellent choice for gamers and enthusiasts seeking a high-performance, future-ready platform.

---

Unleash Next-Gen Performance and DDR5 Support:

The **Gigabyte B650M Gaming Wifi** features an AM5 socket. This provides support for the latest AMD Ryzen™ processors. It also supports DDR5 memory. This delivers a significant boost in performance for gaming and creative workloads. With two DDR5 DIMM sockets, you can install up to 128 GB of system memory. It supports both AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP). This allows you to easily enable advertised speeds with a single click. Consequently, it ensures your system performs at its peak.

Fast PCIe 4.0 and M.2 Storage:

Experience incredible data transfer speeds with this motherboard. It includes a PCI Express 4.0 x16 slot. This provides ample bandwidth for modern graphics cards. A PCI Express 3.0 x1 slot offers additional expansion. For storage, it features an M.2 connector that supports PCIe 4.0 x4/x2 SSDs. This delivers blazing-fast speeds. Four SATA 6Gb/s connectors provide versatile storage options. The motherboard also supports RAID 0, RAID 1, and RAID 10 for both NVMe SSDs and SATA storage devices. Therefore, it is a versatile platform for building a powerful system.

Integrated Wi-Fi and Comprehensive Connectivity:

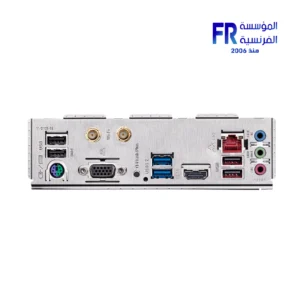

The **Gigabyte B650M Gaming Wifi** comes with an integrated Wi-Fi module. This provides Wi-Fi 802.11 a, b, g, n, and ac standards, supporting 2.4/5 GHz Dual-Band. Bluetooth 4.2 is also included. The motherboard provides a comprehensive array of I/O ports. This includes a PS/2 keyboard/mouse port, USB 3.2 Gen 1 ports, and USB 2.0 ports. A Realtek® 2.5GbE LAN ensures stable and fast wired internet. It also has a Q-Flash Plus button for updating the BIOS without a CPU, RAM, or GPU. Therefore, you are well-equipped for all your networking needs, wired or wireless.

High-Definition Audio and BIOS Features:

Enjoy immersive audio with the Realtek® Audio CODEC. It supports 7.1-channel HD Audio. A dedicated S/PDIF Out connector is also included. For display, it offers one D-Sub, one DVI-D, and one HDMI port. This ensures compatibility with a wide range of monitors. The motherboard features Q-Flash Plus, allowing you to update the BIOS without installing the CPU, memory, or graphics card. This makes the building process simpler. Thus, it offers a complete and user-friendly platform.

Key Specifications:

• CPU Support: AMD AM5 Ryzen™ 7000 / 8000 / 9000 Series Processors.
• Chipset: AMD B650.
• Memory: 2 x DDR5 DIMM sockets, up to 128 GB, Dual channel.
• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1.
• Storage: 1 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s.
• Wireless: Wi-Fi 802.11 a/b/g/n/ac (2.4/5 GHz), Bluetooth 4.2.
• LAN: Realtek® 2.5GbE LAN.
• USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports.
• Graphics Output: 1 x D-Sub, 1 x DVI-D, 1 x HDMI.
• Audio: Realtek® Audio CODEC, High Definition Audio.
• Form Factor: Micro ATX (24.0cm x 22.5cm).

Technical Details:

• Product Name: Gigabyte B650M Gaming Wifi AM5 Gaming Motherboard
• Model: B650M GAMING WIFI
• SKU: B650 Gaming Wifi
• UPC/EAN: 889523039380
• Operating System: Supports Windows 11 64-bit and Windows 10 64-bit.

For more information on Gigabyte motherboards, visit the official Gigabyte website. Explore our full range of motherboards on our site.
