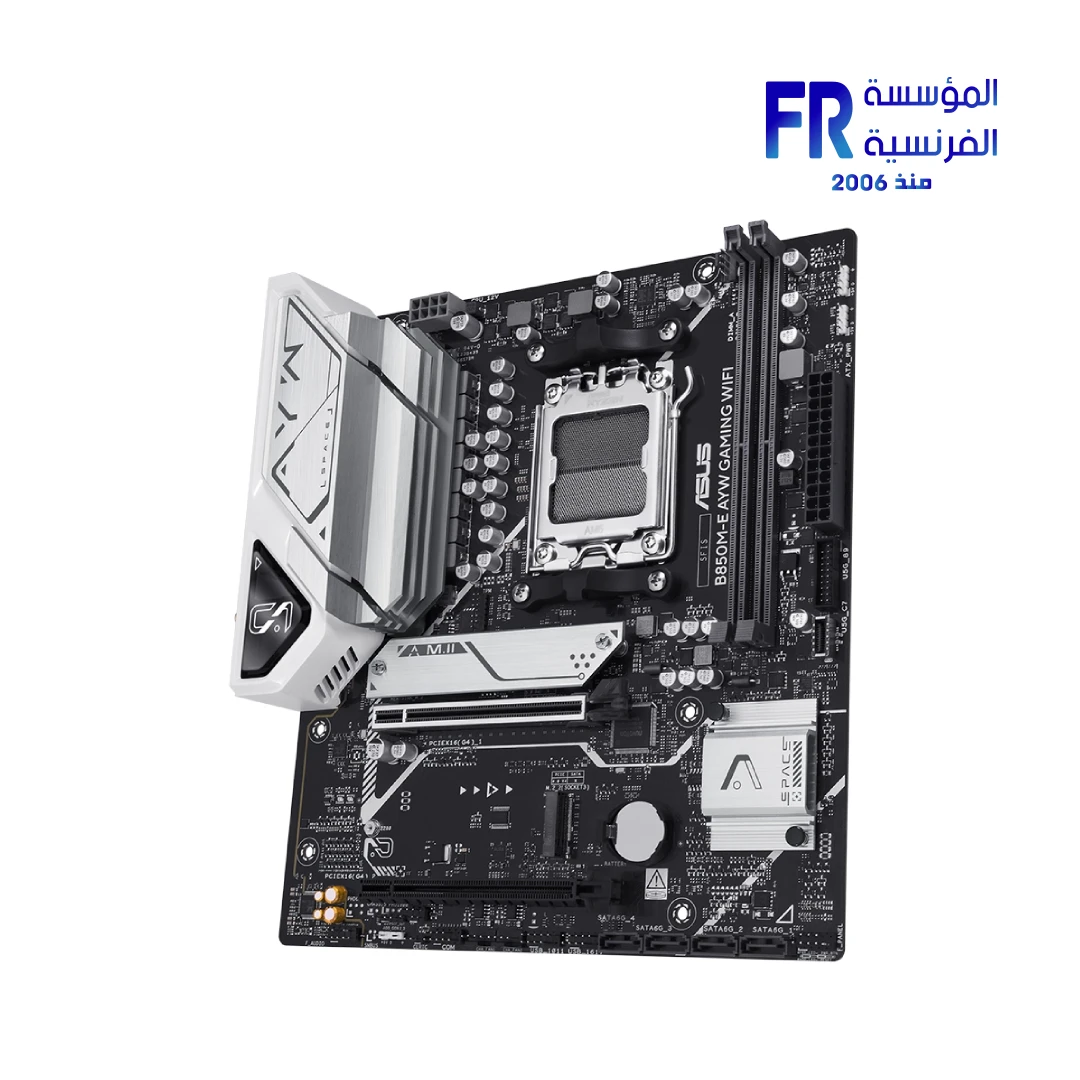

ASUS B850M-E AYW Gaming WiFi Socket AM5 DDR5 Micro ATX Motherboard
0 جنيه
- Model: ASUS B850M-E AYW GAMING WIFI
- Socket & Chipset: AMD AM5 | AMD B850 Chipset
- CPU Support: AMD Ryzen™ 9000, 8000, and 7000 Series (up to 170W TDP)
- Memory: 2x DIMM Slots | Max 128GB DDR5 | Up to 8000+ MT/s (OC) | AMD EXPO™ & AEMP Support
- Storage: 2x M.2 Slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) | 4x SATA 6Gb/s Ports
- Expansion: 1x PCIe 4.0 x16 (SafeSlot Core+) | 1x PCIe 4.0 x16 (x4 mode)
- Networking: Realtek 2.5Gb Ethernet (ASUS LANGuard) | 1×1 Wi-Fi 6 + Bluetooth
- Rear I/O: 2x USB 10Gbps | 2x USB 5Gbps | 4x USB 2.0 | 1x HDMI | 3x Audio Jacks
- Audio: Realtek 7.1 Surround Sound High Definition Audio
- Special Features: ASUS 5X PROTECTION III | M.2 Q-Latch | Q-LED Core | AI Cache Boost | Aura Sync RGB
- Form Factor: Micro-ATX (9.6 x 8.7 inches)
- الضمان: 3 years
ASUS B850M-E AYW GAMING WIFI
Socket AM5 · DDR5 · PCIe 5.0 M.2 · Wi-Fi 6 · 2.5GbE
Why Choose the B850M-E AYW?
AMD Ryzen Ready
Supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket with up to 170W CPU support [citation:10].
DDR5 & PCIe 5.0
Dual-channel DDR5 up to 128GB and 8000+ MT/s (OC). PCIe 5.0 M.2 delivers up to 128Gbps storage speeds [citation:1].
Wi-Fi 6 & 2.5GbE
Wi-Fi 6 (802.11ax) for stable wireless connections. Realtek 2.5Gb Ethernet with ASUS LANGuard [citation:10].
Engineered for Performance
AI Cache Boost & AI Advisor
AI Cache Boost optimizes CPU cache and memory pathways for up to 29% faster local LLM performance with Ryzen 9000 Series CPUs. ASUS AI Advisor provides intelligent guidance for exploring motherboard features [citation:1].
VRM & M.2 Heatsinks
VRM heatsink and M.2 heatsink keep components cool under load. ASUS Fan Xpert 2+ offers auto-tuning and Extreme Quiet mode for whisper-quiet operation [citation:1].
AEMP & DDR5 Overclocking
ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for entry-level DDR5 modules without EXPO support. EXPO enables overclocking up to 8000+ MT/s with compatible modules [citation:1].
AEMP · EXPO · 8000+ MT/s
Wi-Fi 6 & USB 10Gbps
Wi-Fi 6 (802.11ax) with 1×1 configuration supports 2.4/5GHz bands. Two rear USB 10Gbps Type-A ports and front USB 5Gbps Type-C provide high-speed connectivity. HDMI 2.1 output supports 4K@60Hz [citation:1].
Wi-Fi 6 · USB 10Gbps · HDMI 2.1
Build With Confidence
M.2 Q-Latch for tool-free SSD installation. Q-Dashboard simplifies component identification. Q-DIMM and Q-Slot use single-latch mechanisms. Q-LED Core provides visual POST diagnostics [citation:10].
Q-Latch · Q-Dashboard · Q-LED Core
Aura Sync & Personalization
Three Addressable RGB Gen 2 headers support Aura Sync for synchronized lighting. Armoury Crate provides centralized control for RGB, Fan Xpert 2+, and AI Advisor. ASUS DriverHub simplifies driver management [citation:10].
Aura Sync · Armoury Crate · DriverHub
Built for Your Build
AMD AM5 Platform
Supports AMD Ryzen 9000, 8000, and 7000 Series processors up to 170W. Windows 11 and Windows 10 64-bit compatible [citation:10].
DDR5 Dual Channel
Two DIMM slots support up to 128GB DDR5. AEMP optimizes entry-level modules; EXPO enables overclocking up to 8000+ MT/s [citation:1].
Micro-ATX Form Factor
24.4 cm x 22.1 cm compact footprint with PCIe 4.0 x16, PCIe 4.0 x16 (x4), dual M.2, and four SATA ports [citation:10].
In the Box
Everything you need to get started.
|
اللوحات الأم ASUS B850M-E AYW GAMING WIFI. |
I/O Shield Back panel I/O shield. |
SATA Cables 2 x SATA 6Gb/s cables. |
Wi-Fi Antenna ASUS Wi-Fi moving antenna. |
المواصفات الفنية
Frequently Asked Questions
ASUS B850M-E AYW GAMING WIFI
Micro-ATX · Socket AM5 · DDR5 · PCIe 5.0 M.2 · Wi-Fi 6
3-Year Warranty Included
In Stock · Ships from Alfrensia
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| سوكت المعالج | |
| شريحة اللوحة الأم | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 4.0, PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| الضمان |
