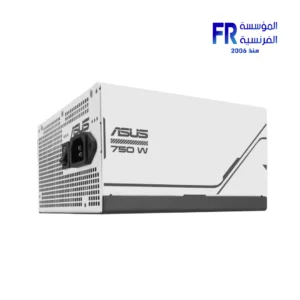

Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply

Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply

4500 جنية

Wattage 750W
Efficiency 80 PLUS Gold (90%)
Modular Fully Modular
PCIe 5.1 12V-2×6 connector included
+12V Rail Single rail, 62.5A (750W)
Connectors 1x 24-pin ATX, 2x 8-pin EPS, 4x PCIe, 8x SATA, 4x 4-pin

غير متوفر بالمخزون

Price Match Guarantee
رمز المنتج: 197105192966 التصنيف: الوسوم: , , , , , , , , , , , العلامة التجارية:

ASUS Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 مزود الطاقة

The ASUS Prime 750W 80 PLUS Gold delivers next-generation power efficiency with ATX 3.1 and PCIe 5.1 compatibility. Featuring 80 PLUS Gold certification, fully modular cables, and premium Japanese capacitors, this PSU ensures reliable performance for gaming and workstation builds.

80 PLUS
Gold Certified
ATX 3.1
Ready
PCIe 5.1
Compatible
750W
Power Output

Next-Gen Power Efficiency



Advanced Features

  • ATX 3.1 compliant with 200% power excursion
  • PCIe 5.1 ready with 12V-2×6 connector
  • 80 PLUS Gold certification (90% efficiency)
  • Fully modular cable design

Premium Components

  • 100% Japanese capacitors
  • 135mm dual ball bearing fan
  • Zero RPM fan mode (under 40% load)
  • OVP/OPP/SCP/UVP/OTP protection

Technical Specifications

Specification Detail
الموديل 90YE00U1-B0NA00 (197105192966)
Wattage 750W
Efficiency 80 PLUS Gold (90%)
Modular Fully Modular
PCIe 5.1 12V-2×6 connector included
+12V Rail Single rail, 62.5A (750W)
Connectors 1x 24-pin ATX, 2x 8-pin EPS, 4x PCIe, 8x SATA, 4x 4-pin
Fan 135mm dual ball bearing
Dimensions 150 x 150 x 86mm
الضمان 10 years

Cable Configuration

  • 1x 24-pin ATX motherboard (600mm)
  • 2x 8-pin EPS CPU (650mm)
  • 2x PCIe 8-pin (6+2) cables (750mm)
  • 1x PCIe 12V-2×6 (12VHPWR) cable (750mm)
  • 3x SATA cables (4 connectors each)
  • 1x 4-pin peripheral cable (3 connectors)
  • All cables sleeved in black

💡 Pro Tip:

This PSU is perfect for mid-range GPUs like RTX 4070 or RX 7800 XT. The ATX 3.1 compatibility ensures stable power delivery during GPU power excursions, while the 80 PLUS Gold rating reduces energy costs.
