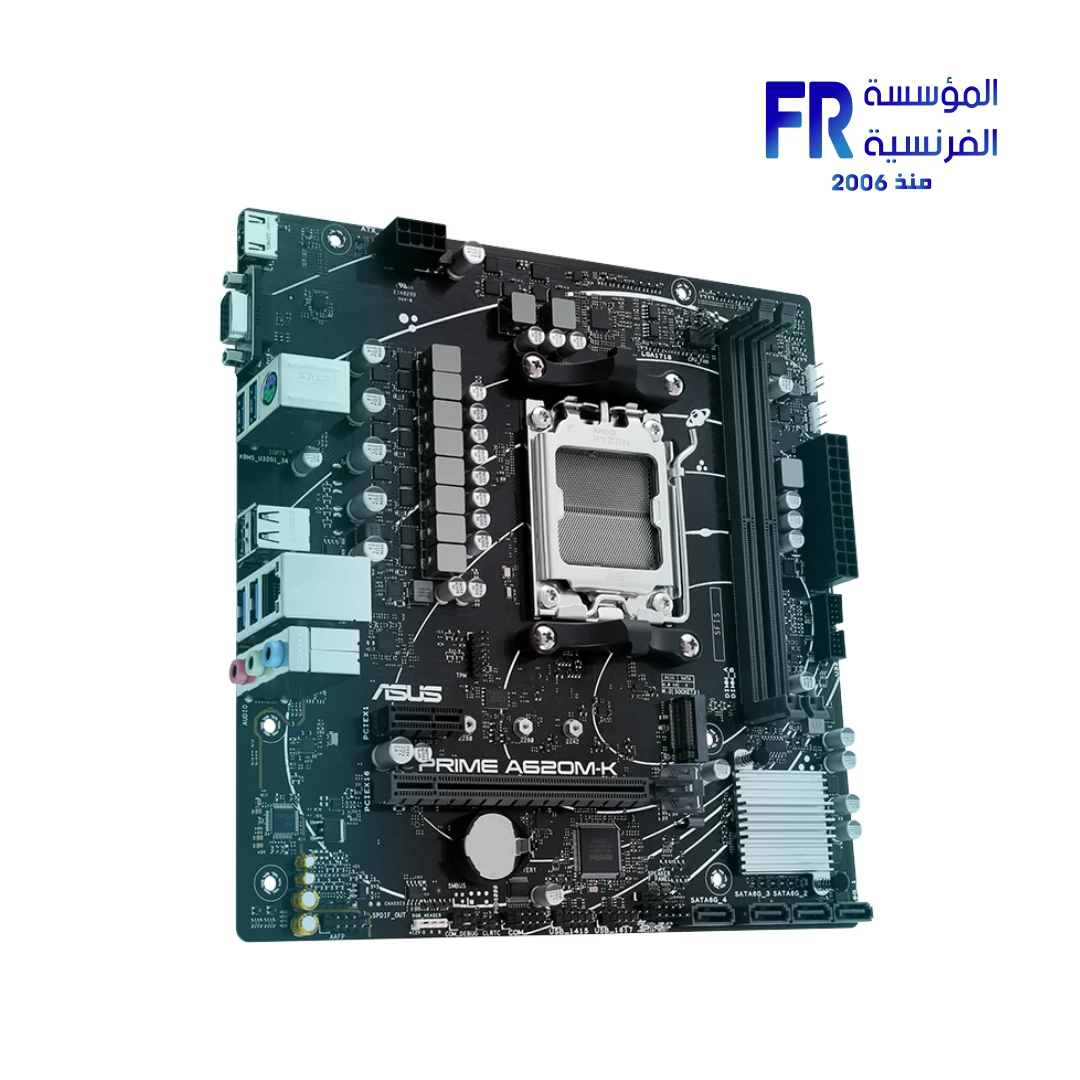

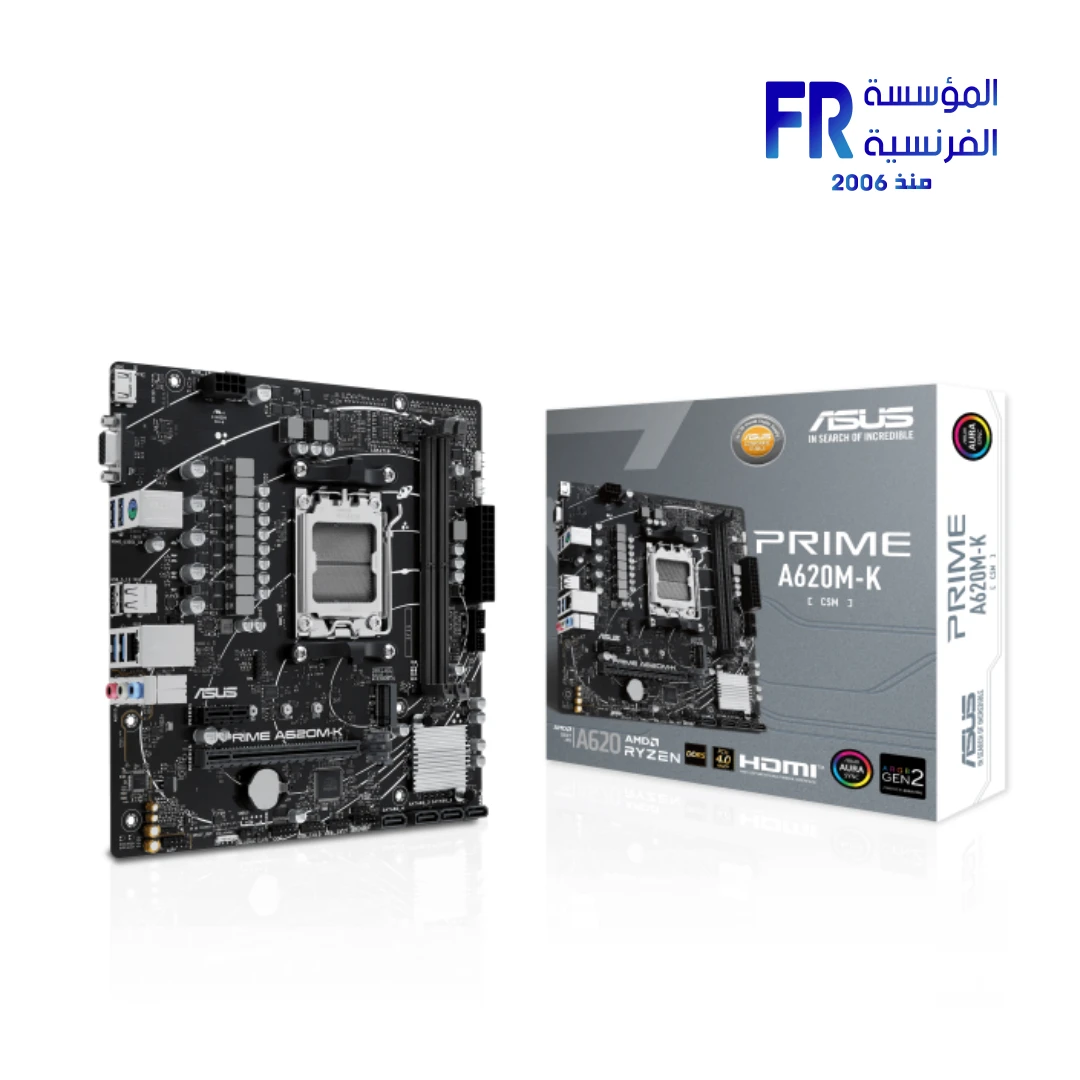

ASUS PRIME A620M-K-CSM Socket AM5 DDR5 Micro ATX Motherboard

  • Model: ASUS PRIME A620M-K-CSM
  • Socket & Chipset: AMD AM5 | AMD A620 Chipset
  • CPU Support: AMD Ryzen™ 7000 Series Desktop Processors (up to 120W TDP)
  • Memory: DDR5 Support (Dual Channel)
  • Storage: 1x M.2 Slot (PCIe 4.0 x4) | 4x SATA 6Gb/s Ports
  • Expansion: 1x PCIe 4.0 x16 (SafeSlot Core) | 1x PCIe 3.0 x1
  • Networking: Realtek 1Gb Ethernet
  • Rear I/O: 4x USB 3.2 Gen 1 (Type-A) | 2x USB 2.0 | 1x HDMI | 1x VGA | 1x PS/2 | 3x Audio Jacks
  • Special Features: ASUS Corporate Stable Model (CSM) | ASUS Control Center Express | Two-Way AI Noise Cancelation | Q-LED Core | Aura Sync RGB Headers
  • Form Factor: Micro-ATX
  • الضمان: 3 years

هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟

غير متوفر حالياً

المنتج ده خلص حالياً. فريق المبيعات هيرشحلك بديل متوفر بنفس المستوى وبأفضل سعر.

اسأل على البديل واتساب
التصنيفات: , الوسوم: , , , , , , , , , , , , , , العلامة التجارية:

Micro ATX Motherboard

ASUS PRIME A620M-K-CSM

Socket AM5 · DDR5 · PCIe 4.0 · 1GbE · Corporate Stable Model

AM5
Socket
96GB
DDR5 Max
PCIe 4.0
x16 Slot
1GbE
LAN

Why Choose the PRIME A620M-K-CSM?

AMD Ryzen Ready

Supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket with up to 120W CPU support [citation:2].

DDR5 & PCIe 4.0

Dual-channel DDR5 up to 96GB and 7200+ MT/s (OC). PCIe 4.0 M.2 slot delivers up to 64Gbps storage speeds [citation:2][citation:12].

Corporate Stable Model

Up to 36-month lifecycle support and ASUS Control Center Express for IT management [citation:2].

Built for Reliability

01 — Cooling

Stack Cool 3+ & Fan Xpert

2oz copper PCB design draws heat away from critical components. PCH heatsink and Fan Xpert software provide comprehensive cooling control with multiple temperature sources [citation:12].

2oz
Copper PCB
02 — Connectivity

1GbE & USB 3.2 Gen 1

Realtek 1Gb Ethernet with LANGuard for reliable networking. USB 3.2 Gen 1 Type-A ports (4 rear + front headers). HDMI and VGA outputs for display connectivity [citation:2].

1GbE
Realtek LAN

Two-Way AI Noise Cancelation

ASUS Two-Way AI Noise Cancelation reduces background noise from both the microphone and audio output for crystal-clear communication in games or video conferences. Realtek 7.1 Surround Sound CODEC with audio shielding and premium capacitors [citation:2][citation:12].

AI Noise Cancelation · 7.1 Audio

Aura Sync & Q-LED Core

Onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware. Q-LED Core produces light patterns during POST to help troubleshoot CPU, VGA, or boot device issues [citation:2][citation:12].

Aura Sync · Q-LED Core

CSM Program

ASUS Corporate Stable Model

CSM provides up to 36-month product lifecycle support and 6-month end-of-life notice for business deployments. Each CSM motherboard includes ASUS Control Center Express — server-grade IT management software for real-time monitoring and management [citation:2].

36-Month Lifecycle · Control Center Express

DIY Friendly Design

SafeSlot Core reinforced PCIe slot provides 1.6X stronger retention. Overvoltage Protection with built-in voltage regulators. Stainless-Steel Back I/O for 3X corrosion resistance. Q-LED Core for visual POST diagnostics [citation:4].

SafeSlot Core · Overvoltage Protection

Built for Your Build

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000, and 7000 Series processors up to 120W. Windows 11 and Windows 10 64-bit compatible [citation:2][citation:7].

DDR5 Dual Channel

Two DIMM slots support up to 96GB DDR5. AEMP optimizes entry-level modules; EXPO enables overclocking up to 7200+ MT/s [citation:2].

Micro-ATX Form Factor

Compact footprint with PCIe 4.0 x16, PCIe 3.0 x1, M.2 slot, and four SATA 6Gb/s ports [citation:2][citation:7].

In the Box

Everything you need to get started.

المواصفات الفنية

Model Name ASUS PRIME A620M-K-CSM
Part Number 90MB1F40-M0EAY0
EAN 4711387242087
العلامات التجارية ASUS
سوكت المعالج AMD Socket AM5
CPU Support AMD Ryzen 9000/8000/7000 Series (up to 120W)
Chipset AMD A620
Memory 2x DDR5 DIMM, up to 96GB, up to 7200+ MT/s (OC)
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
وحدات التخزين 1x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/10
LAN Realtek 1Gb Ethernet
Audio Realtek 7.1 Surround Sound CODEC
USB Rear: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0; Front: USB 3.2 Gen 1 header, 2x USB 2.0 headers
Video Output 1x HDMI 2.1 (4K@60Hz), 1x VGA
Form Factor Micro-ATX (22.6 cm x 22.1 cm)
OS Support Windows 11, Windows 10 64-bit
Official Warranty 3 Years

Frequently Asked Questions

Does this motherboard support Ryzen 9000 series out of the box?
The ASUS PRIME A620M-K-CSM supports AMD Ryzen 9000, 8000, and 7000 Series processors. A BIOS update may be required for newer CPU generations. Note that this board does not have BIOS FlashBack, so a compatible CPU is needed for BIOS updates [citation:11].
How many fan headers does this board have?
The board has 1x CPU fan header and 1x chassis fan header (2 total). Some users note this is limited for larger builds. A fan splitter or hub may be needed for additional fans [citation:11].
What is the difference between this and the non-CSM version?
The CSM (Corporate Stable Model) variant offers up to 36-month product lifecycle support and includes ASUS Control Center Express for IT management. Core hardware specifications are identical to the standard PRIME A620M-K [citation:2][citation:12].
Does the M.2 slot support SATA drives?
No. The M.2 slot supports PCIe 4.0 x4 mode only. It does not support SATA M.2 drives. Use a PCIe NVMe SSD for M.2 storage [citation:11].
Does this board have USB Type-C?
No. The PRIME A620M-K-CSM does not include USB Type-C ports. It has USB 3.2 Gen 1 Type-A ports and USB 2.0 ports only [citation:2][citation:11].
